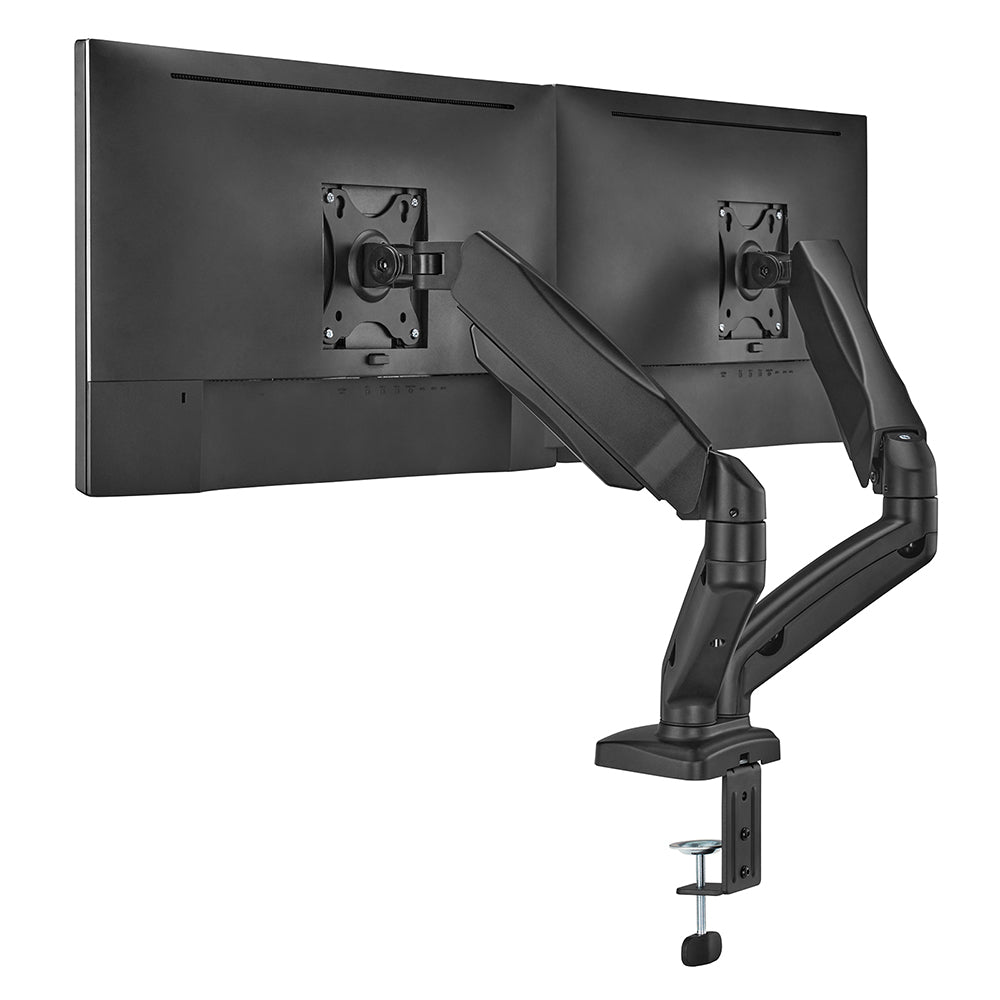

ACGAM MAS-1D Spring-Assisted Dual-Monitor Mount

ACGAM MAS-1D highlights

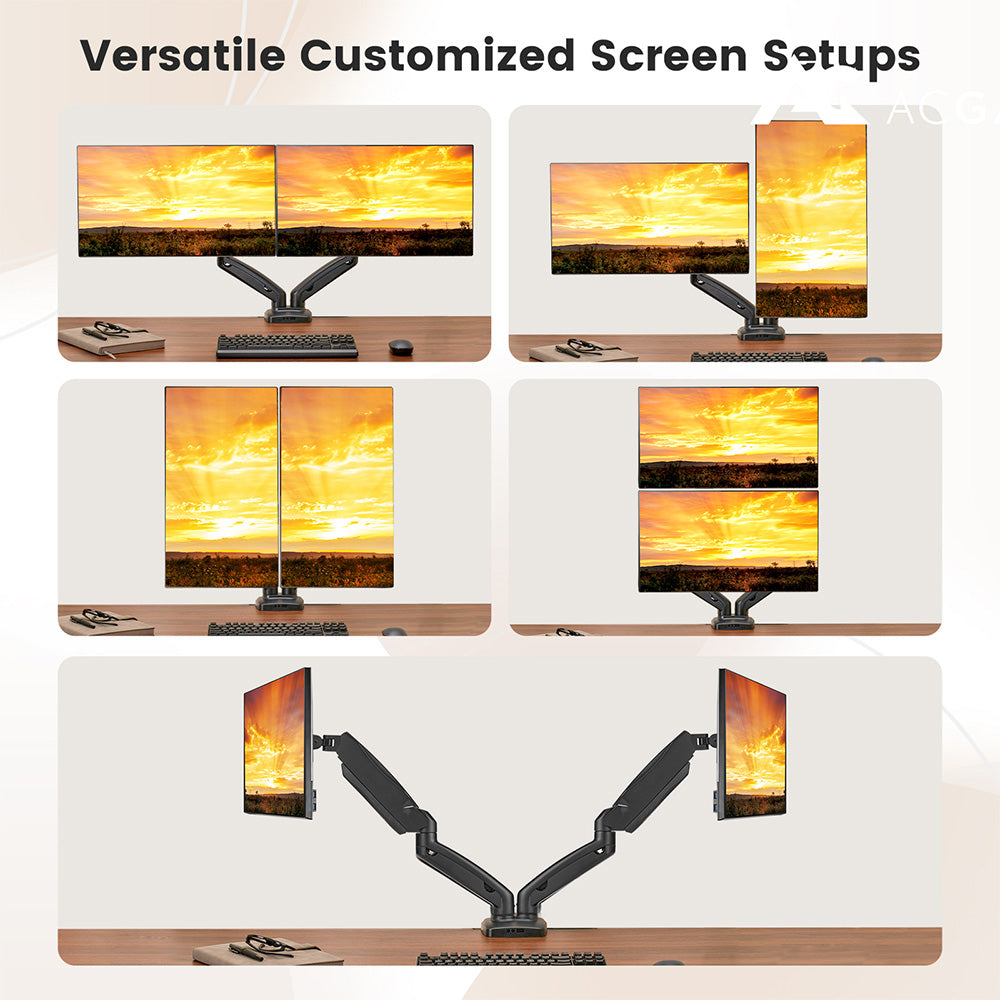

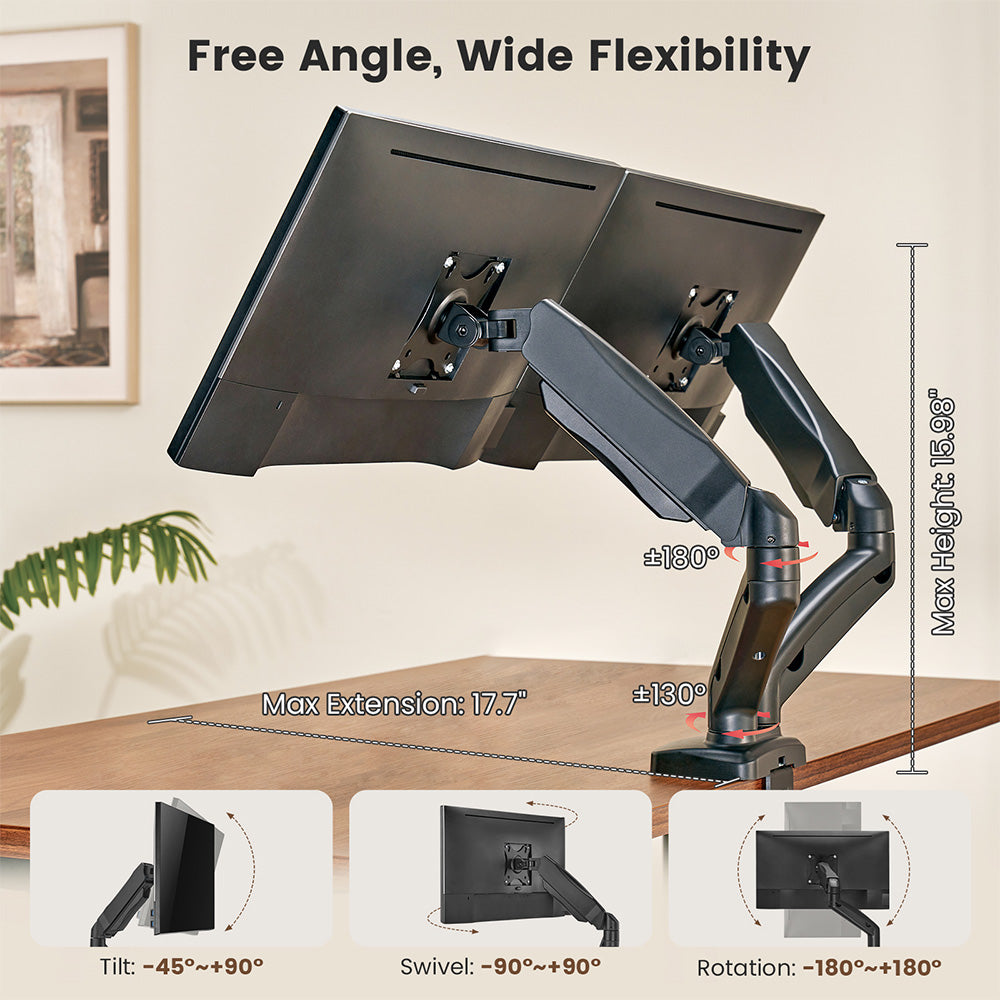

Wide Angle Flexibility

The ACGAM MAS-1D spring-assisted dual-monitor mount provides an impressive range of adjustments, including tilt angles from -45° to +90°, swivel angles from -90° to +90°, and screen rotation from -180° to +180°. Additionally, it allows a maximum height of 15.98” and a maximum extension of 17.7” per screen. This versatility enables you to customize your screen setup to meet your specific needs and enhances your workflow.

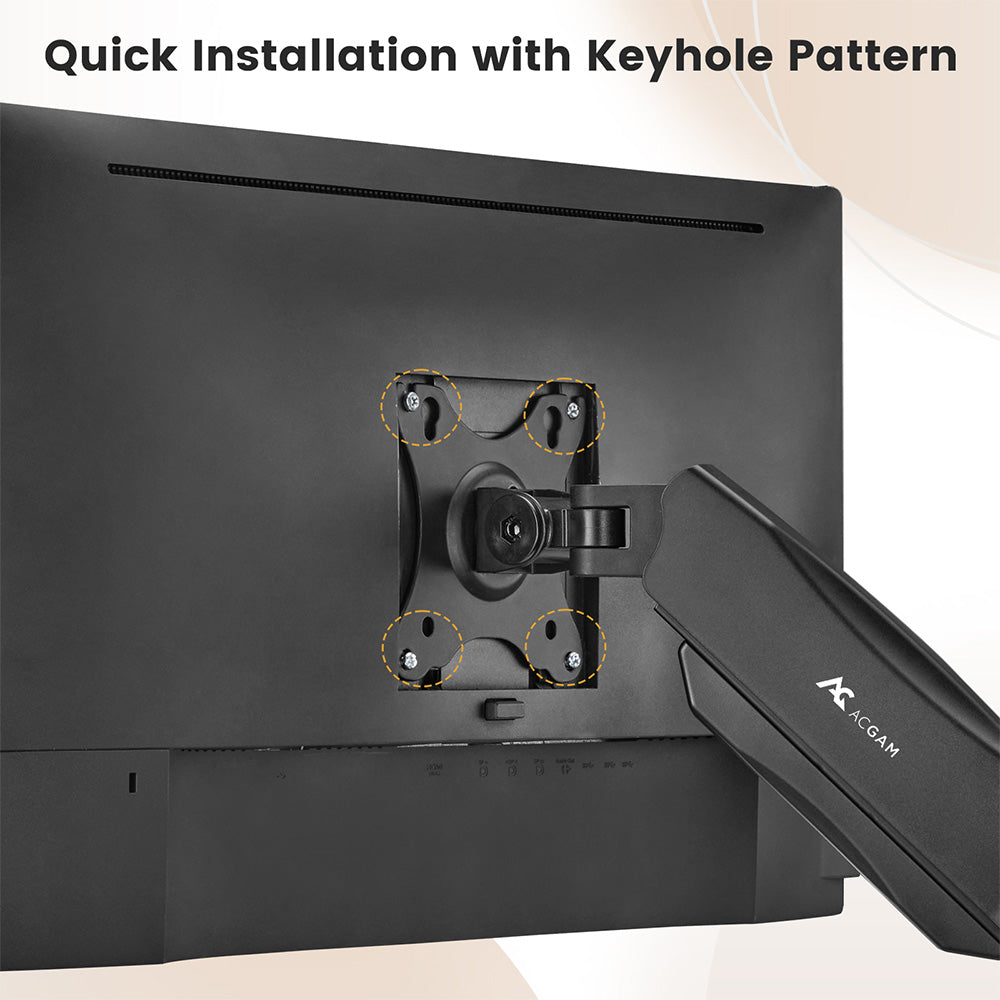

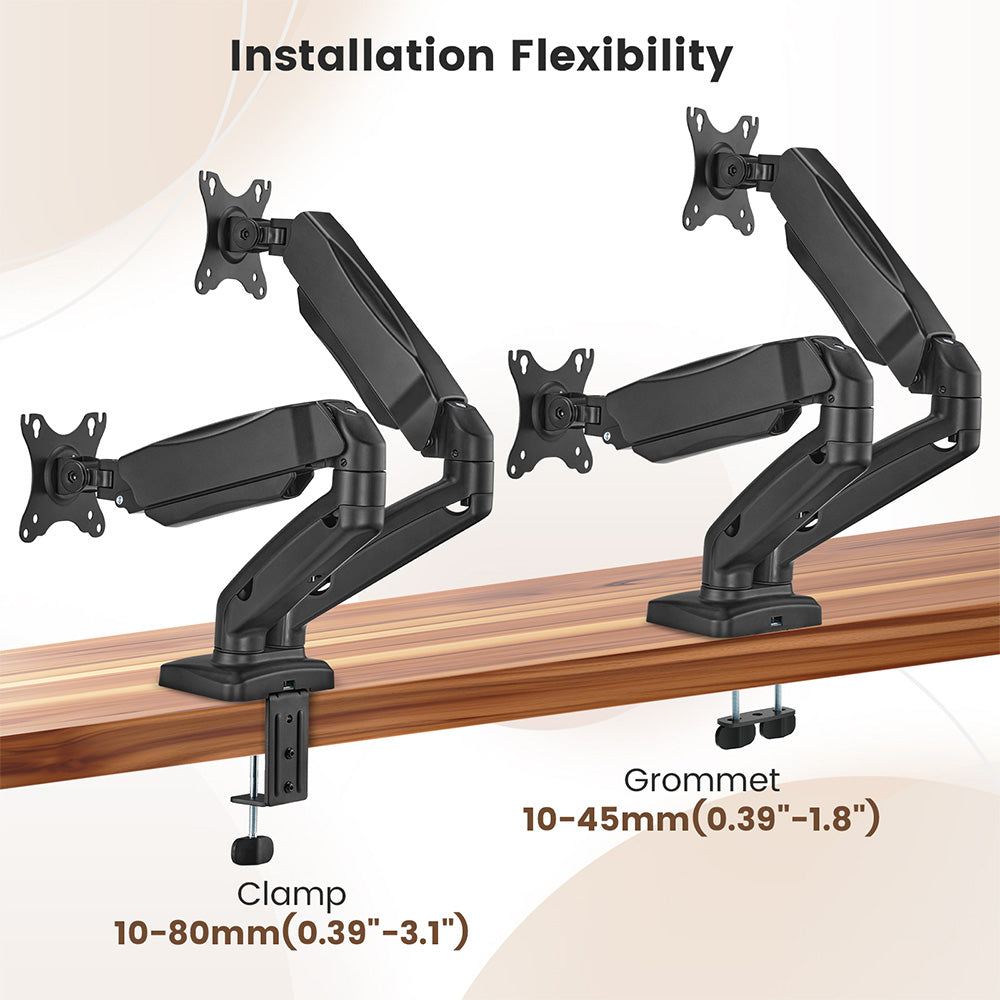

Easy and Flexible Installation

The VESA plate features keyhole slots, making installation and removal easy for users. The monitor arm includes a desk clamp and a grommet mount, suitable for any home or office environment. The desk clamp is adjustable for desktop thicknesses ranging from 10mm(0.39”) to 80mm(3.1”), while the grommet mount accommodates a thickness range of 10mm(0.39”) to 45mm(1.8”).

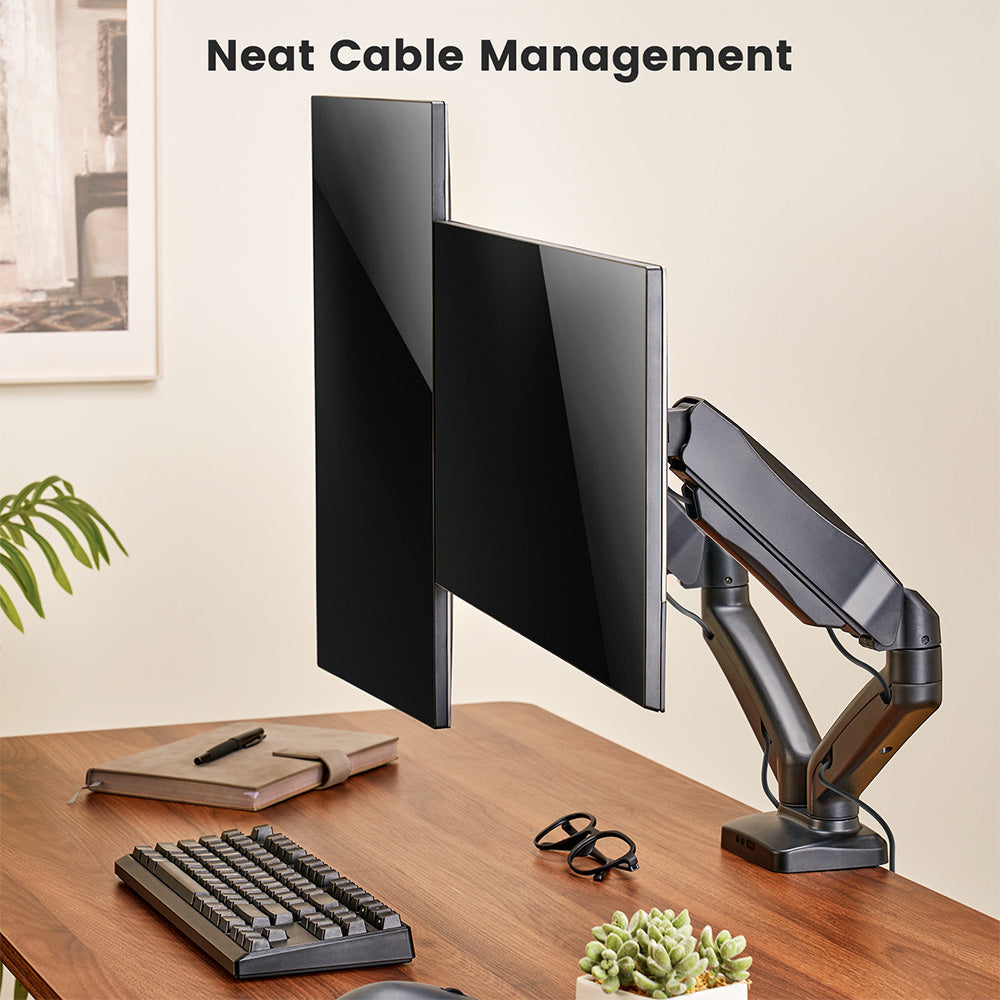

Organized and Neat Workspace & Maximum Comfort

With built-in cable management, the ACGAM VESA monitor mount helps maintain a cleaner and more organized workspace. This design creates additional space for accessories, enhancing convenience and focus to improve work efficiency. It also promotes comfort and ergonomics, reducing neck strain with its elevated design.

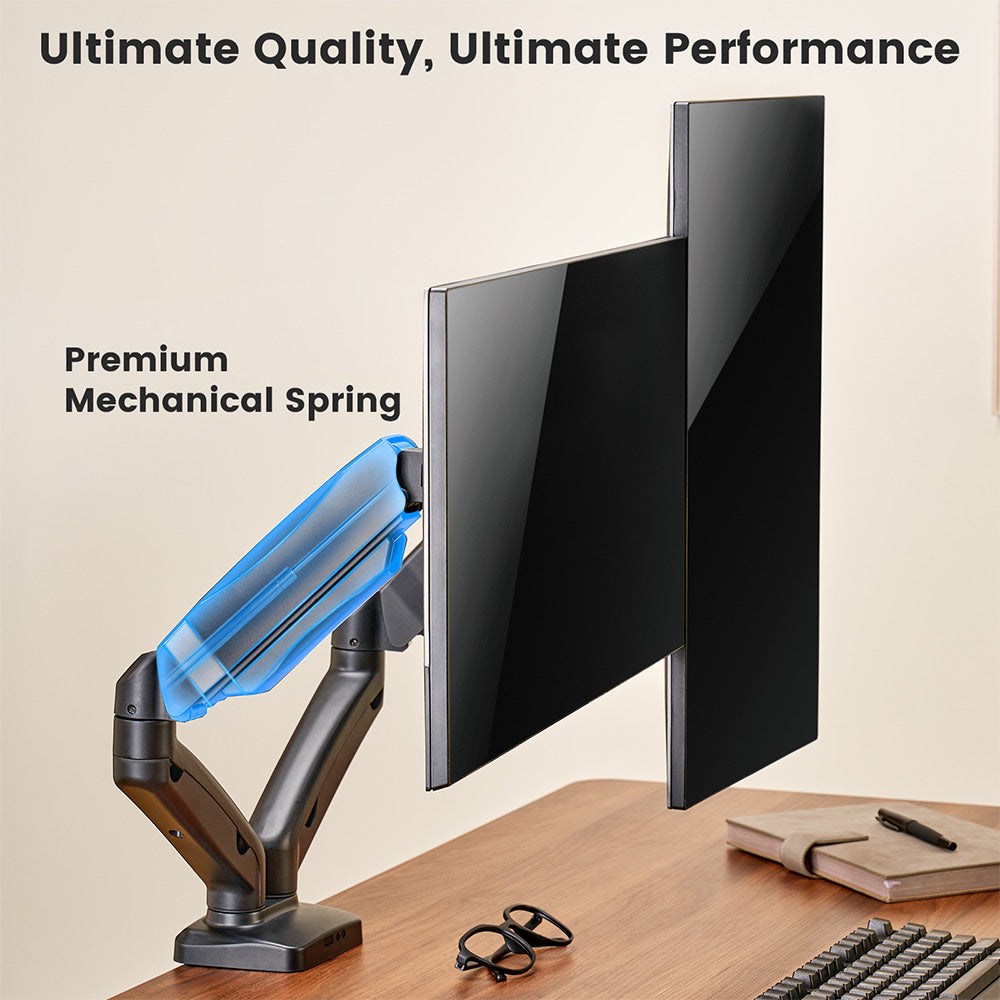

Premium Built-in Spring Tension Mechanism

The premium spring tension mechanism ensures proper weight balance and smooth monitor adjustments. This feature not only enhances usability but also guarantees the safety and stability of your monitors and mounts, preventing any potential accidents. With its robust construction, the monitor mount is built to last, ensuring it fulfills all your computing requirements efficiently and reliably.

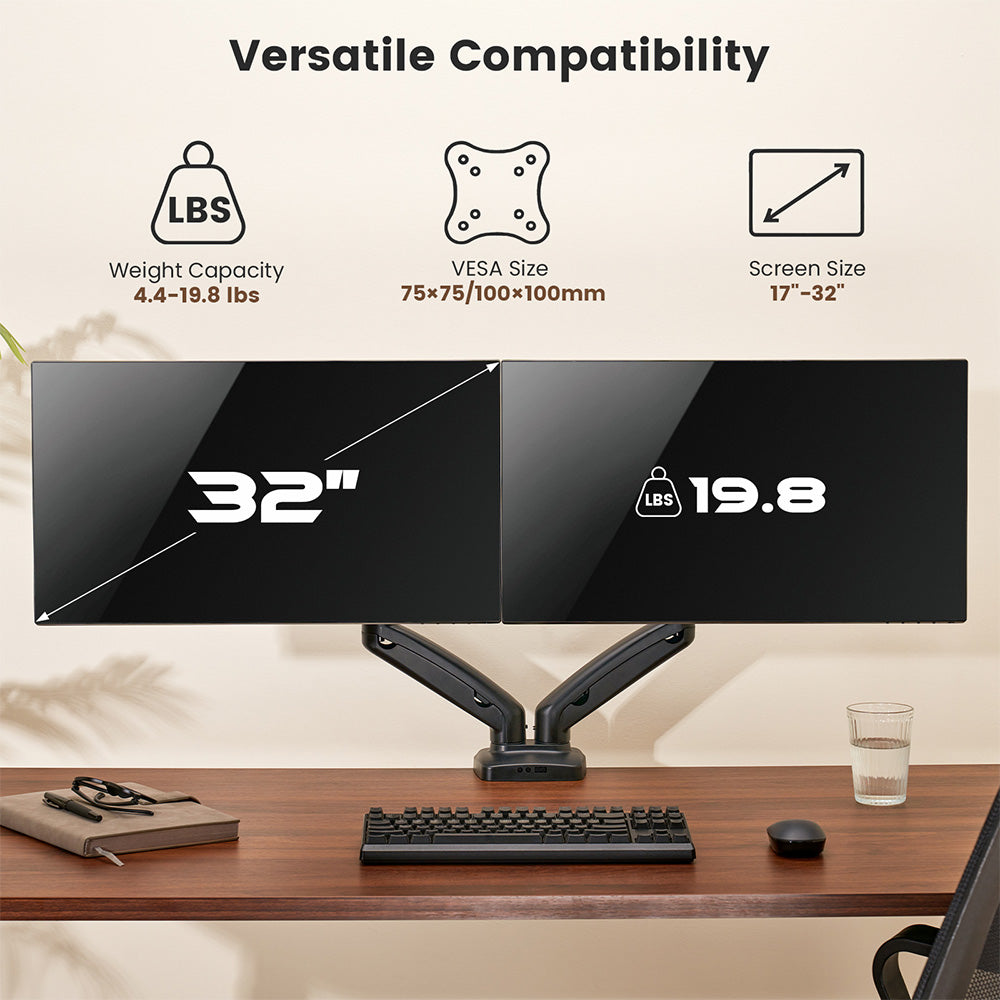

Versatile Compatibility

Compatible with 75x75 and 100x100mm VESA sizes, the ACGAM monitor arm can support monitors weighing between 4.4 and 19.8 lbs and screen sizes from 17” to 32”. This versatility caters to a range of user needs, whether for office work or gaming.

General
Brand	ACGAM
Type	Spring-Assisted Dual-Monitor Mount
Model	MAS-1D
Color	Matte Black
Specification
Material: Steel, Aluminum, Plastic
Compatible Monitor: Flat/Curved
Screen Size: 17”-32”
Weight Capacity (Per Screen): 2-9kg(4.4-19.8lbs)
VESA Size: 75x75/100x100mm
Tilt Range: -45°~+90°
Swivel Range: -90°~+90°
Screen Rotation: -180°~+180°
Max Extension (Per Screen): 450mm(17.7”)
Max Height (Per Screen): 406mm(15.98”)
Installation: Clamp, Grommet
Thickness range of the mounted desktop: Clamp:10-80mm/Grommet:10-45mm(Clamp: 0.39”-3.1”/Grommet: 0.39”-1.8”)
Quick Release VESA Plate: No
Cable Management: Yes
Weight & Size
Product Weight	4kg
Package Weight	5kg
Product Size(L x W x H)	937×111×585mm/36.9×4.4×23in
Package Size(L x W x H)	410×240×112mm/16.9×9.4×4.4in
Package Contents
2 x Upper Arm
2 x Lower Arm
1 x Base
1 x VESA Plate
1 x Clamp
1 x L-Bracket
1 x Grommet Plate
1 x Thumbscrew Knob
3 x Protective Pad
2 x M3.5*10 Screw
2 x M6*8 Screw
2 x M6*10 Screw
2 x M8*30 Screw
1 x 4mm Allen Key
1 x 5mm Allen Key
8 x M4*12 Screw
8 x M5*12 Screw
8 x D5 Washer
1 x User Manual
