CIGMAN CM-S01 Laser Level

CIGMAN CM-S01 highlights

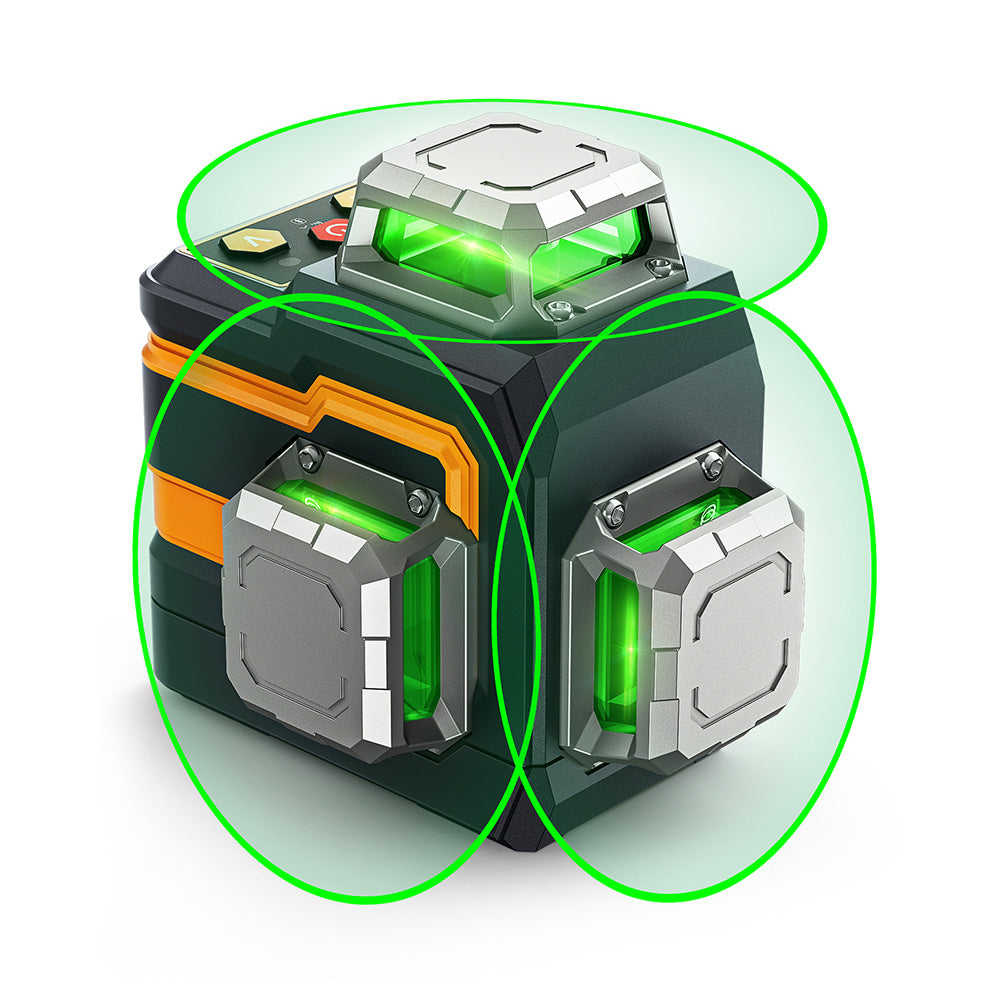

3x360° Full Layout

This CM-S01 laser tool provides one 360° horizontal plane laser and two 360° vertical plane lasers, covering the walls, ceiling, and floor of the entire room around the workspace, effectively helping to enhance your work. Pulse mode extends the laser range to 164 feet. Safety level-Class II, <1mW power output.

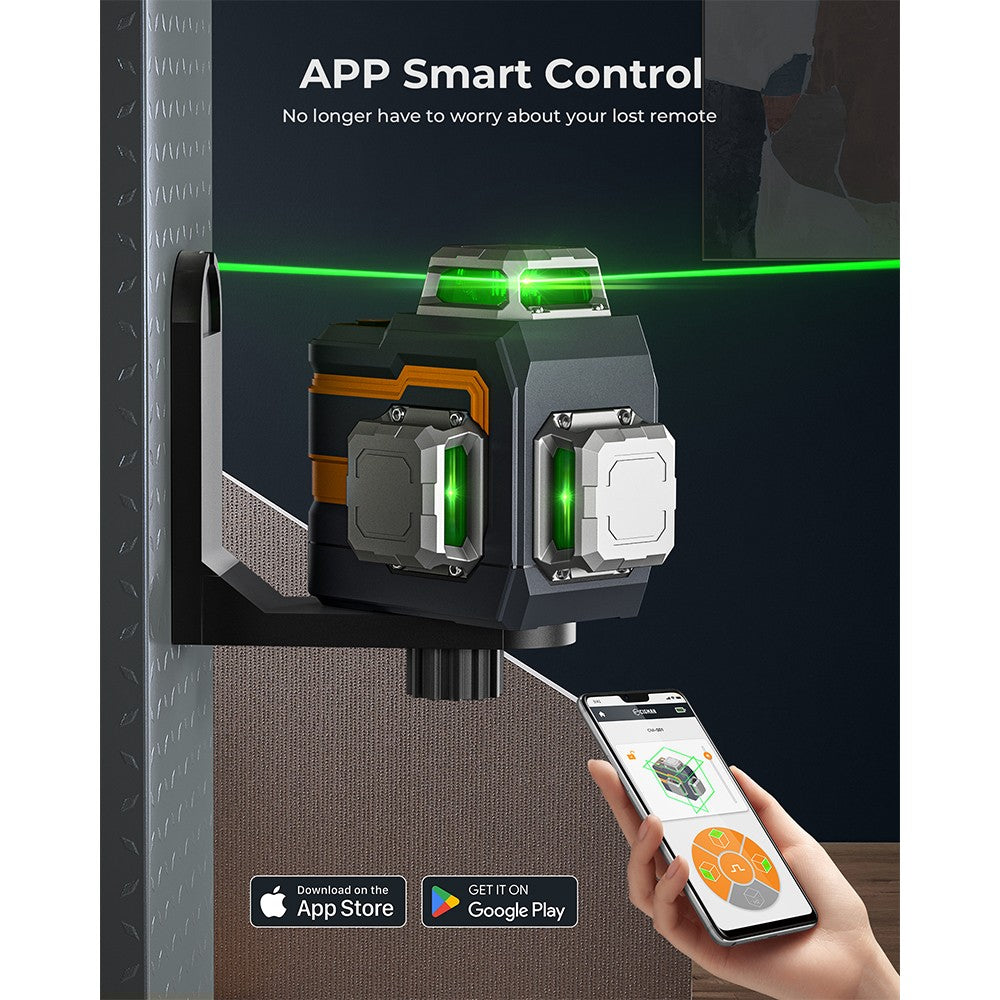

APP Connection & Bluetooth Technology

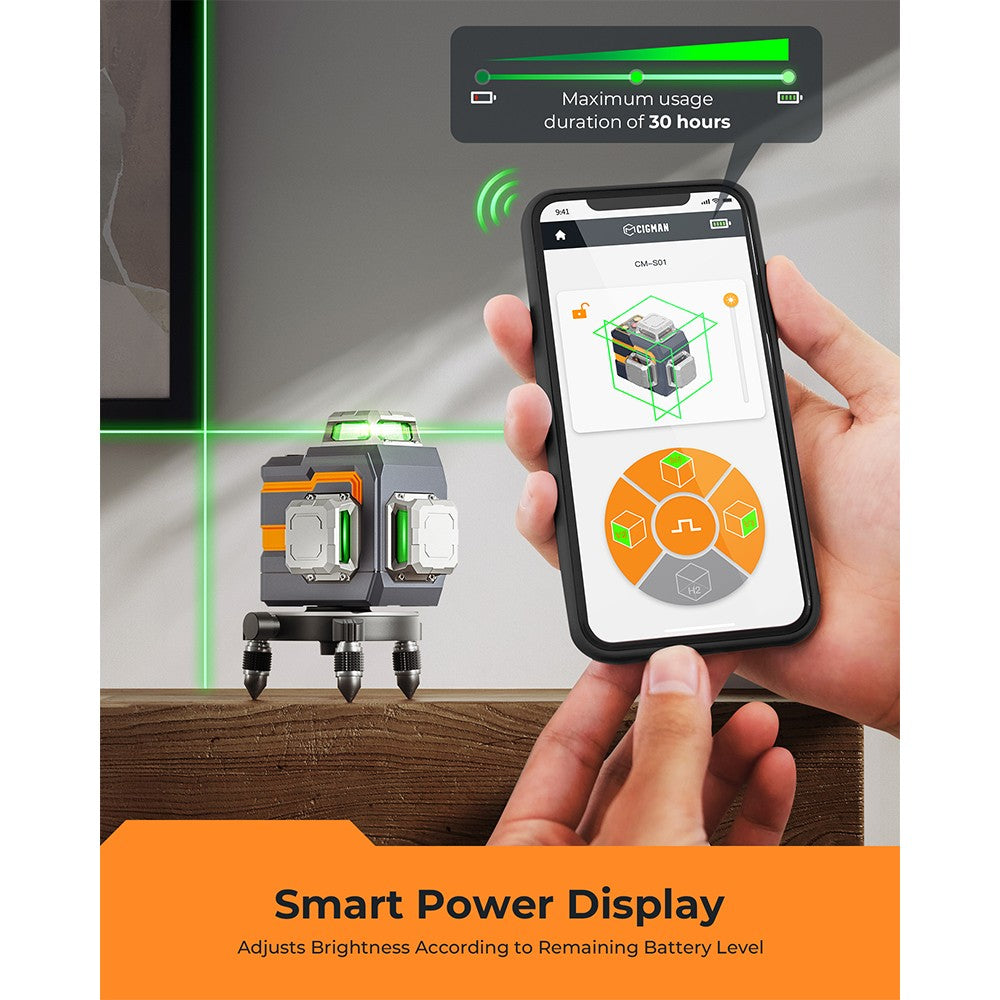

This laser level uses Bluetooth technology. After connecting to the CIGMAN APP, you can easily control the laser settings from the other side of the room. On the application page, you can choose to orient the laser vertically or horizontally or turn pulse mode on/off; reduce your walking, and make your work more convenient.

Brighter Green Laser & 4 Brightness Adjustment

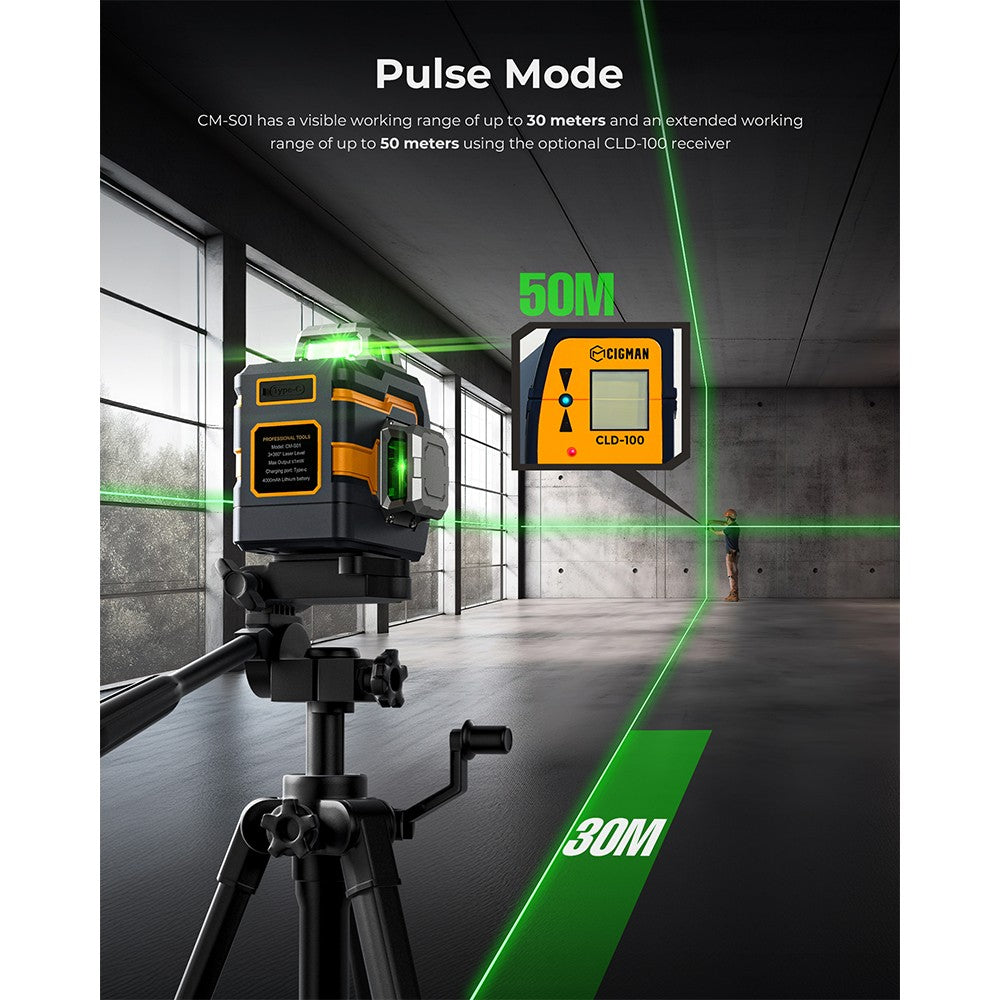

The green laser, twice as bright as red under equal power, With an accuracy of ±1/9 inch at 33 feet, and an operating range of up to 98.4 feet, ensures clear visibility outdoors. This CM-S01 laser level has 4 levels of brightness adjustment, which can adjust different brightness according to your needs. Press the pulse mode button to enter external pulse mode, which extends the laser range to 164 feet.

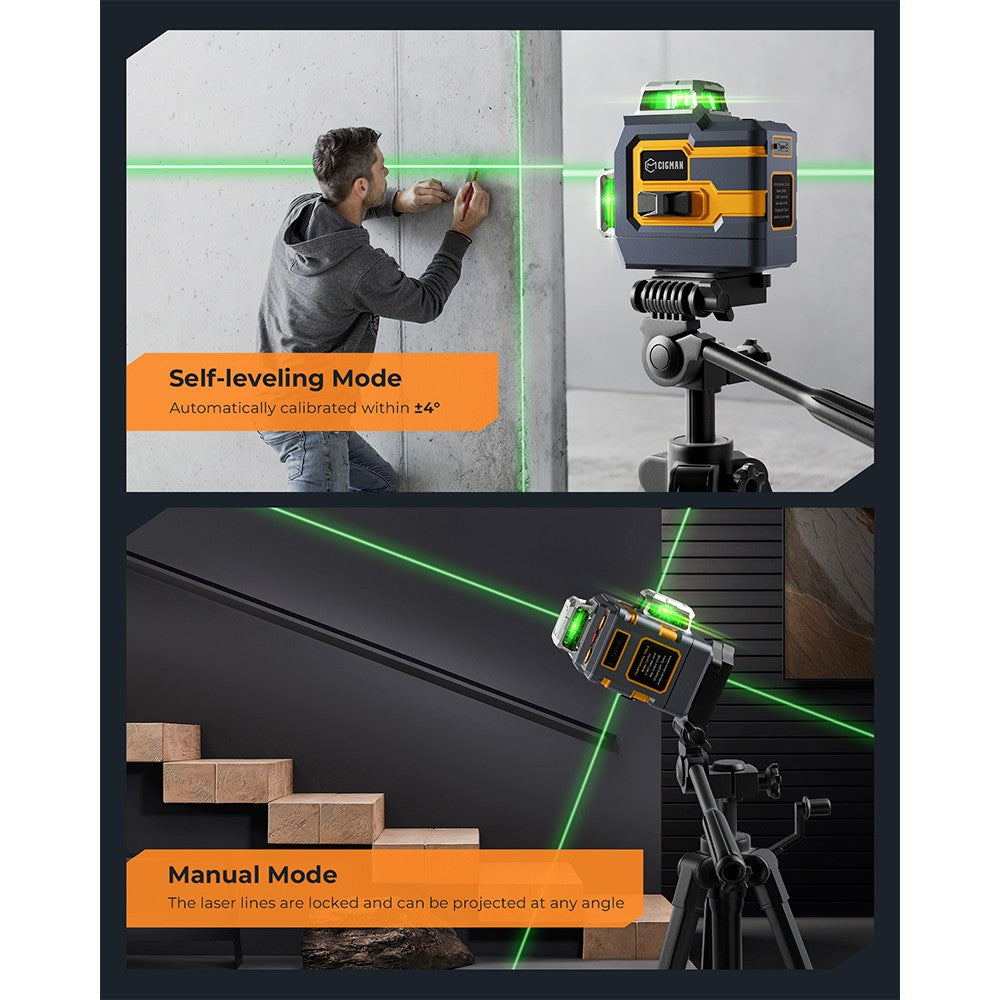

Self-Leveling & Manual Mode

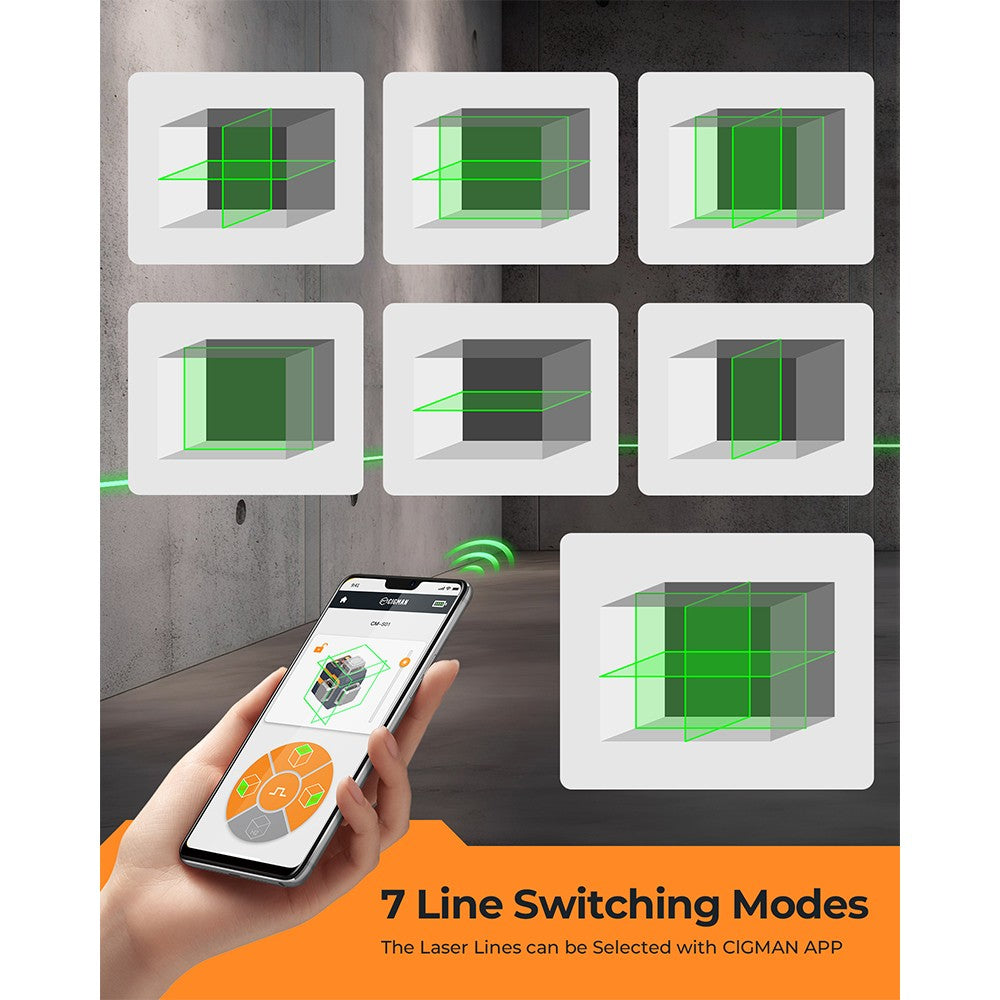

Unlock the pendulum, the line laser will self-level within 4°(otherwise the laser will keep flashing). Lock the pendulum to switch to the manual mode, and meet your alignment needs from different angles. The three 360° laser planes can be individually selected via separate H and V buttons on the keyboard or APP.

Extended Usage With Rechargeable Feature

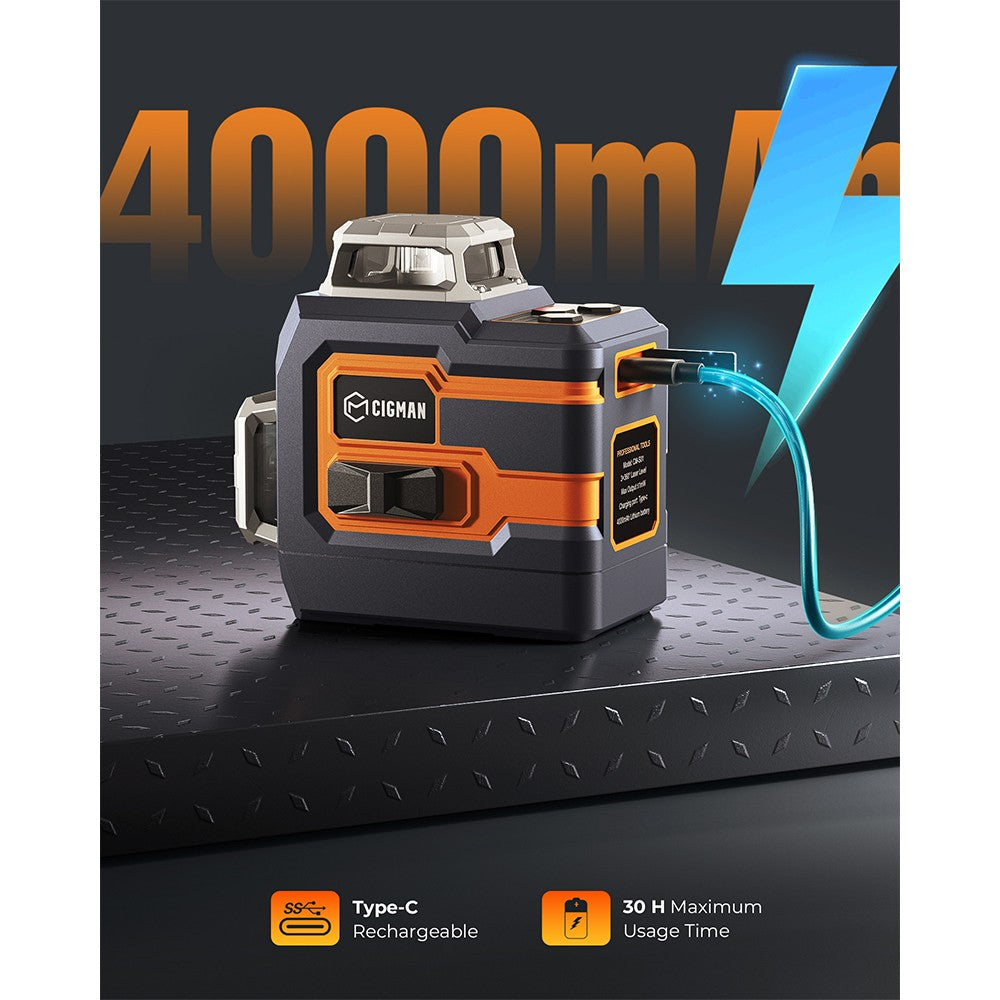

The integrated 4000mA rechargeable battery enables the product to operate continuously for up to 12 hours at maximum light intensity (or up to 56 hours at minimum intensity) on a full charge. The convenient TYPE-C interface ensures rapid recharging.

General
Brand	CIGMAN
Type	Laser Level
Model	CM-S01
Specification
Laser Class: Class 2,<1mW
Laser Wavelength: Green beam is 505~550nm
Leveling Accuracy: +1.5mm/5m
Leveling/Compensation Range: 4°± 1°
Working Distance (Line): 30m
Operating Time:
First Gear: 6Hours
Second Gear: 9Hours
Third Gear: 15Hours
Forth Gear: 30 Hours
Power Source: 3.7V 4000mAh / Lithium Battery
IP Rating: IP54
Operation Temperature Range: -10℃~+50℃
Storage Temperature Range: -25℃~+70℃
Weight & Size
Product Weight	1.28kg
Package Weight	1.30kg
Package Size(L x W x H)	22x19x12cm

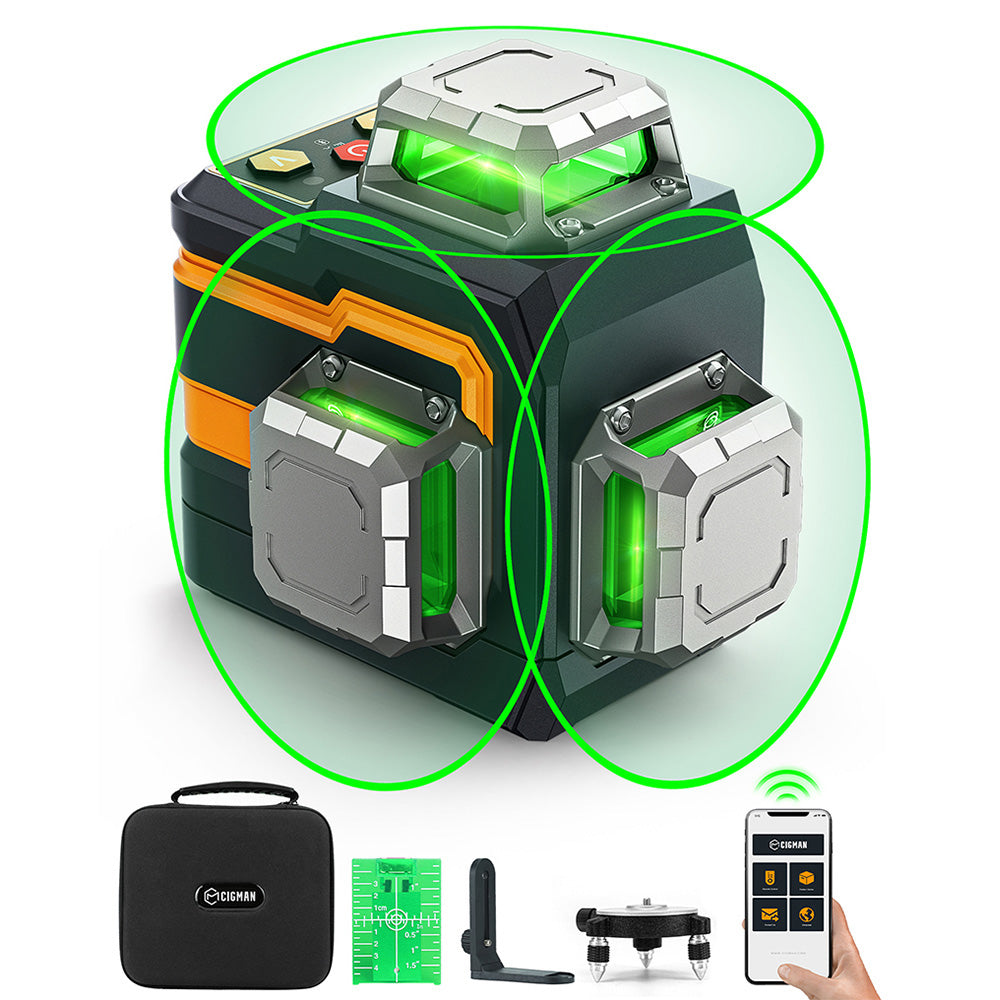

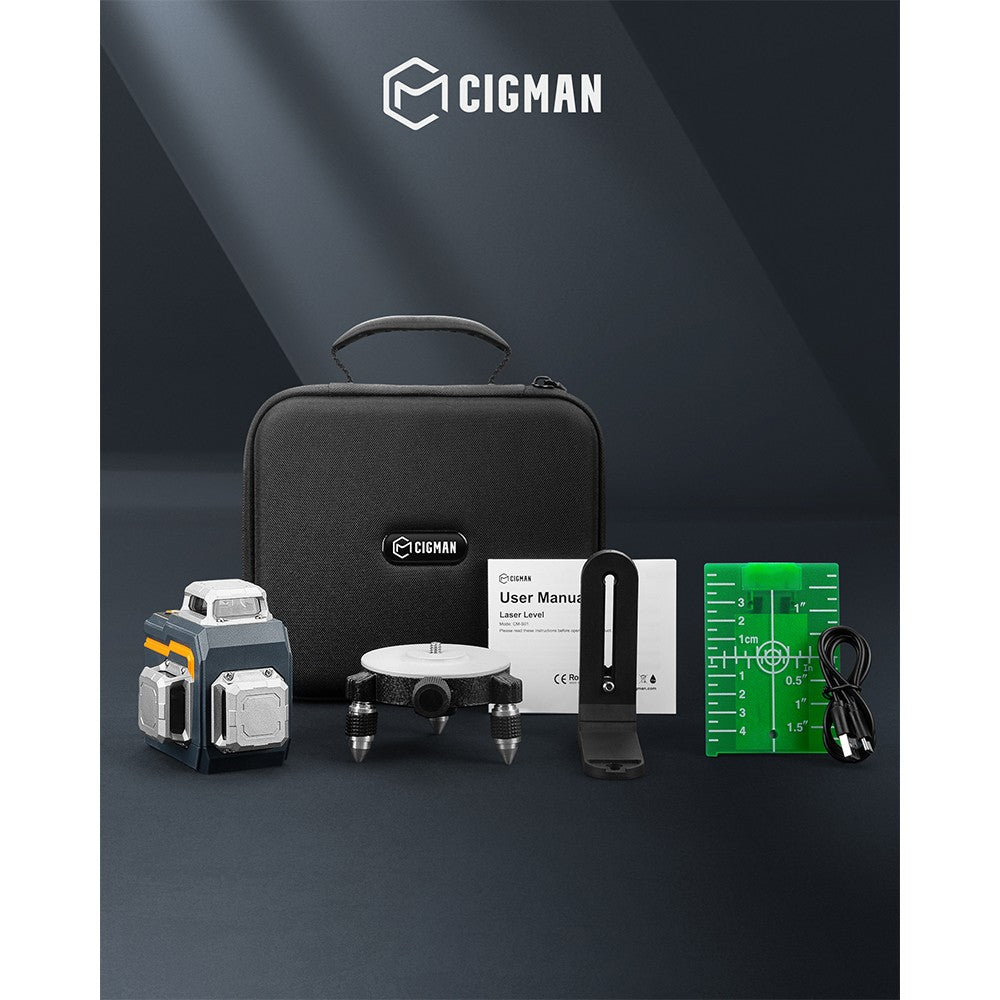

Package Contents
1 x CM-S01 Laser Level Tool
1 x Portable Bag
1 x Type-C Cable
1 x User Manual
1 x Laser Target Plate

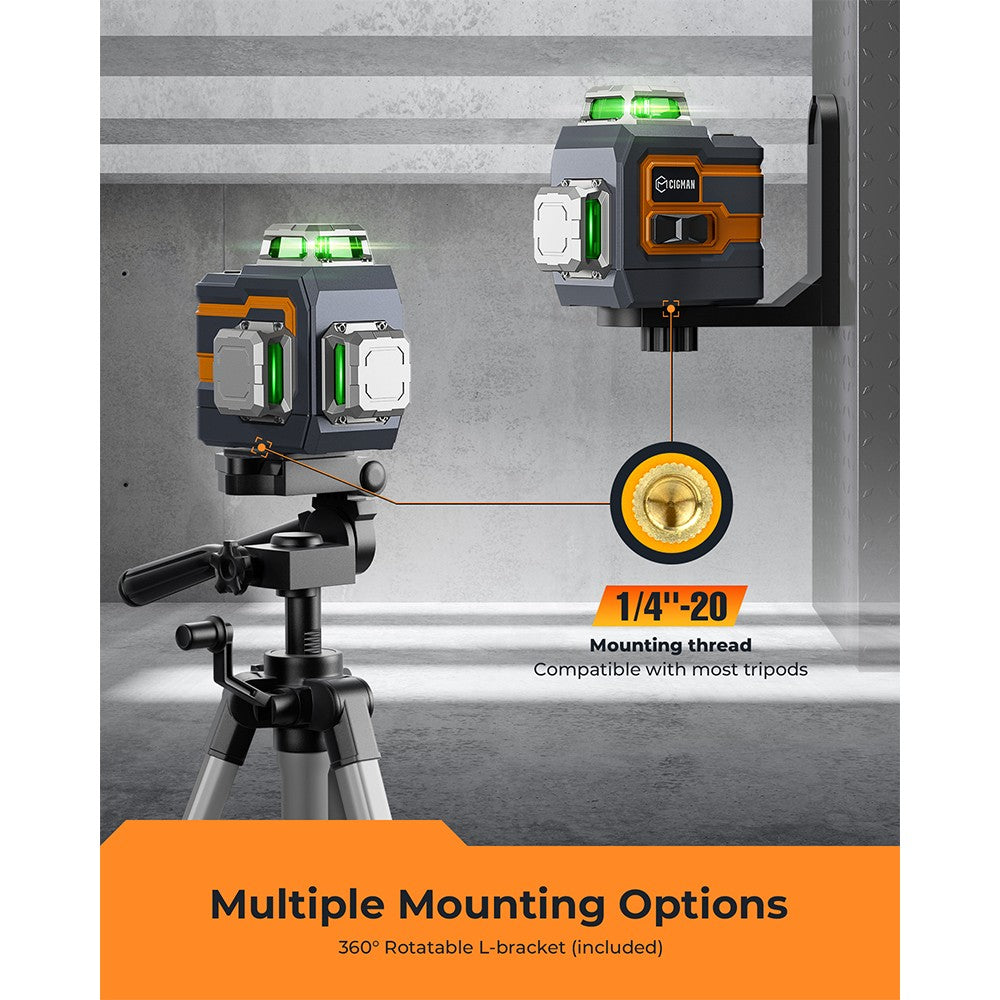

1 x Mini Tripod Base
1 x Magnetic "L" Base
