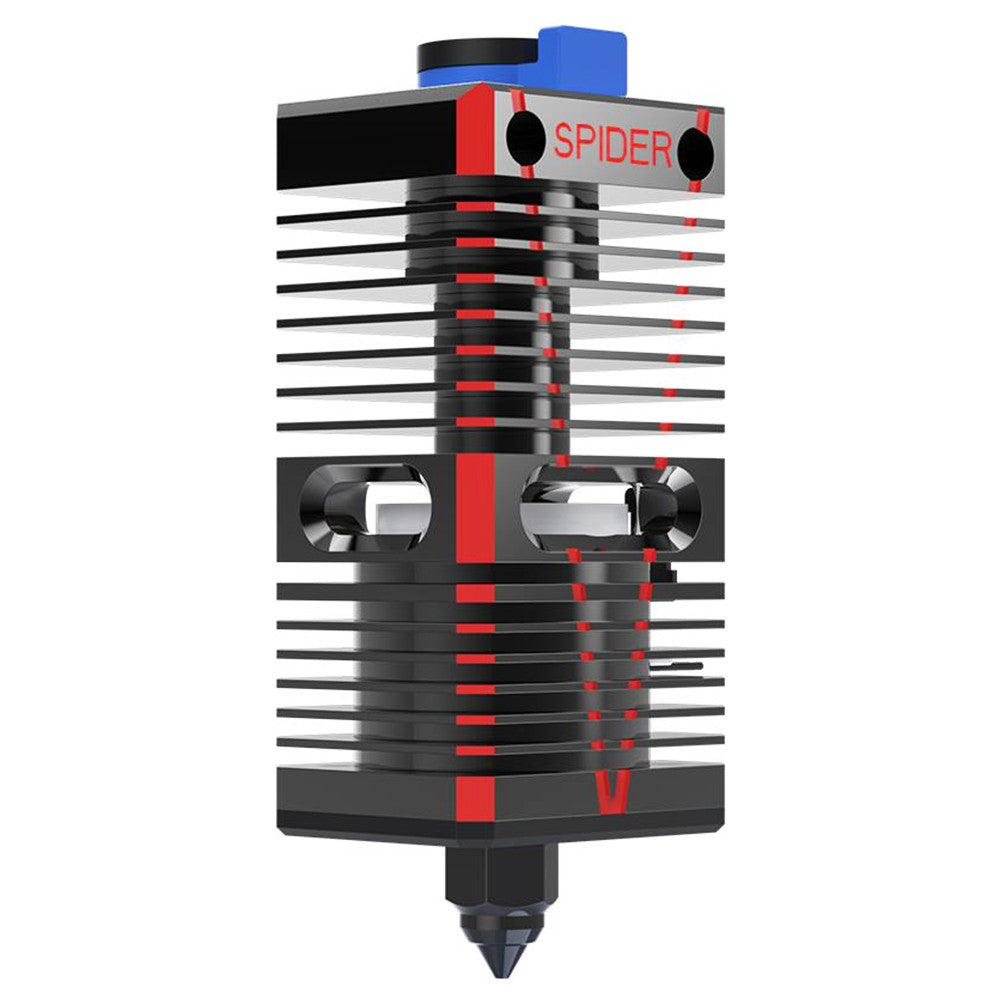

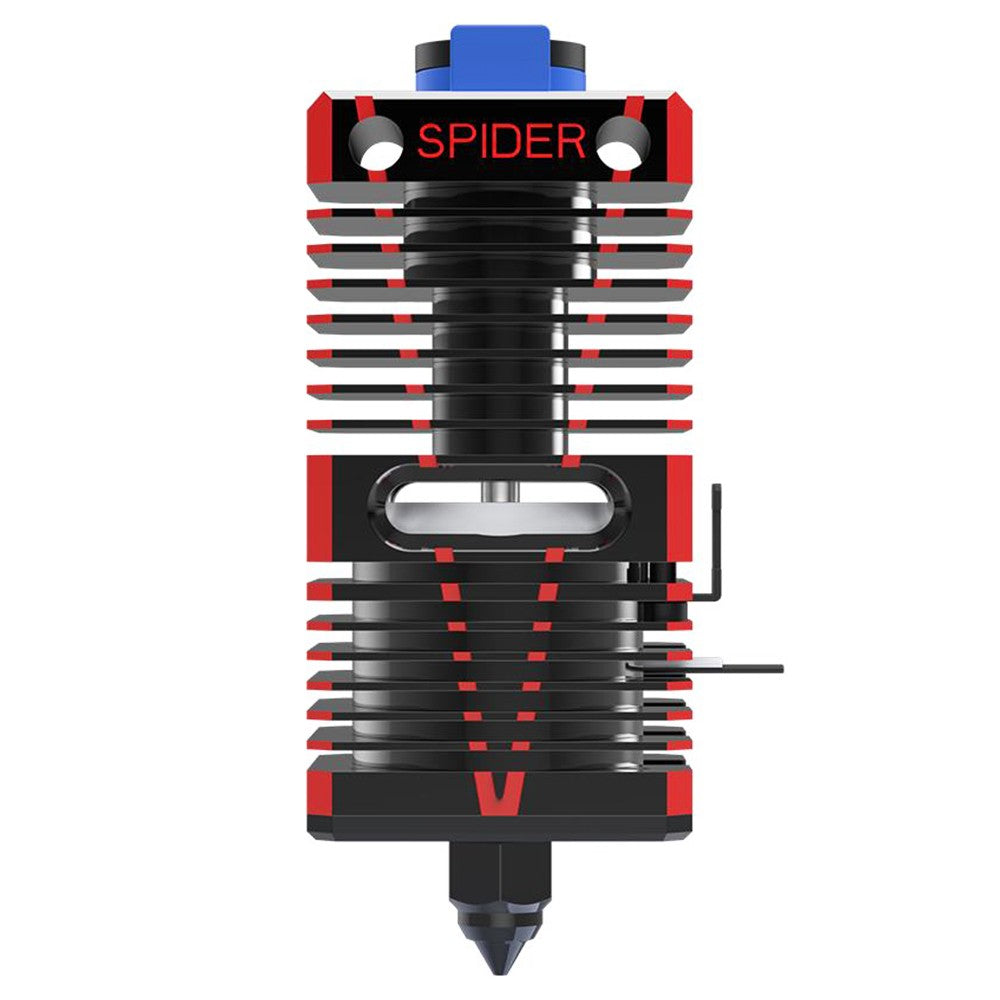

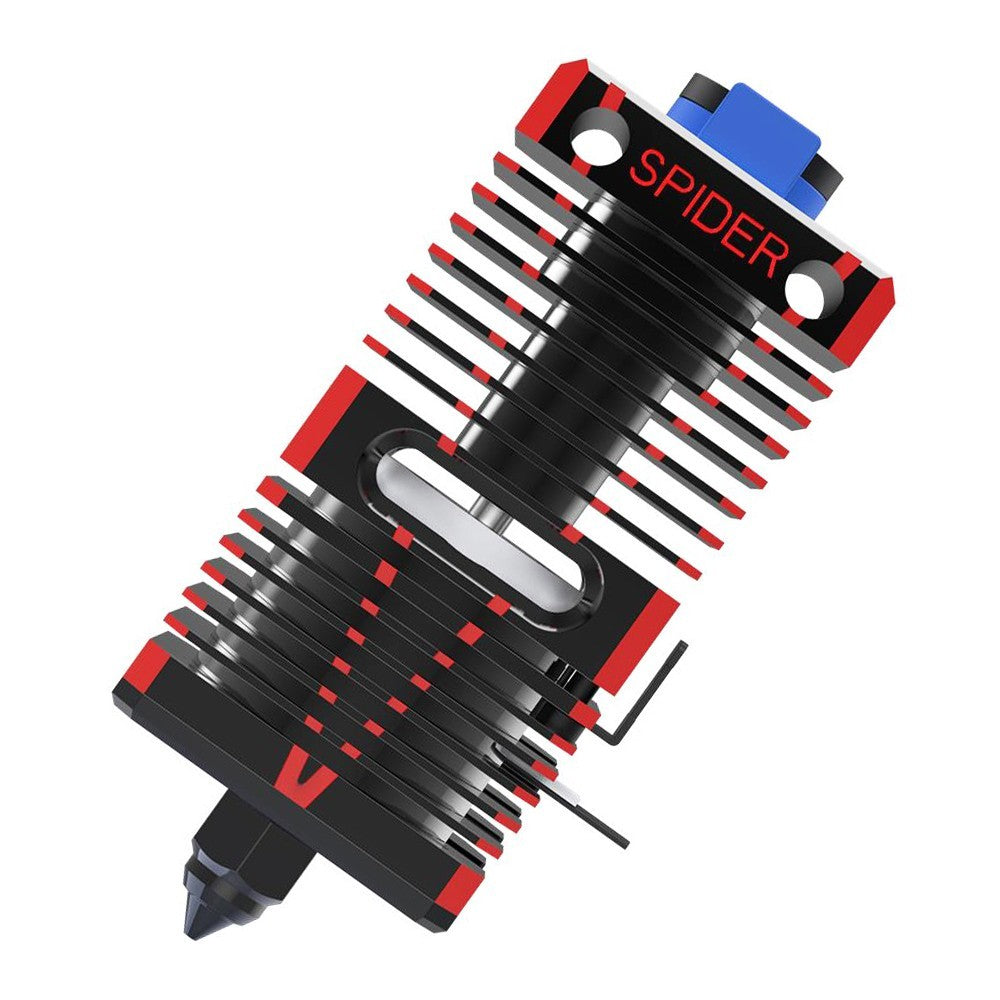

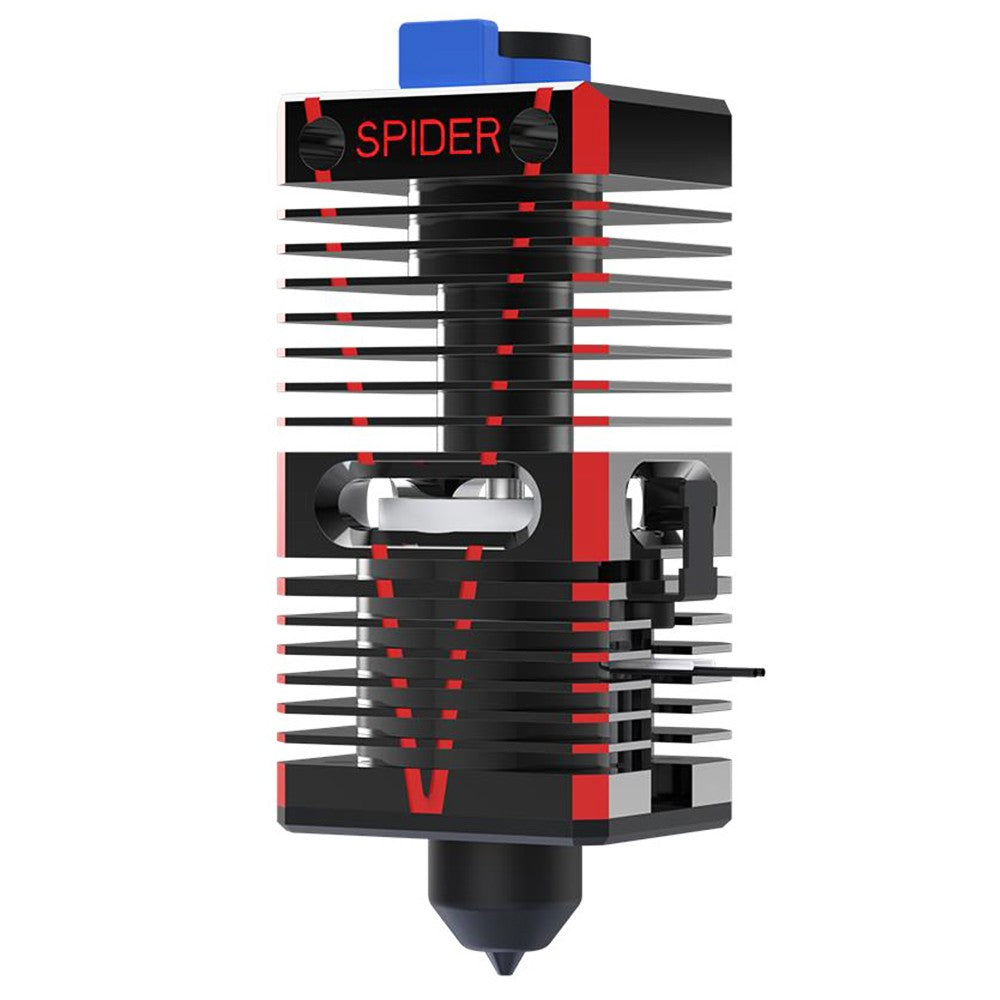

CREALITY Spider Speedy Hotend

CREALITY Spider Speedy highlights

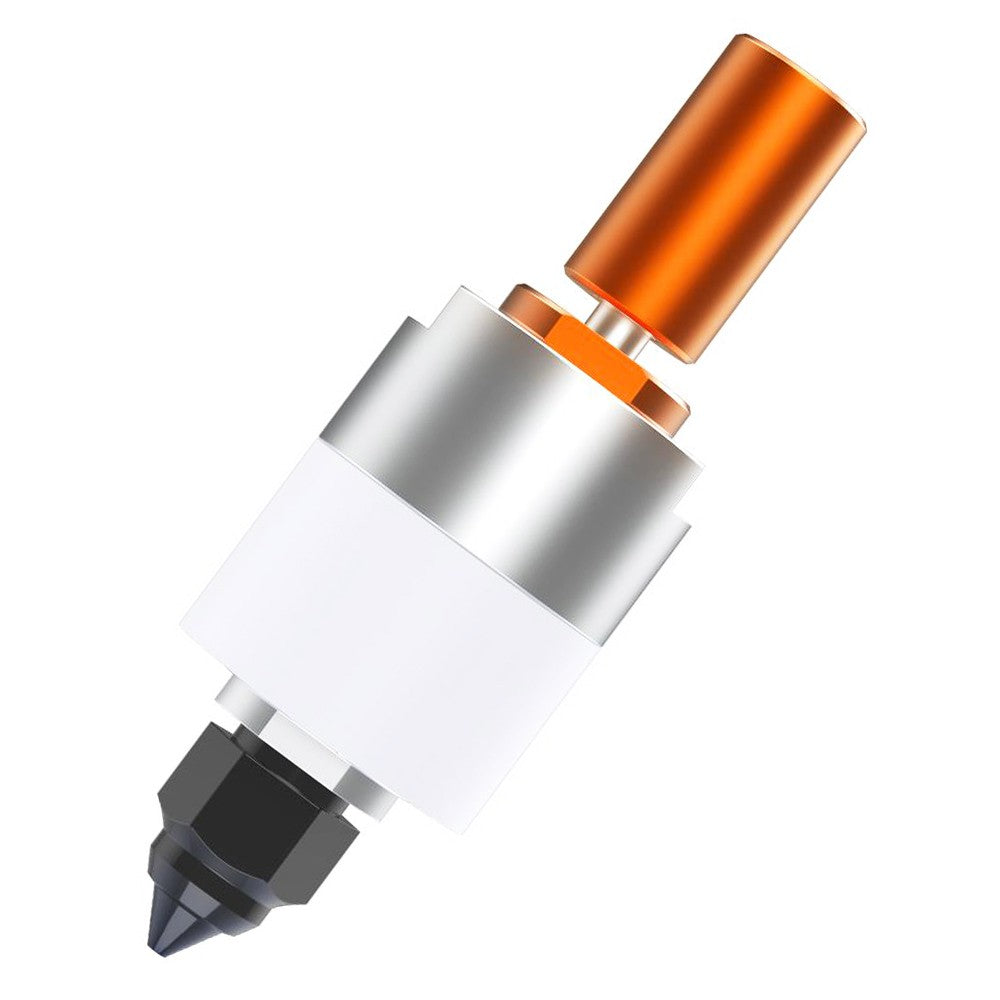

High-Temperature Resistance Up to 300 Celsius
The heat break is made of titanium and copper alloys which support high-temperature printing at 300 Celsius and is compatible with more filaments. Also, the 0.2mm thin wall thickness for excellent thermal insulation.

High Thermal Conductivity
The cylindrical ceramic heating ring improves heating efficiency and reduces heat loss. With uniform heating and fast heat transfer, it only takes 40 seconds to heat from room temperature to 200 Celsius.

Support 400mm/s High-speed Printing
The overall hot melt section is increased by 30%(The hot melt section length is 27.8mm), and the high-temperature heat-resistant insulation sheet is added to maintain the temperature of the melting section, supporting 400mm/s high-speed printing.
The titanium alloy base is used to reduce the thermal conductivity by 30%, which can reduce the transfer of heat from the heating section to the heat dissipation section and ensure smooth feeding.

Lightweight Design, Easy to Install
The modular standard interface design makes it ready to use without printing the fan shroud. Lightweight design for easy installation and maintenance.

Wide Compatibility
Compatible with Creality Ender-3 Pro/Ender-3/Ender-3 V2/Ender-5/Ender-5 Pro/Ender-5 Plus/Ender-3s/Ender-6/Ender-4/Ender-3 Max/Ender-2 Pro/Ender-2/CR-10S/CR-10/CR-10 S5/CR-10 S4/CR-10Mini/CR-20/CR-20 Pro 3D printers.

General
Brand	Creality
Type	Hotend
Model	Spider Speedy
Color	Black
Specification
Nozzle	Hardened steel nozzle 0.4mm*1; copper alloy nozzle 0.8mm*1
Compatible with Filament	PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI, etc.
Support Filament Diameter	1.75±0.05mm
Retraction Distance	Max 5mm (can be adjusted according to the printing situation)
Maximum Flow Rate	32mm3/s
Weight & Size
Package Weight	150g
Package Size(L x W x H)	8.65×5.3×4.75cm
Package Contents
1 x Hotend
1 x User Manual
