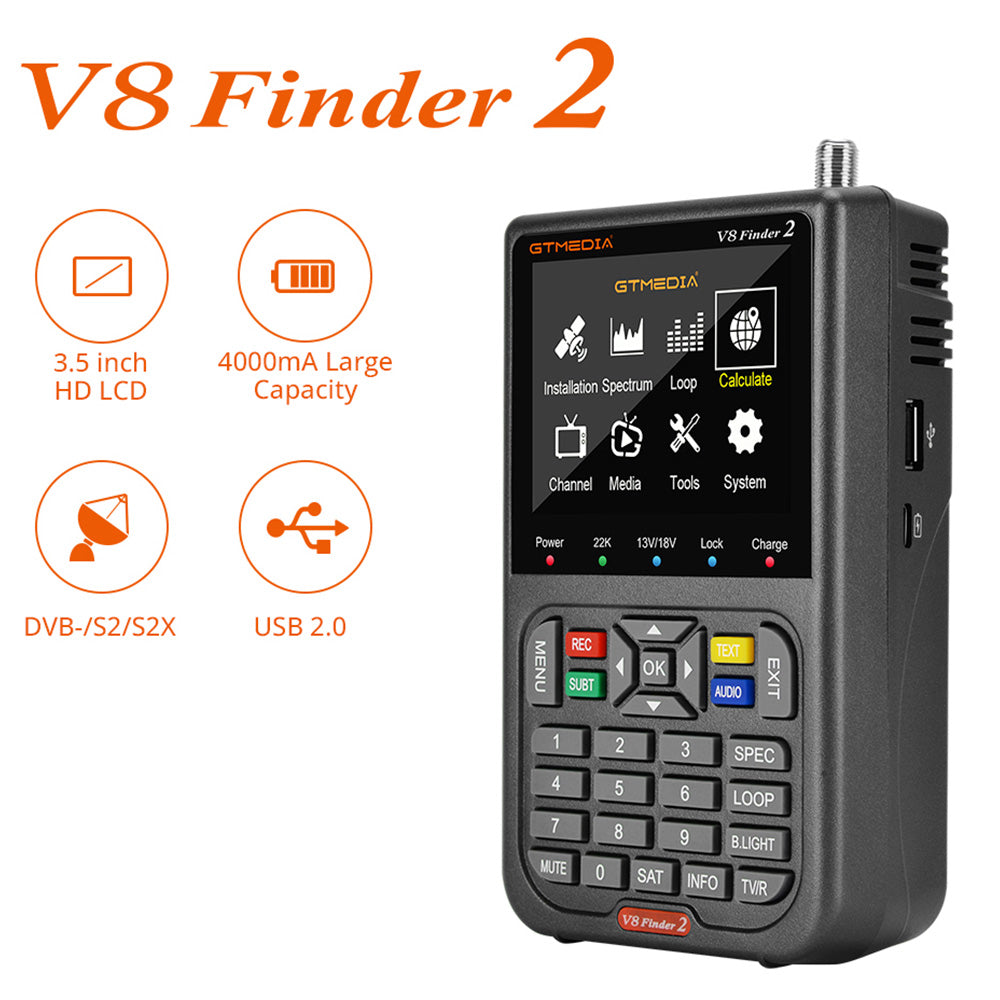

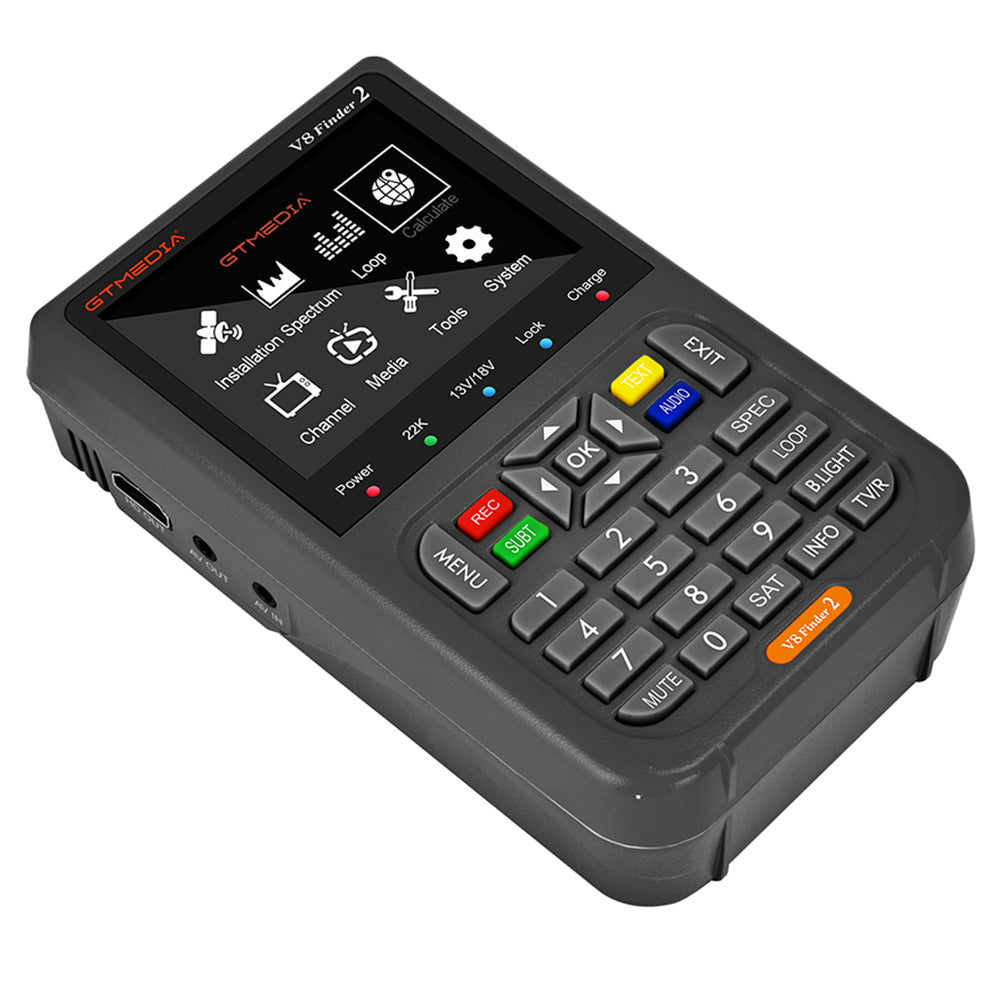

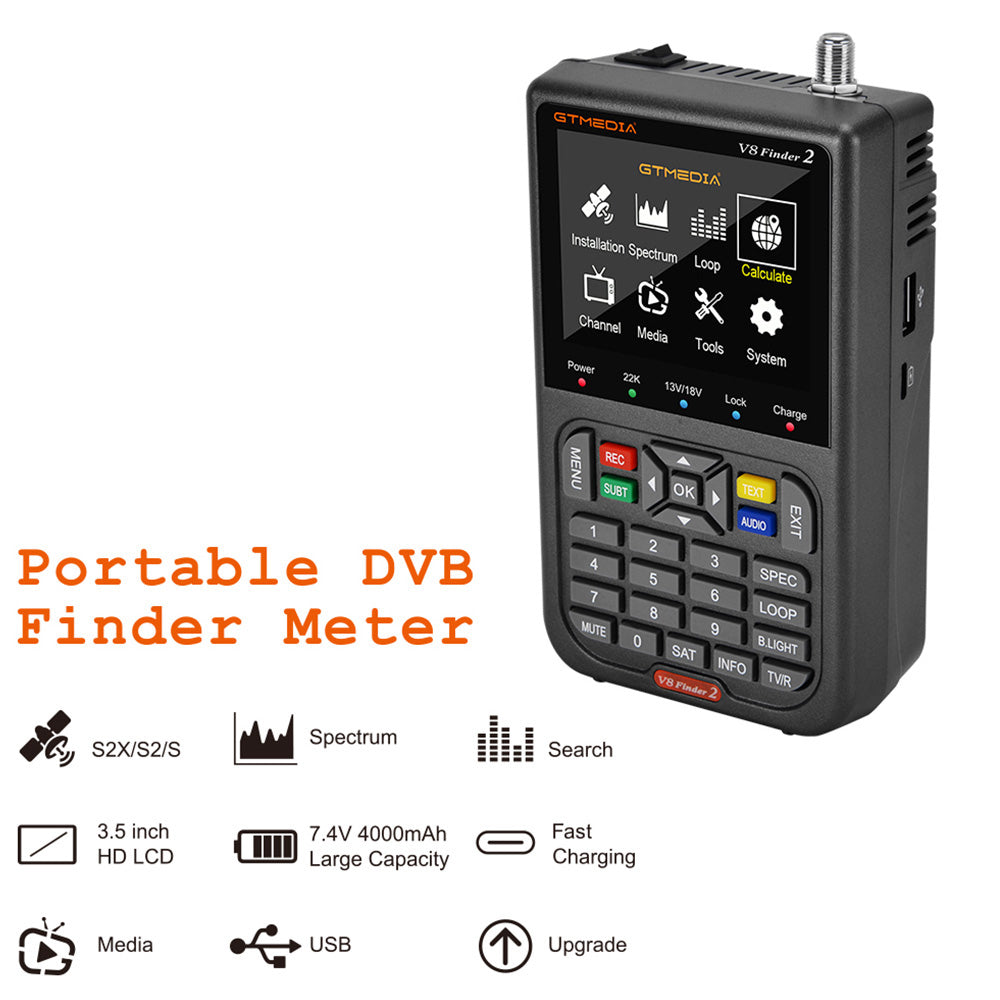

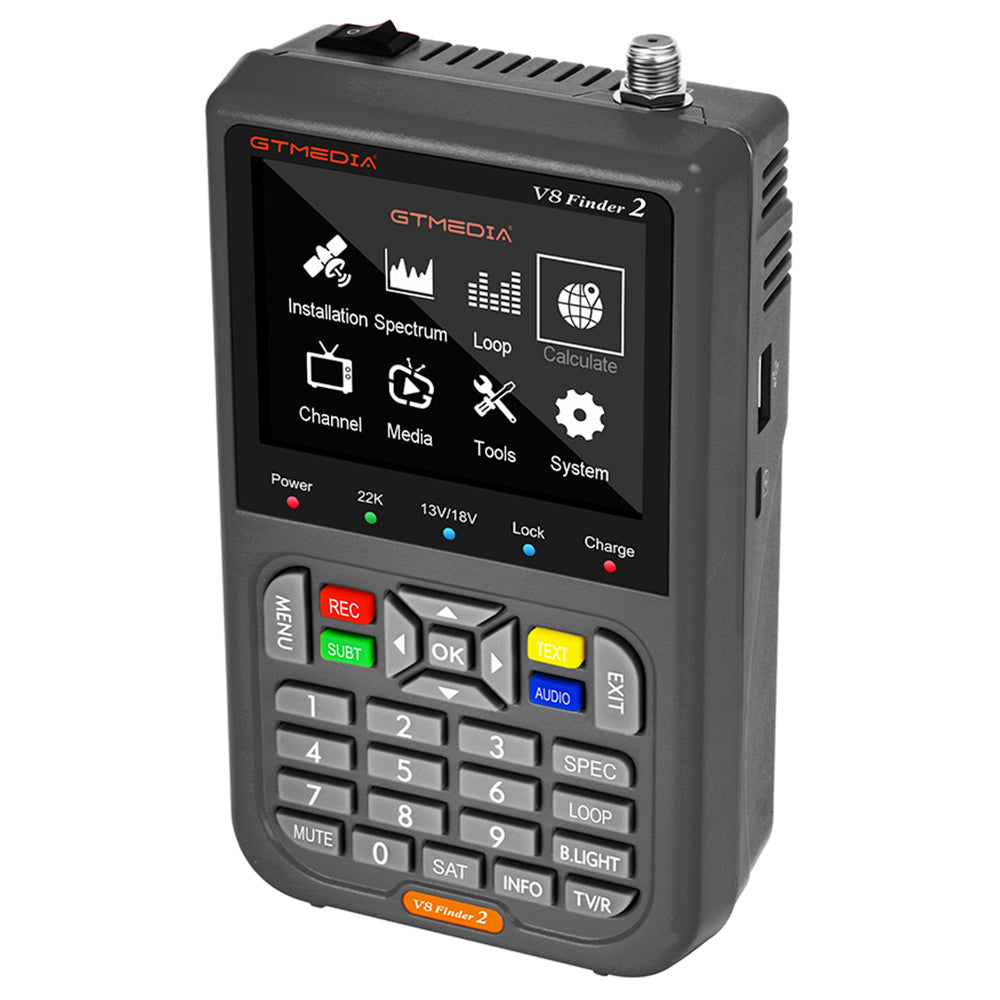

GTMEDIA V8 Finder 2 Satellite Signal Finder

GTMEDIA V8 Finder 2 highlights

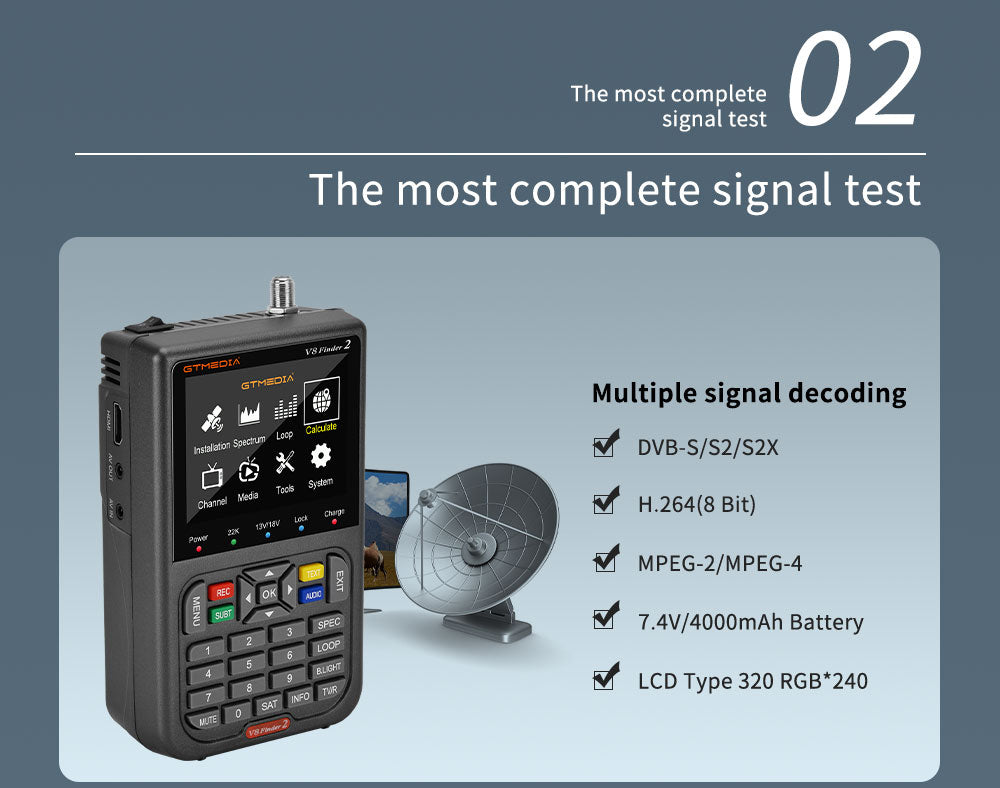

H.264 DVB-S Satellite Finder

The V8 Finder 2 satellite finder is a handheld satellite finder that complies with the DVB-S/S2 standard and supports multiple functions such as cycle search, constellation analyzer, spectrum analyzer and automatic calculation of AZ angles.

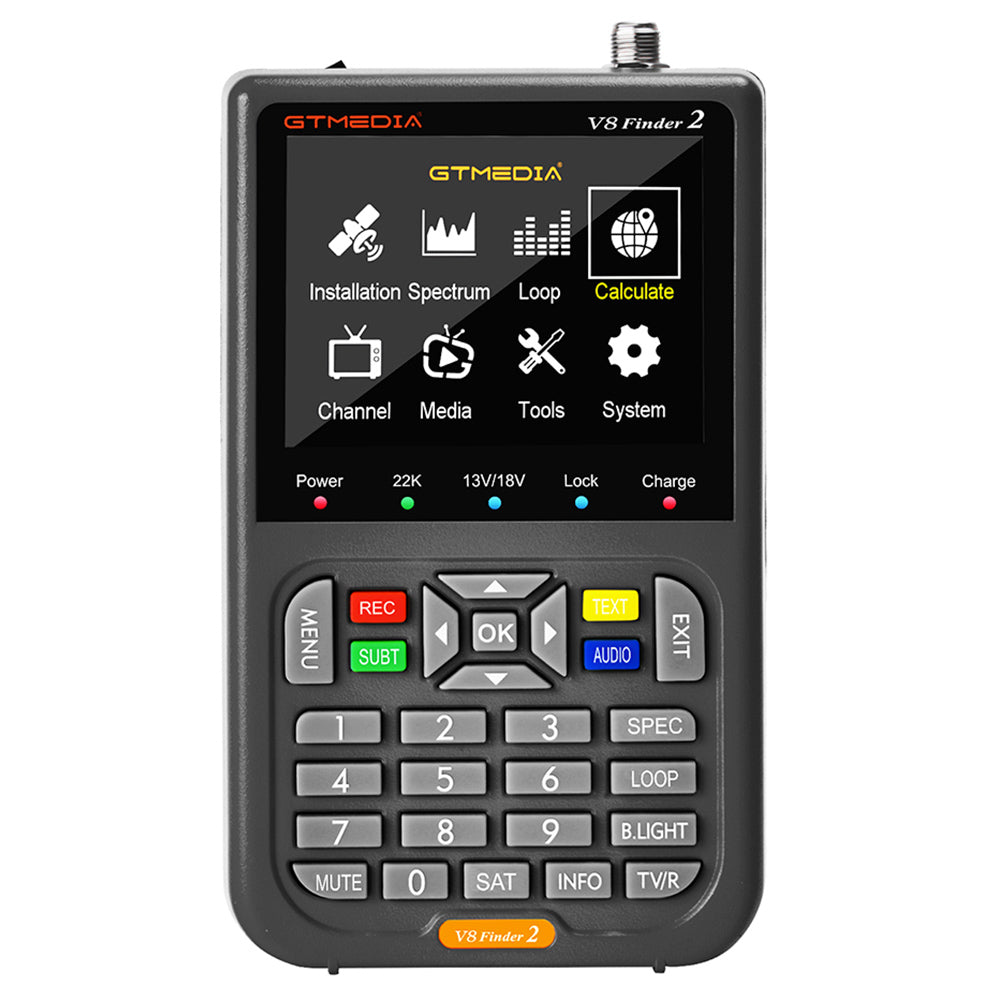

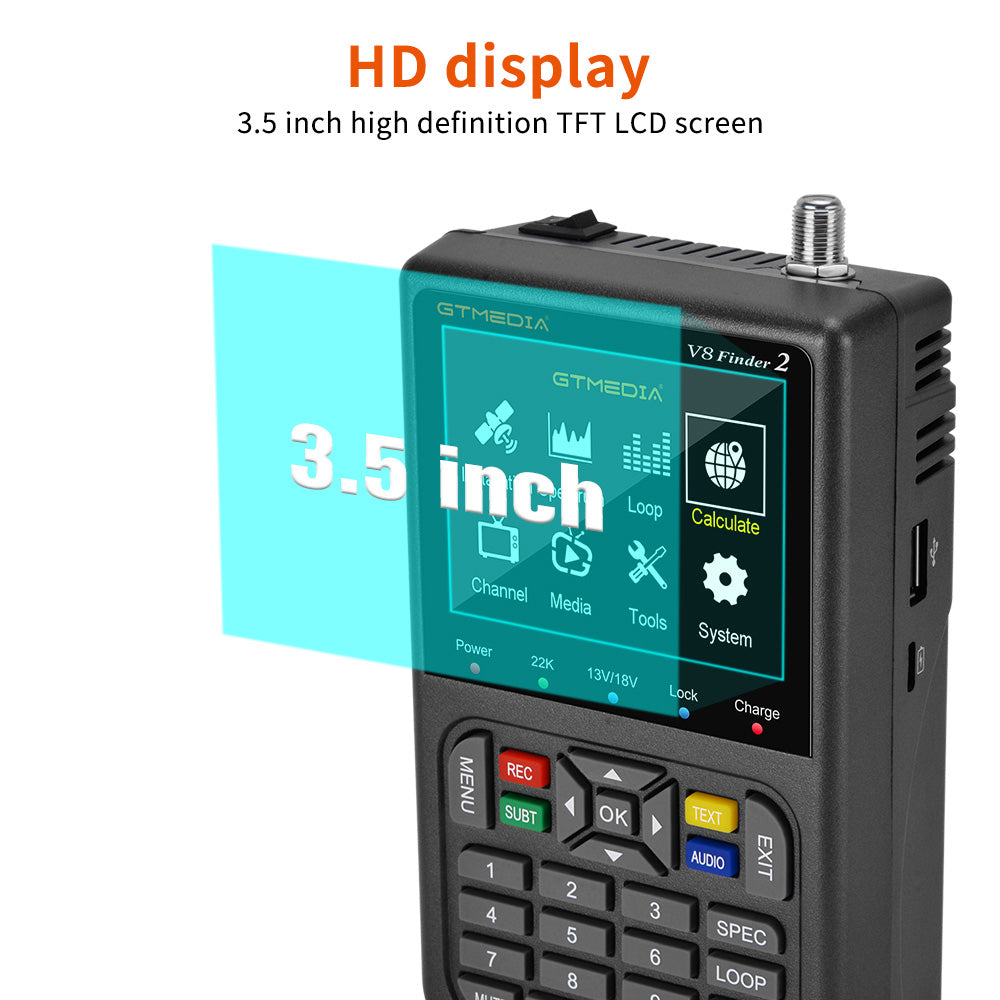

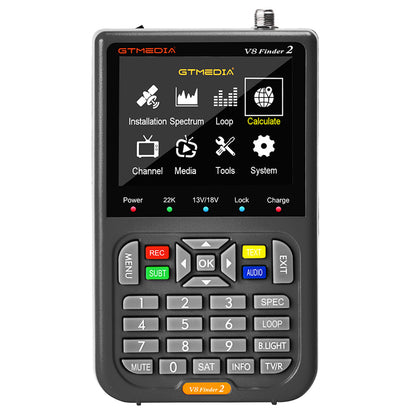

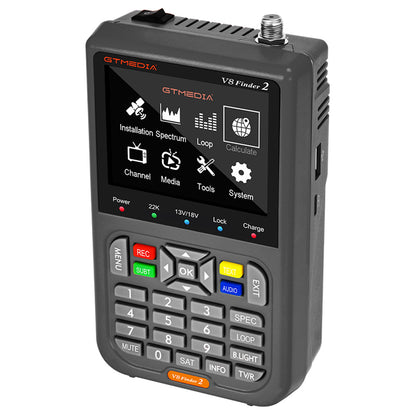

3.5'' HD LCD Screen

It is convenient to view the satellite list and make troubleshooting more intuitive. When you perform satellite signal detection, you can view satellite channels and satellite channel lists in real-time. Moreover, V8 Finder 2 also supports real-time power display, so you will not worry about suddenly running out of power during use.

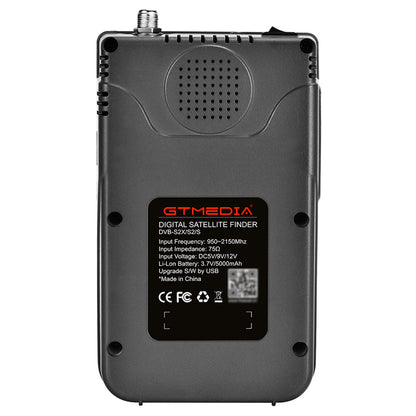

Speaker Integrated

The V8 Finder 2 satellite finder comes with a built-in high-capacity power supply that can provide you with longer working hours. And V8 Finder2 also integrates a speaker to remind you to charge on time when the battery is low.

Satellite Finder & H.264 Decoder & HD Player

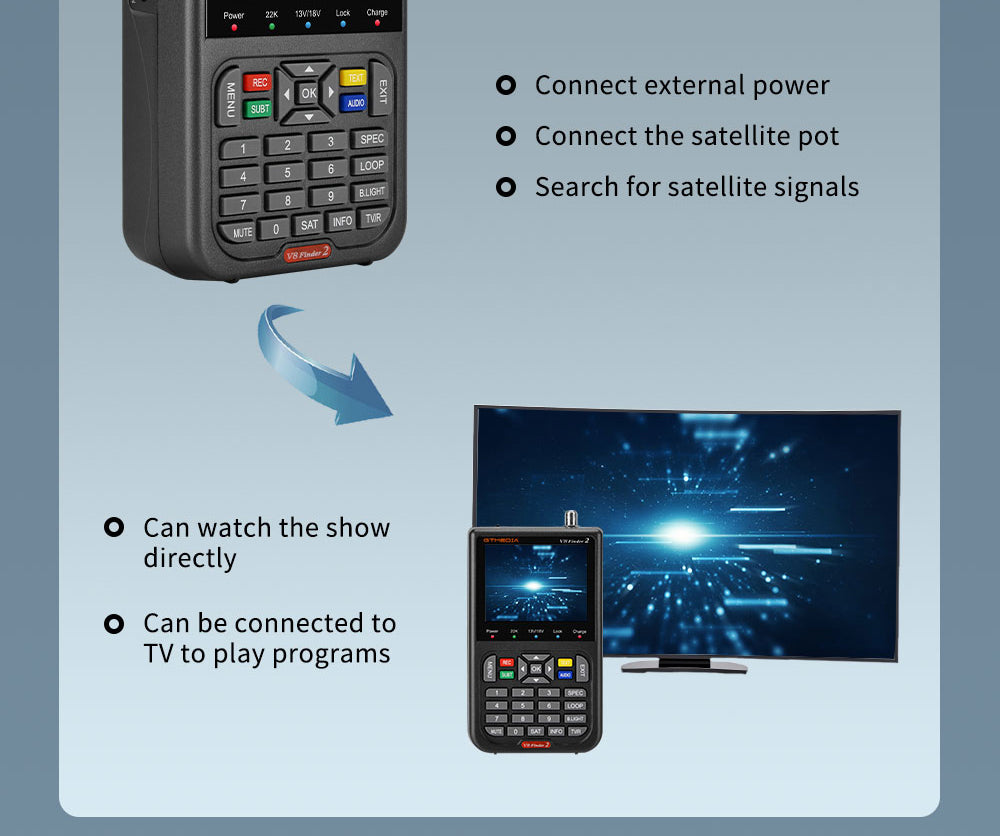

V8 Finder 2 is not only a satellite finder but also a combination of DVB-S2X/S2/S satellite decoder and HD. V8 Finder 2 allows you to decode satellite channels and watch them directly on its 3.5-inch HD LCD screen. This satellite finder supports BISS auto-scroll and PowerVu auto-scroll. And also supports HDMI and AV output.

General
Brand	GTMEDIA
Type	Satellite Signal Finder
Model	V8 Finder 2
Color	Black
Transmission Standard

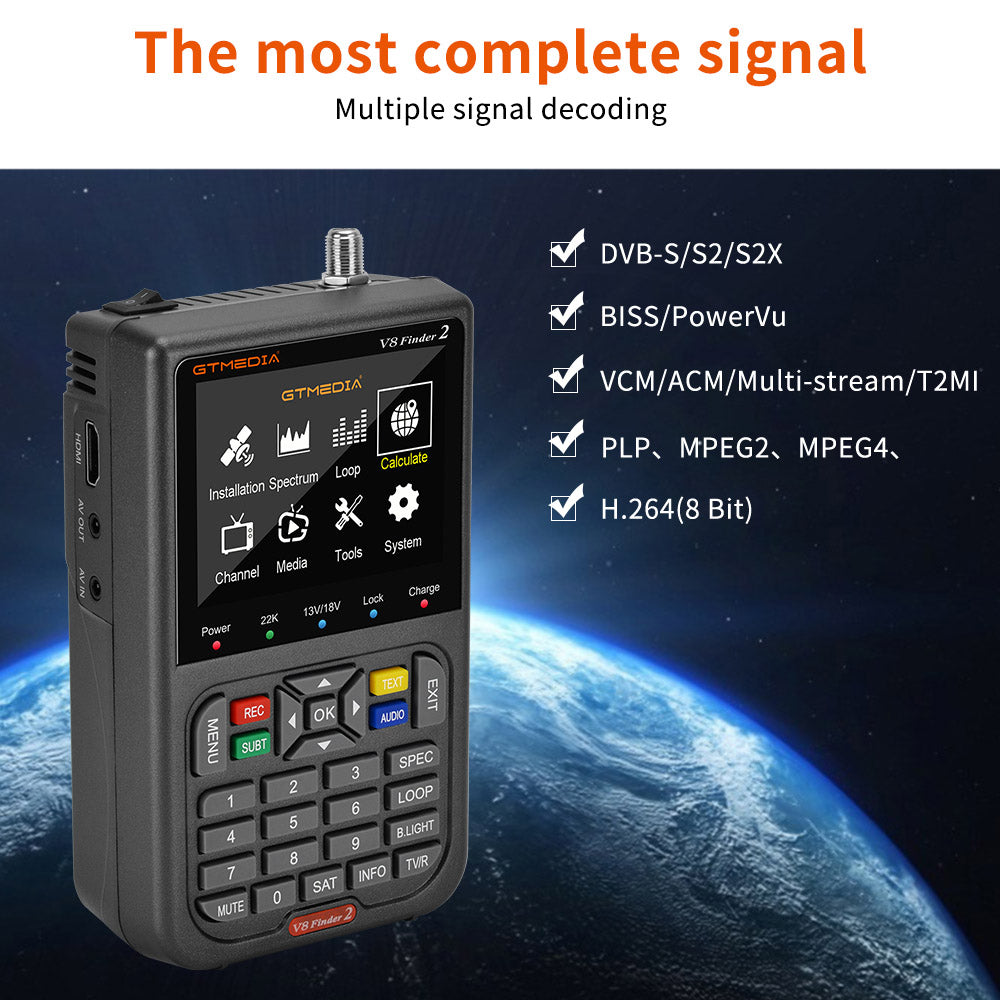

DVB-S2X/S2/S ,MPEG-2, MPEG-4, H.264
Supports softcam: Fastest BISS auto roll, PowerVu auto roll
Support CCM, VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP
Satellite Input/Demodulation

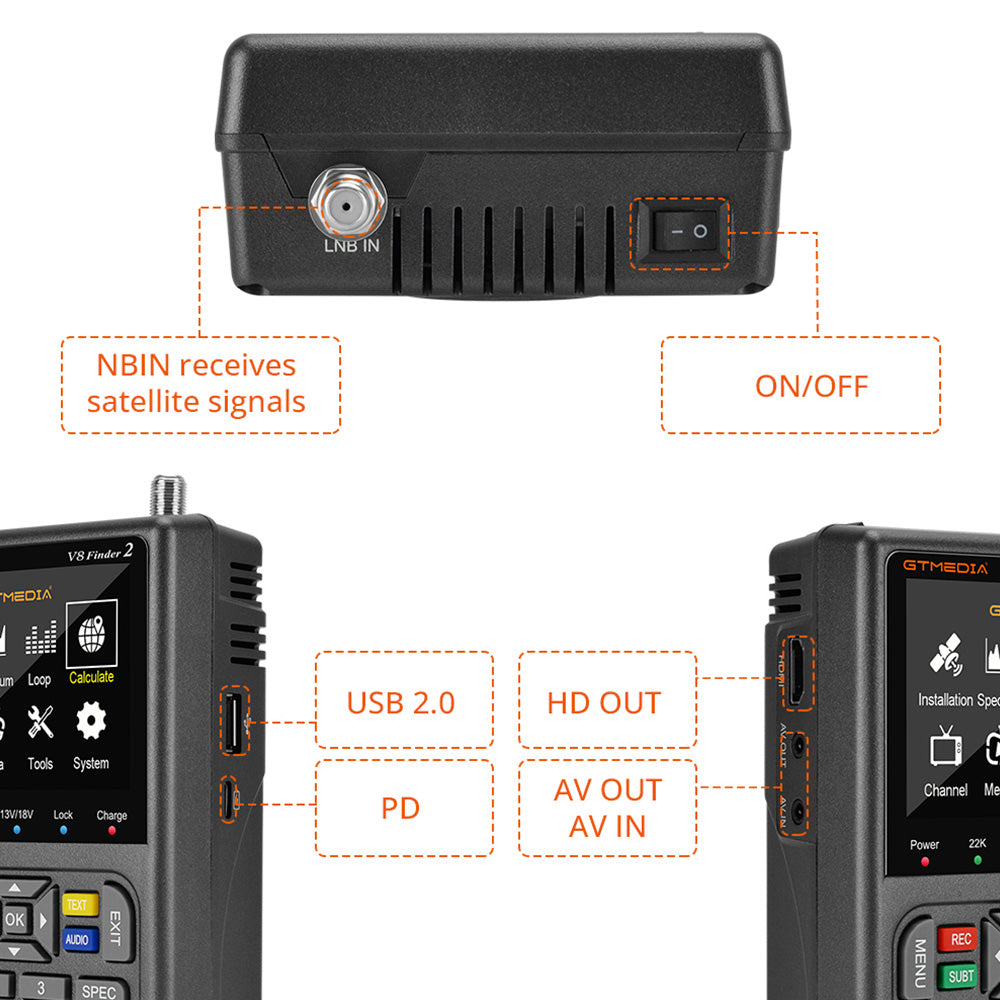

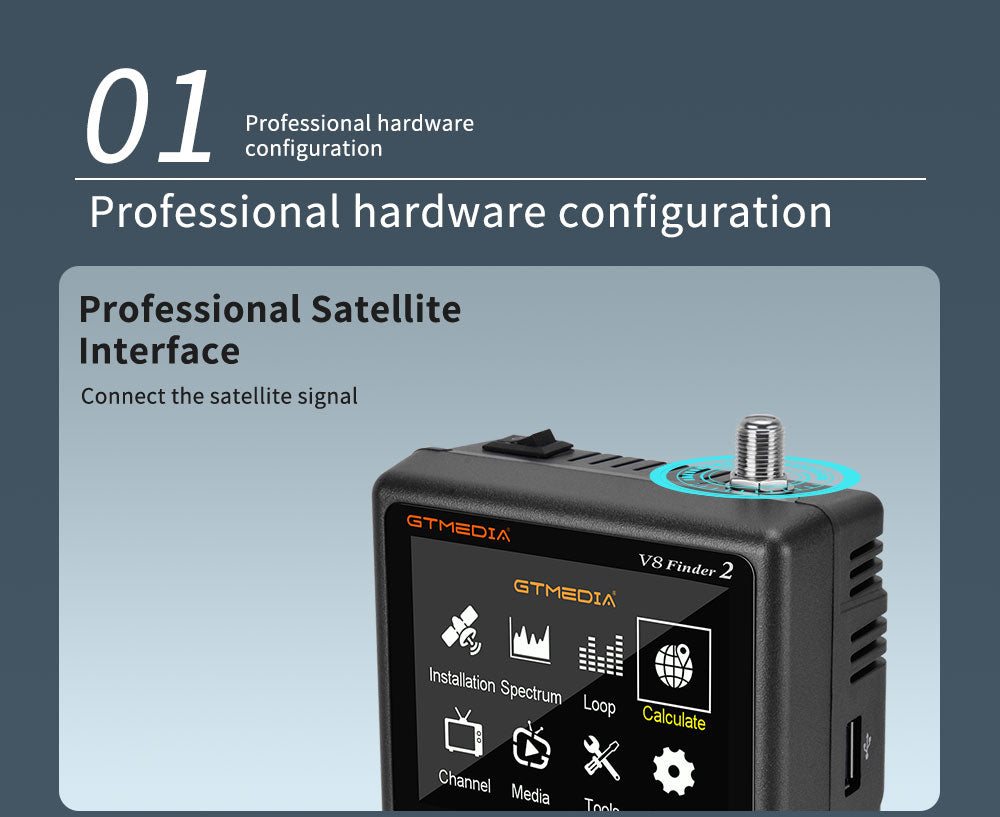

Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: ‐65 to ‐25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Max 350mA
Demodulation Type: DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate: 2
LCD Features
LCD Type	3.5'' high-resolution digital display LCD
Number of Dots	320 RGB*240
Active area	70.08*52.56mm
AV Input Interface
Connector Type	3.5 mm jack
Video Output	CVBS
Audio Output	Stereo Audio L/R input

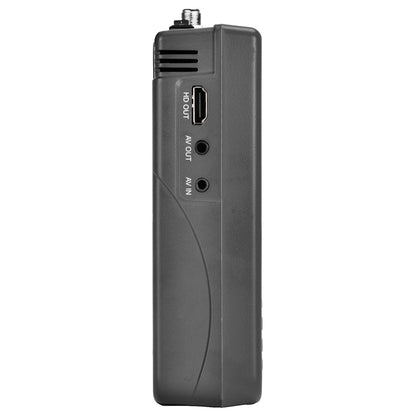

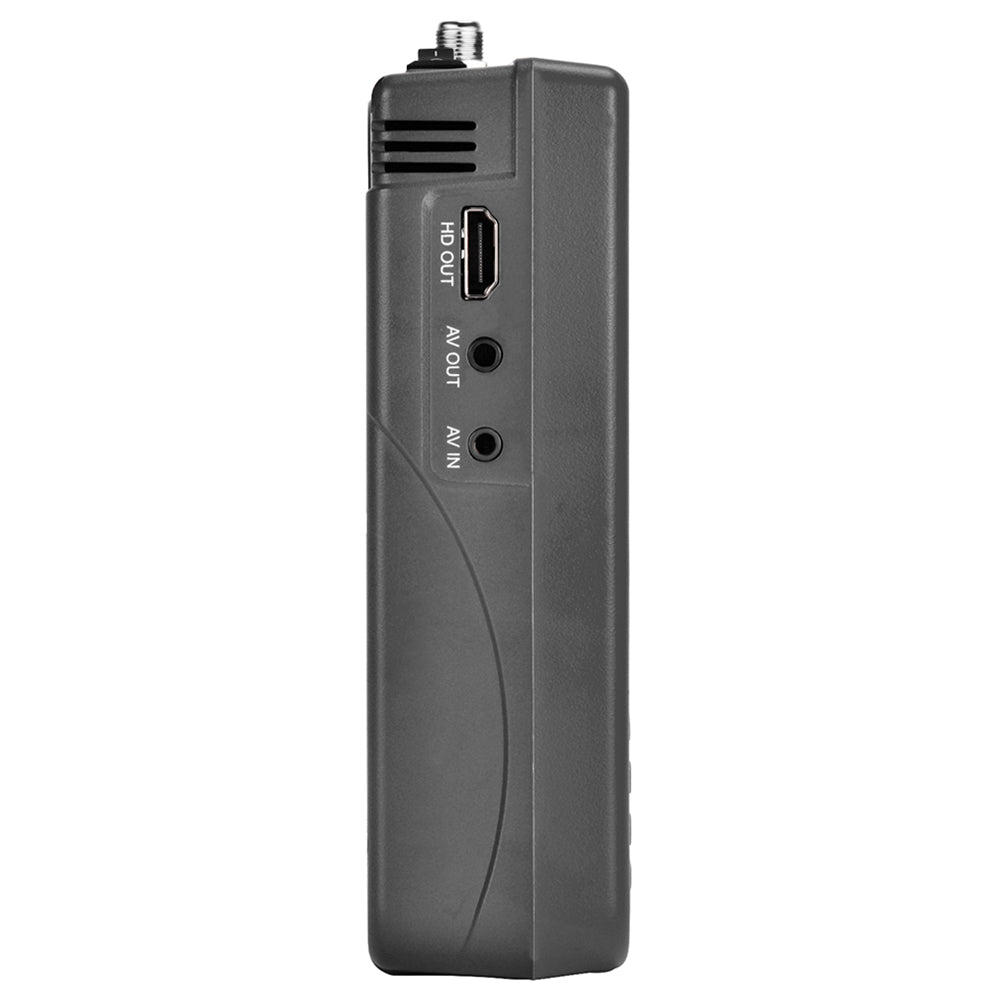

HDMI Output Connector
Format	HDMI 1.3a
Resolution	Optional 480i, 480P 576i, 576P, 720P, 1080i, 1080P
Audio/Video Processing
Video decompression	MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder
Resolving rate	PAL-25 frame@720*576, NTSC -30 frame@720*480
Signal compatibility	Support conversion for different video formats
Video Format	4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression	MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode	Stereo, Mono, R/L

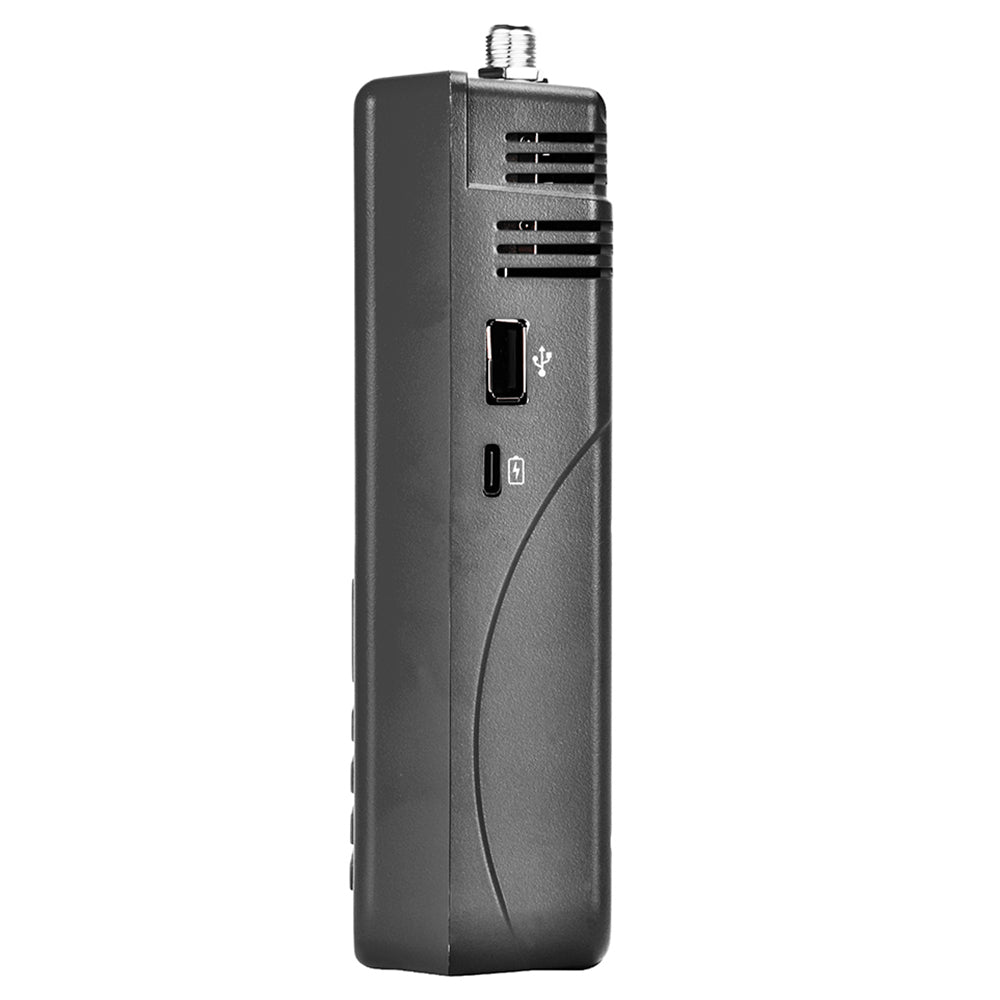

Data Service Port
Connector	USB
Data Protocol	USB 2.0 interface
File Management System	NTFS, FAT32, FAT16
Media	TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio	wma, mp3
Photo	jpg, jpeg, bmp, img
PVR Option	Support software upgrade and PVR, supports external HDD via USB, power wanted if necessary
WIFI Option	Support networking via USB WIFI
Power Supply

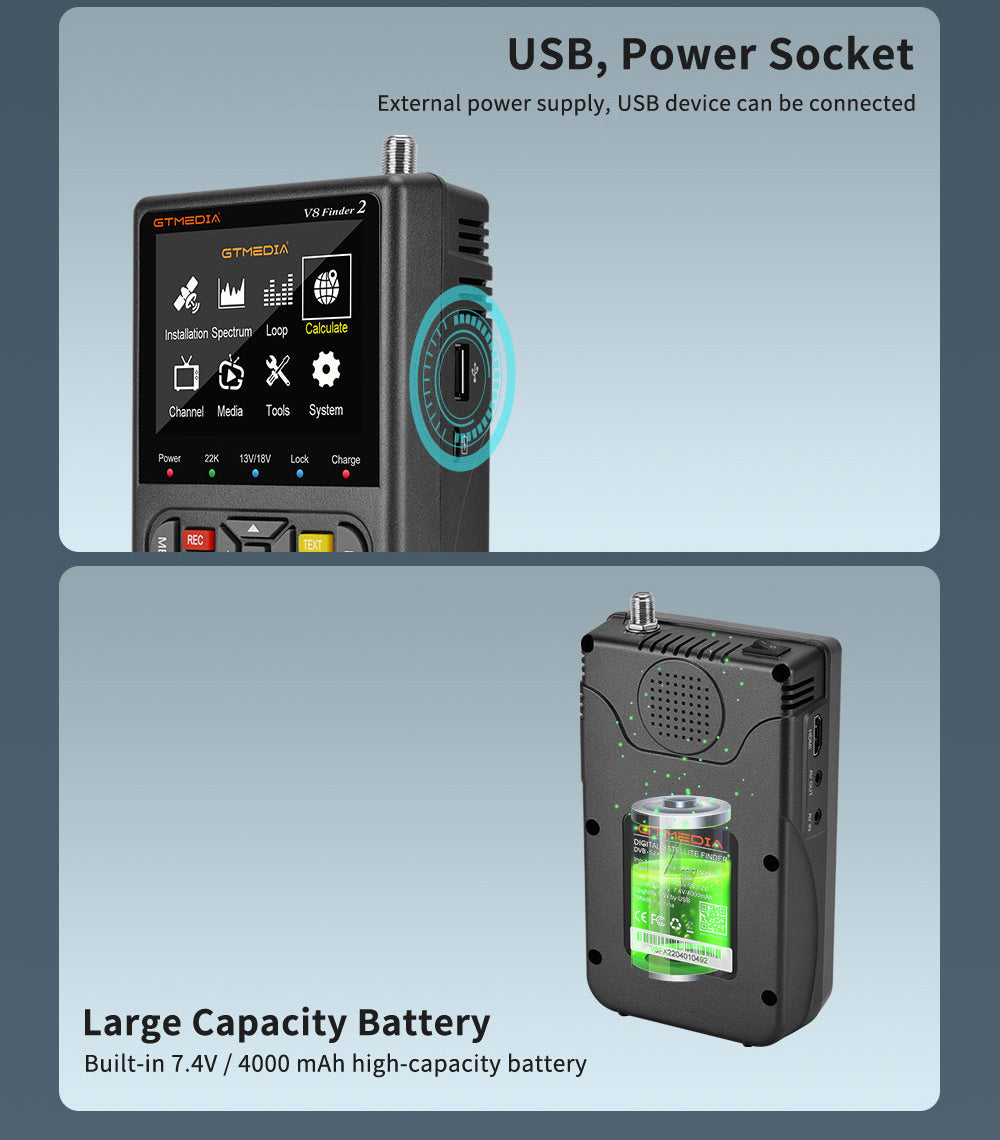

Li-Lon Battery	7.4V/4000mAh (The machine behind labeling shall prevail)
Battery power	Build-in Lithium battery find satellite around 4 hours
Battery play time (AV input)	about 6 hours
Adapter (Optional)	Support fast charge, MAX 20W
Power Consumption	Rated 8W (No external equipment)
Dimensions & Weight
Product Weight	0.45kg
Package Weight	0.6kg

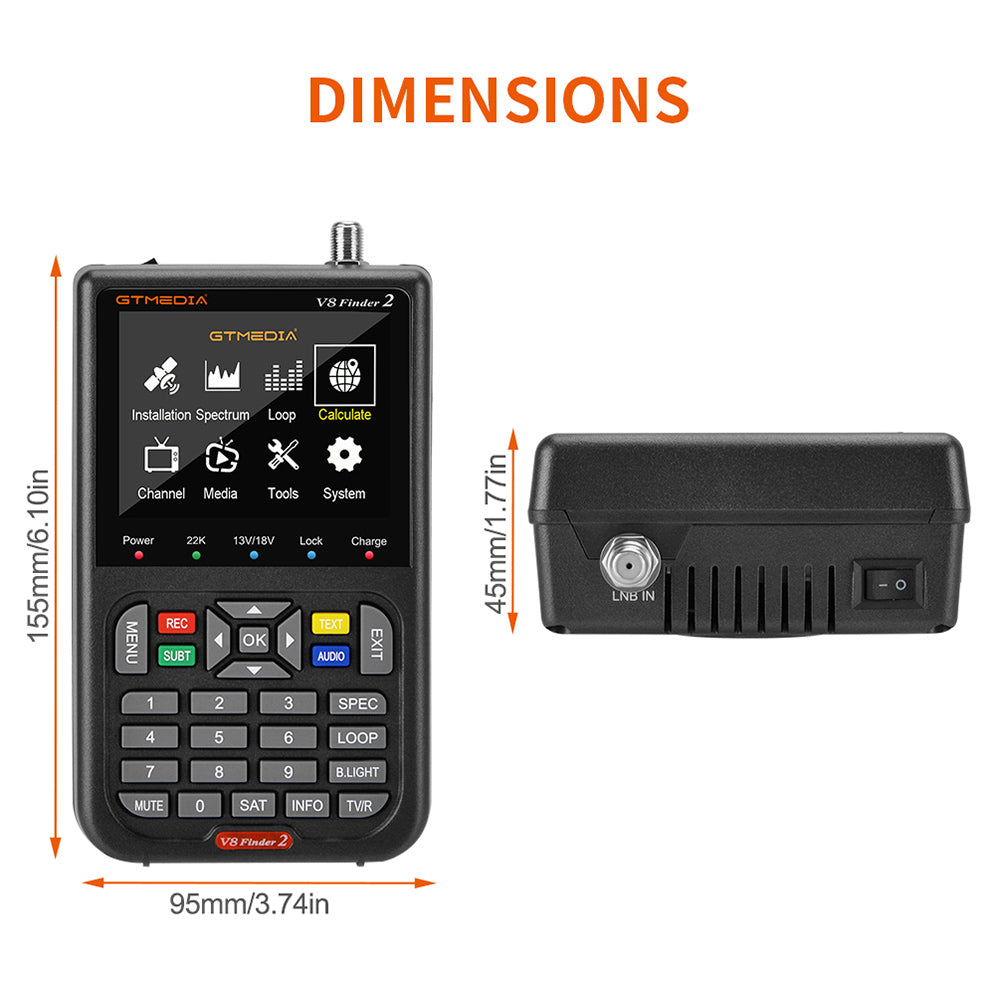

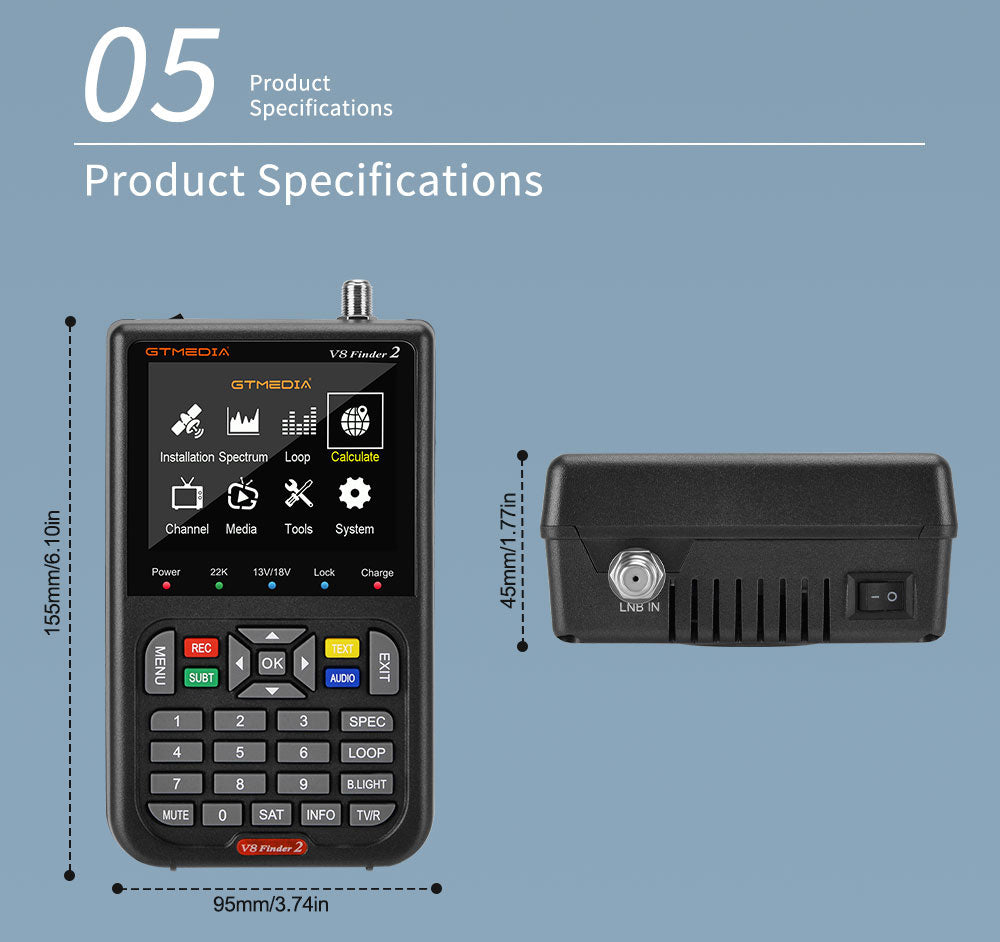

Product Size	95*155*45 mm
Package Size	204*160*57mm

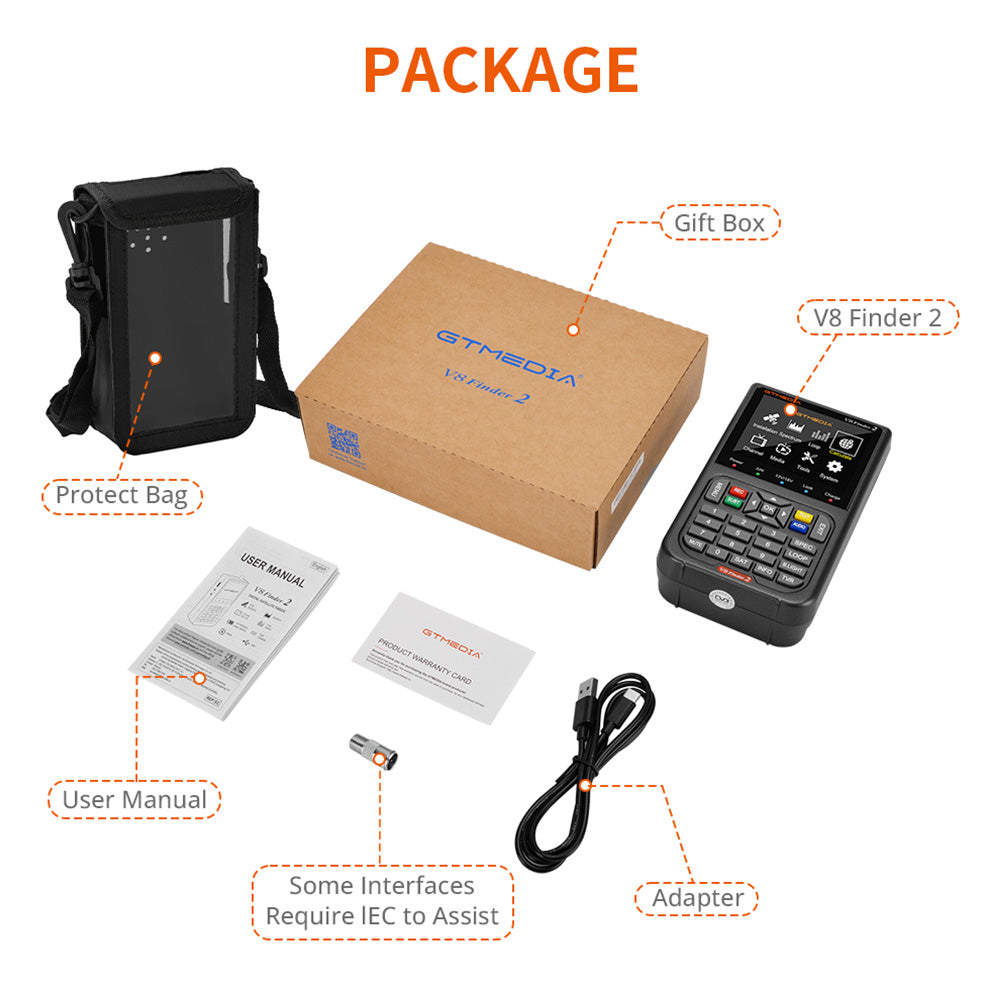

Package Contents
1 x Satellite Signal Finder
1 x Power Adapter
1 x Warranty Card
1 x User Manual
