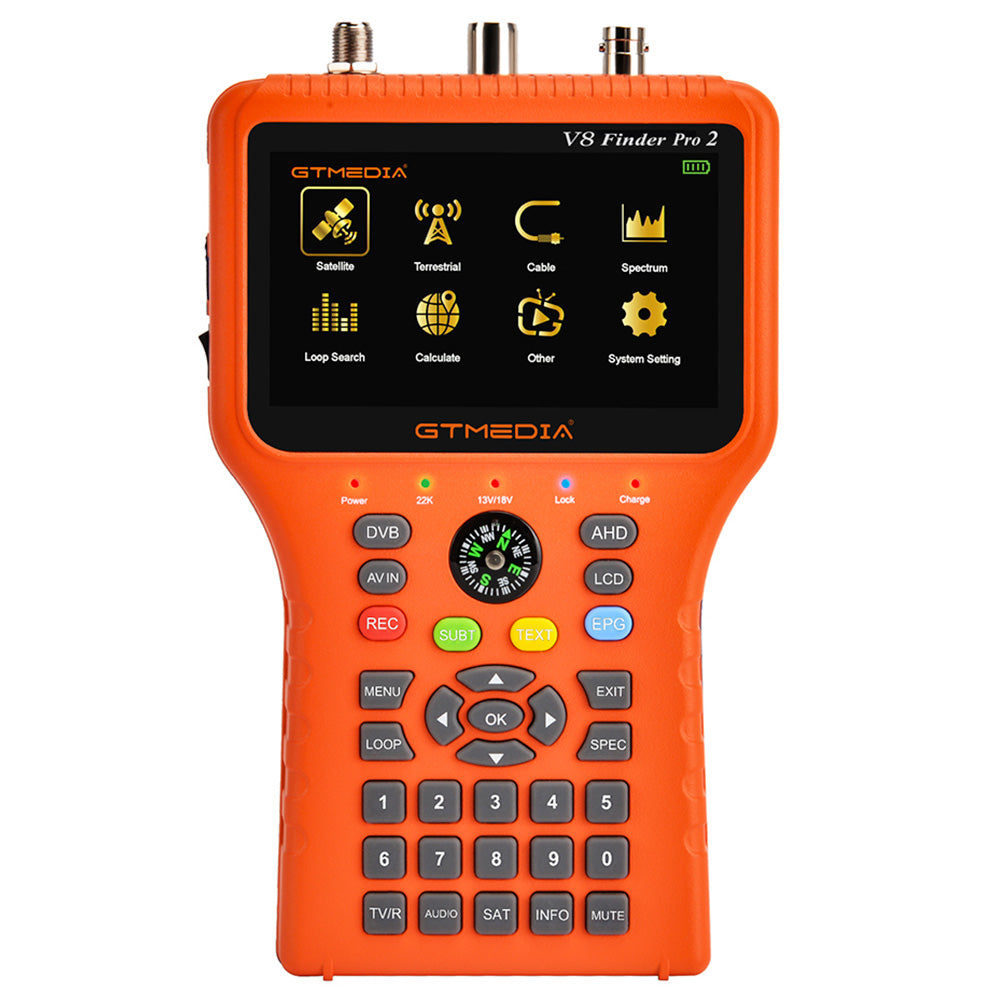

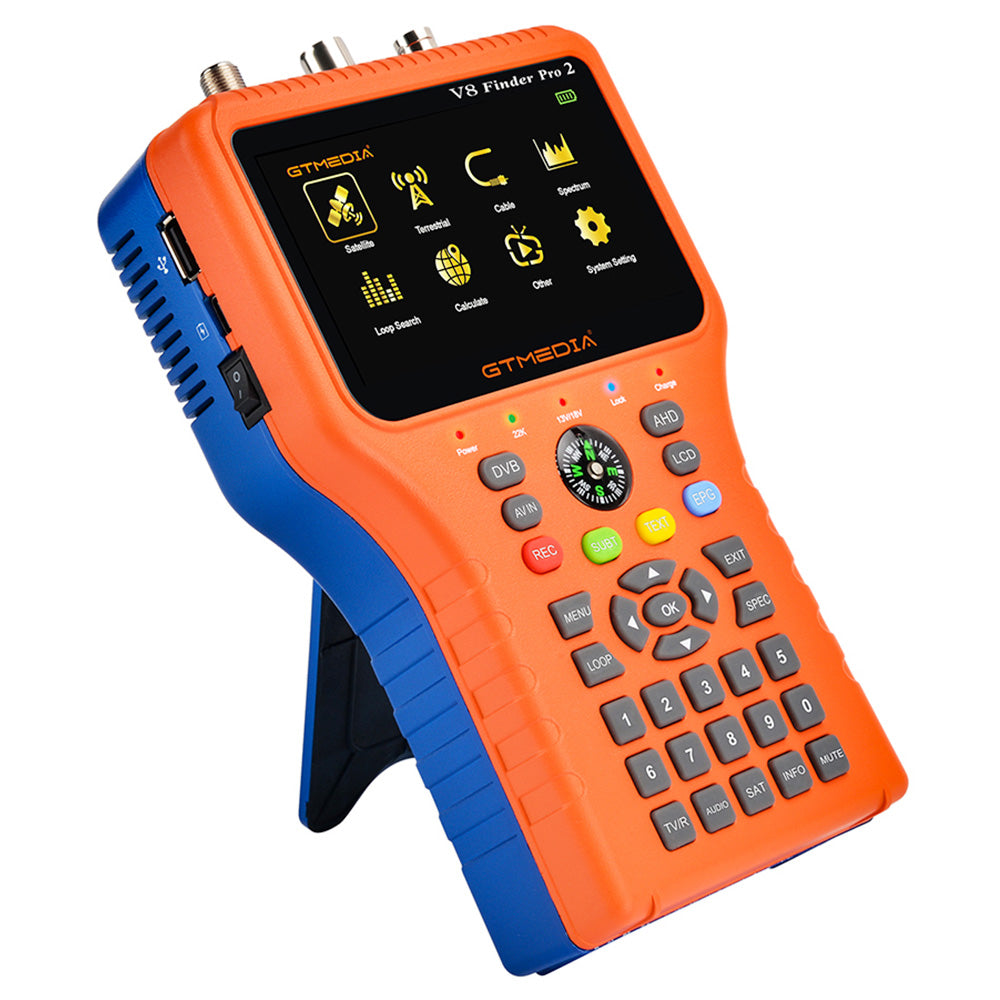

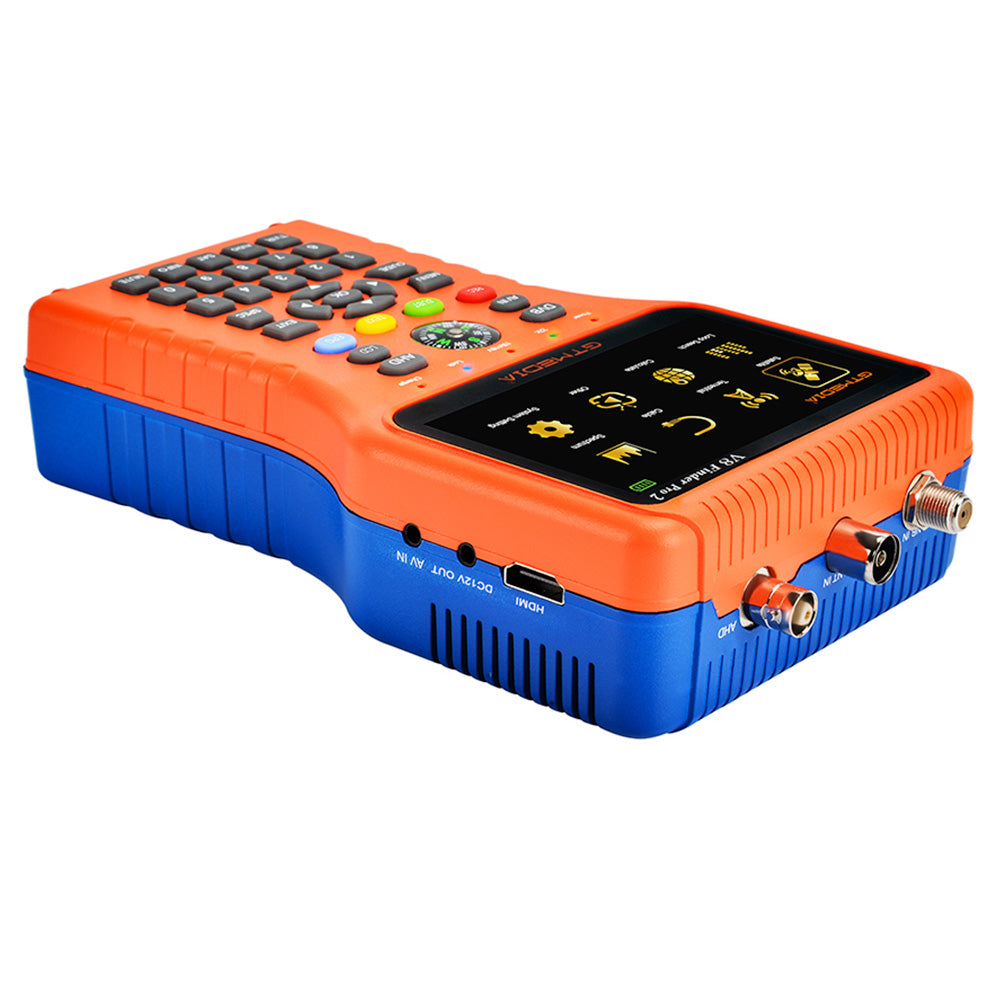

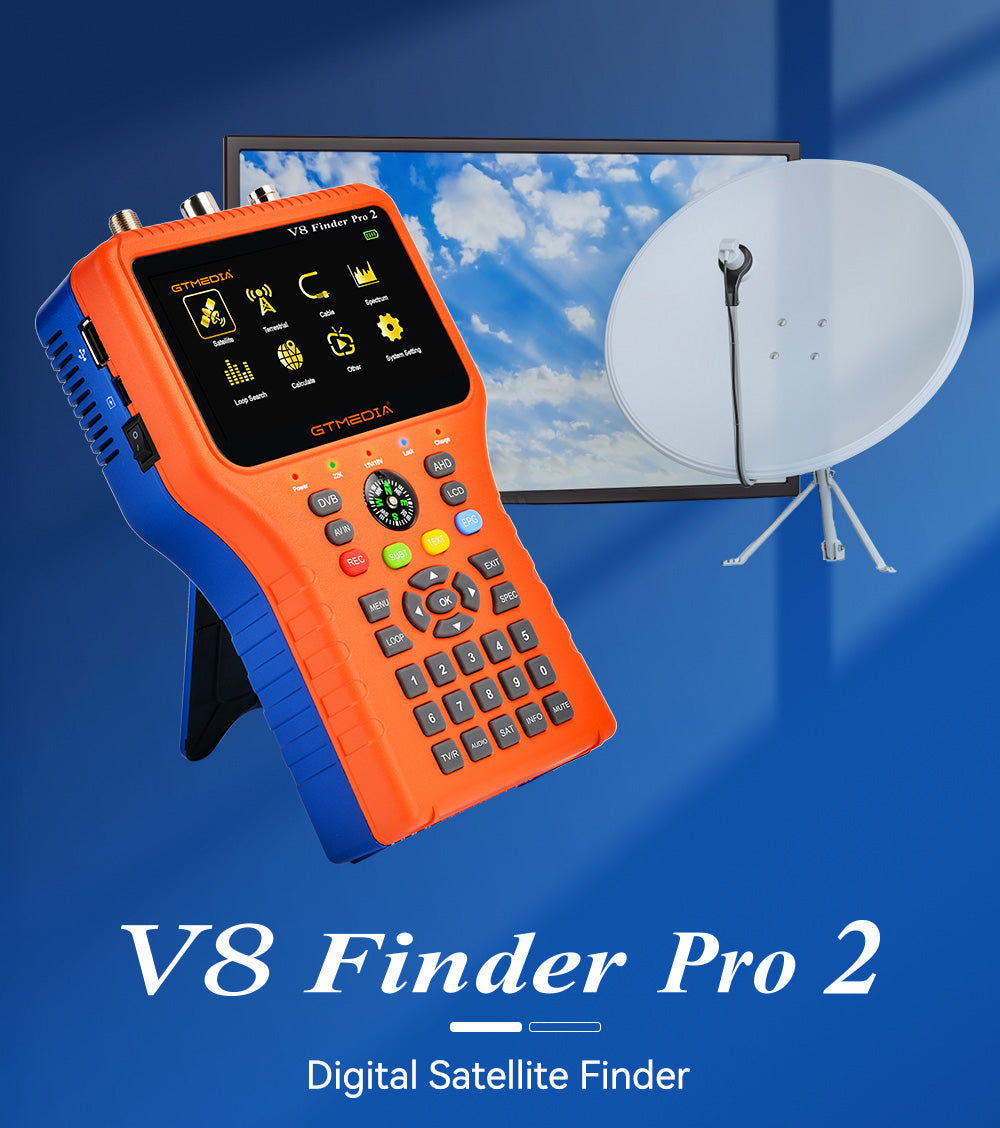

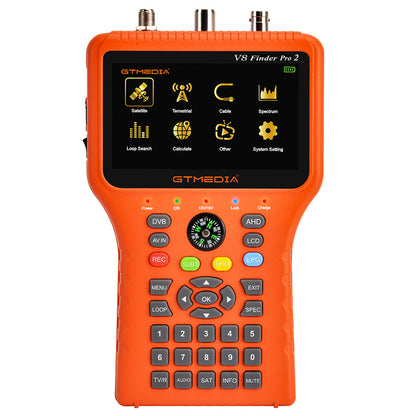

GTMEDIA V8 Finder PRO 2 Satellite Signal Finder

GTMEDIA V8 Finder PRO 2 highlights

GTMEDIA V8 Finder Pro is a handheld combination meter that complies with DVB-S2X/S2/S/T2/T/C and MPEG-2/4 H.264/H.265 (10-bit) standards, with compact size and lightweight, intuitive and other advantages. Featuring a user interface, long battery life, and rich feature set, this meter provides all the functionality needed to install and verify digital satellite television service, antenna signals, and cable signals for a residential or multi-dwelling unit.

• 4.3-inch high-definition TFT LCD screen
• Fully compatible with DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4
• Support H.264/H.265 (10 Bit) hardware decoding

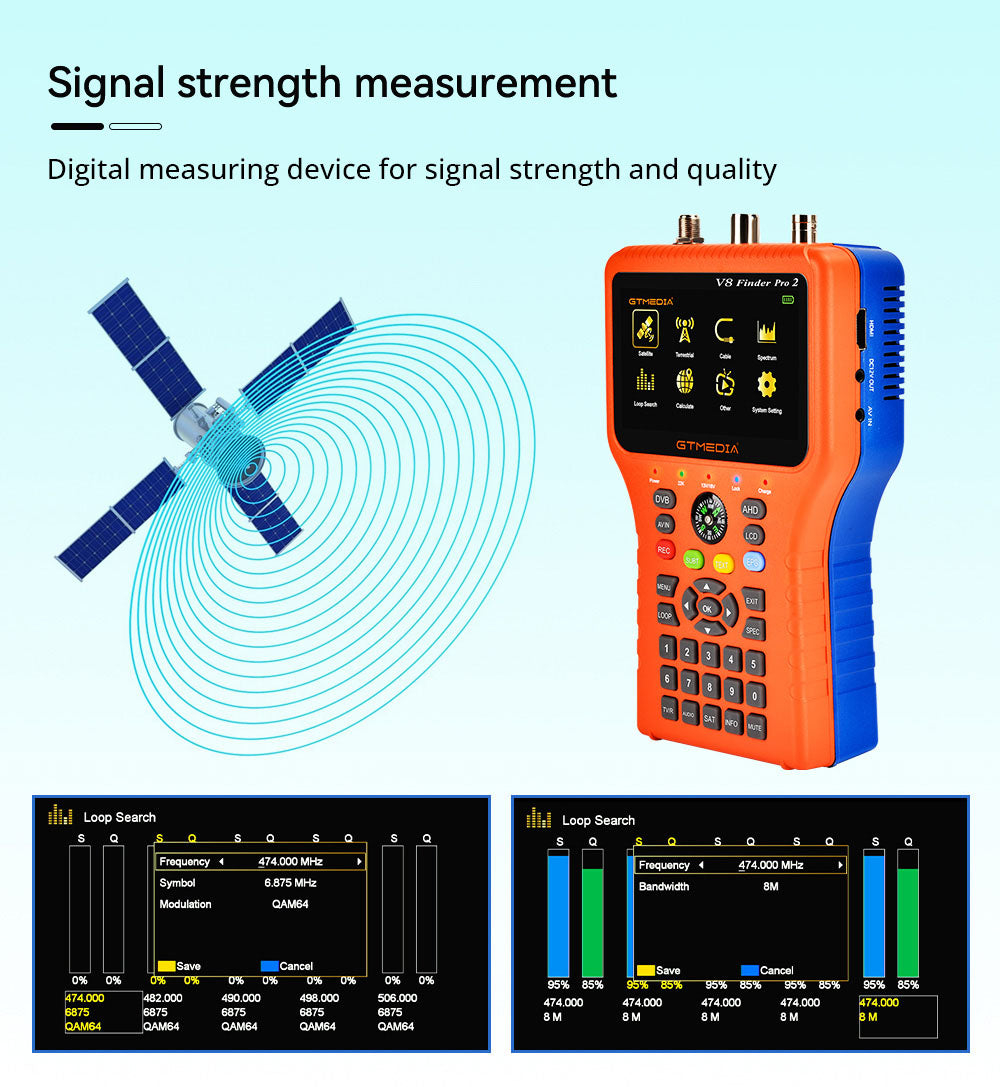

• Digital signal strength and quality measurement devices. Supports presetting all satellite information
• Support loop search
• Spectrum analyzer
• Support automatic, blind scan, manual or NIT scanning
• Lock signal sound
• Automatically calculate AZ and EL angles
• Support DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz audio
• Speaker integration

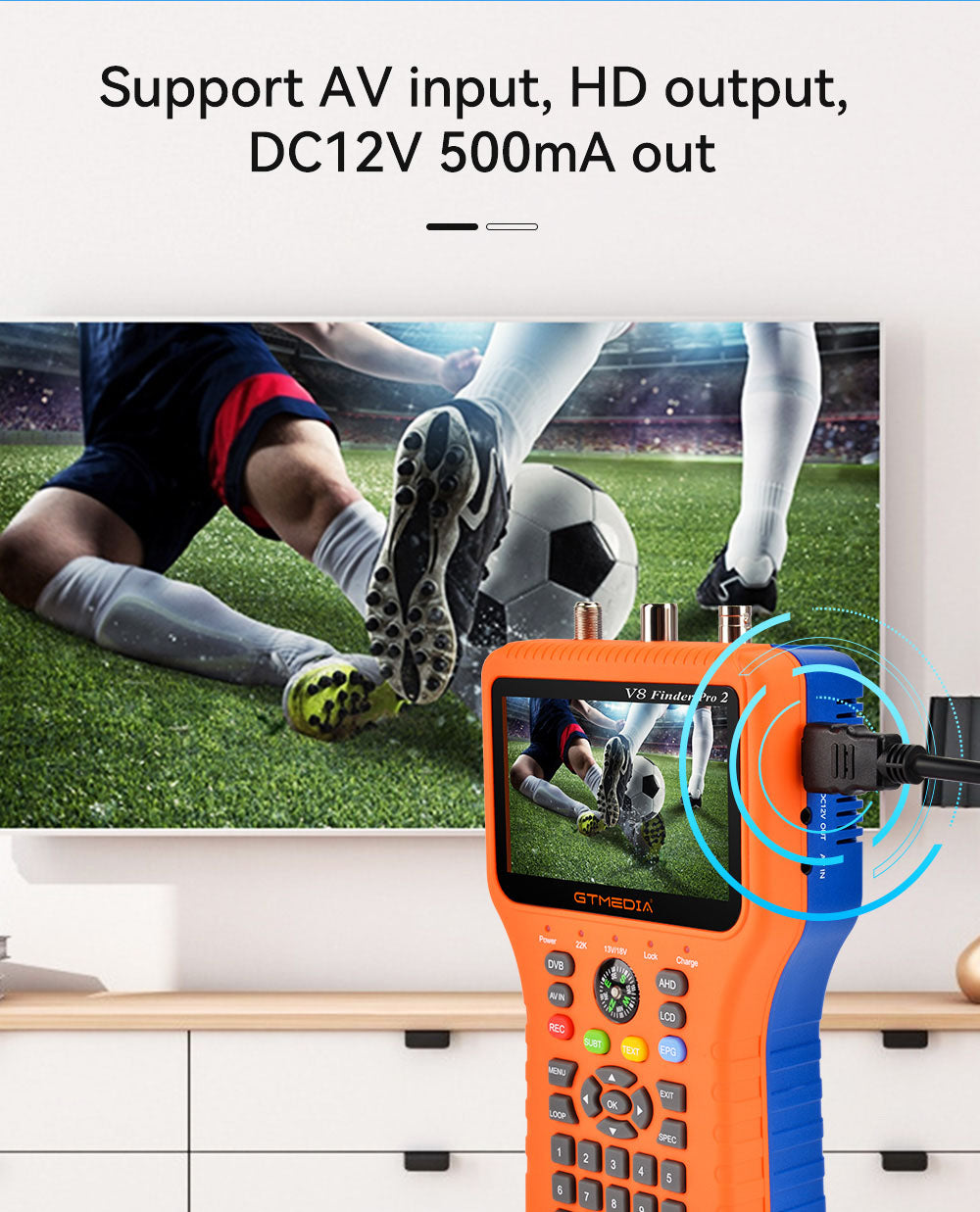

• Support AV input
• Support HDMI output

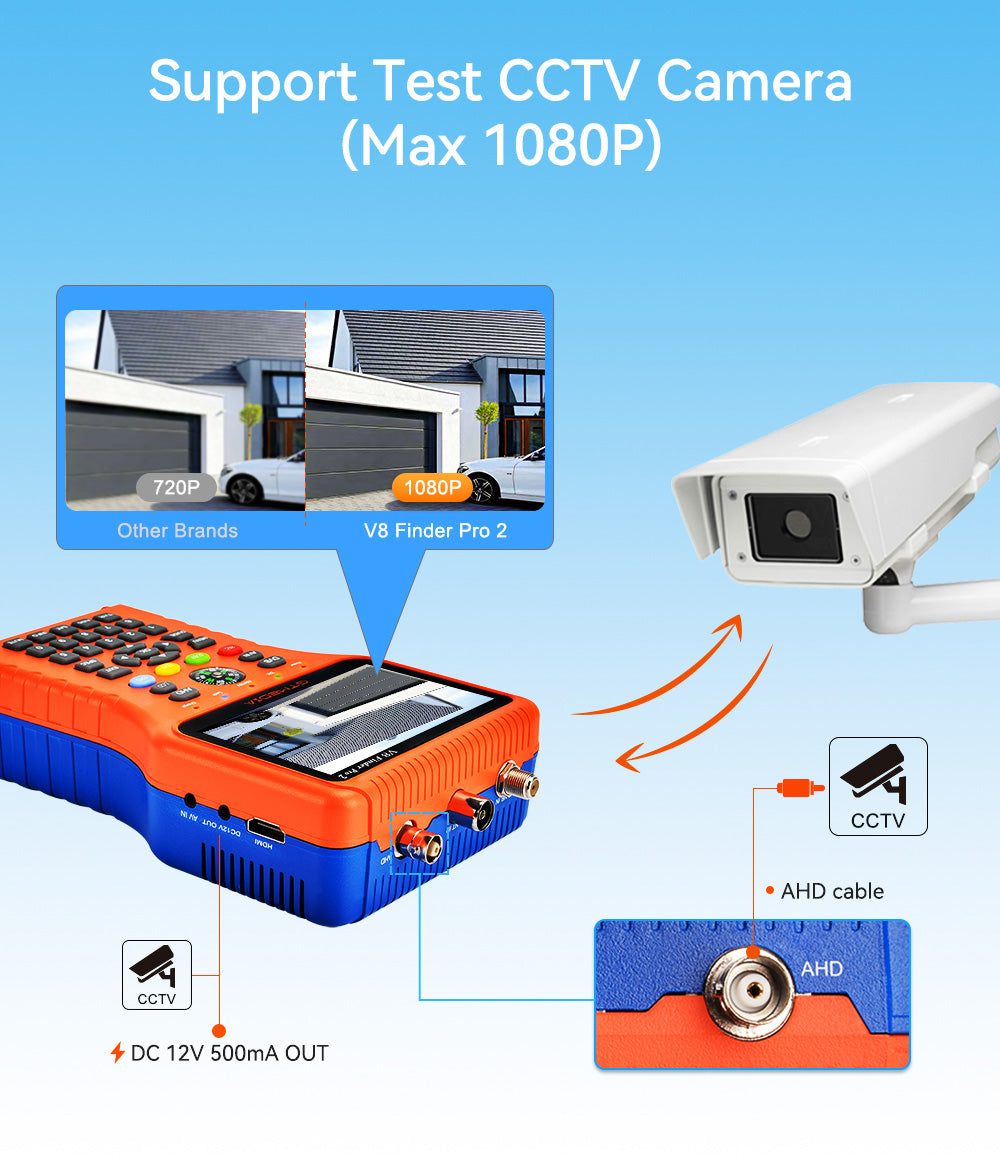

• AHD 1.0 input: Test CCTV cameras (MAX 1080P)
• Support DC12V 500mA output
• Support compass function
• Support real-time battery display and low-battery reminder
• Support USB wifi 2.4G Youtube
• LNB short circuit protection
• Comes with 7.4V/4000mAh lithium-ion battery
• Software upgrade via USB interface
• Easy to carry

General
Brand	GTMEDIA
Type	Satellite Signal Finder
Model	V8 Finder PRO 2
Color	Orange
Transmission Standard
DVB-S2X/S2/S,DVB-T2/T,DVB-C,MPEG-2,MPEG-4,H.264/H.265(10 Bit)
Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E)
Support VCM, ACM, multi-stream, T2MI, Multi-PLP
Supports IKS: CCCAM, NEWCAM, MGCAM

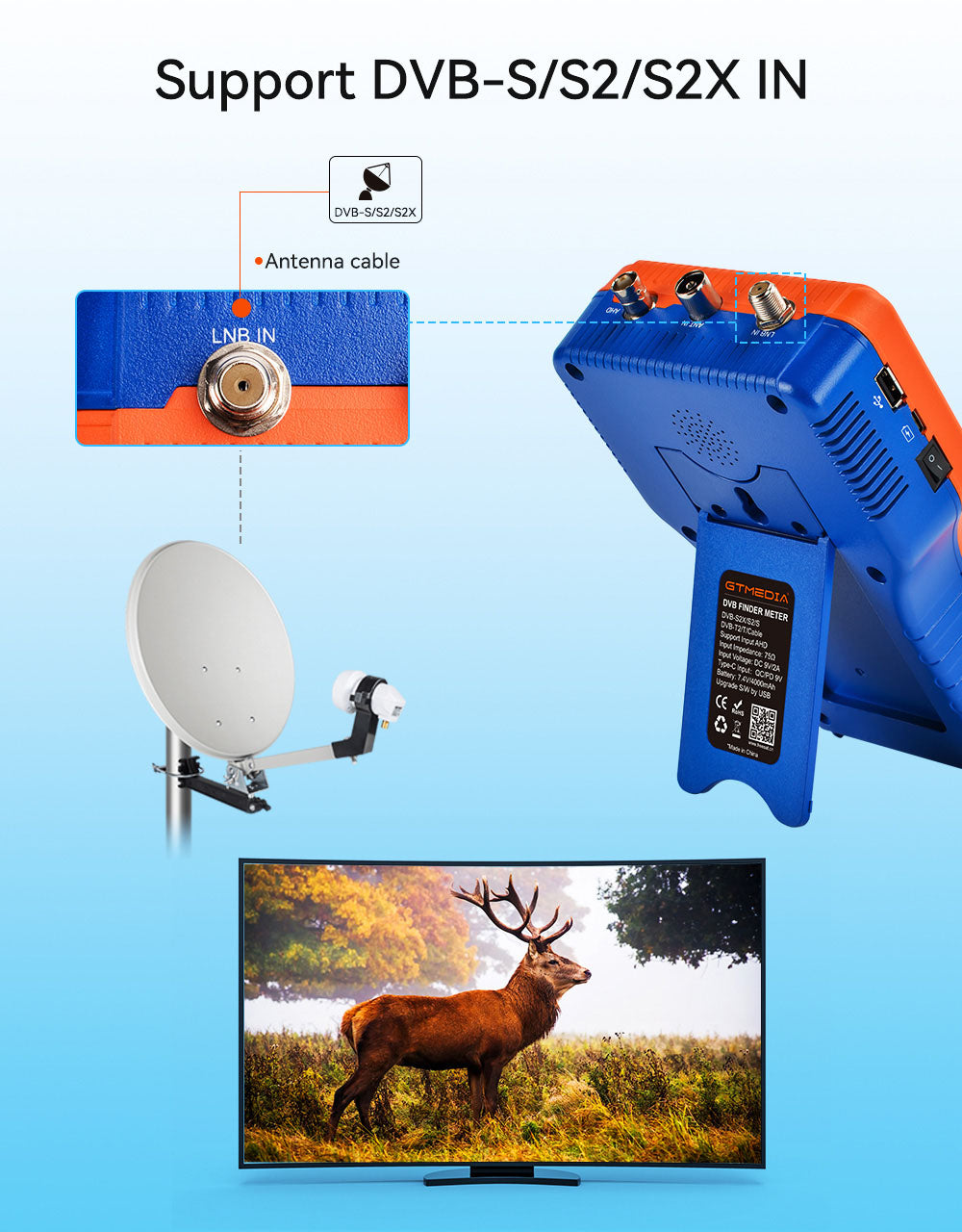

Satellite Input/Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: ‐65 to ‐25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Max 350mA
Demodulation Type: DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate: 2

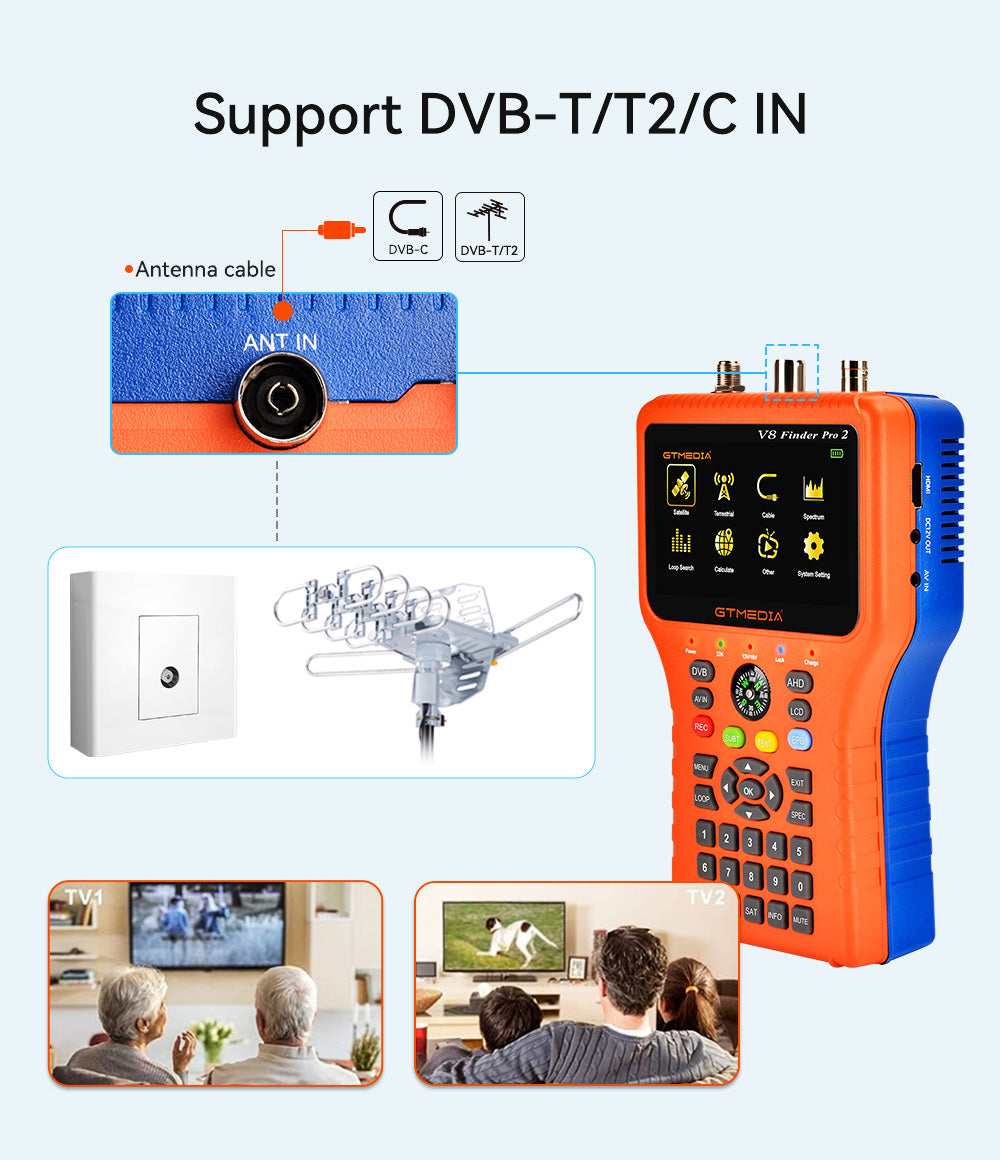

DVB-T2/T/Cable Input/Demodulation
Connector Type	F Type
Input Frequency	48 to 862 MHz
Signal Input Level	-80 dBm(MAX)
ANT Supply	5V DC @ 120mA MAX
Demodulation Type	QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
LCD Features
LCD Type	4.3'' high-resolution digital display LCD
Number of Dots	800 RGB(H) *480(V)
Active area (W*H)	95.04*53.86mm

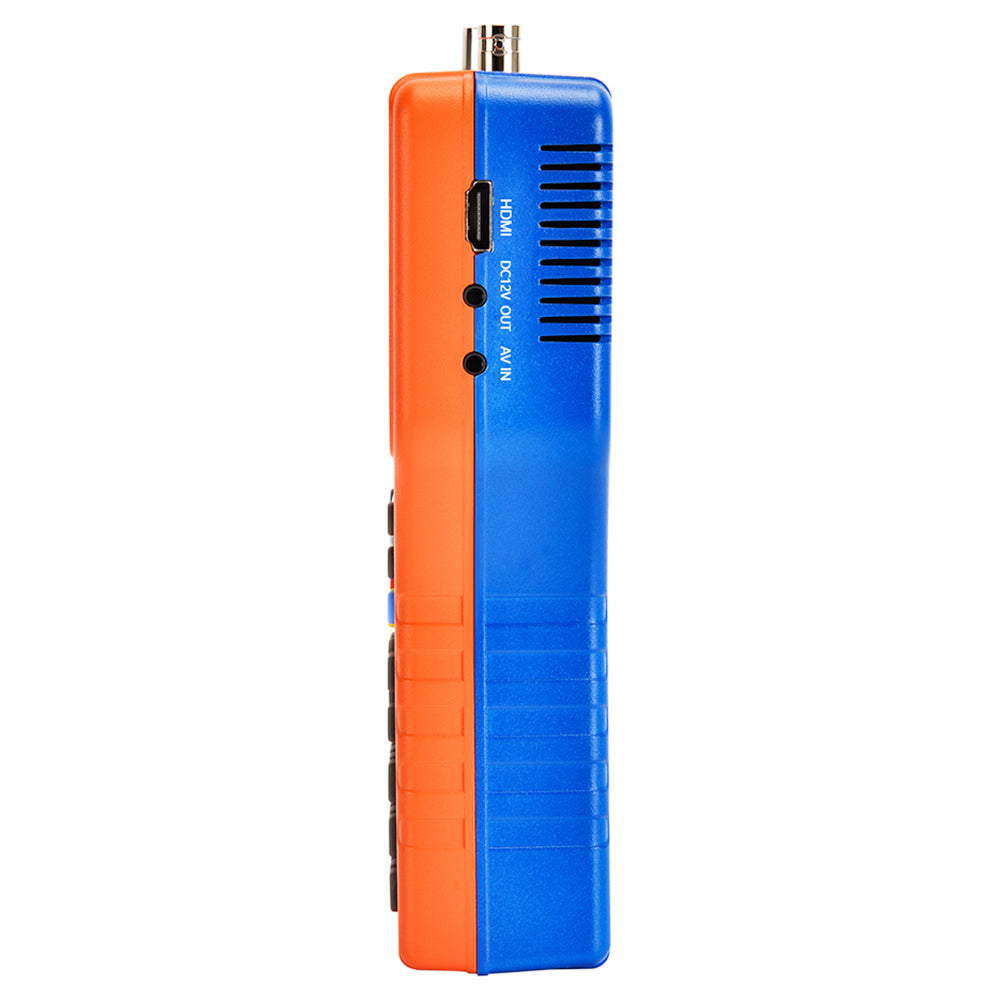

HD Output: On Satellite Finder State
Format	HDMI 1.3a
Resolution	Optional 480i, 480P 576i, 576P, 720P, 1080i, 1080P
AV Input Interface
Connector Type	3.5 mm jack
Video Input	CVBS
Audio Input	Stereo Audio L/R input

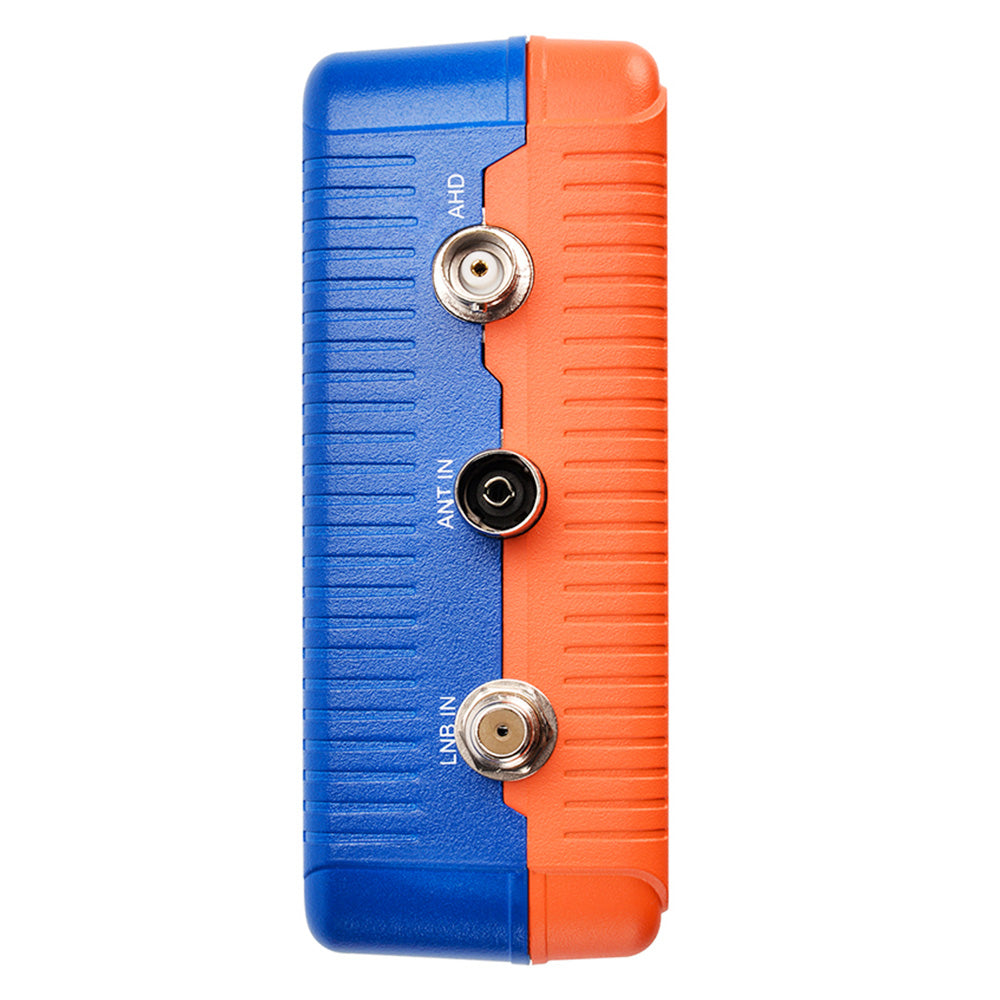

AHD Tester
Connector Type	BNC Female
Impedance	75Ω
Frequency Range	DC～2GHz
Video input support	NTSC/PAL
AHD input	720P 960P 1080P HD video input, display picture
Audio/Video Processing
Video decompression	MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder
Resolving rate	PAL-25 frame@720*576, NTSC -30 frame@720*480
Signal compatibility	Support conversion for different video formats
Video Format	4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression	MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode	Stereo, Mono, R/L

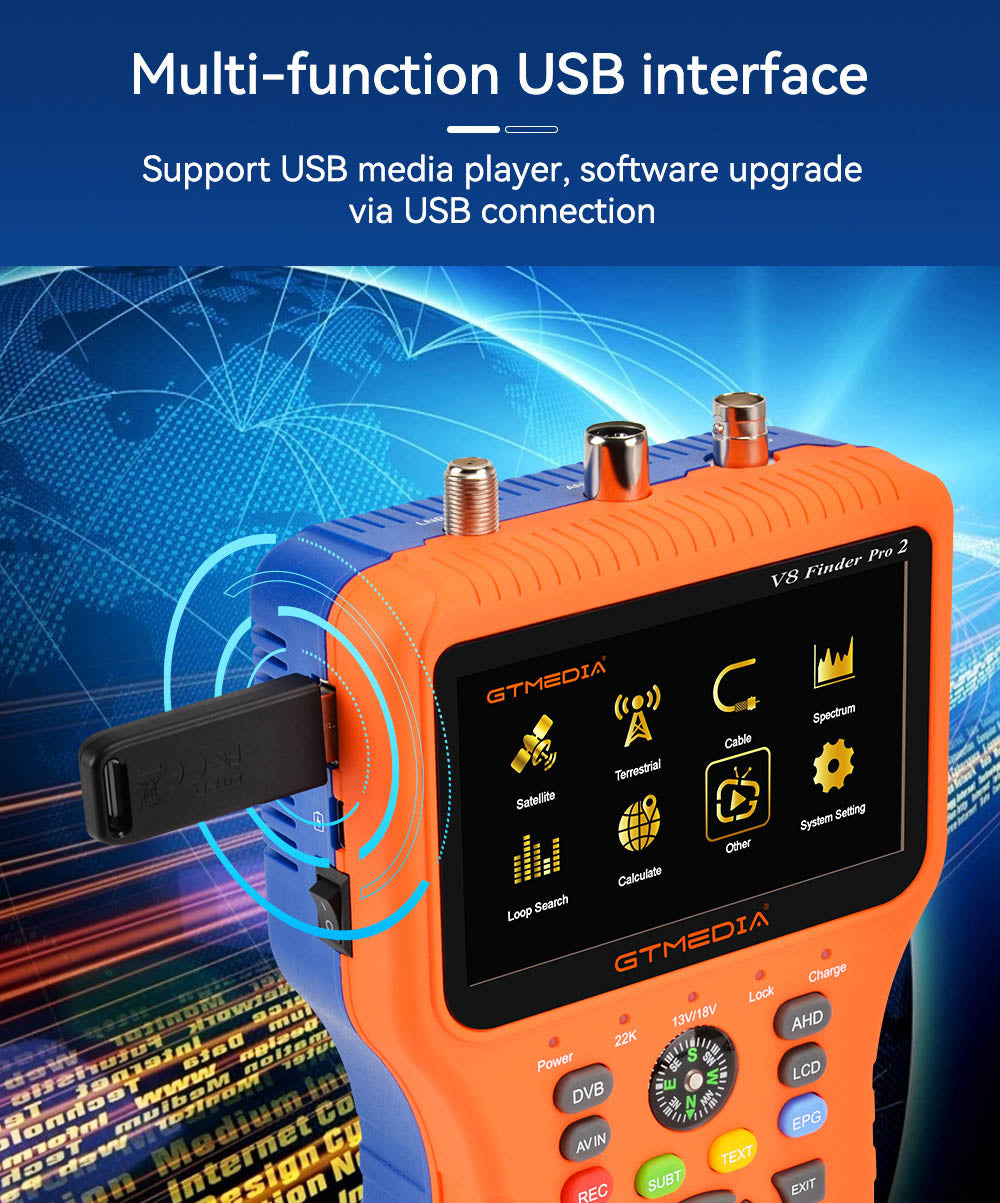

Data Service Port
Connector: USB
Data Protocol: USB 2.0 interface
File Management System: NTFS, FAT32, FAT16
Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma, mp3
Photo: jpg, jpeg, bmp, img
PVR Option: Support software upgrade and PVR, supports external HDD via USB, power wanted if necessary
WIFI Option: Support networking via USB WIFI
Power Supply
Li-Lon Battery	7.4V/4000mAh (The machine behind labeling shall prevail)
Battery power	Build-in Lithium battery find satellite around 3 hours
Battery play time (AV input)	about 5 hours
Adapter output	DC 9V/2A
Adapter input	100～240VAC 50/60Hz (Will be subject to actual configuration)
Power Consumption	Max.10W
Dimensions & Weight
Product Weight	0.6kg
Package Weight	0.85kg

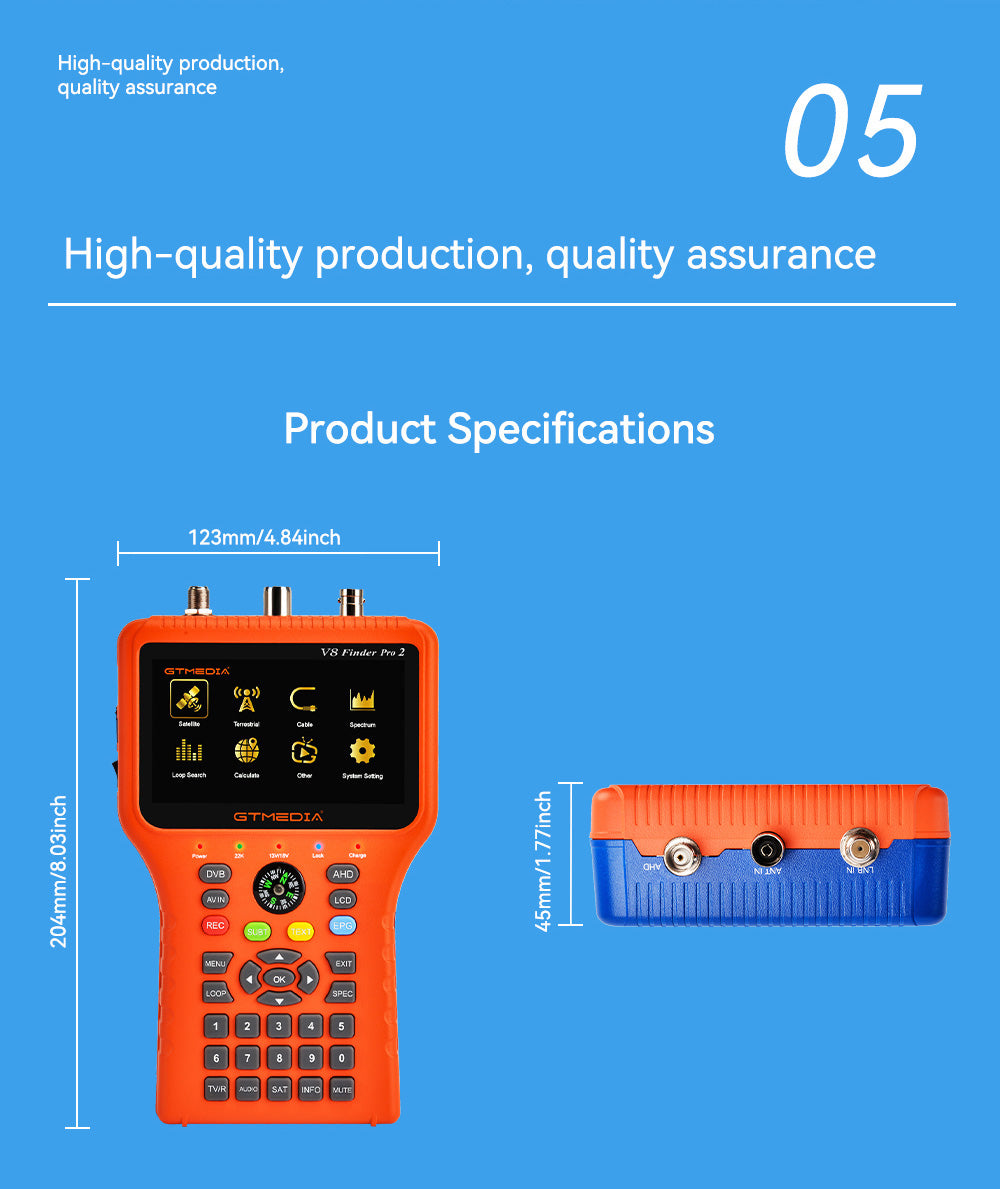

Product Size	123*204*45mm
Package Size	260*200*57mm

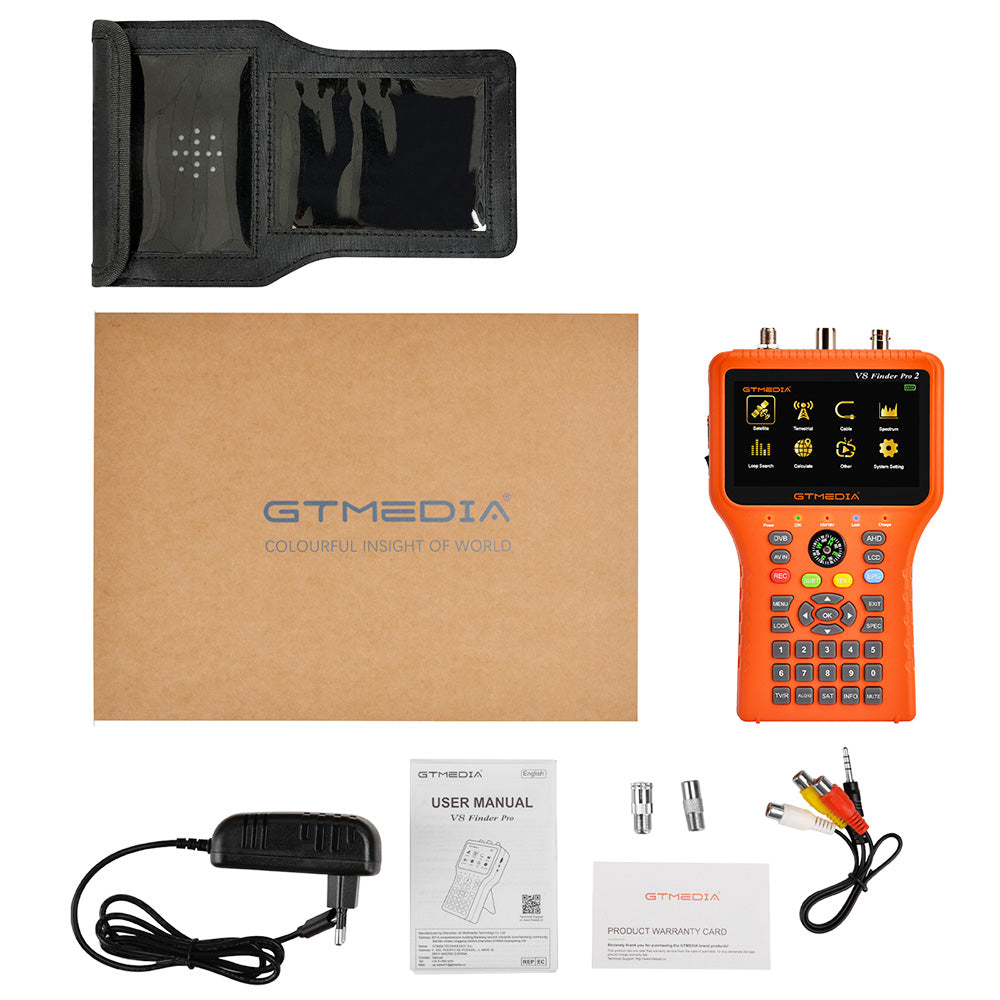

Package Contents
1 x Satellite Signal Finder
1 x Power Adapter
1 x Carry Bag
1 x User Manual
