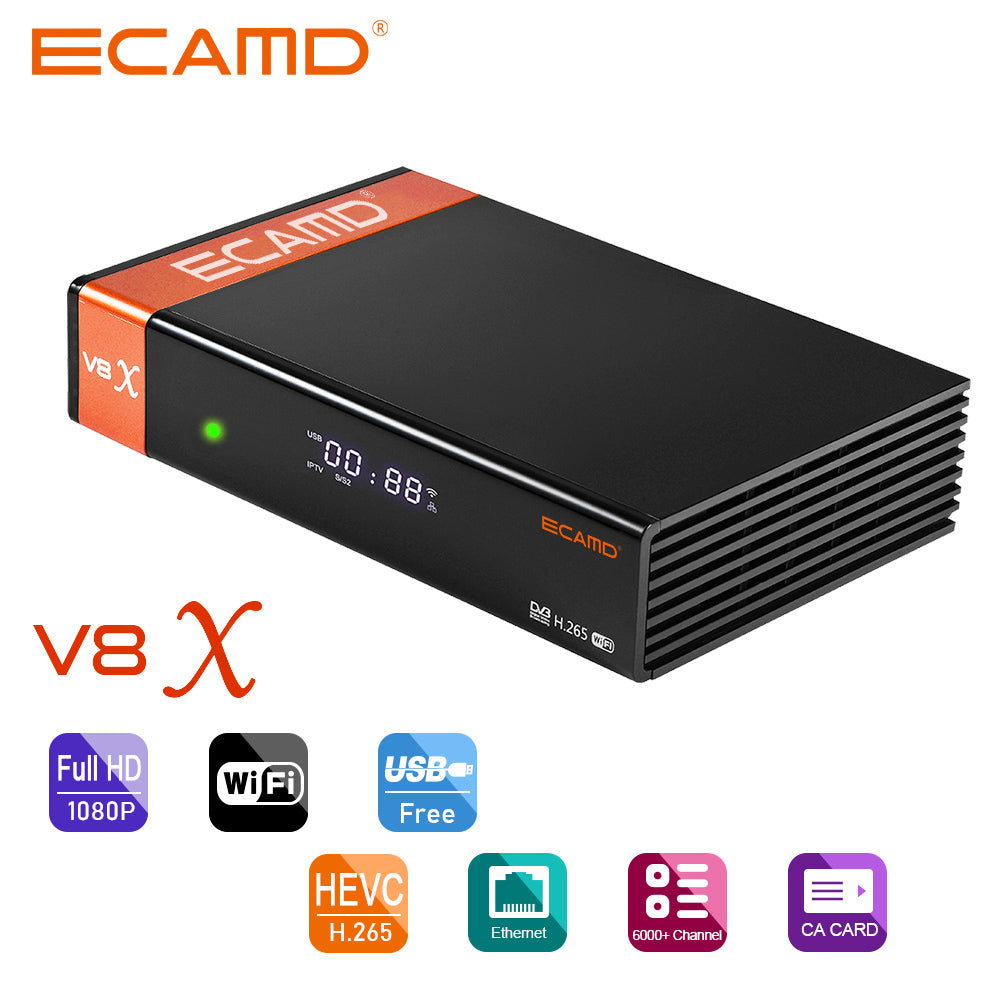

GTMEDIA V8X LA Set-top Box

GTMEDIA V8X LA highlights

Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+.
Support BISS auto roll, Full PowerVu, DRE & Biss key.
Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support.
Support SAT streamed to Gtplayer, DLNA.
Support Built-in 2.4G WIFI module, Ethernet, and support 3G USB dongle.
Support Online Movie.
Support Network Sharing Cccam, Newcam, Mgcam.

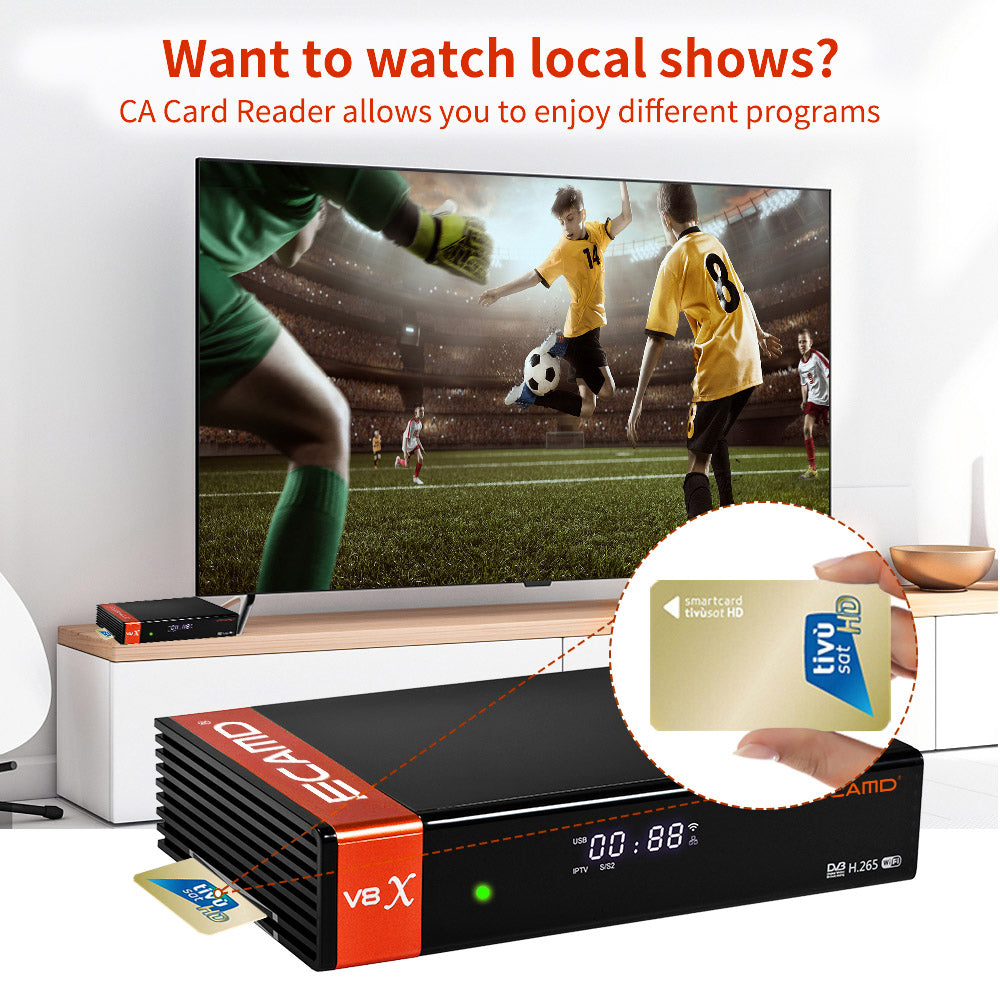

Support CA Card slot.

General
Brand	GTMEDIA
Type	Set-top Box
Model	V8X LA
Specification
CPU	770MHz Dual Core
Flash Memory	64MB SPI Flash
DDR2 Memory	1G RAM
Power Supply	AC 100-240V, 50Hz/60Hz
Power Consumption	10W in operation; ≤1W Standby Power Mode
Temperature	Operation 0～+45℃; Storage -10~+60℃
Humidity	20~90%, non-condensed
Video Decode
HEVC main profile@level 4.1 and main 8 profile@L4.1, High tier
MPEG-2 MP@ML
H.264 BP,MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder
PAL/NTSC: Automatic PAL/NTSC conversion
Aspect Ratio: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
Video effects: Standard, Default, Vivid
Video Resolution: 1080P, 1080I, 720P, 576P, 480P, 576I, 480I
HD Color Space: RGB, YCbCr 4:4:4 YCbCr 4:2:2, Auto
Audio Decode
Audio Decode	MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, AC3/AC3+, DRA CH/5.1CH
Sound Mode	LEFT/RIGHT/STEREO/MONO
Sampling Frequency	32KHz, 44.1KHz, 48KHz
Audio Out	LPCM Out, BS Out
Hardware Specifications

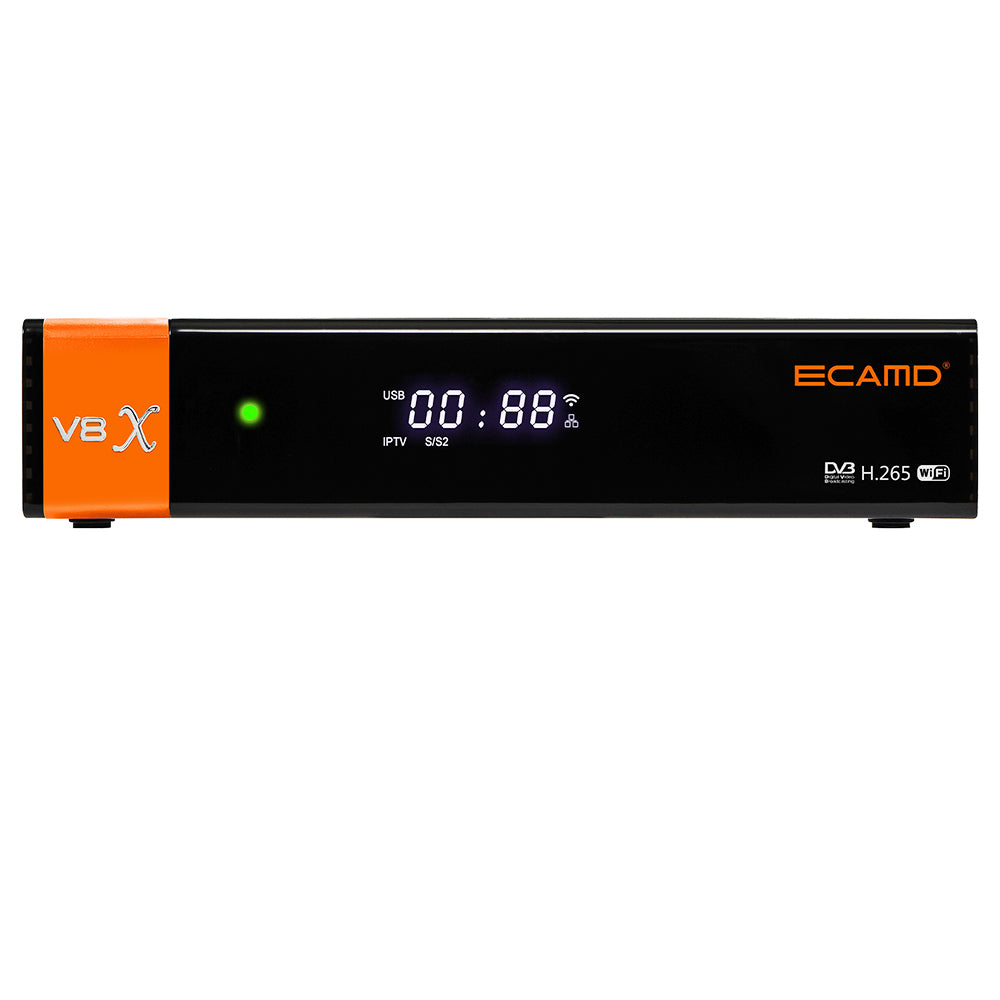

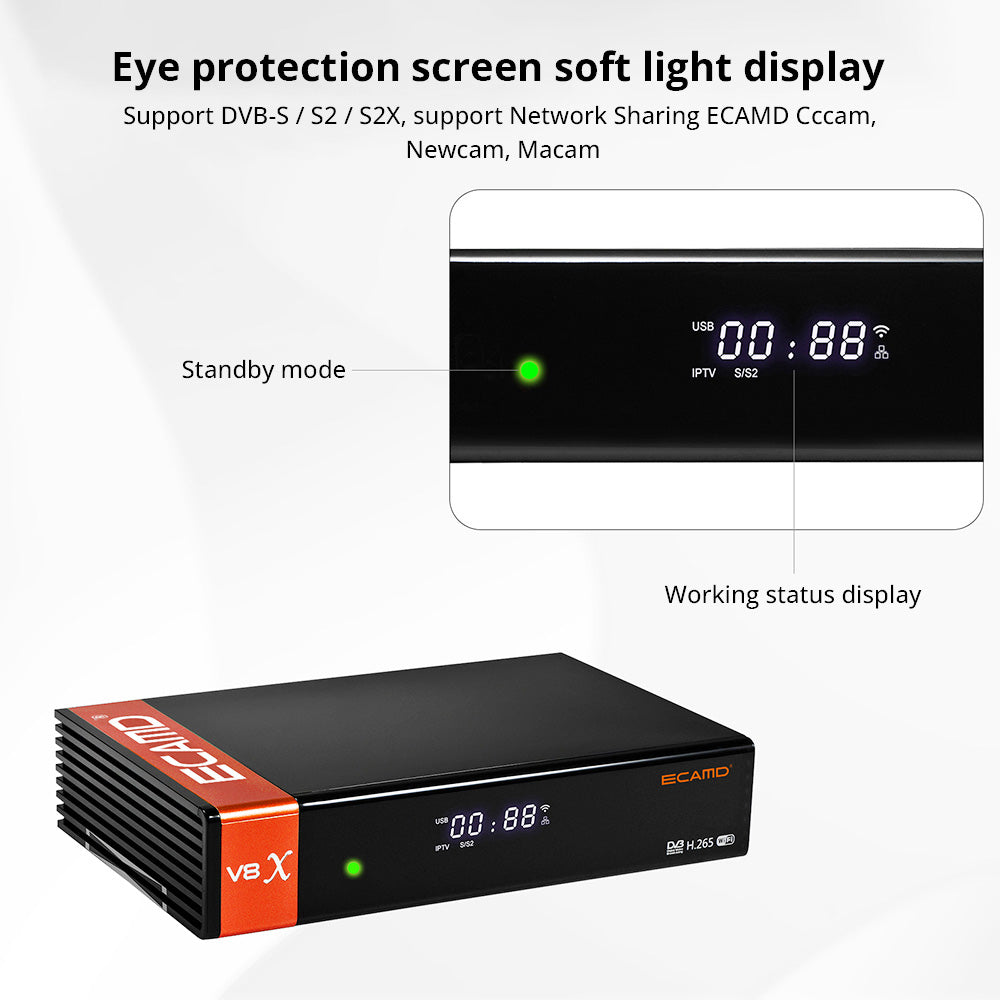

Panel Display: 4-digit white LED display (Support function display)
LED Indicator: Power ON: Green; Standby: Red

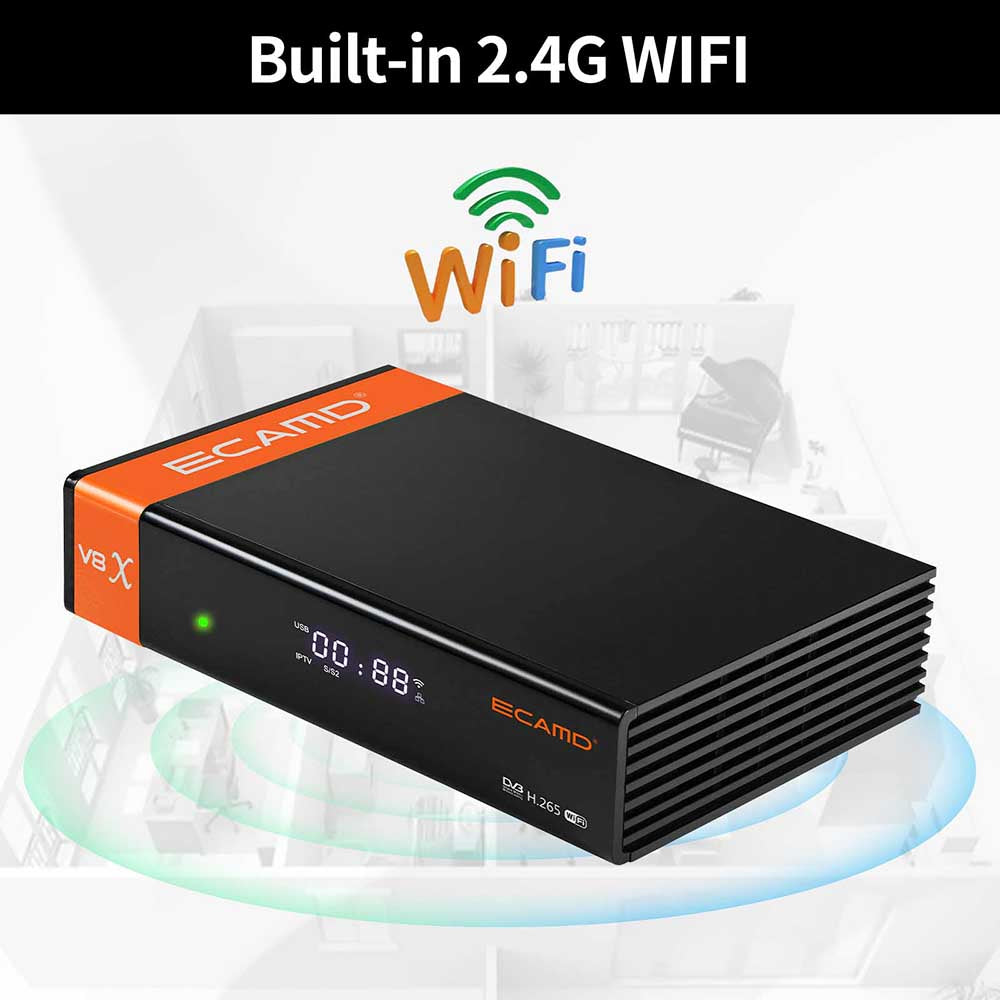

WiFi: Built in 2.4G WiFi, Support IEEE 802.1.1b/g/n

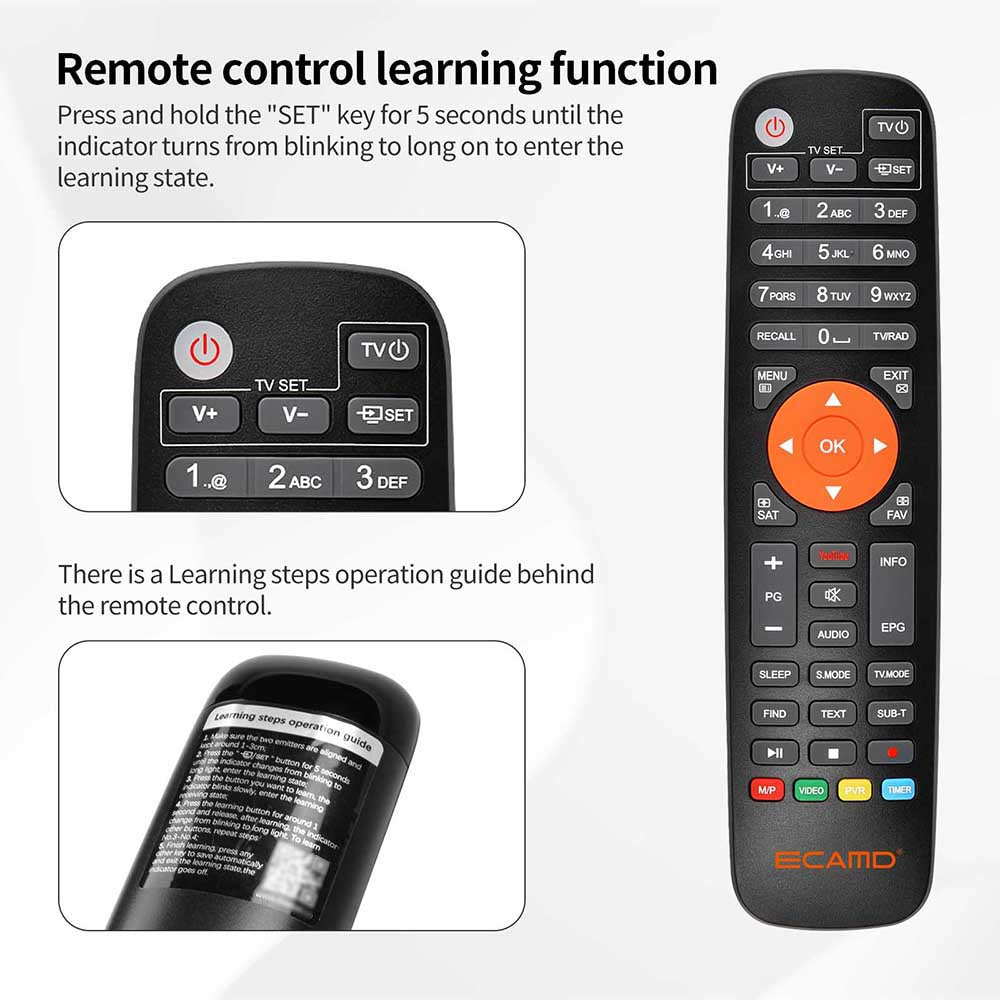

IR: Exit IR for 38KHz, Infra Remote control

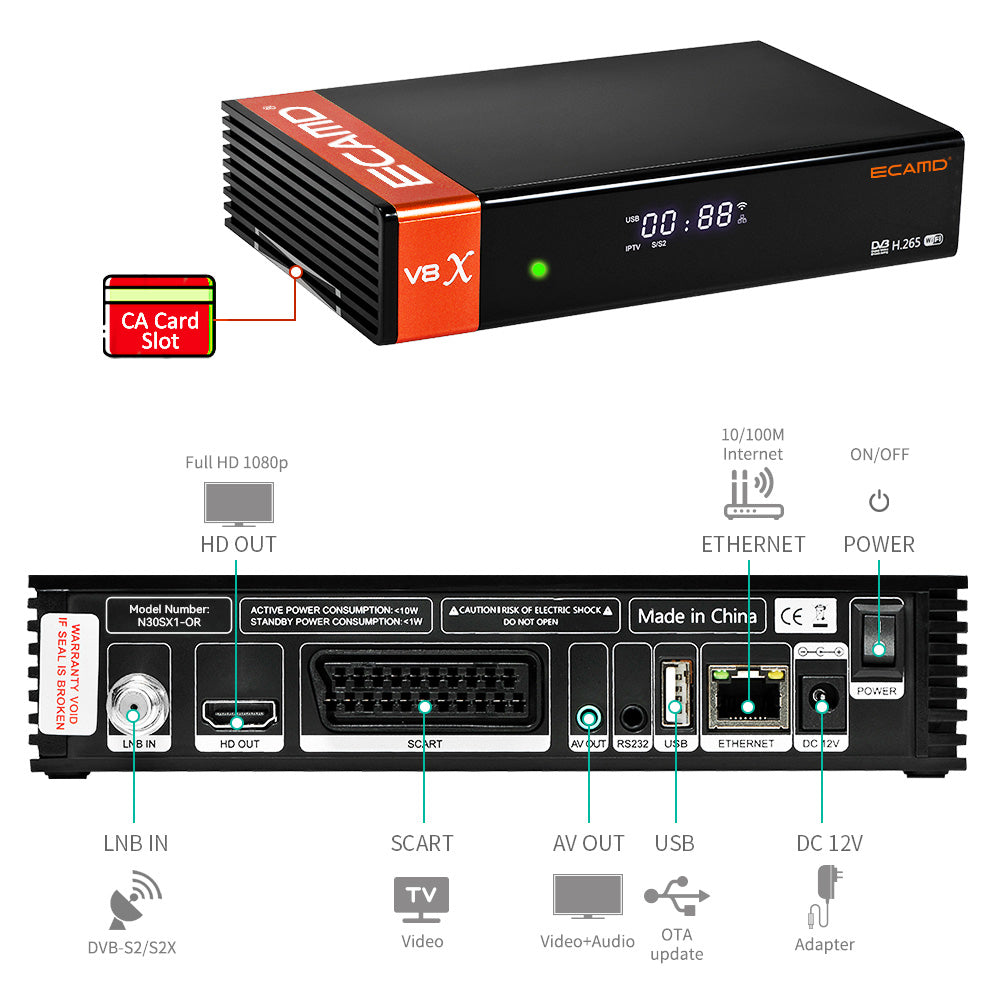

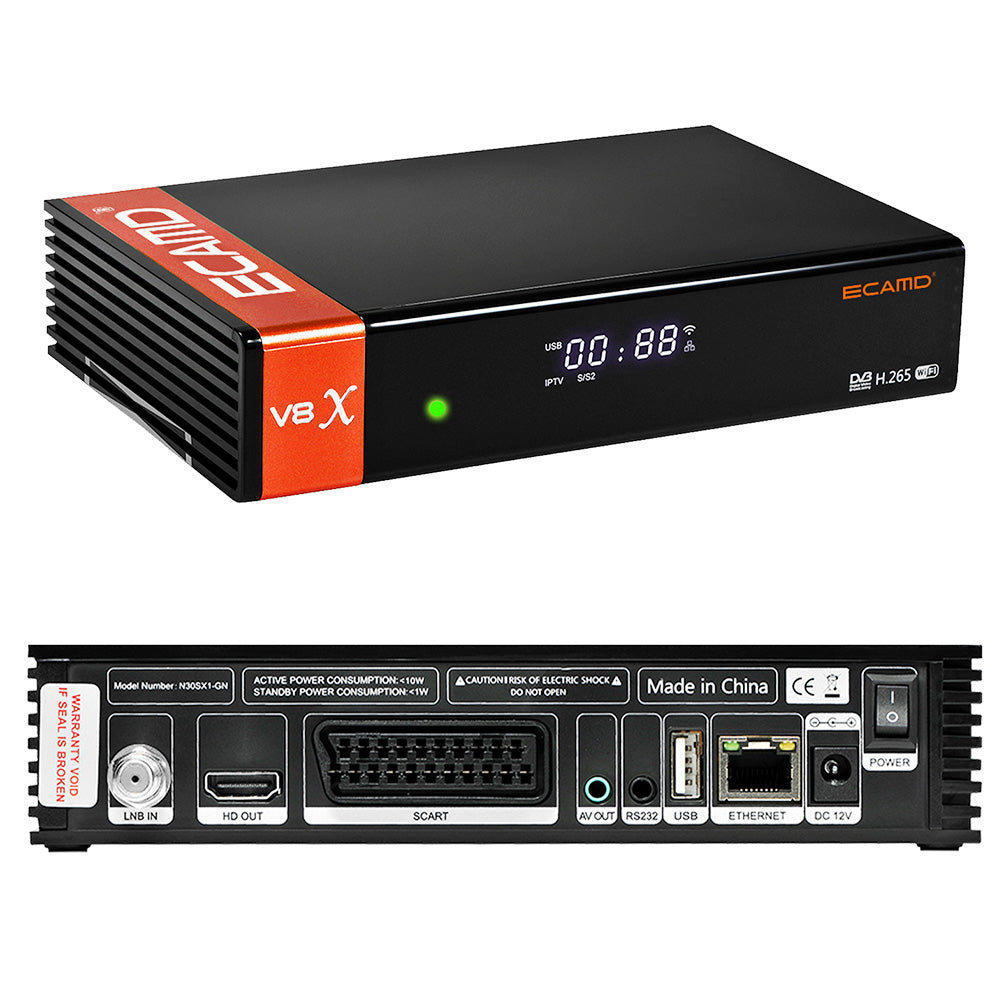

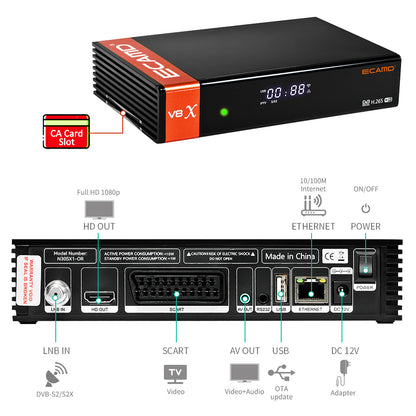

Rear Panel: LNB IN (Frequency Range 950MHz to 2150MHz); HD OUT (up to 1080P); AV OUT; 1*CA Card Slot; 1*USB HOST; 1*RJ45; 1*RS232; Power (DC IN 12V/1.5A)
DVB-S/S2/S2X Specifications
System standard: ETS 302 307
Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator
LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support. Support Unicable, 13/18V DC@400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range: -80dBm ~ -20dBm (average power)
Symbol Rates: DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward Error Correction Rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Carrier Frequency Acquisition Range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Symbol Rates: 2 ~ 90MSPS(Code Rate 1/2)
Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates
ANT. Connector: IEC TYPE F
Input Impedance: 75Ω
Software Features
Standard	Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band), MPEG-2/4 and H.265 Standard
Channel Search	Support automatic network search for new added transponders
Channels Number	6000+ channels TV and Radio programmable
Channel	Recording one channel, can view another channel under the same TP, Various channel editing function (favorite, move, lock, skip, delete, rename, find, sort)
Favorites	31 different favorite groups selection
OSD Language	English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Persian, Thai, Vietnam, Czech, Armenian, Georgian, Ukrainian, Albanian, Hungary, Malay, Indonesisch, Dansk, Greek, Serbian
OSD Color	32-bits OSD with anti-flickering
OSD Setting	Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3
Other Setting	Sets up multiple habitual operation Settings
Parental Ctrl	Parental control for channels
Easy Menu	Plug and Play installation, with an easy to use Menu System
EPG	Fully support to 7 days Electronic Program Guide(EPG)
Subtitle	support DVB EN300743 and EBU
Teletext	support DVB ETS300472 by VBI
SoftUpgrade	Software upgrades through USB port, or FTP upgrade.
Time Set	Time set by GMT offset automatic and manual, Summer Time support
Timer	5 event timers, off/Once/Daily/Weekly Mode
USB Decode
USB 2.0	Support FAT/FAT32/NTFS big capacity hard disk
PVR Option	USB 2.0 for PVR, TIMESHIFT, media files playback
Media Codec	TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec	WMA, MP3
Photo Codec	JPG, BMP, PNG, GIF
Weight & Size
Product Weight	304g
Package Weight	681g

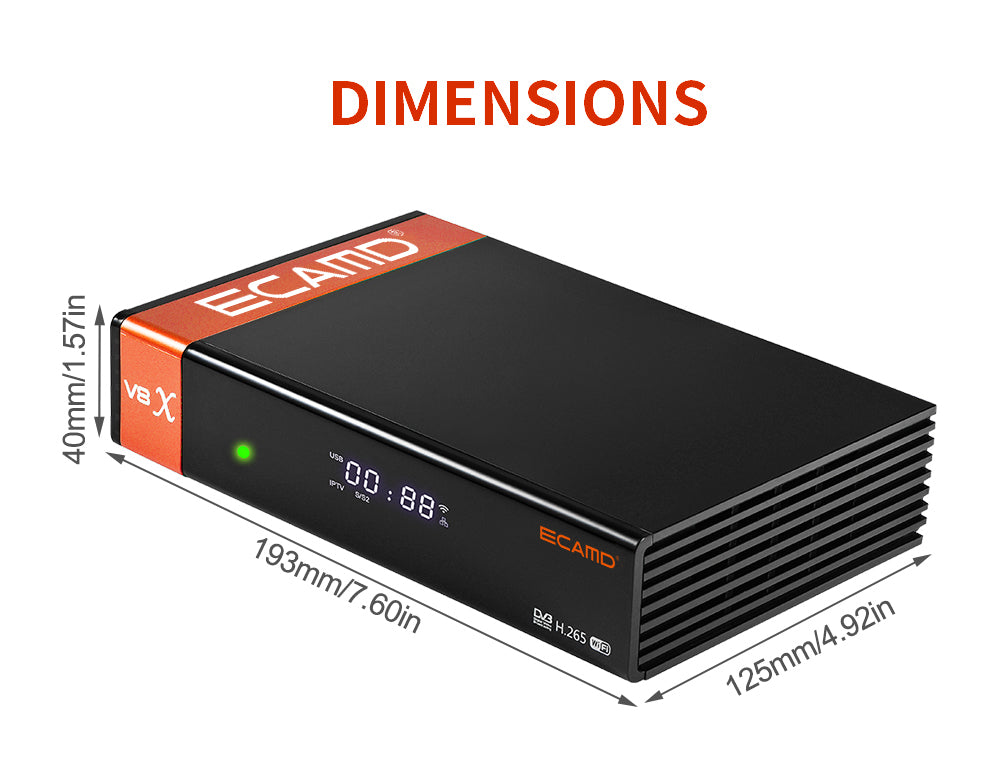

Product Size(L x W x H)	19.2*12.0*4.0cm
Package Size(L x W x H)	26.6*17.2*5.6cm

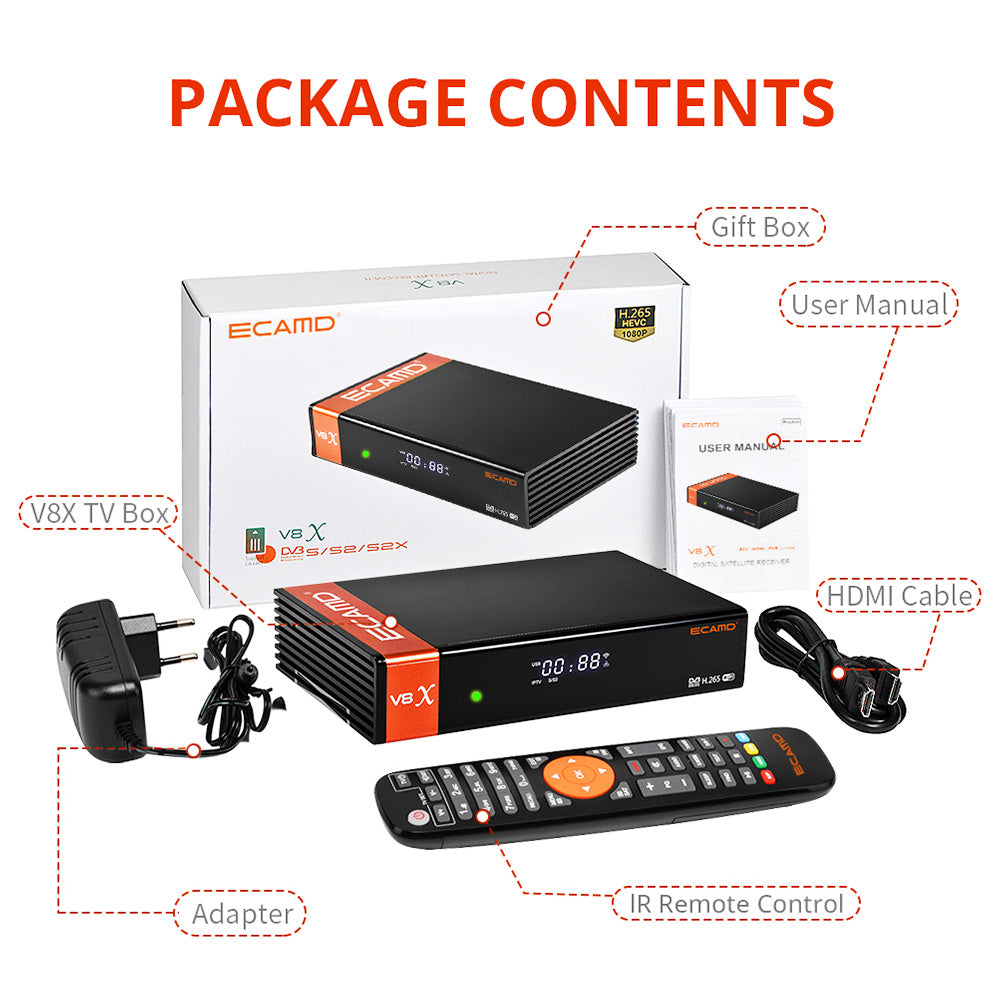

Package Contents
1 x Set-top Box
1 x Power Adapter
1 x IR Remote Control
1 x HD Cable
1 x User manual
