GWEIKE G1 highlights
Higher Accuracy Engraving

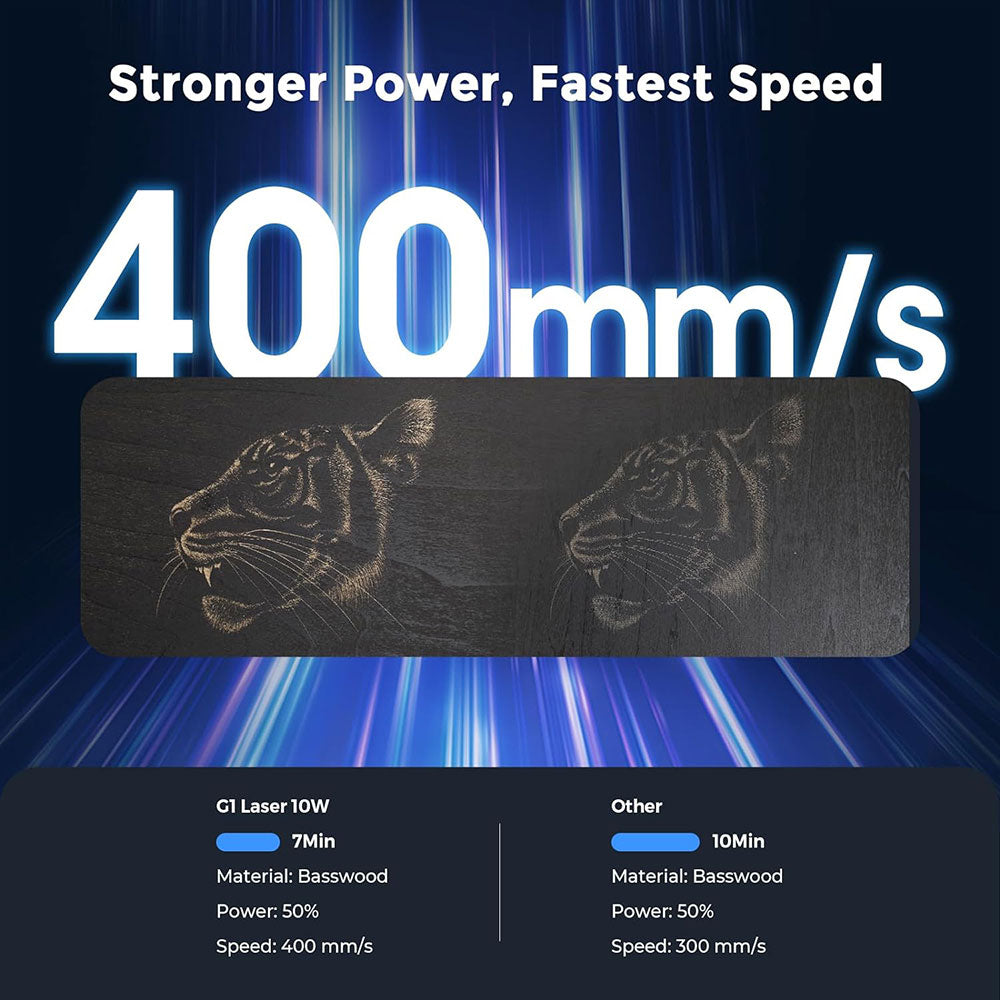

Gweike G1 laser engraver adopts 0.08mm*0.06mm ultra-fine compressed spot technology to make your engraving clearer. With the ultra-high power laser module, the maximum processing speed can reach 400mm/s. You can finish your engraving work quickly and excellently.

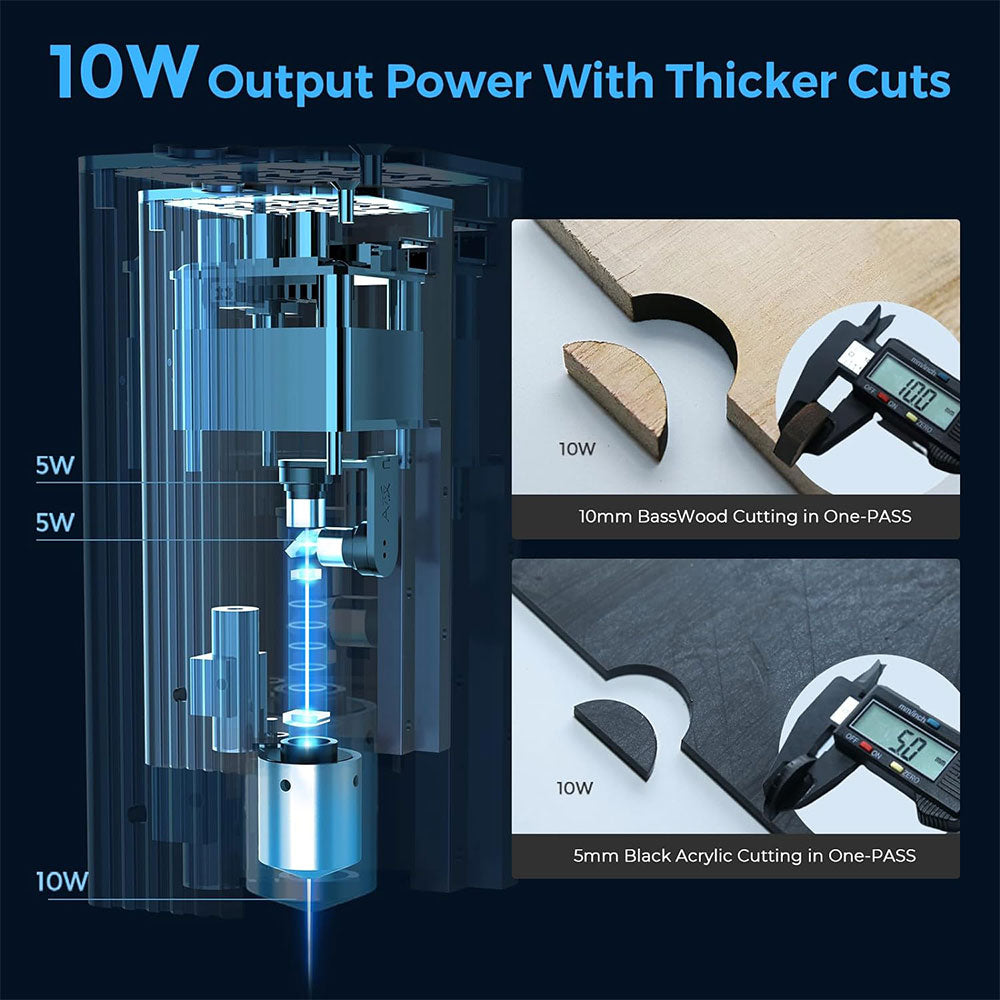

10W Laser Power
G1 has 120W machine power and 10W output power, and adopts the latest laser coupling technology, which makes the laser beam more focused and penetrating, making engraving and cutting easier. It can cut 10mm basswood board or 5mm black acrylic in one go.

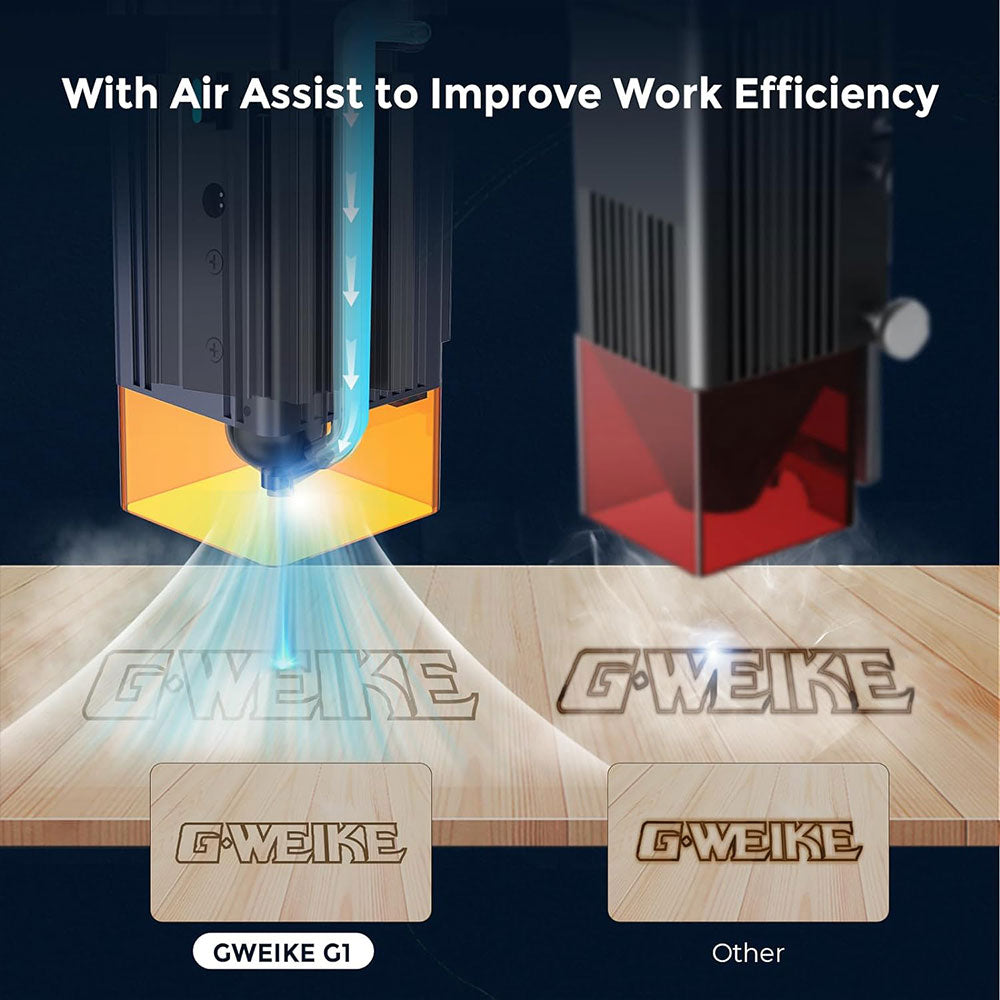

Equipped with Air Assist
Gweike G1 has an air assist, which can remove the smoke and dust generated during laser cutting, prevent lens damage and laser power attenuation, and effectively reduce the surface temperature of objects during engraving and cutting, making the cutting edge cleaner and smoother, solving the problem of material being blackened by smoke.
Eye-Protection and Safety
Built-in gyroscope and emergency stop and will stop working if the laser engraving machine is off-balance. The anti-UV filter acrylic on the laser cutting machine module can filter 97% of UV rays and protect your eyes and those around you.

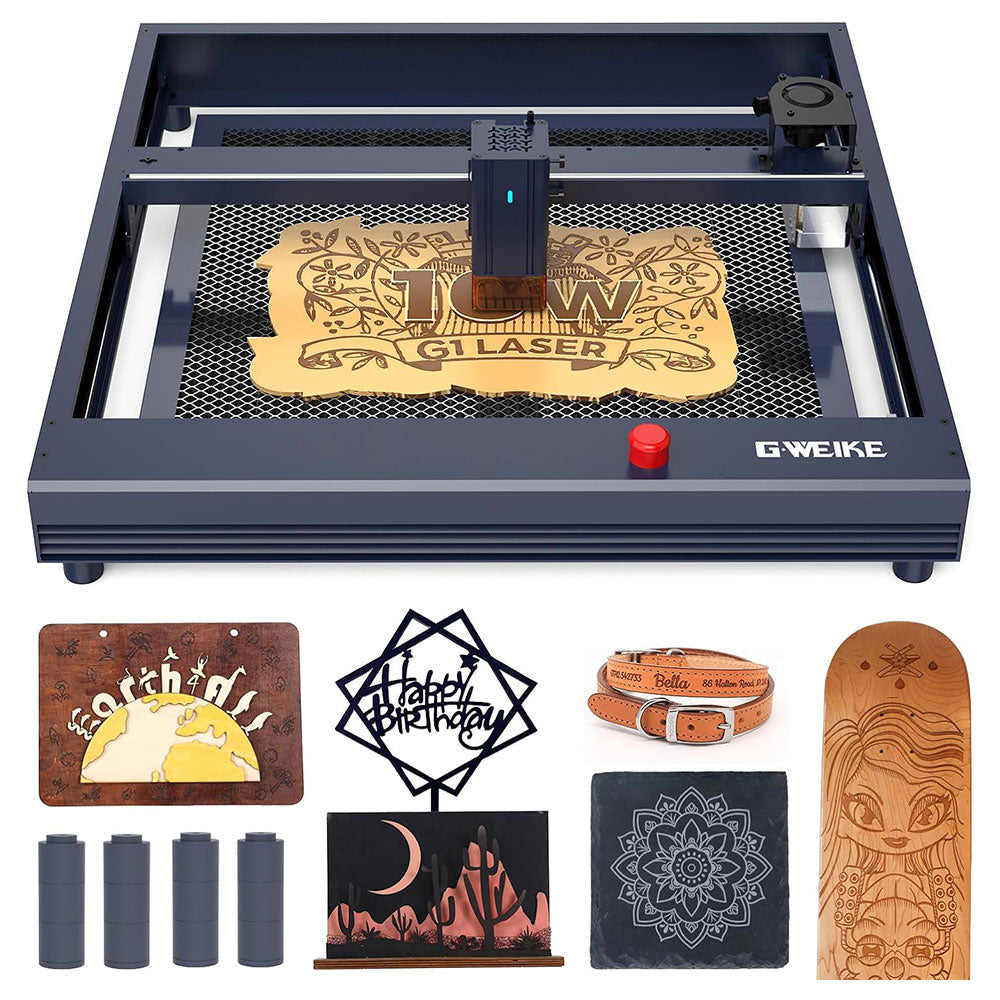

Multiple Material Supported
This 10W laser cutter can be used to cut paper, wood, leather, plastic, and dark acrylic, and engrave on most consumables such as metal, glass, and more.
Specifications
Specifications
| General | |
|---|---|
| Brand | Gweike |
| Type | Laser Engraver |
| Model | G1 |
| Specification | |
| Machine Power | 120W |
| Laser Module Output Power | 10W |
| Laser Wavelength | 450nm |
| Laser Spot | 0.08mm*0.06mm |

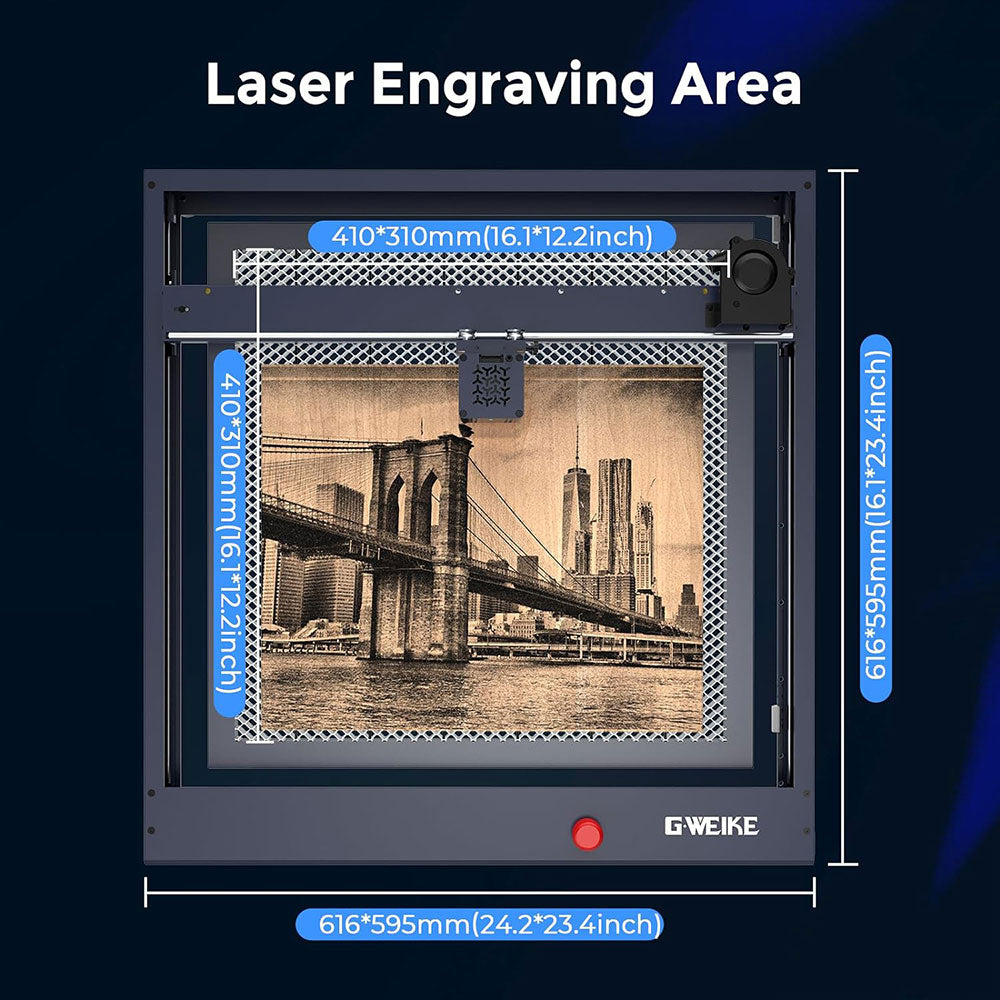

| Engraving Range | 410mm*310mm |
| Engraving Accuracy | 0.01mm |
| Engraving Speed | 400mm/s |
| Connection Method | USB |
| Support File Format | *.ai *.pdf *.sc *.dxf *.hpgl *.plt *.rd *.scpro2 *.svg *.lbrn *.lbrn2 *.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga |
| Support System | Mac/Windows/Linux |

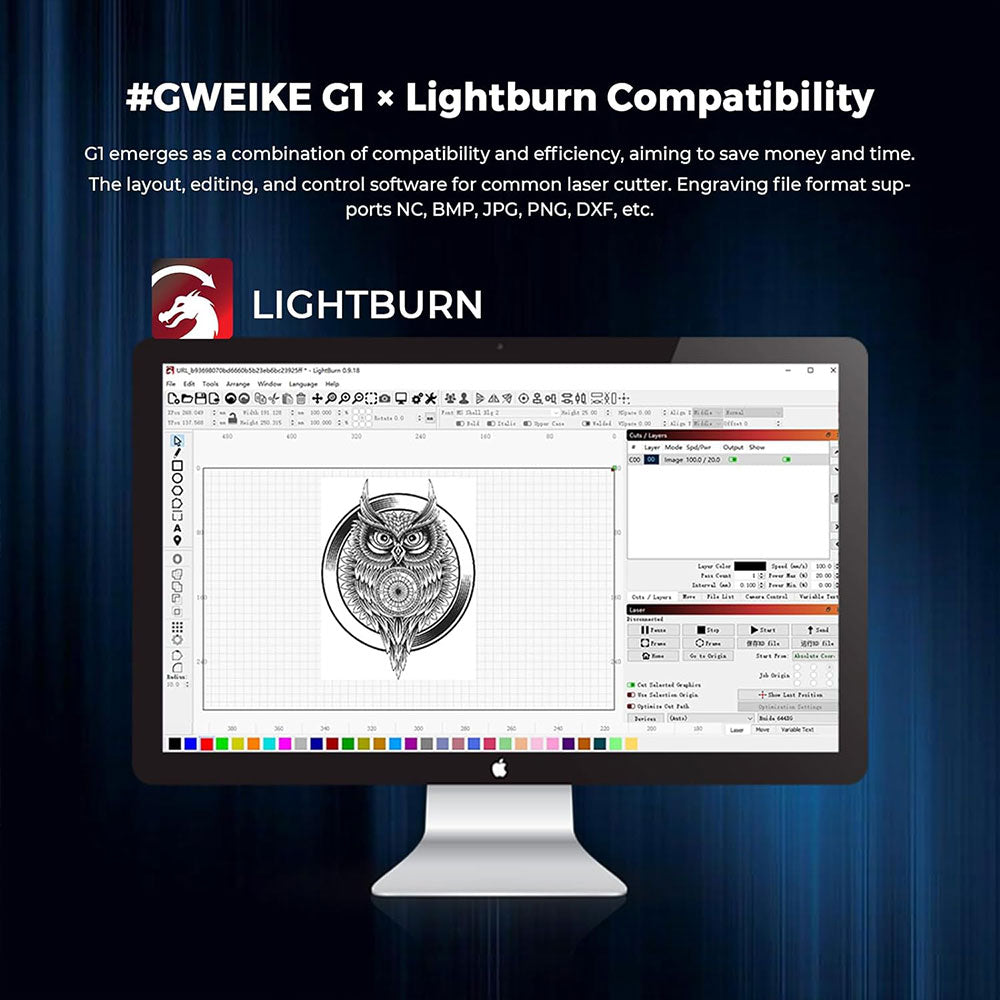

| Control Software | Lightburn |
| Input Power | 120W 24V 5A |
| Weight & Size | |
| Product Weight | 6.6kg |
| Package Weight | 10kg |
| Product Size(L x W x H) | 613*590*160mm |
| Package Size(L x W x H) | 760*380*170mm |
| Package Contents | |
| 1 x Laser Engraver | |
| 1 x Power Adapter & Cable | |
| 1 x USB Cable | |
| 1 x Set of Wrench | |
| 1 x Cable Tie Package | |
| 1 x Fixed Focus Block | |
| 27 x Screws | |
| 1 x Circlip Plier | |
| 4 x Set of Risers | |
| 1 x Transmission Shaft | |
| 1 x User Manual | |
