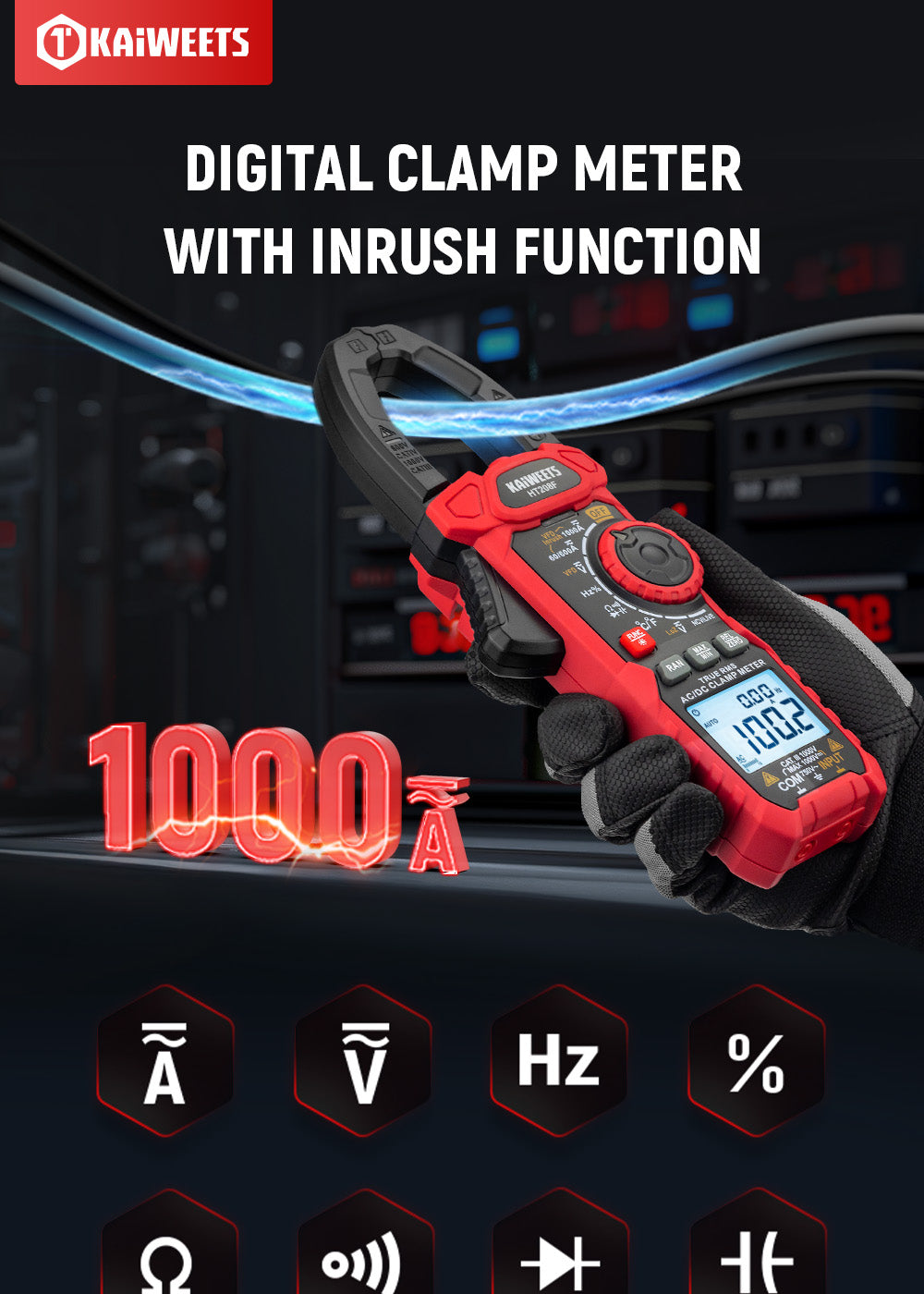

KAIWEETS HT208F Inrush Digital Clamp Meter

KAIWEETS HT208F highlights

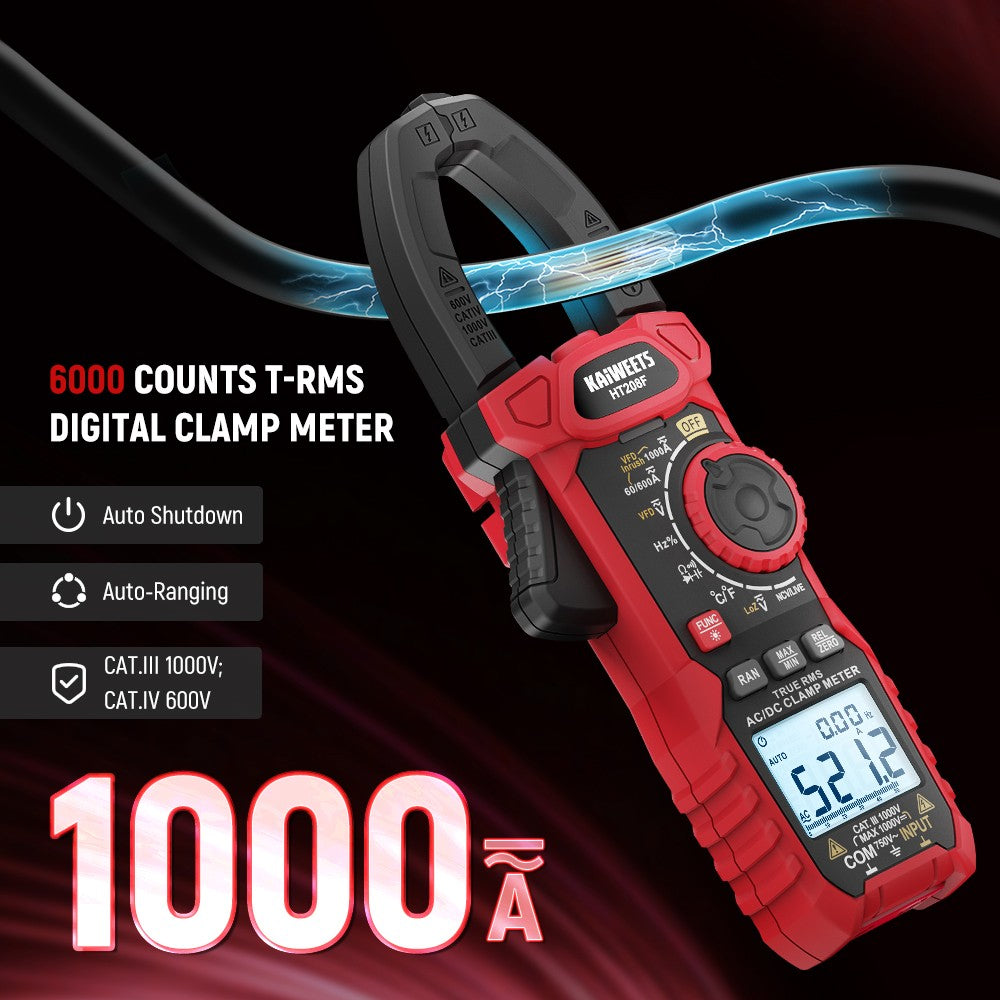

True-RMS Clamp Meter

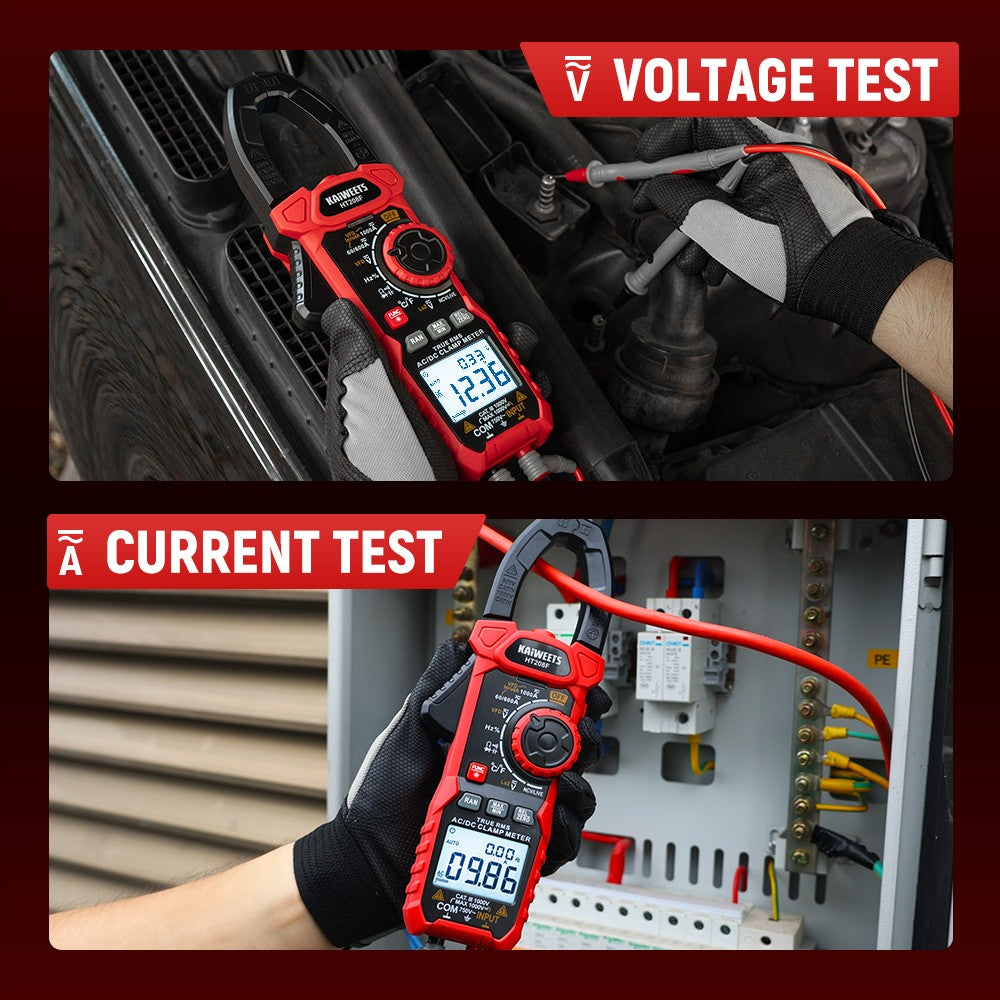

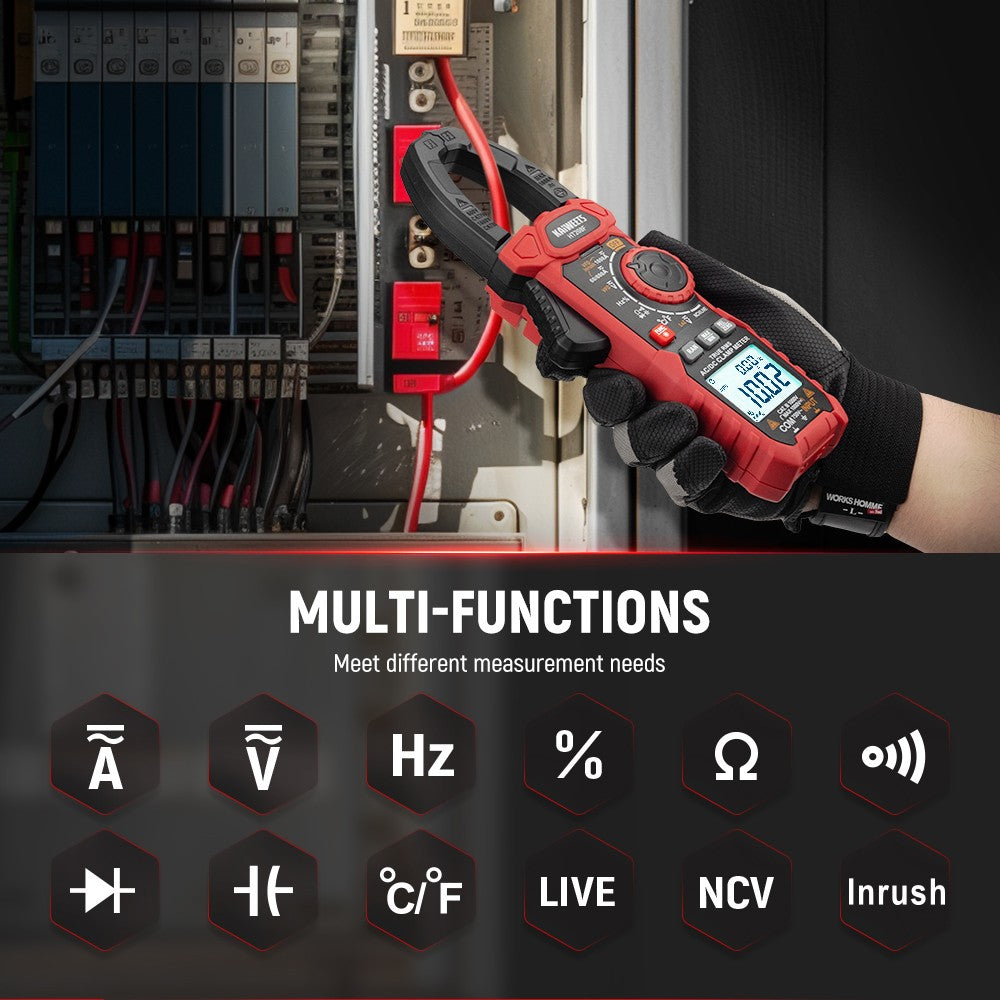

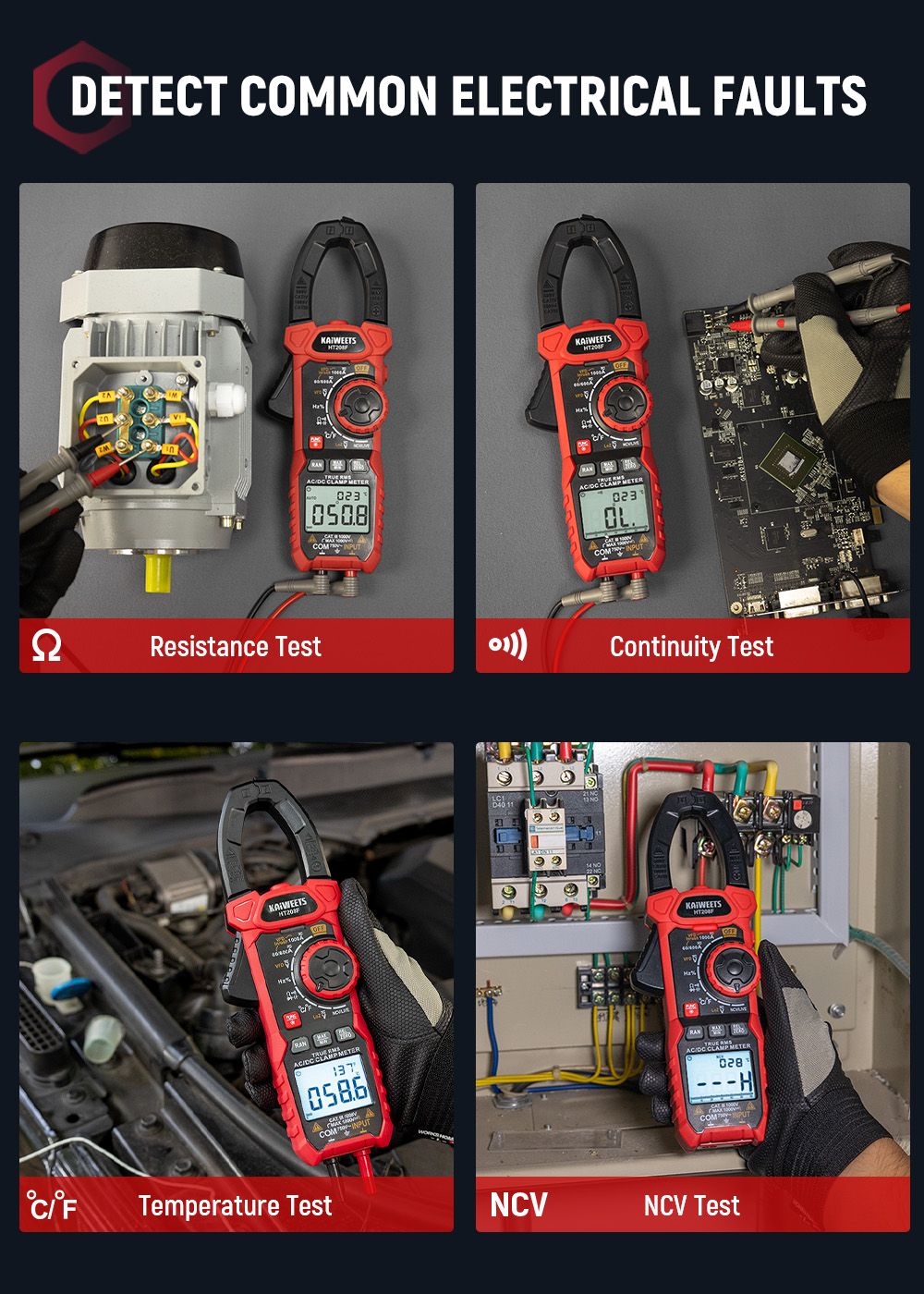

This multimeter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs factories and households.

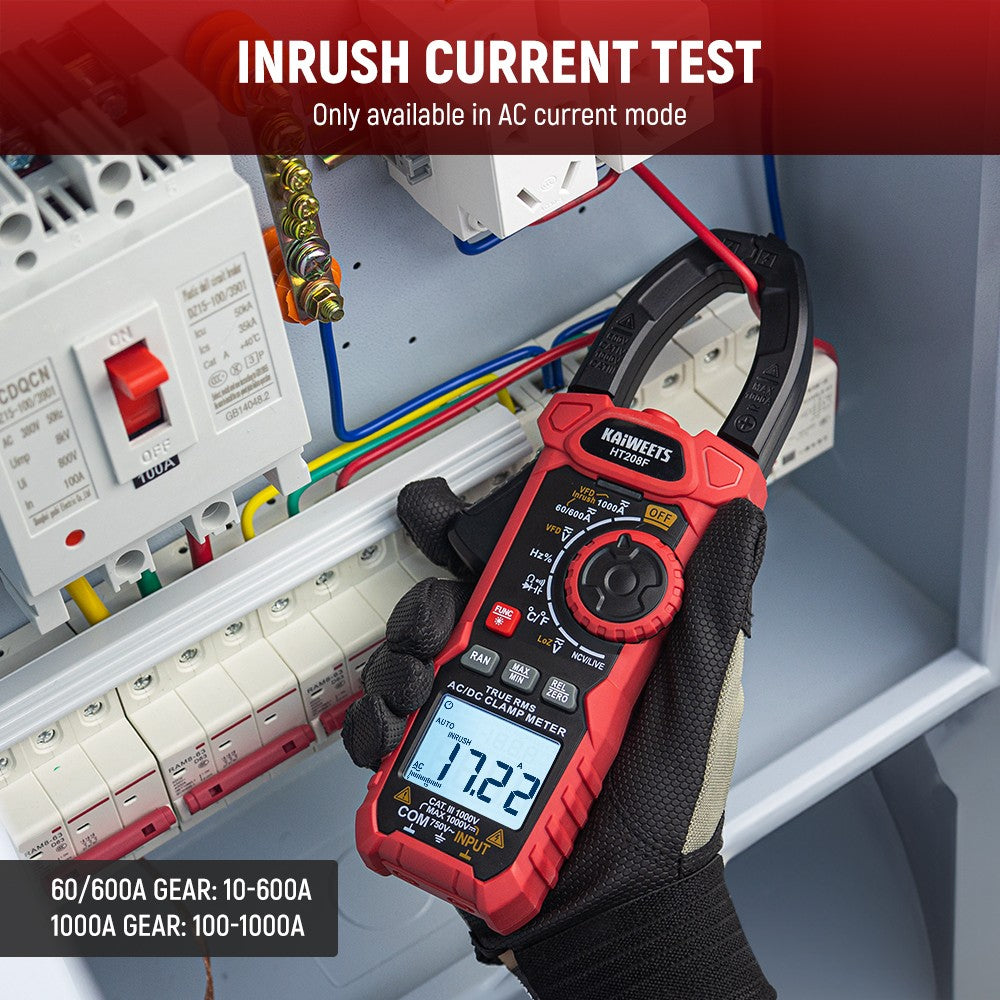

Inrush Current Meter

Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well. The inrush function is only available in AC current mode.

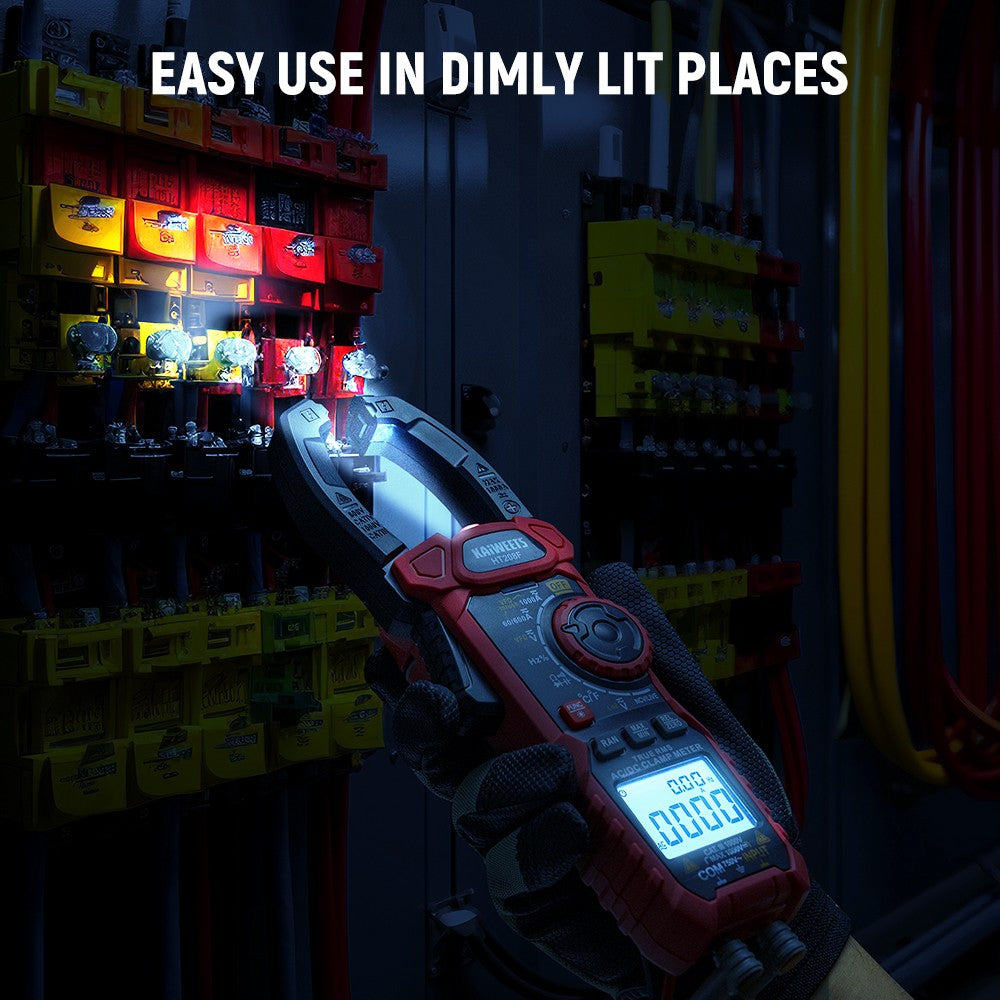

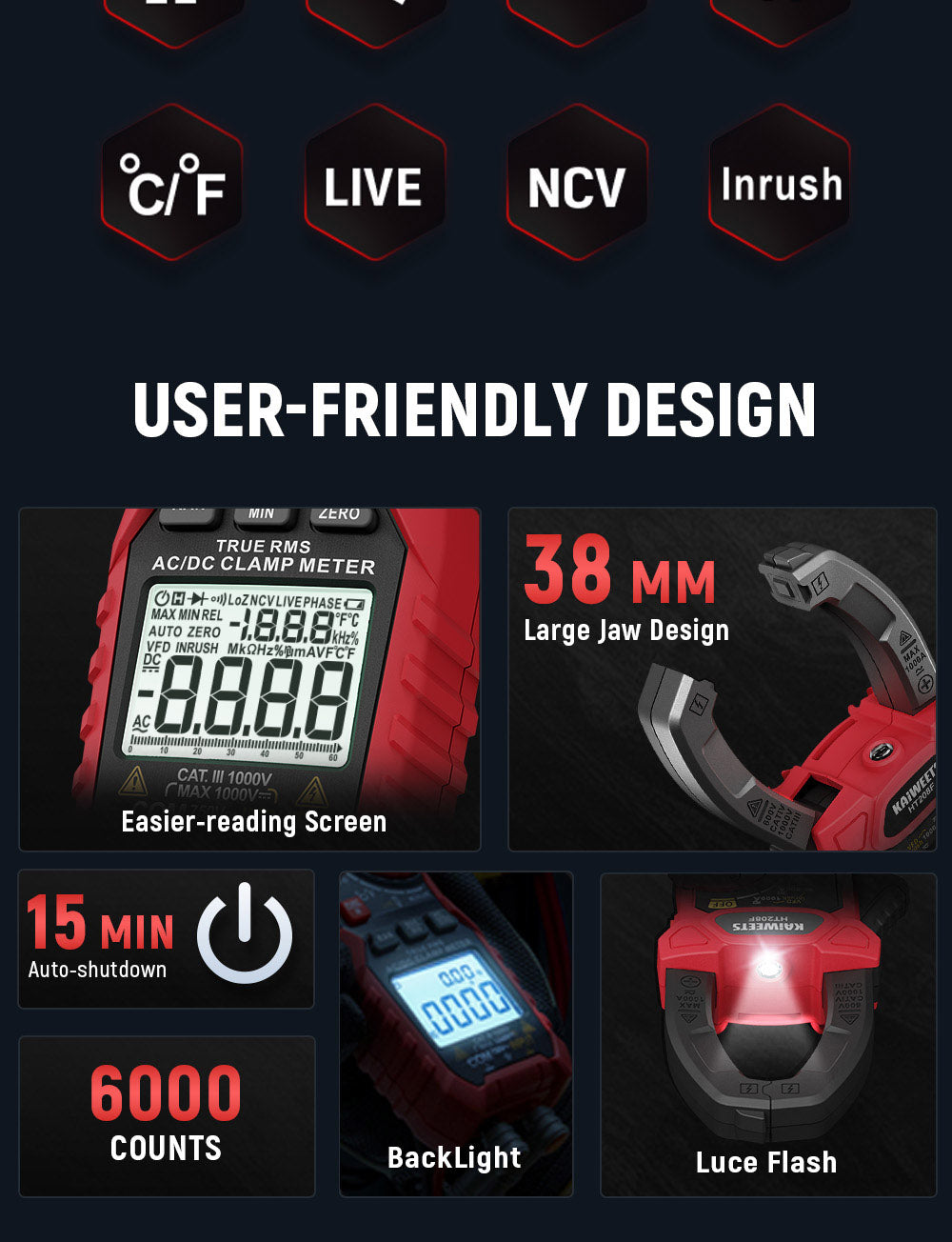

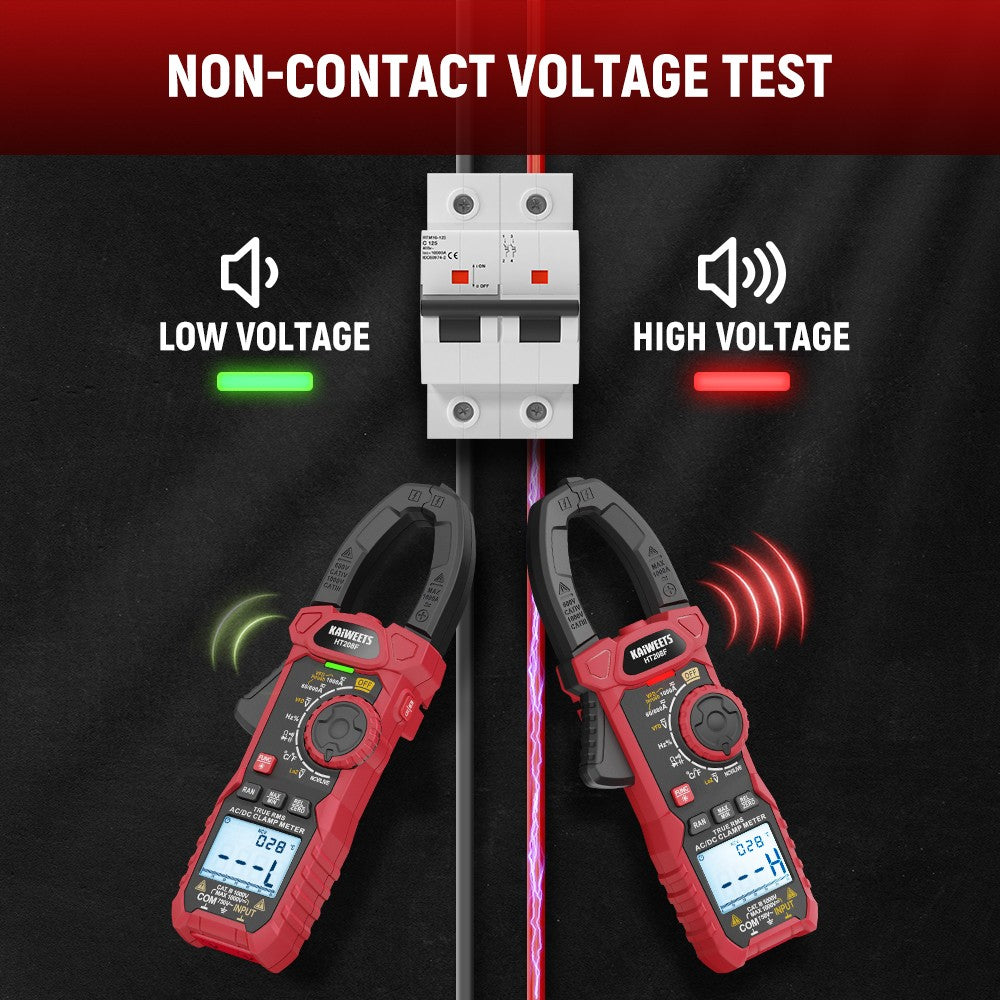

NCV Detection & Flashlight/Backlight

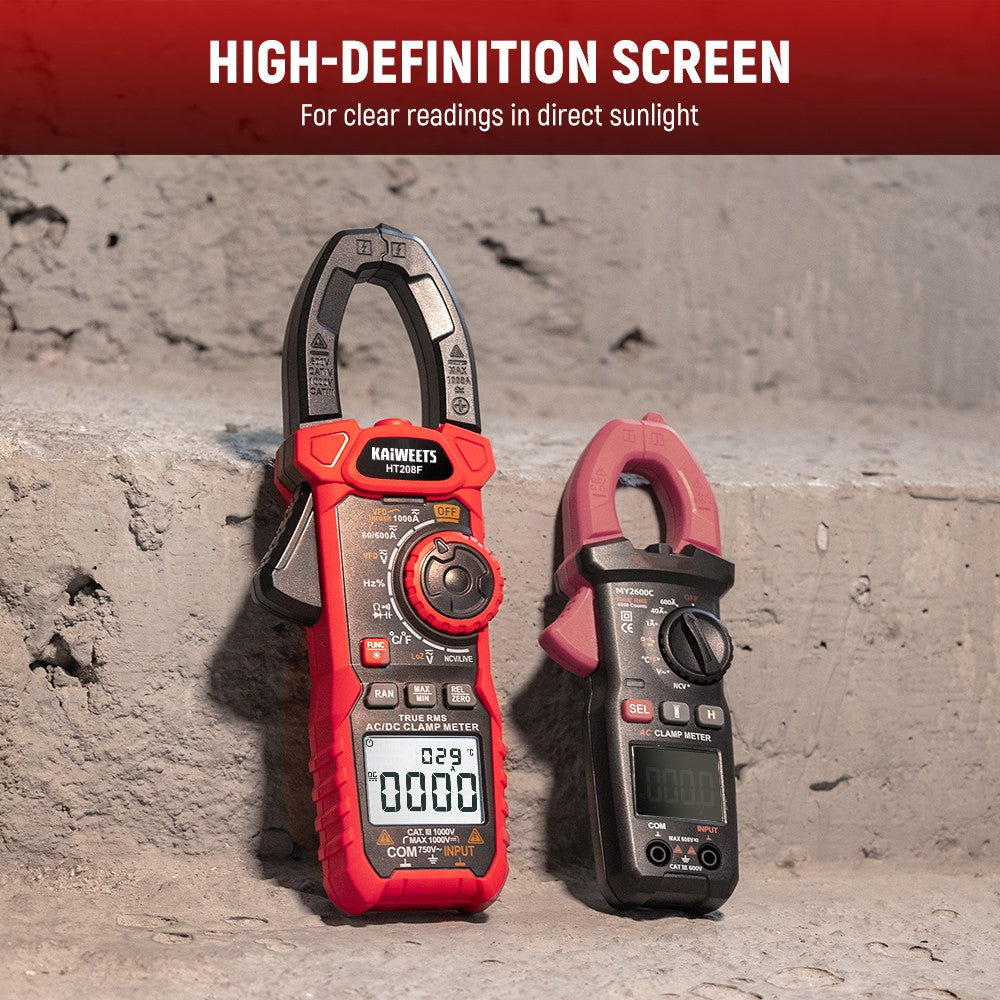

Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient flashlight illuminates a dimly lit area; an upgraded screen with a backlight helps reading in direct sunlight easier and clearer.

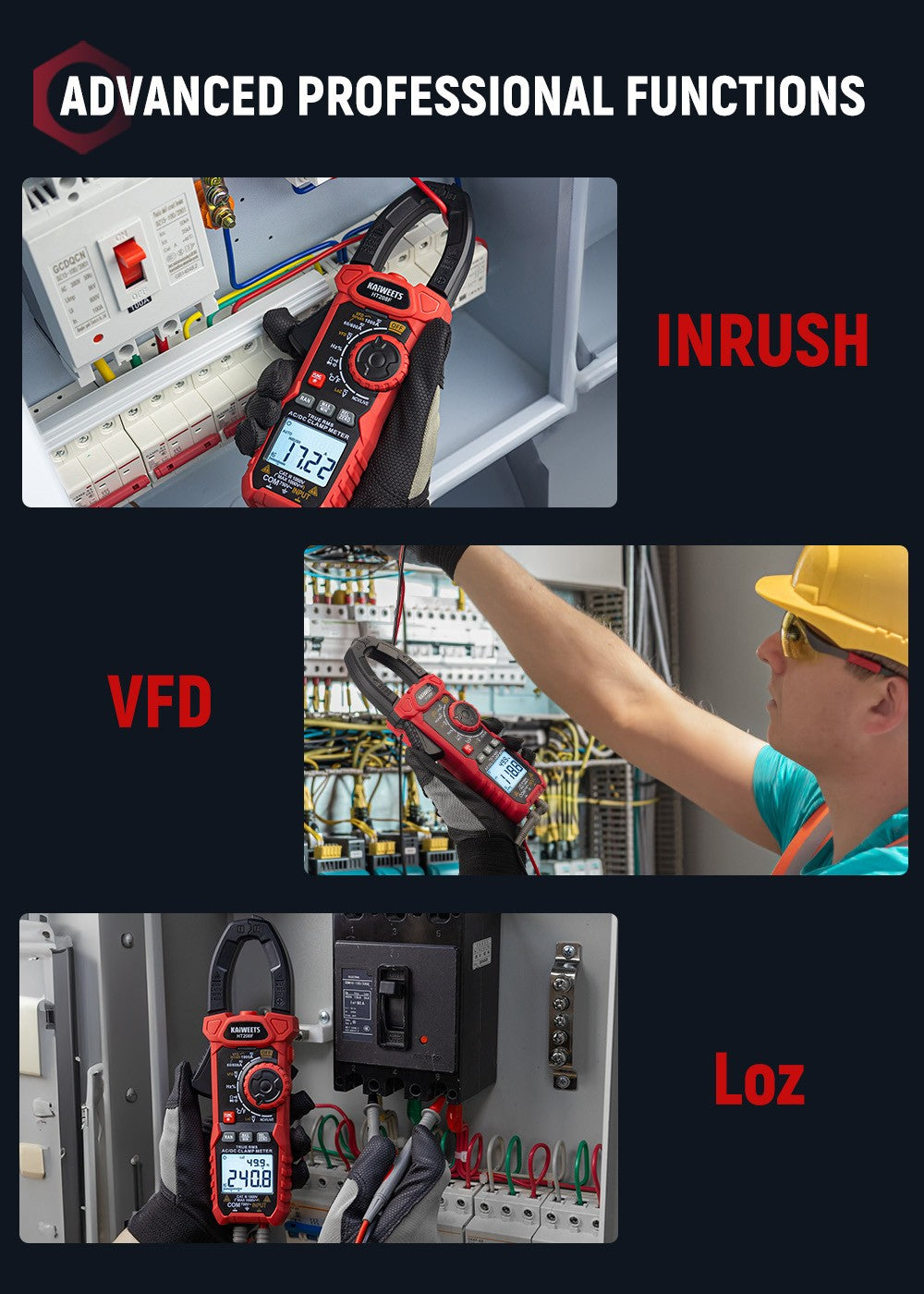

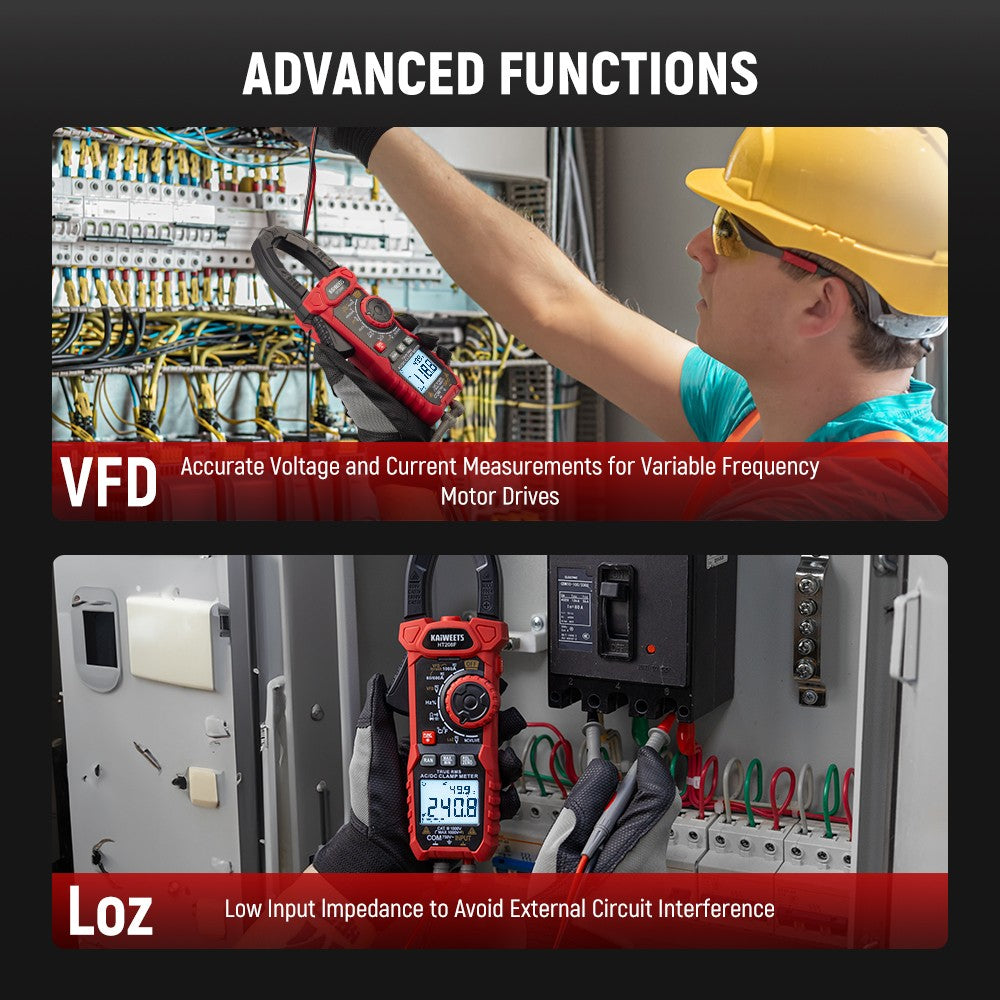

Advanced Functions

The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.

General
Brand	KAIWEETS
Type	Inrush Digital Clamp Meter
Model	HT208F
Color	Red + Black
Specification
DC Voltage: 600mV/6V/60V/600V/1000V, ±(0.5%+3)
AC Voltage: 600mV/6V/60V/600V/750V, ±(0.8%+3)

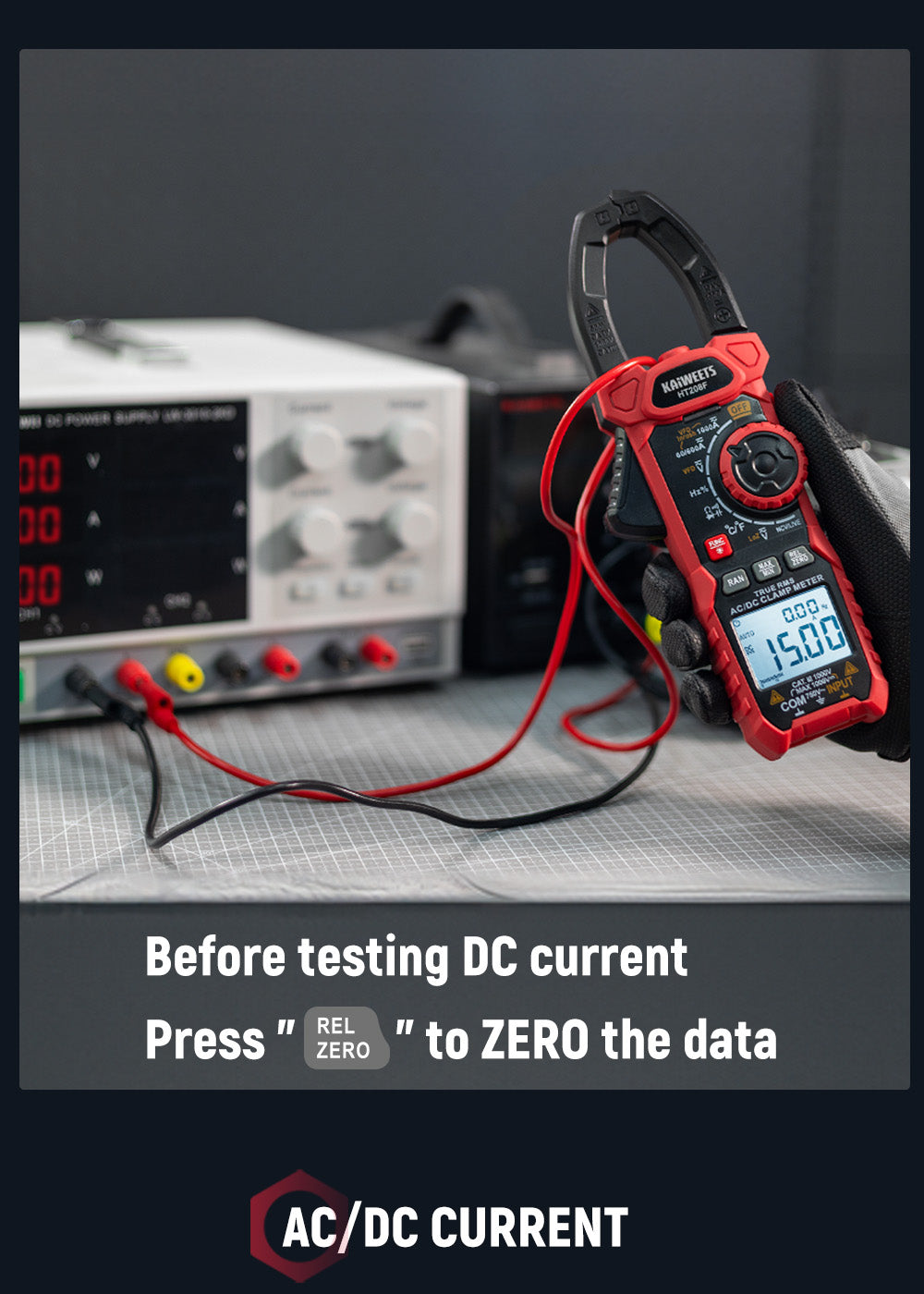

DC Current: 60A/600A/1000A, ±(2.5%+5)
AC Current: 60A/600A/1000A, ±(2.5%+5)
Resistance: 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ, ±(0.8%+3)
Capacitance: 10nF/100nF/1μF/10uF/100uF/1mF/10mF/100mF, ±(3.0%+3)
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz, ±(0.5%+5)
Duty: 1%~99%, ±(1.0%+2)
Temperature:
-40°C-1000°C, ±(1.0%+2)
-40°F-1832°F, ±(1.0%+2)
Counts: 6000
Weight & Size
Product Weight	0.81kg
Package Weight	0.9kg
Package Size(L x W x H)	29x14x6.5cm

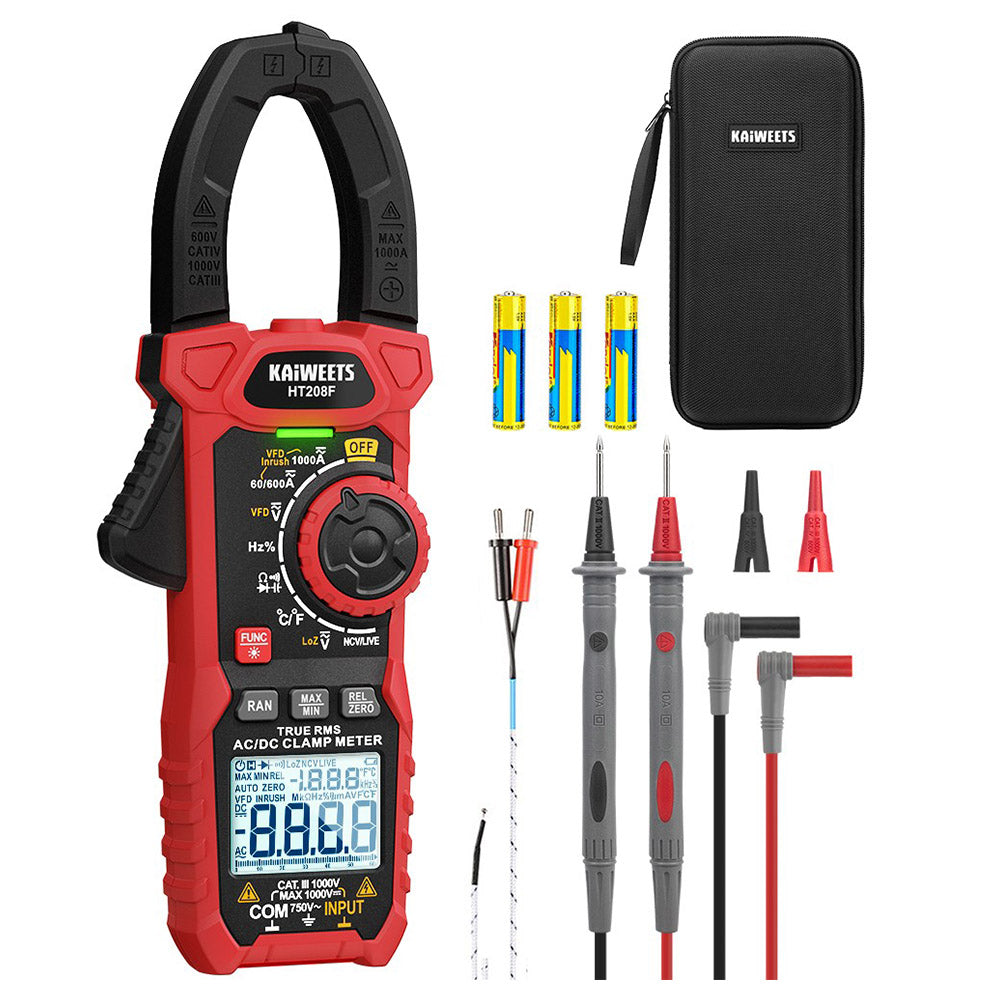

Package Contents
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouples
3 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Clamp Meter Bag
1 x Packing Box
