KAIWEETS KM601S Multimeter

KAIWEETS KM601S highlights

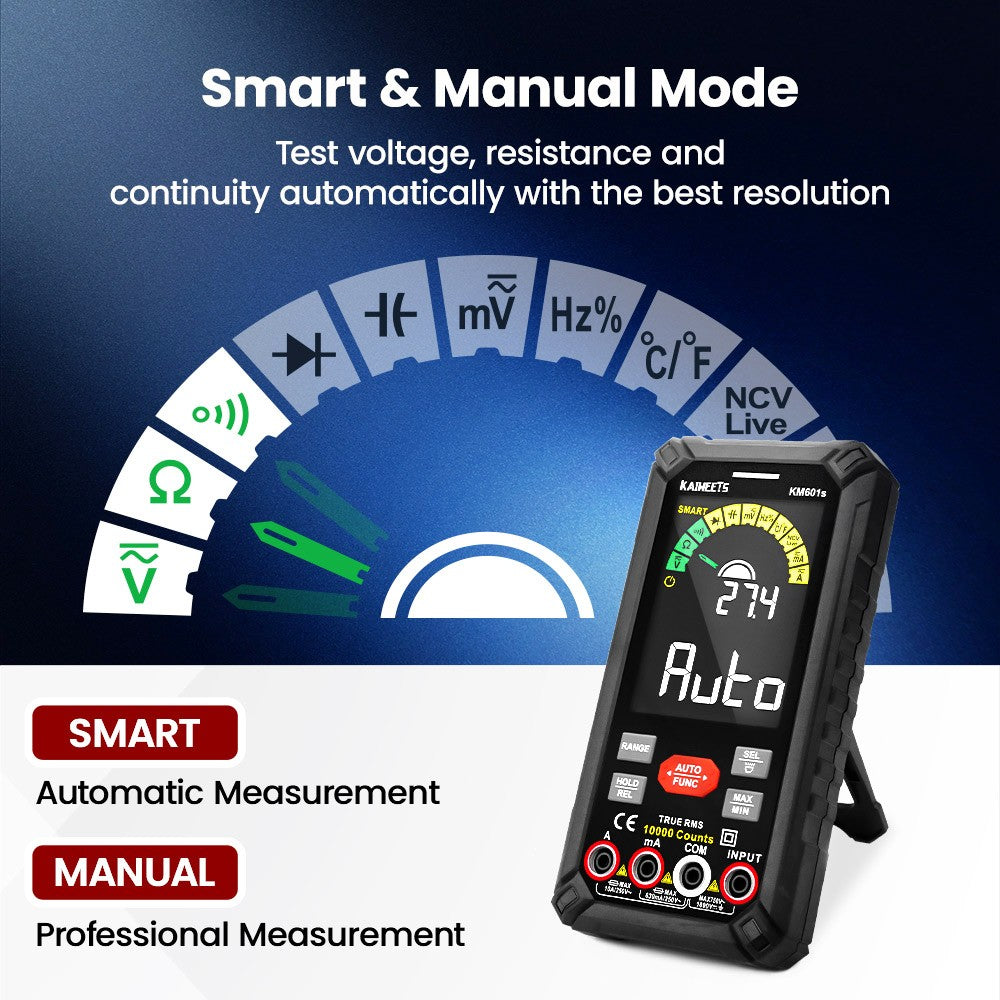

Smart Mode

This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.

Upgraded Display

The voltmeter with a large LCD color screen, and flashlight for easy reading even in bright or dim places. And the voltmeter can display an analog bar, real-time temperature, low battery prompt, and damaged fuse prompt.

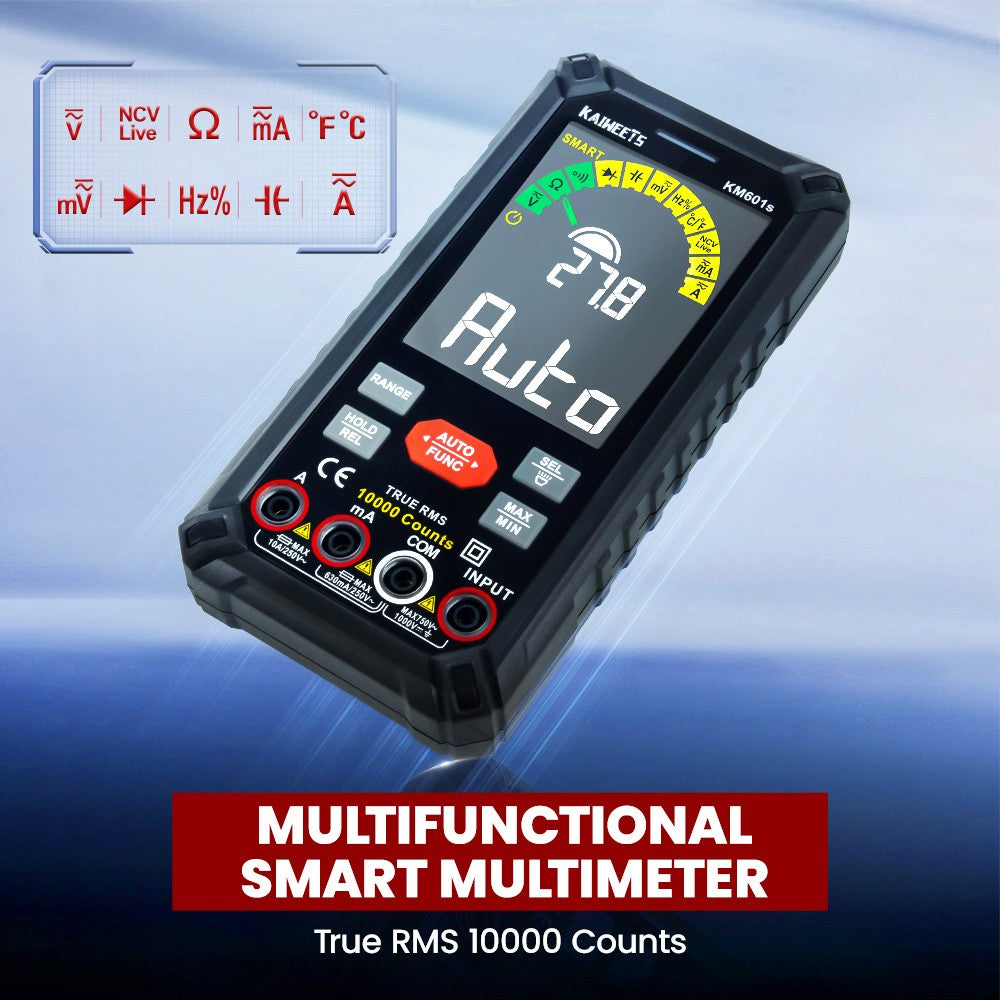

Multiple Functions

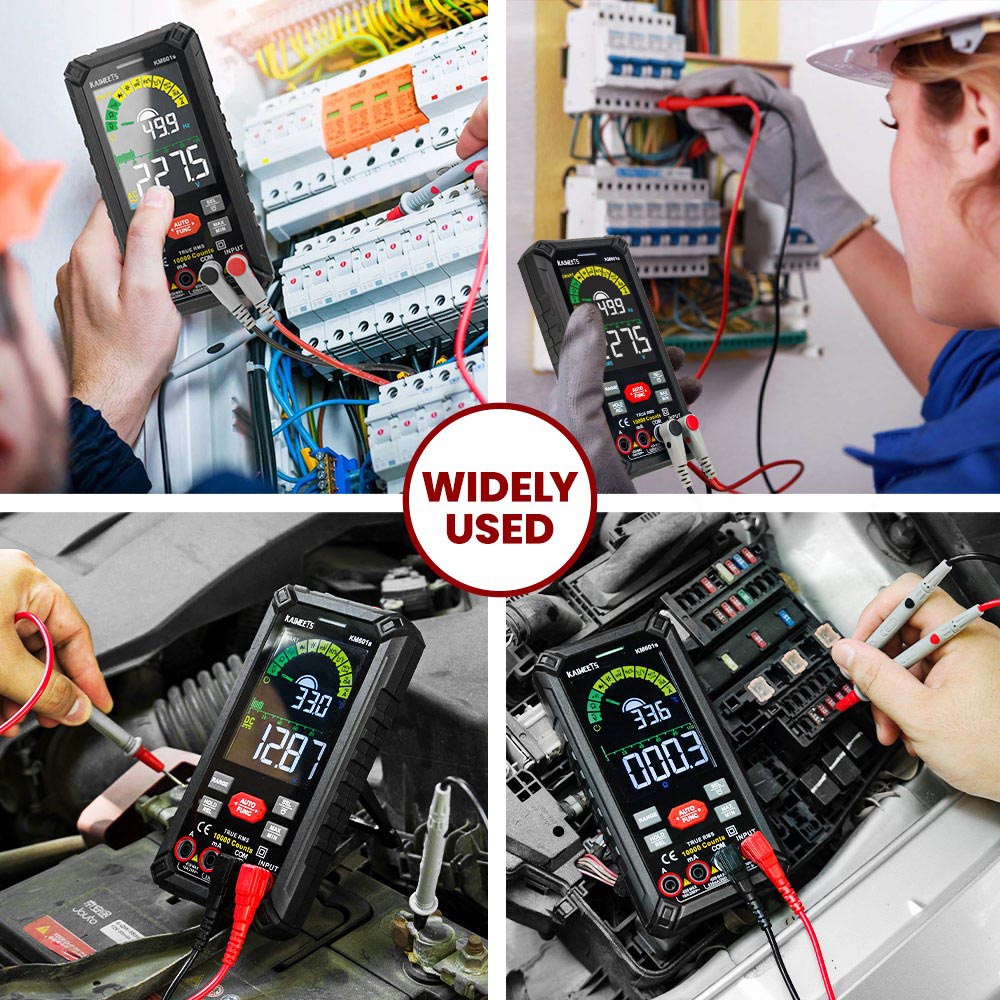

KAIWEETS digital multimeter KM601S can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.

Safety First

KAIWEETS KM601S smart multimeter is manufactured to meet the IEC rating CAT.III 1000V, CAT.IV 600V. Obtained CE and RoHS certifications. Anti-burn with double fuse and overload protection. The silicone case provides additional drop protection and electric shock protection.

General
Brand	KAIWEETS
Type	Multimeter
Model	KM601S
Color	Black
Specification
Maximum Display	10000counts
AC Voltage	99.99mV/999.9mV/9.999V/99.99V/999.9V
DC Voltage	99.99mV/999.9mV/9.999V/99.99V750V
AC Current	9.999mA/99.99mA/999.9mA/9.999A
DC Current	9.999mA/99.99m/999.9mA/9.999A
Resistance	999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance	9.999nF/99.99nF/999.9nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Frequency	9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Temperature	Yes
NCV	Yes
Flashlight/Backlight	Yes
Color Screen	Yes
Weight & Size
Product Weight	0.69kg
Package Weight	0.9kg
Package Size(L x W x H)	22x12x6.8cm

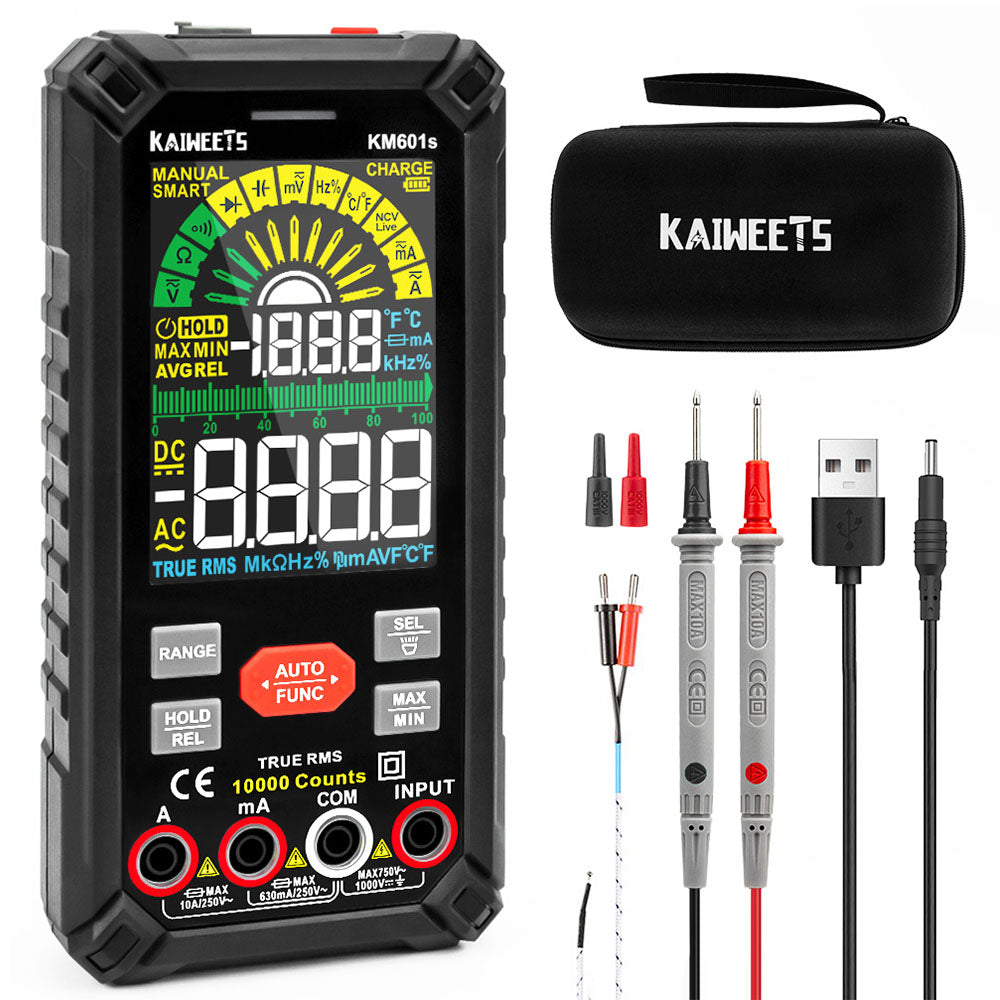

Package Content
1 x KAIWEETS KM601 Multimeter
2 x Test Leads
1 x K-Type Thermocouple
1 x Multimeter Bag
1 x Charging Cable
1 x User Manual
