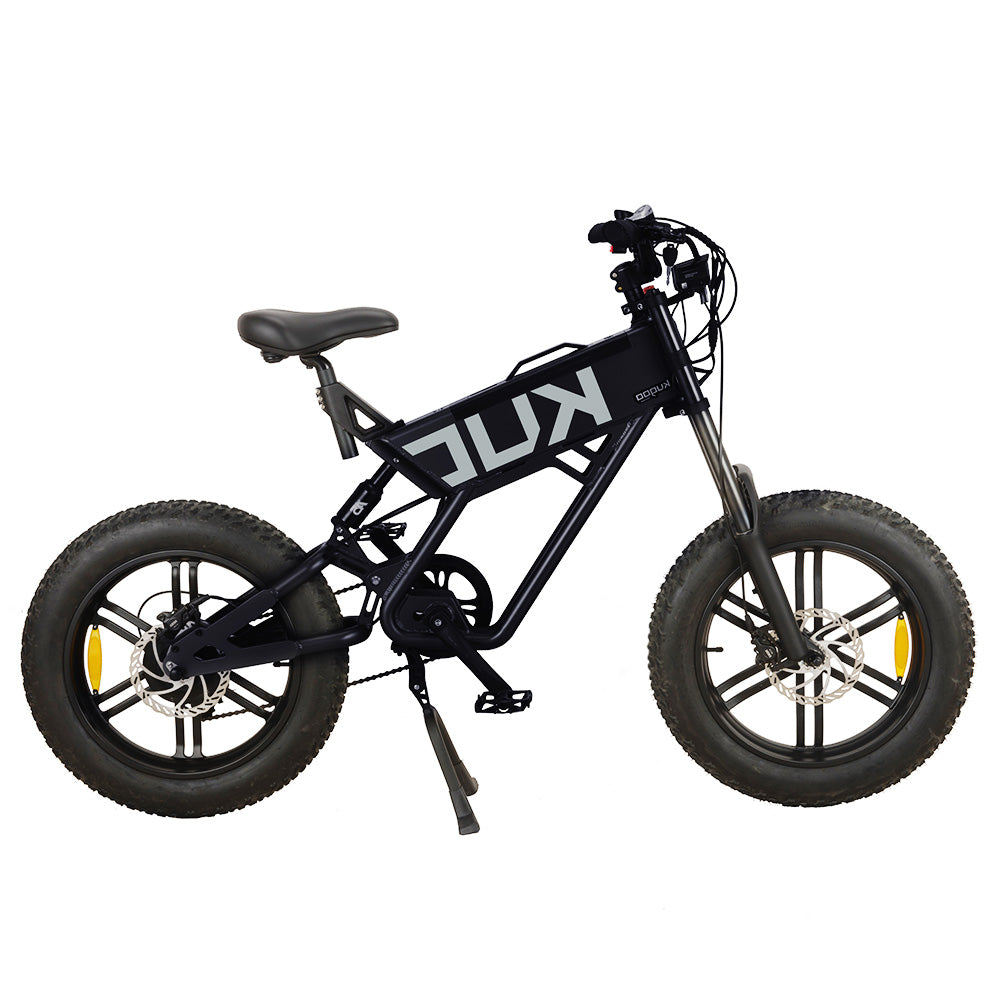

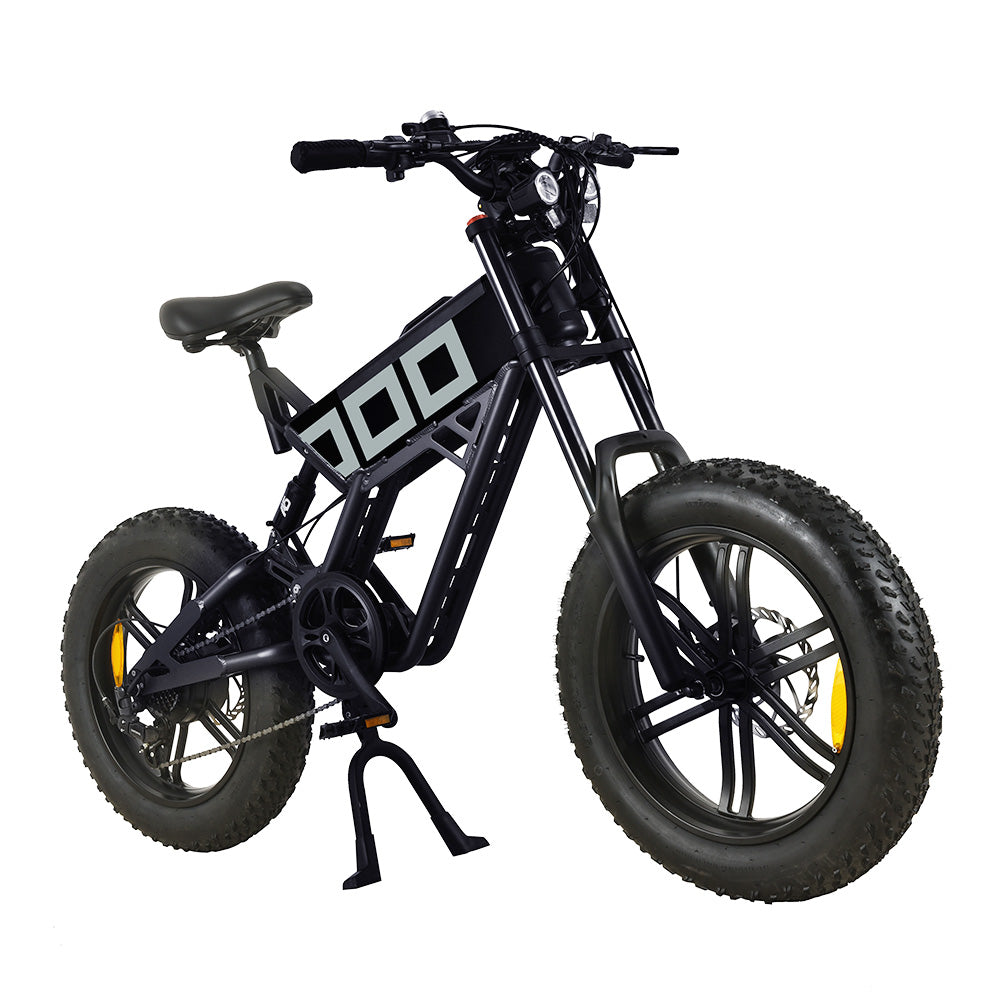

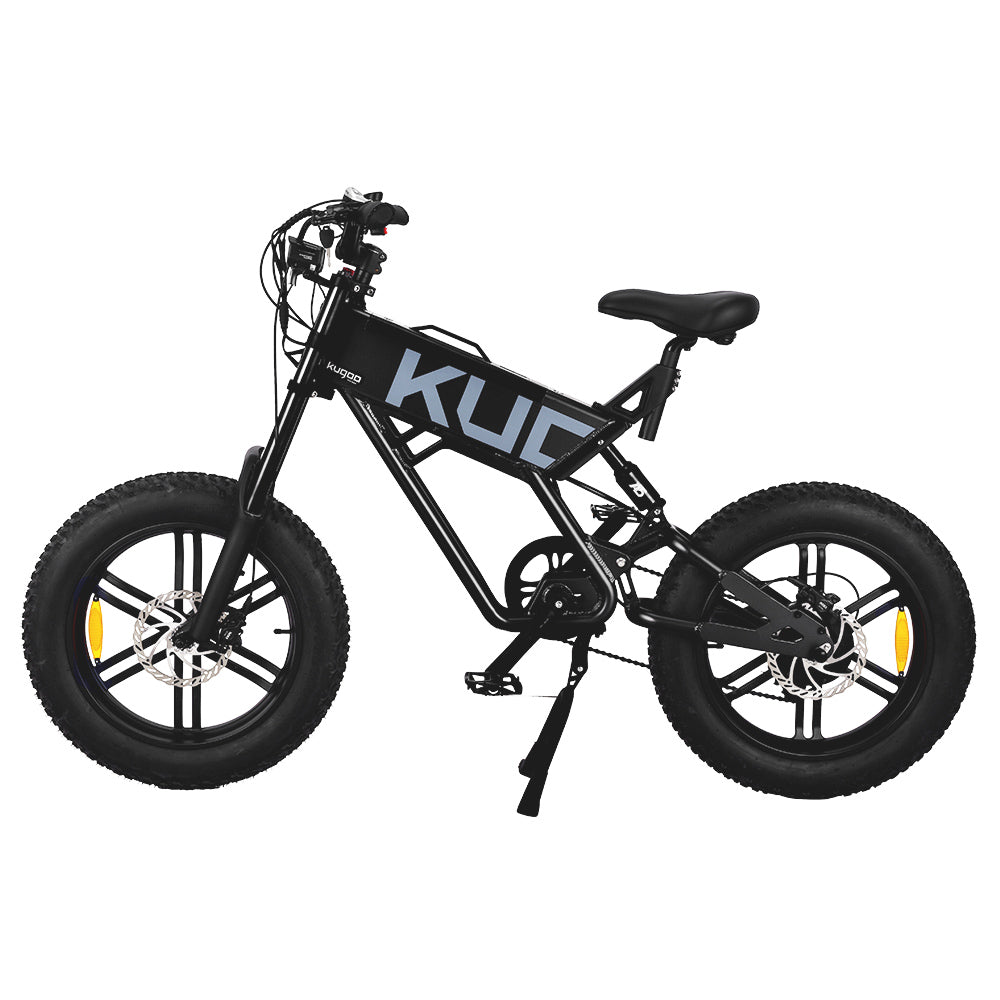

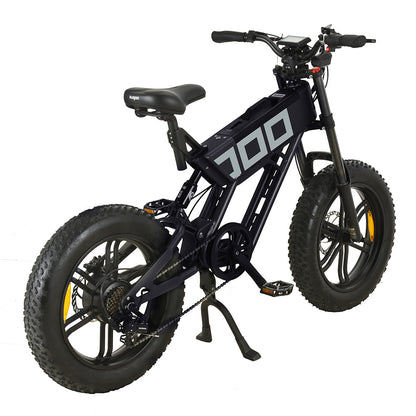

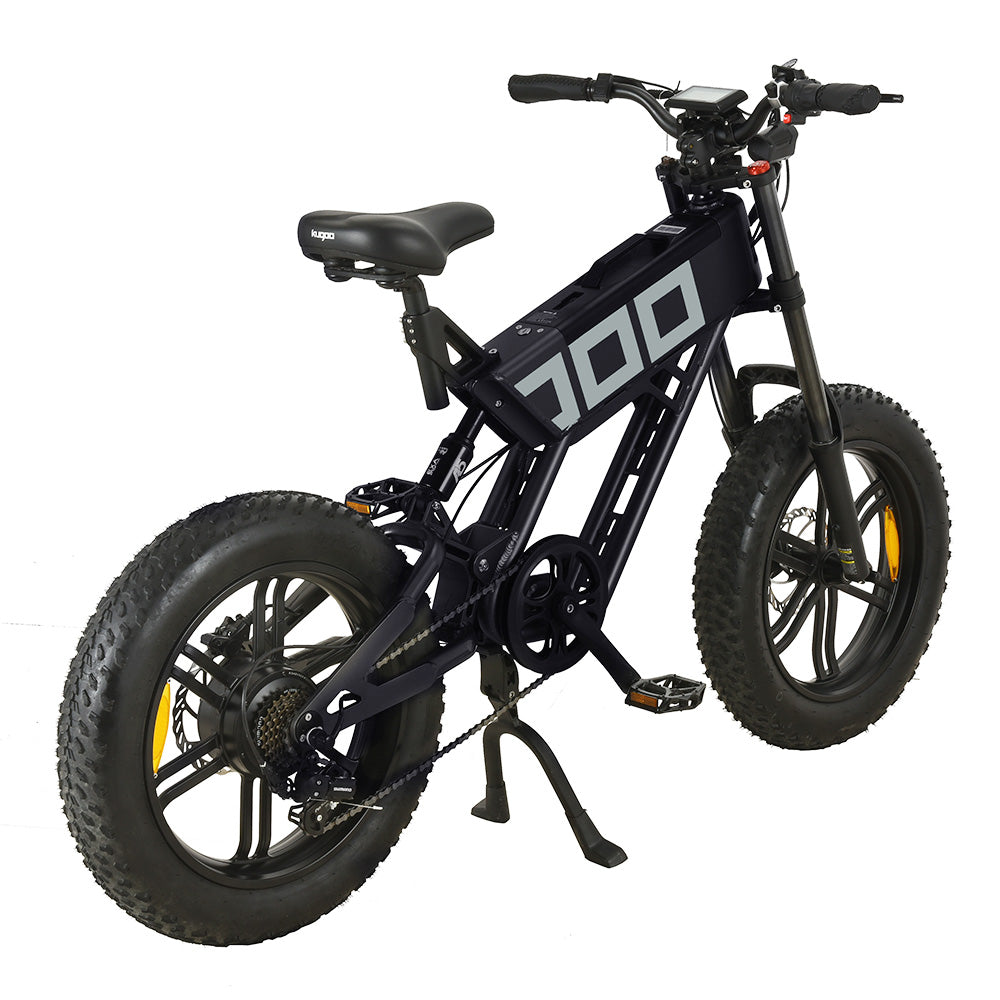

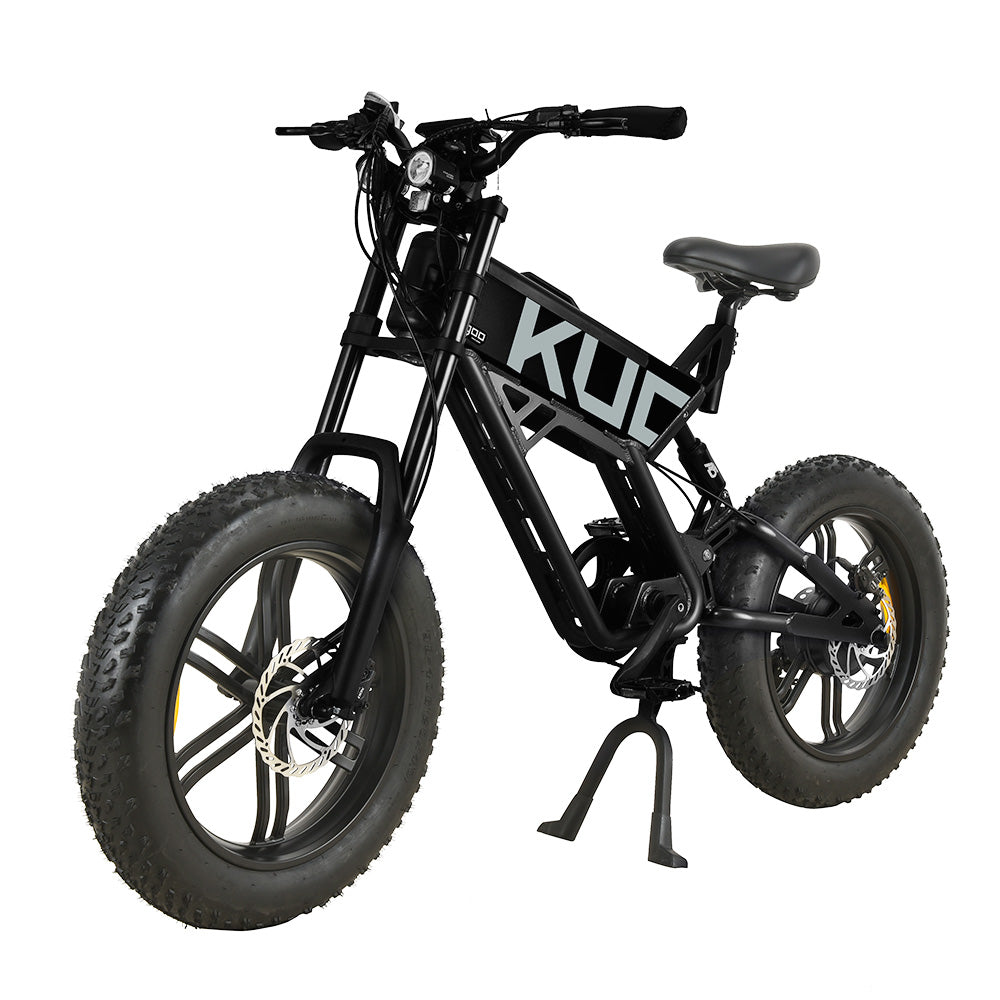

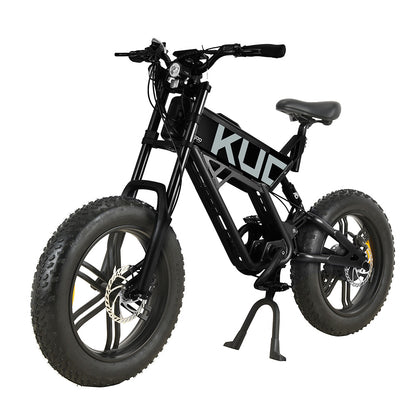

KUGOO T01 Electric Bicycle

KUGOO T01 highlights

Brushless Rear Hub 48V 500W, the max speed is up to 38km/h.

The removable 48V 13Ah battery offers 35-45km range in pure electric mode and 55-65km in power assist mode.

SW900 LCD display will show speed, gear, range, 5 phase assistance power.

Aluminum  alloy binocular air adjustable suspension makes the cycling more comfortable.

Shimano 7 speed gear, you can shift to a larger cog for uphill riding and downshift to a smaller cog at high speeds.

KUGOO Electric Mountain Bike Adults

MODEL: T01

I REALIZED THE TECHNOLOGY, YOU DIDN'T EXPECT

Powerful function It's not just good-looking

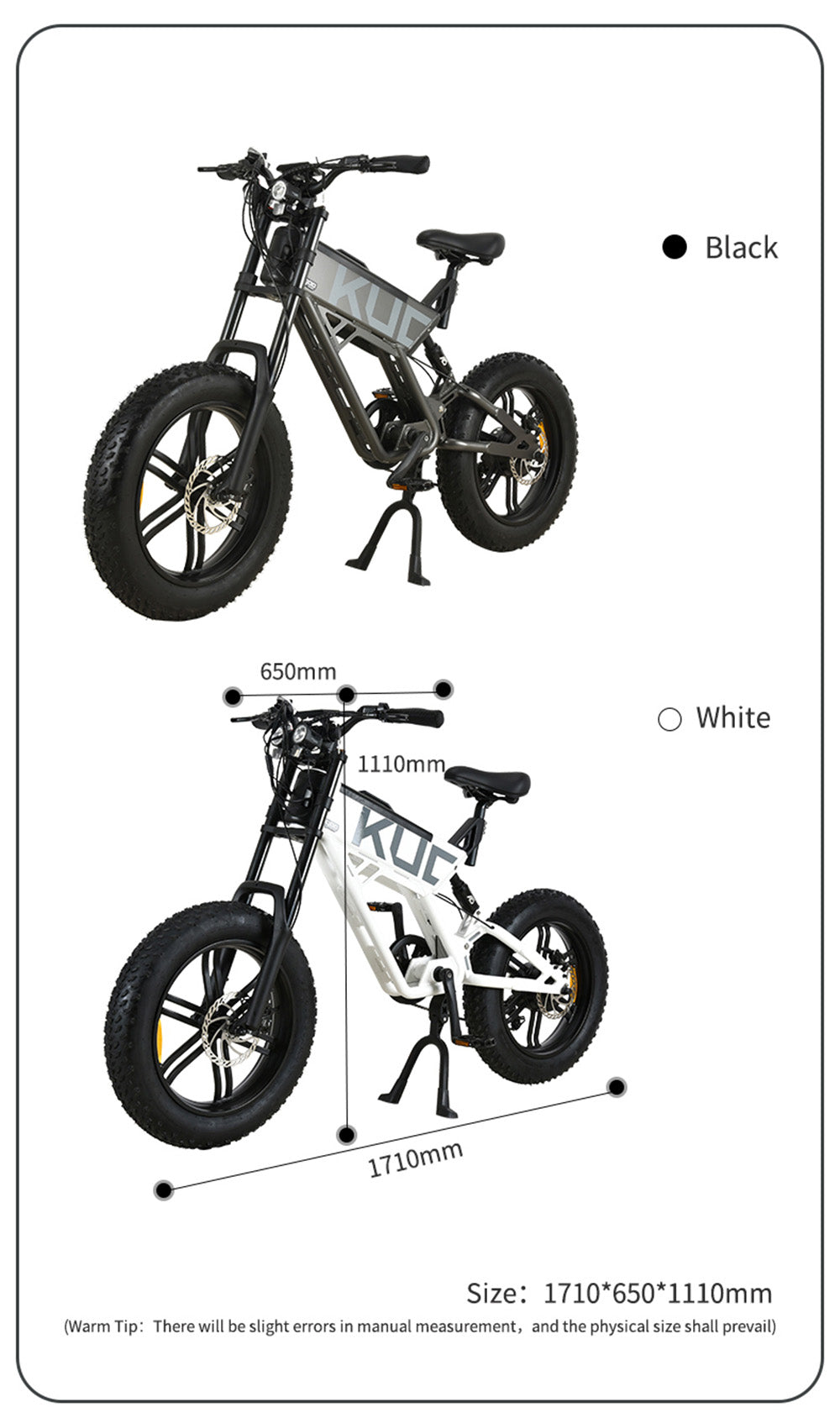

VEHICLE PRODUCT COLOR

• Black

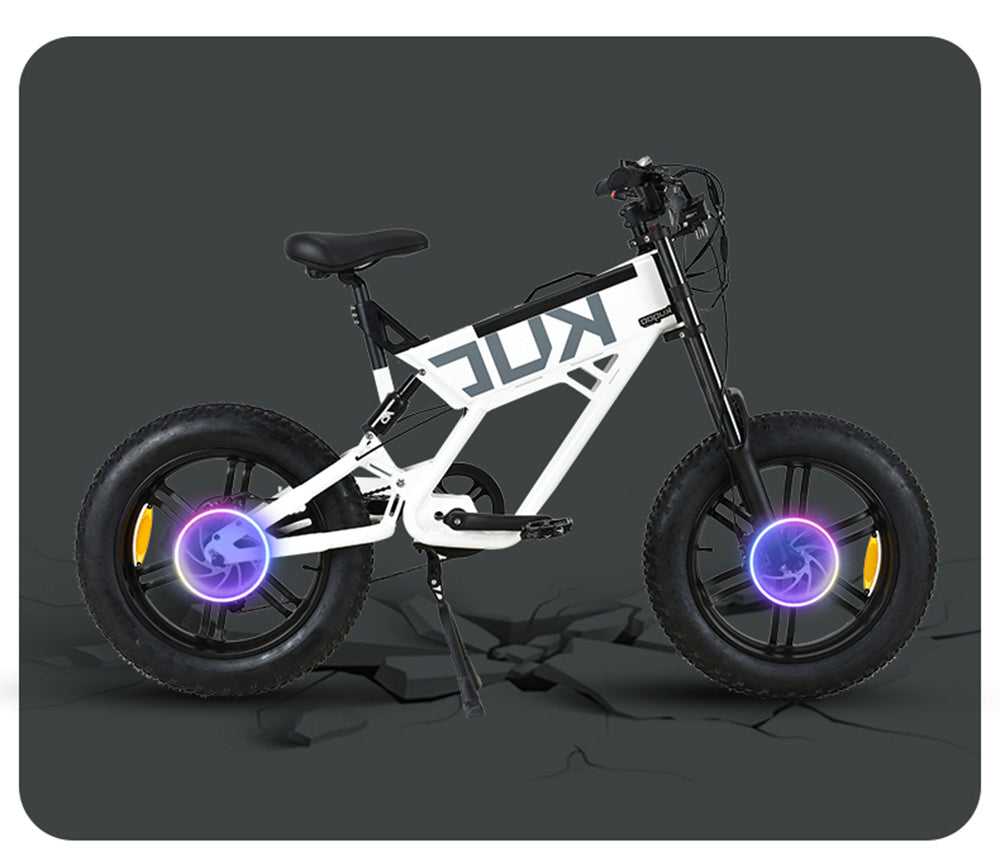

• White

Size: 1710*650*1110mm

(Warm Tip: There will be slight errors in manual measurement, and the physical size shall prevail)

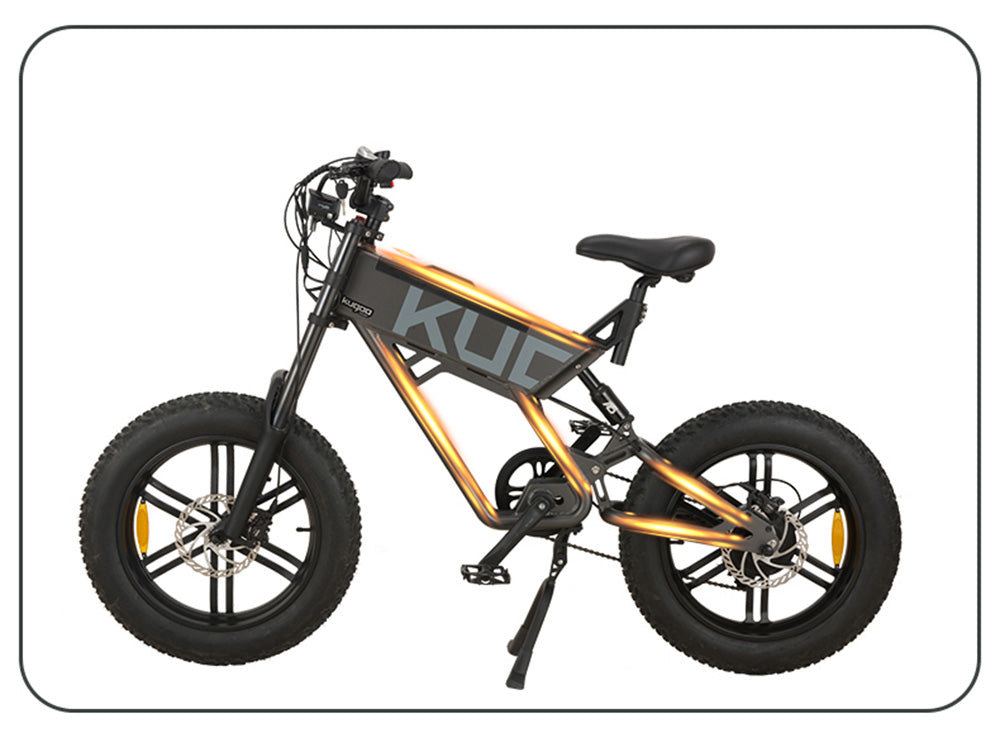

AERO ALUMINIUM FRAME KUGOO EXCLUSIVELY DESIGNED

Show on Screen: Speed, Range, Gear, Battery

SAFETY MATERIAL

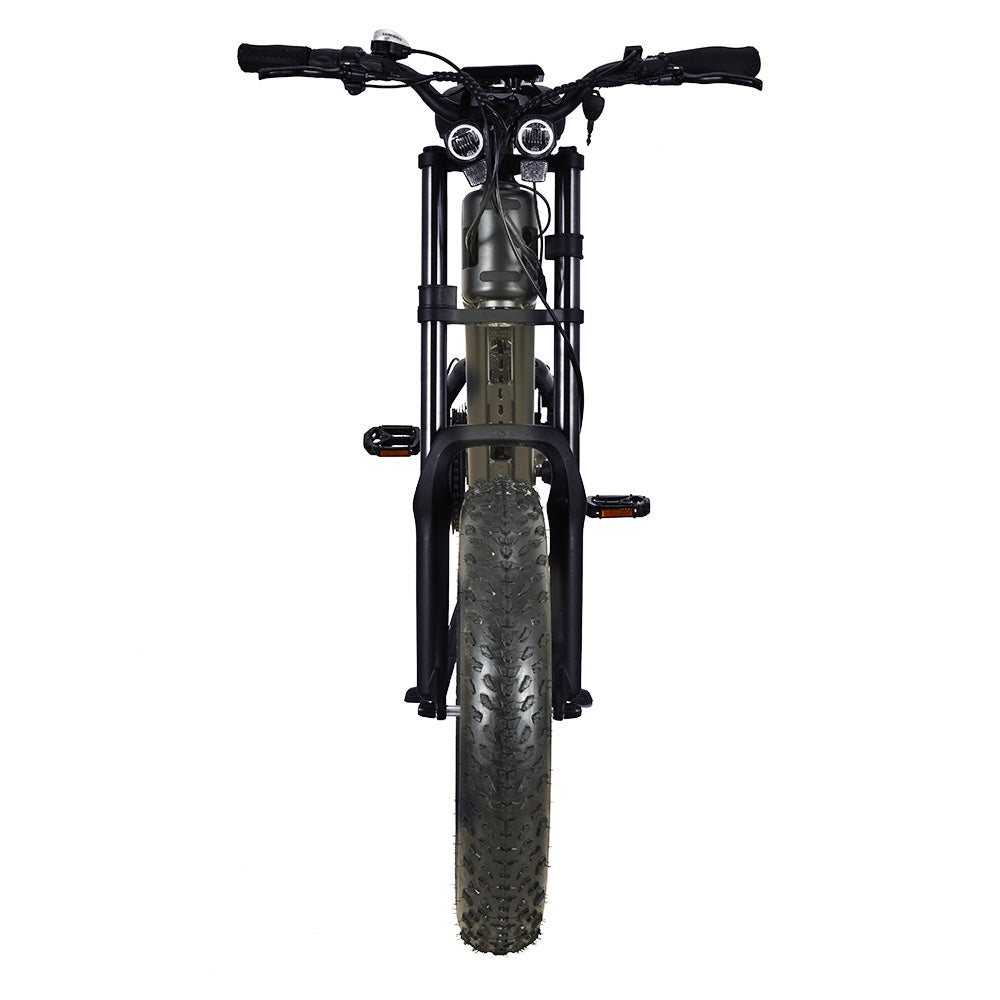

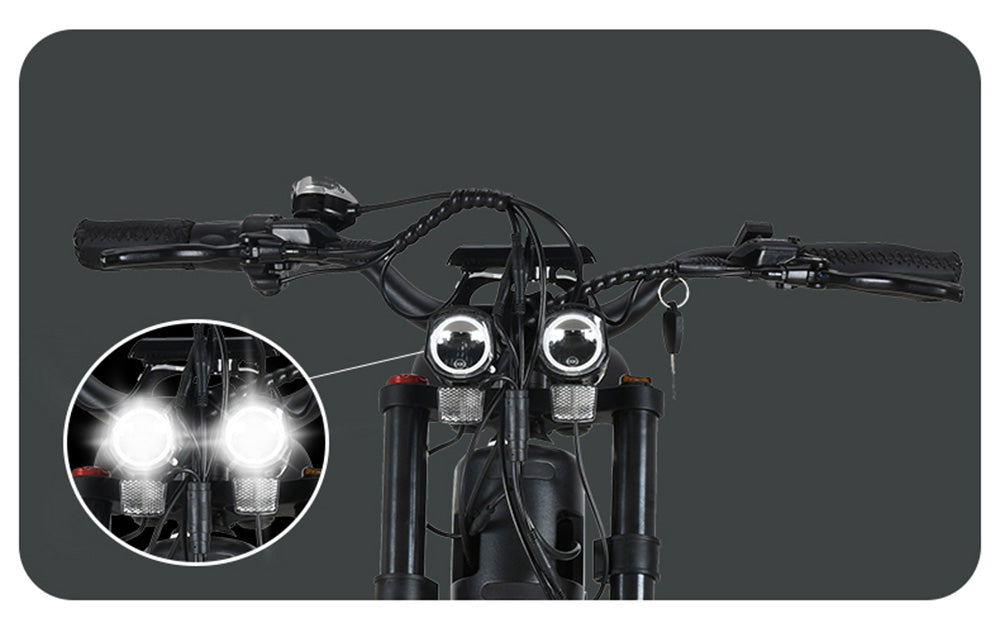

DUAL LED HEADLIGHT WITH HORN

visible light to ensure driving safety at night

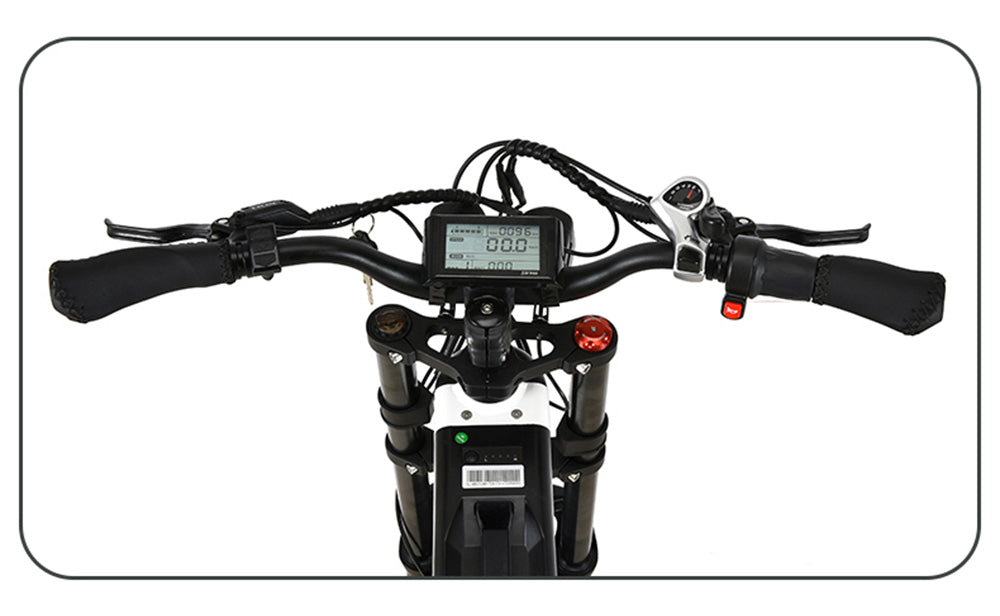

Displayer show

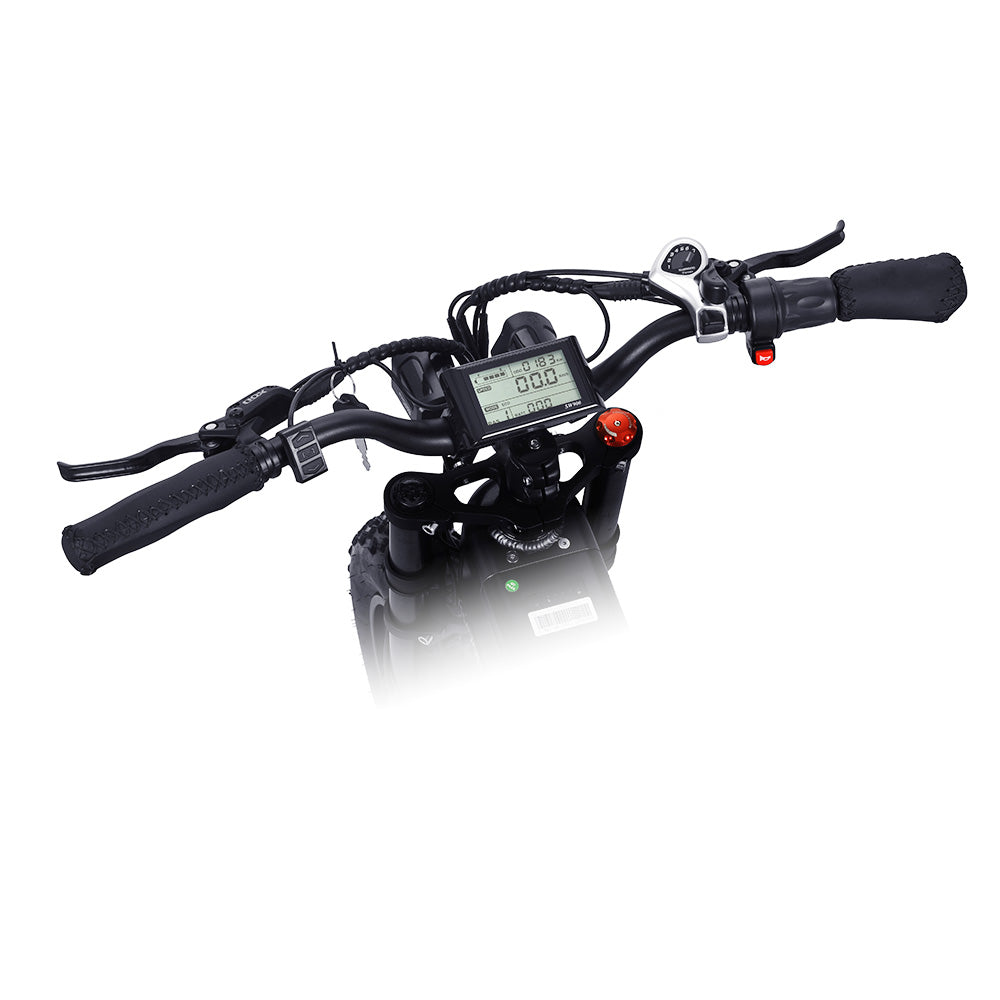

LCD DIGITAL DISPLAYER

Show on Screen: Speed, Range, Gear, Battery

SAFETY MATERIAL

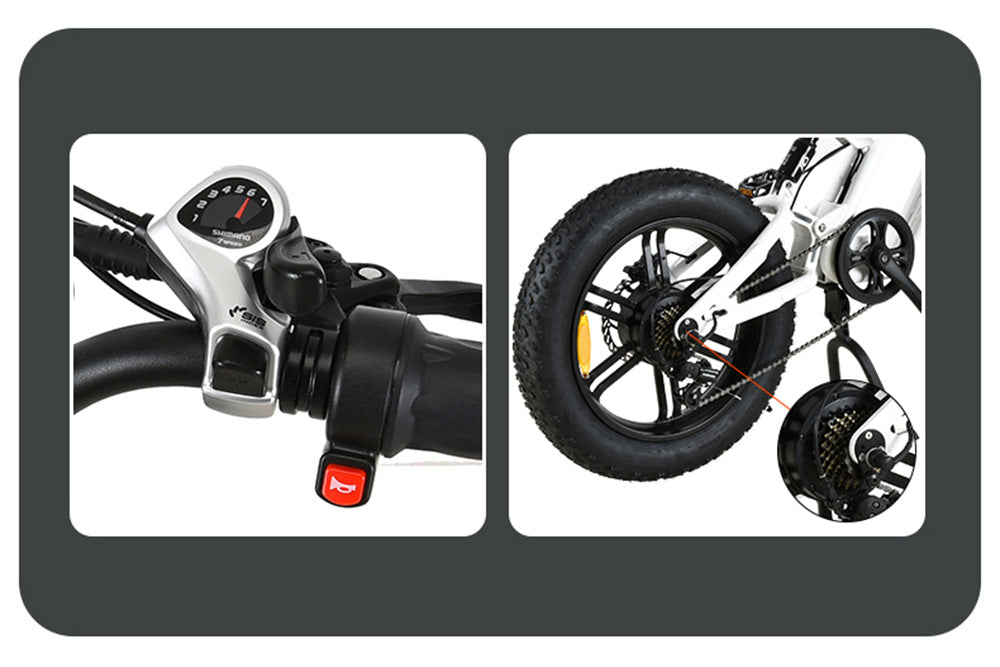

SHIMANO 7 GEARS FOR 7 DIFFERENT RIDING SPEEDS

Displayer show

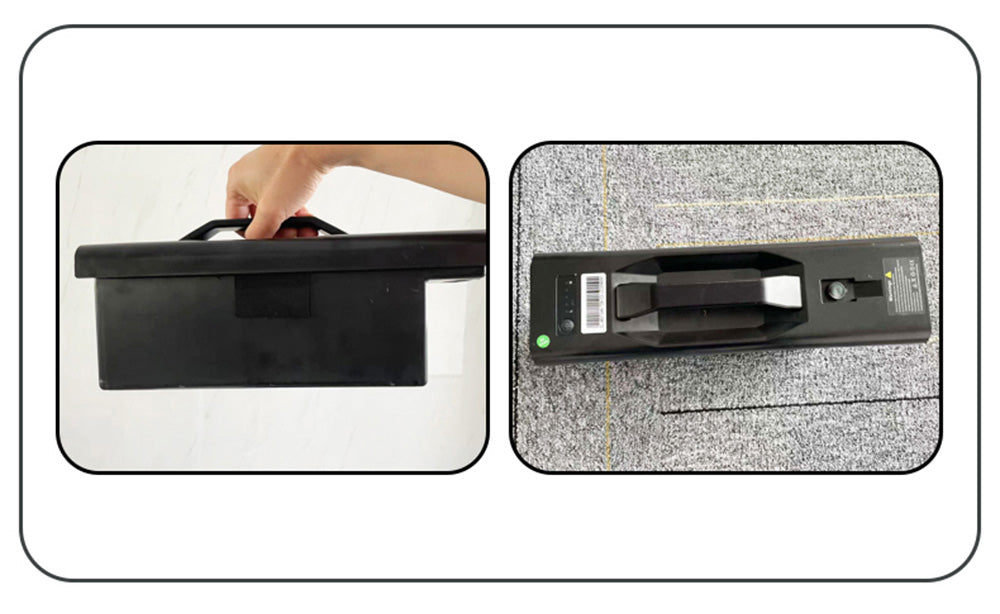

Quick Removable Internal Battery

48V 13AH (2600mah cells)

SAFETY MATERIAL

Hydraulic Brake

Front & Rear Dual System

Displayer show

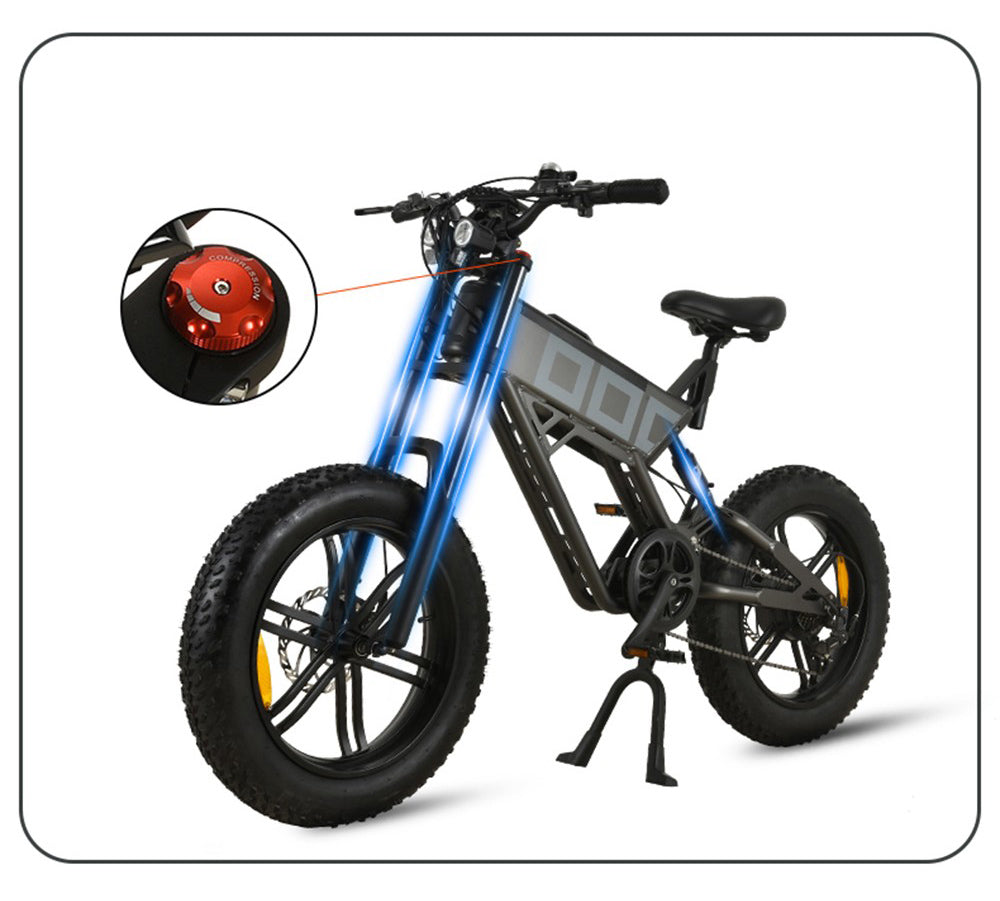

Front: Oil Suspension, Rear: Air Suspension

Adjustable! Two knobs to adjust the strength of the suspension

SAFETY MATERIAL

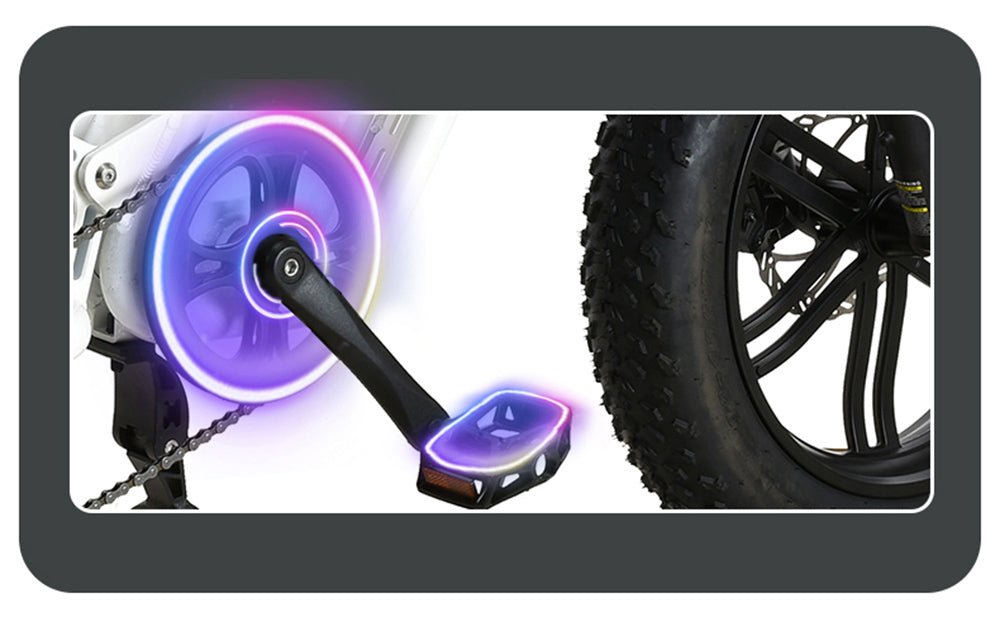

PEDAL: WELLGO B249 DU

Pedal assist sensor: The higher the force on pedal the higher the kinetic energy

Displayer show

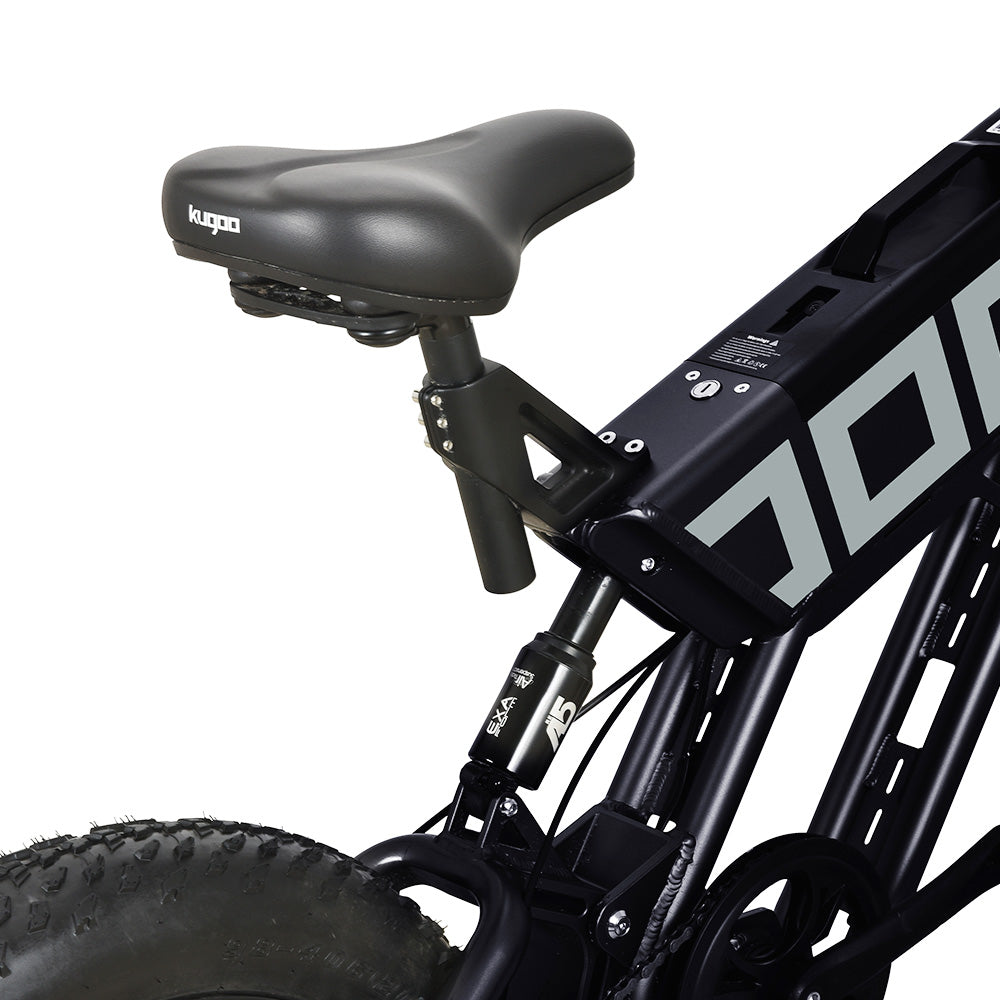

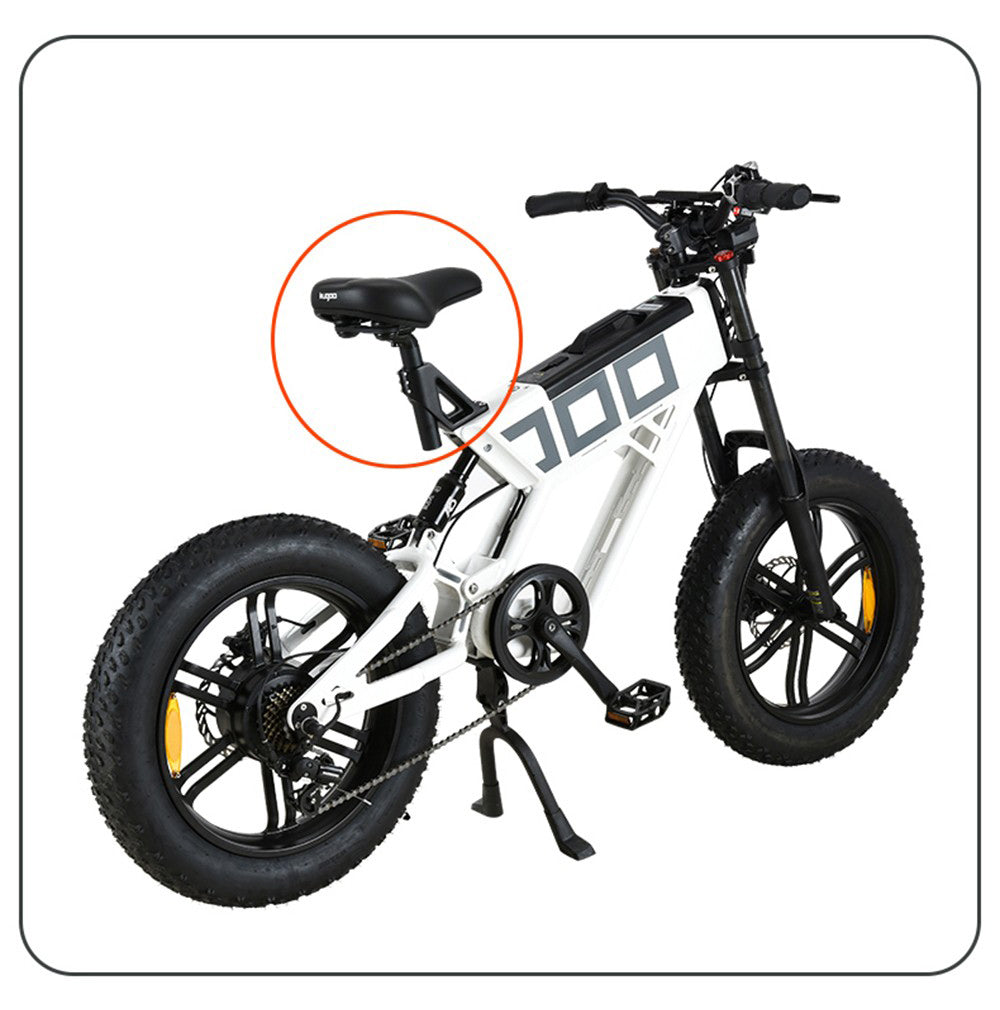

Adjustable Seat Height

360°SHOW:

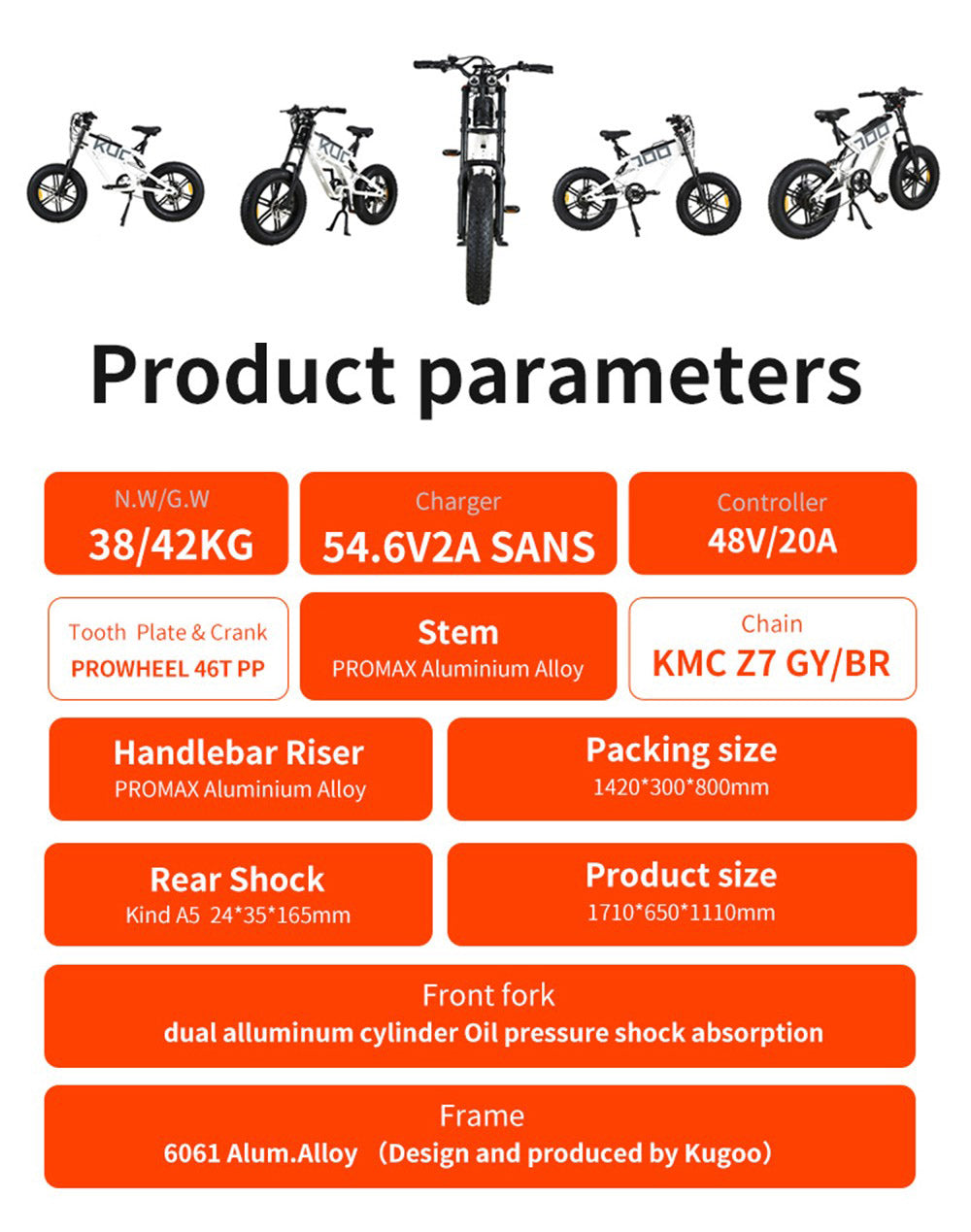

Product parameters

General
Brand	KUGOO
Type	Electric Bicycle
Model	T01
Color	Black
Specification
Motor: Brushless Rear Hub 48V500W
Max speed: 38km/h (23.5mph)
Per-charge Range: 35-45km(100% electric energy)
55-65km(electric energy+feet assist)
Controller: JYT 48V20A,5Phase Assistance Power
Display: SW900 LCD with speed, gear, range,5Phase Assistance Power
Battery Pack: Removable Internal 48V13AH(2600mah cells)
Battery Case: Design and produced by Kugoo
Frame: 6061 Alum.Alloy (Design and produced by Kugoo)
Front Fork: Alum.Alloy binocular air adjustable suspension
Rear Shock: Kind A5 24*35*165mm
Trasmission: SHIMANO 7Spped,Finger Dial:TX50-7,Rear Dia:FT35D, Flywheel:TZ500 11-28T
Chain: KMC Z7 GY/BR
Throttle: WuXing Thumb Throttle on Handlebars
Headlight: LED*2 with horn
Tooth Plate & Crank: PRO WHEEL 46T PP
Handlebar Riser: PROMAX Aluminium Alloy
Stem: PROMAX Aluminium Alloy
Pedal: WELLGO B249 DU
Brake: XOD Brake levers Hydraulic
Pedal assist sensor: Yolin
Tyre: Kenda 20*4.0 inch
Charger: 54.6V2A SANS
Weight & Size
Product Weight	38kg
Package Weight	42kg
Product Size(L x W x H)	171 x 65 x 111cm
Package Size(L x W x H)	142 x 30 x 80cm
Package Contents
1 x Electric Bike
1 x Charger
1 x User Manual
