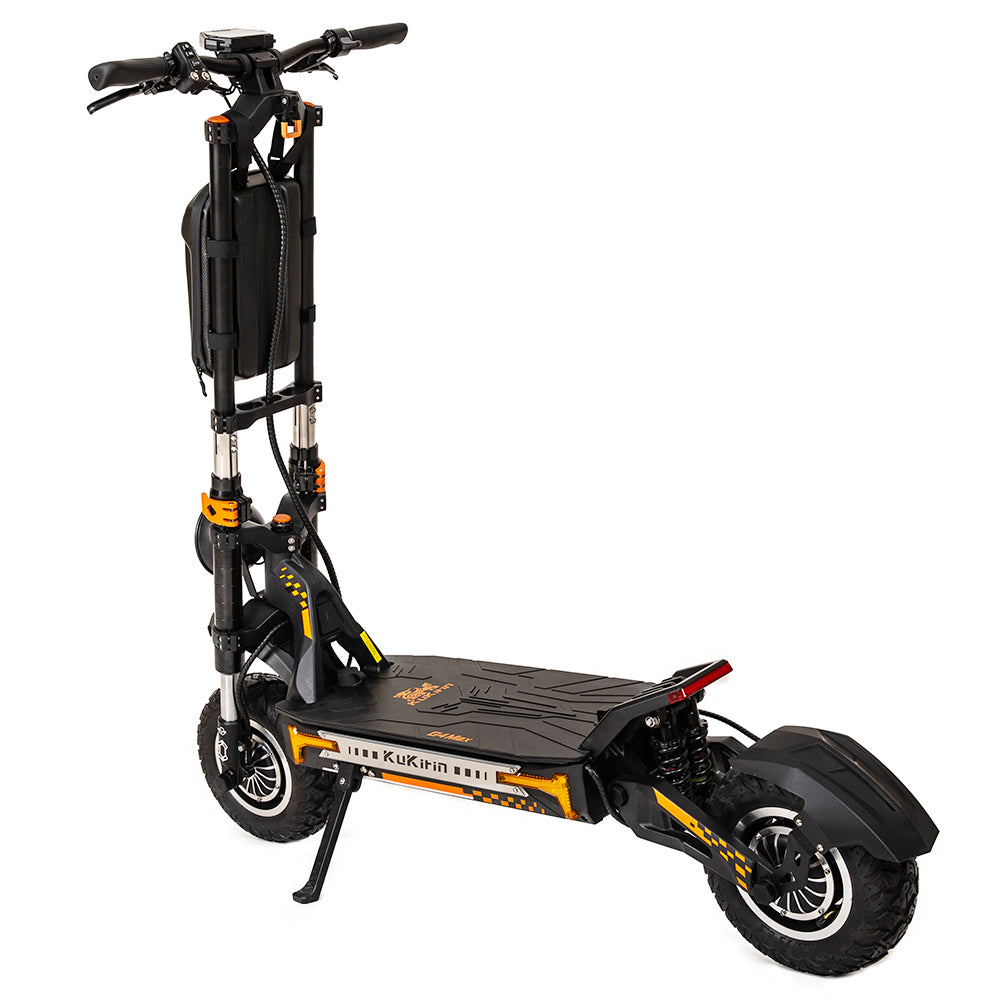

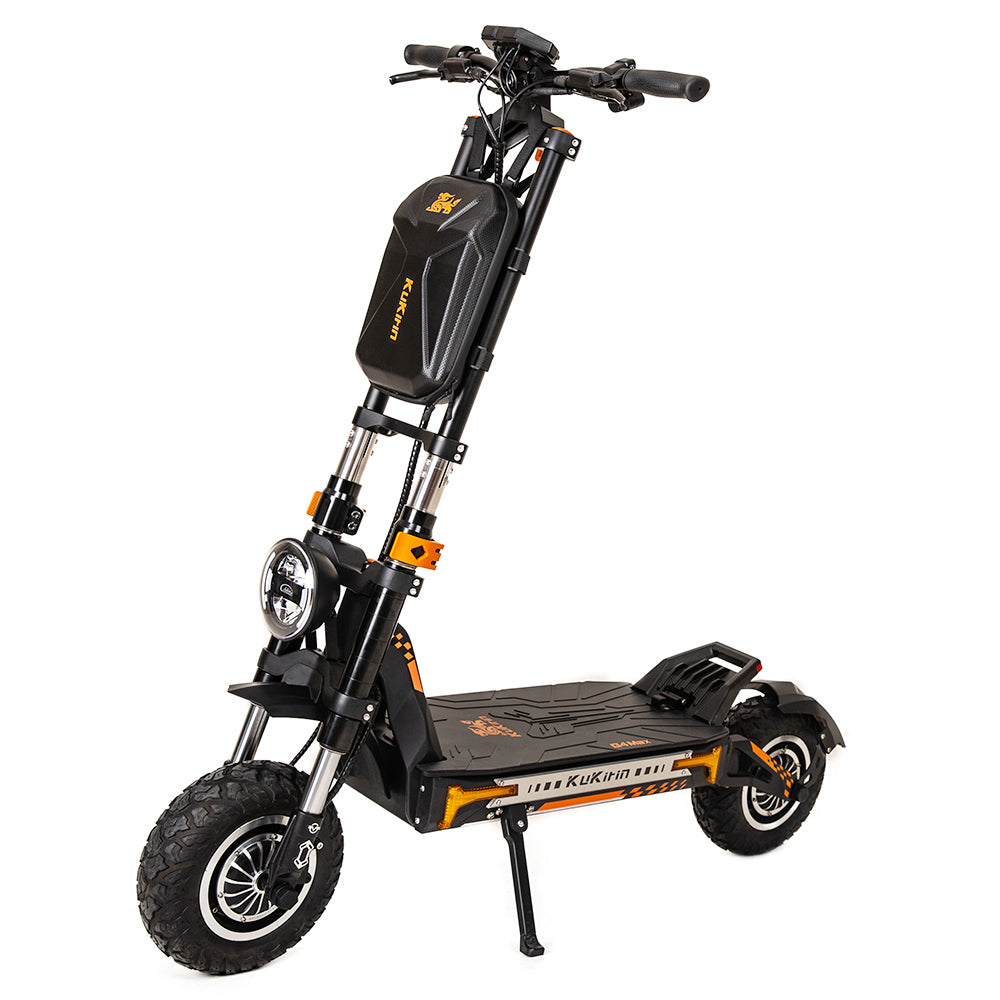

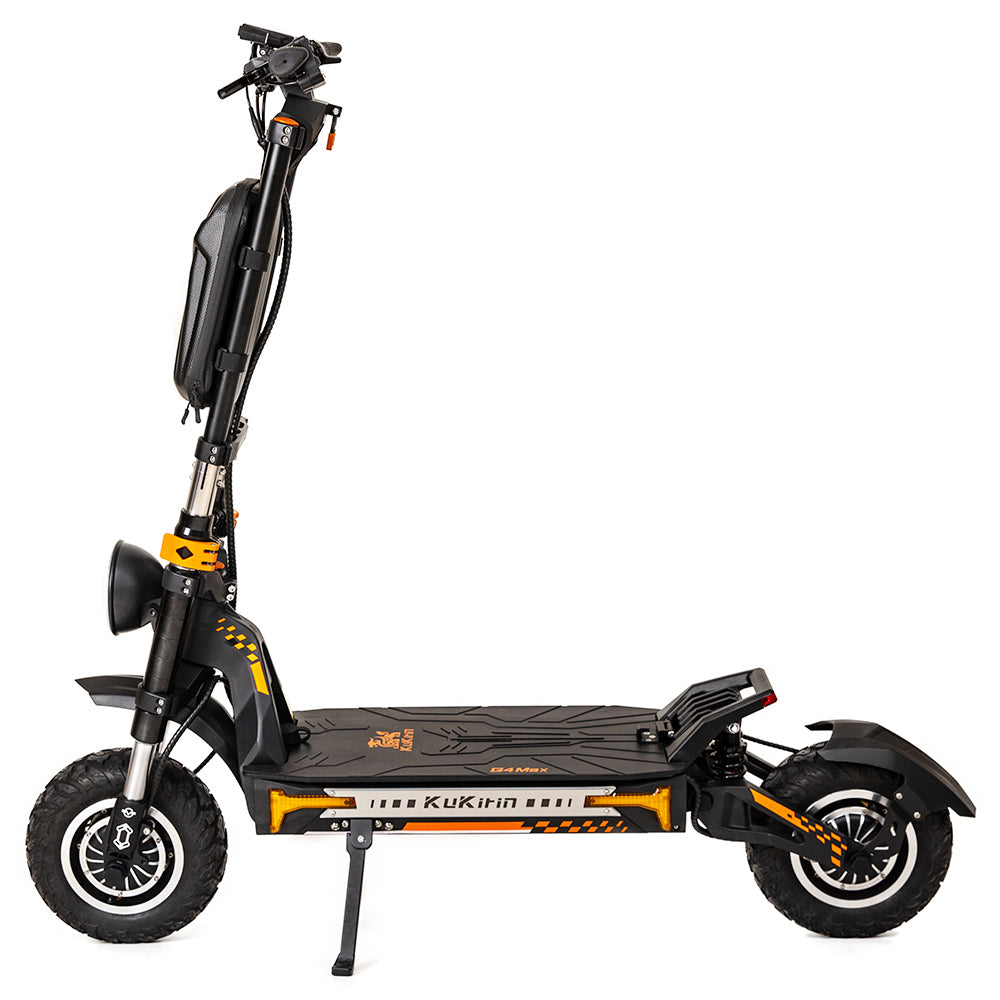

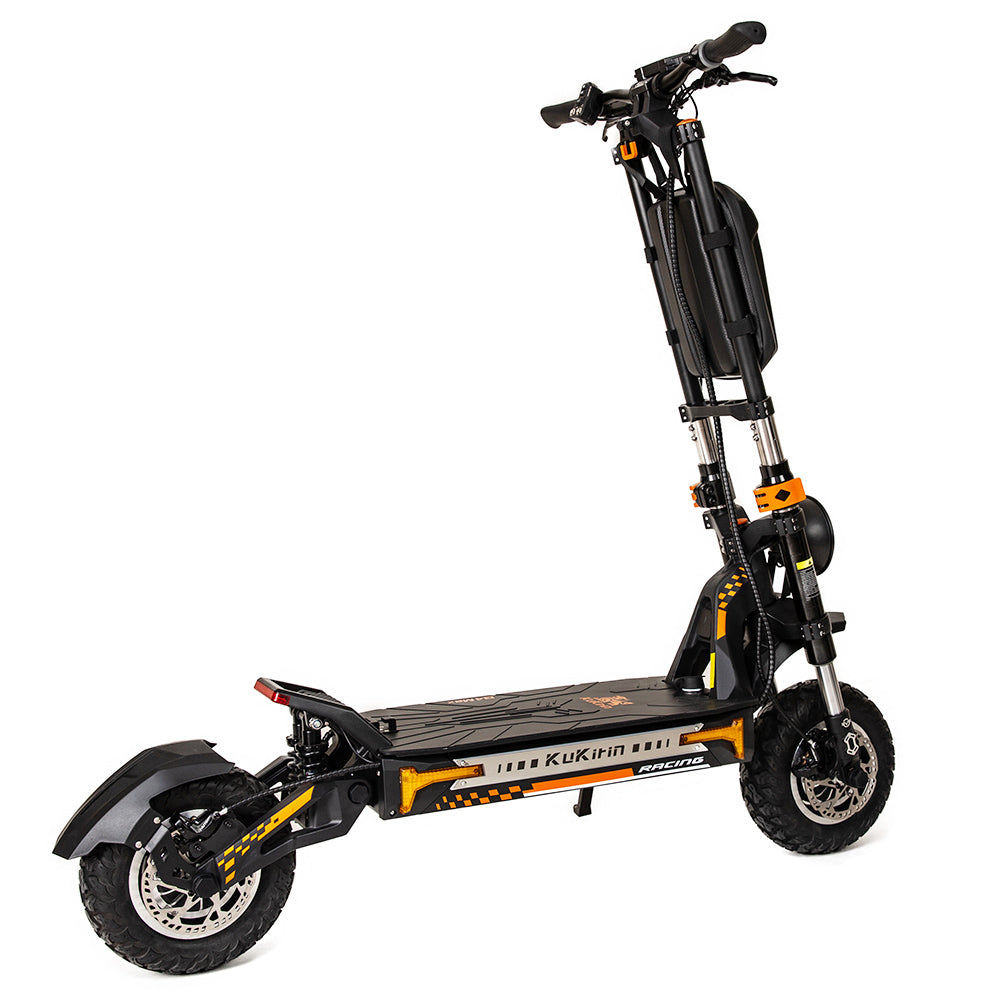

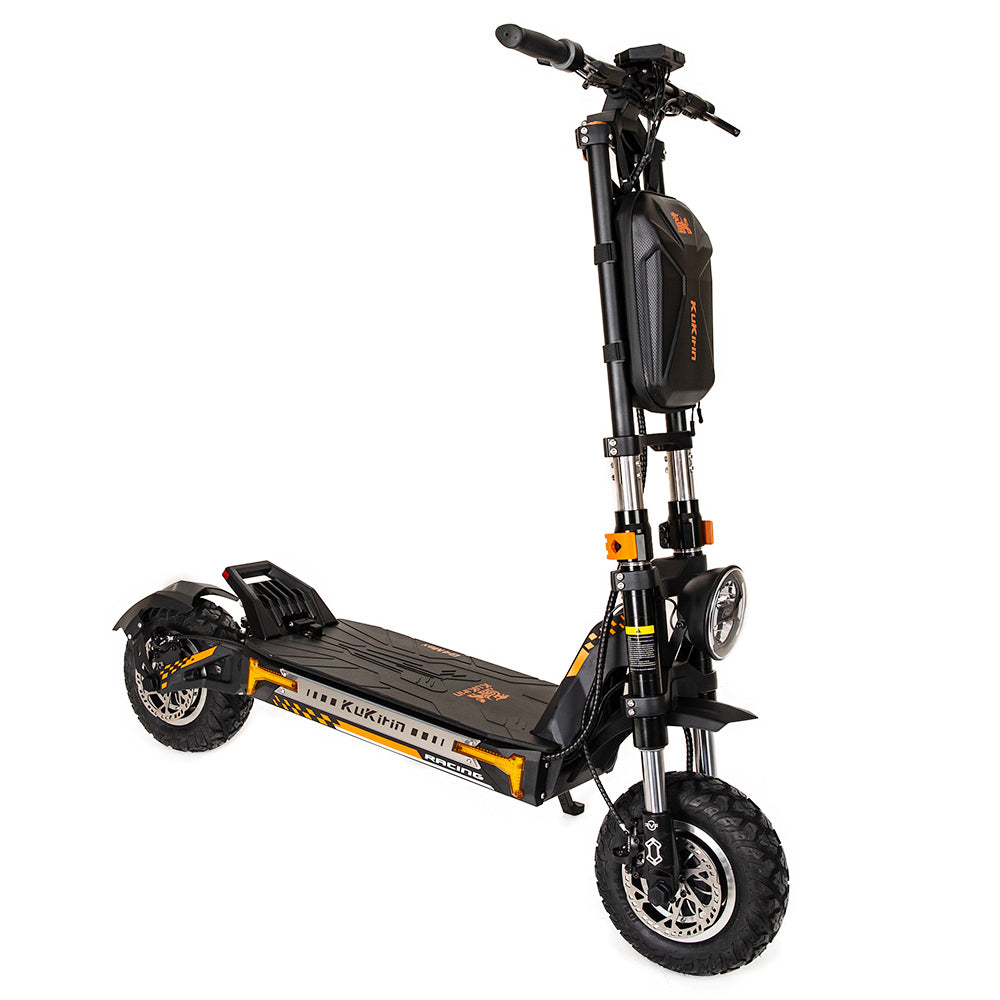

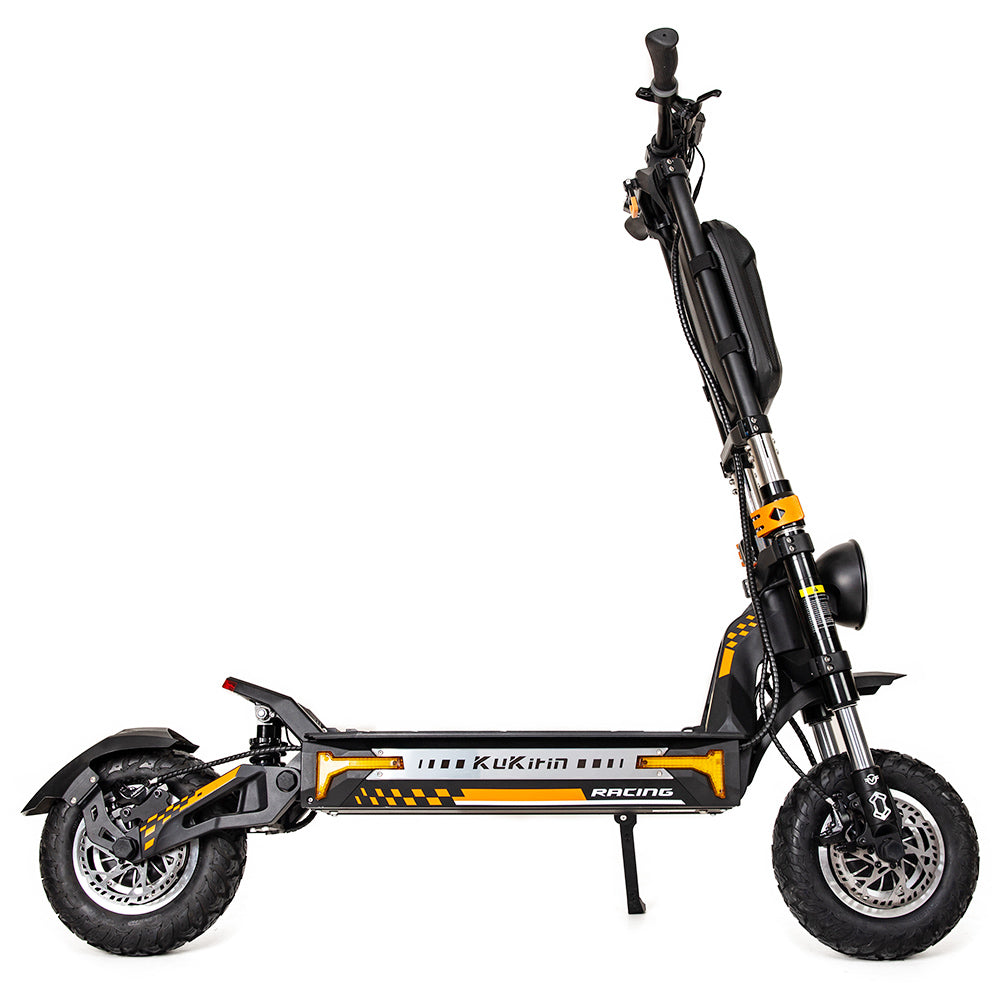

KUKIRIN G4 Max Electric Scooter

KUKIRIN G4 Max highlights

1600W*2 High-Performance Dual-drive Motor

Kukirin G4 MAX is equipped with 60V/1600W*2 motors, it can provide powerful power and torque, making acceleration and climbing easier. The maximum speed can reach 86km/h, which makes it a very fast and exciting electric scooter.

Removable Lithium Battery

The 60V/35.2Ah lithium battery has a range of 95km, which can meet the traveling needs of most people. The removable lithium battery design makes it easy to remove and install the battery, making it convenient for users to charge or replace the battery at any time.

Multifunctional Intelligent Display

The multi-functional intelligent display integrates multiple functions, including speed display, battery indicator, fault diagnosis, mileage recording, etc. Supports a variety of personalized settings, such as backlight brightness adjustment, startup mode adjustment, etc., to meet the usage habits and needs of different drivers.

Front & Rear Four-piston Oil Brakes

The front and rear four-piston oil brakes realize braking through the principle of hydraulic pressure. They have the characteristics of stable braking performance, fast response speed, good heat dissipation performance and short braking distance. They can effectively cope with emergency braking situations at high speeds and provide drivers with Provides safer driving guarantee.

Fast Charging

The dual charging port design allows drivers to charge the battery with two chargers at the same time, saving charging time and improving charging efficiency and convenience.

Cool Lighting System

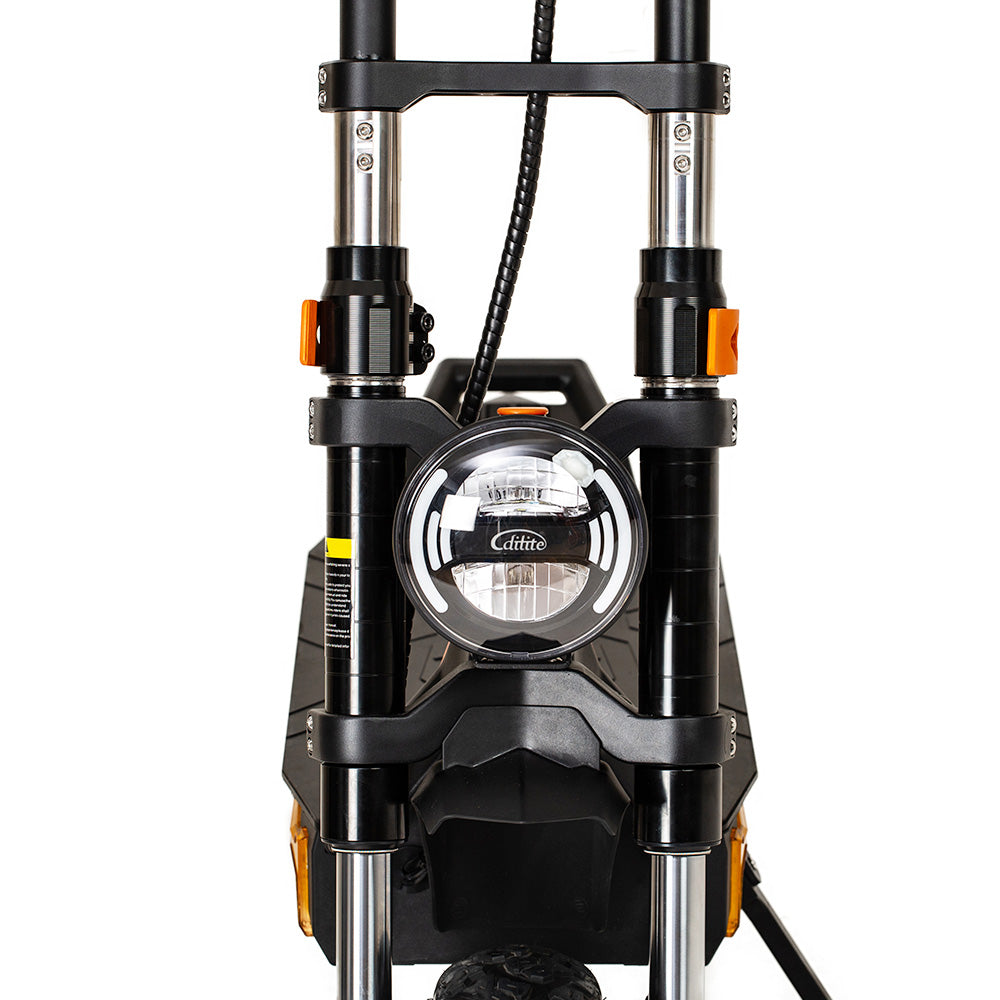

High-brightness LED headlights, taillights, and turn signals combined with cool ambient lights not only provide good lighting but also ensure driving safety.

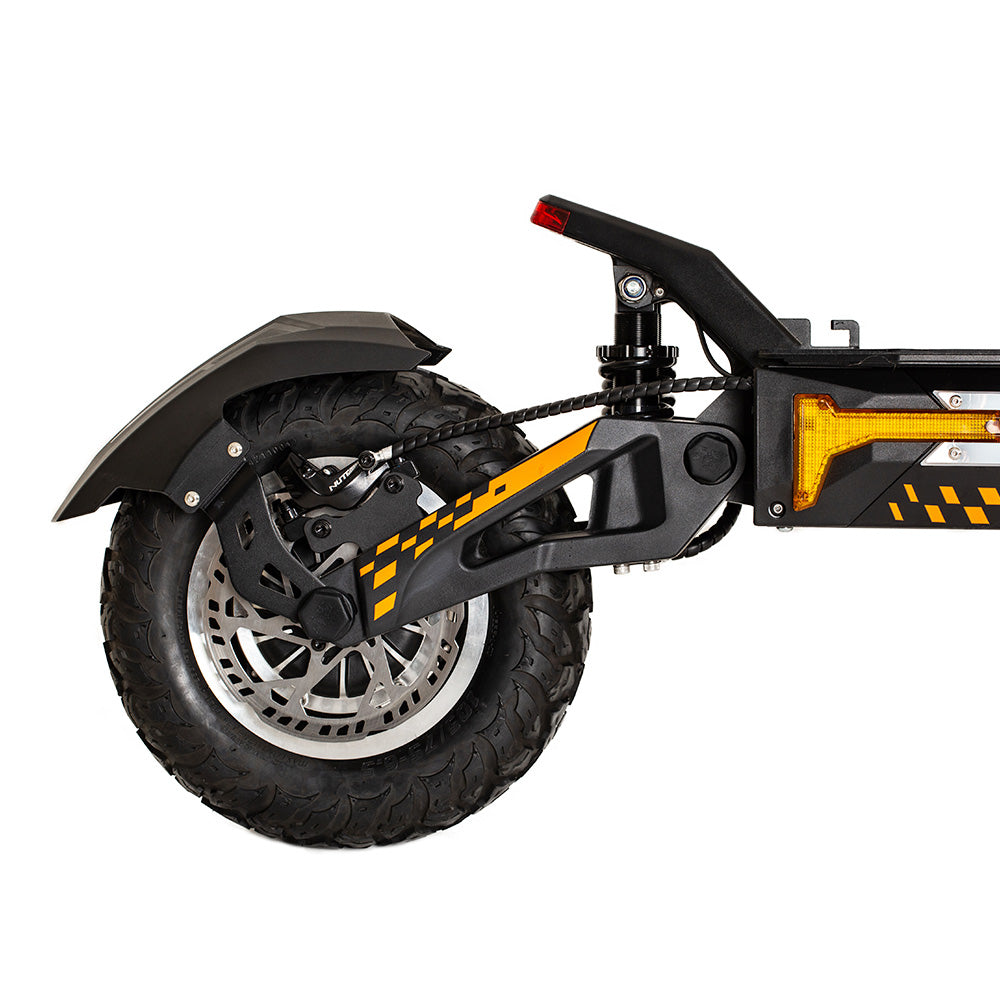

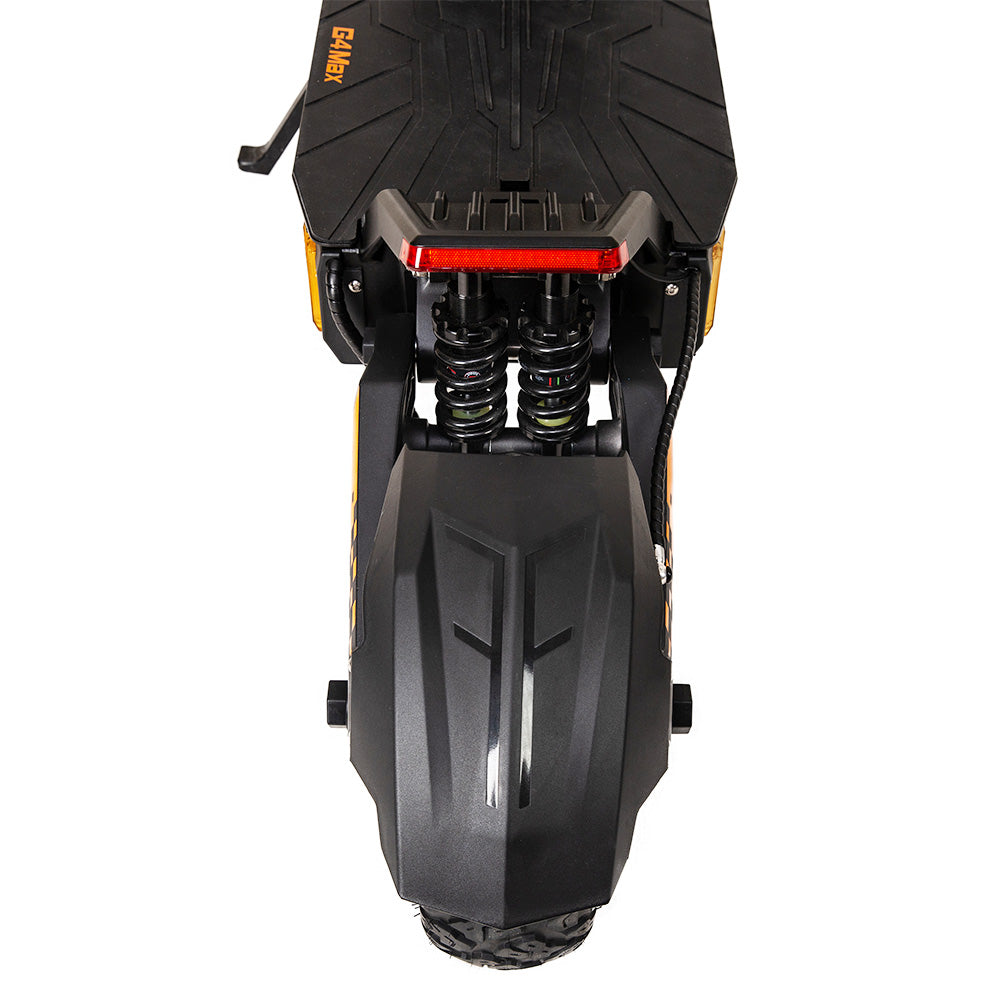

Front & Rear Dual Hydraulic Damping Shock Absorption

The front and rear hydraulic damping and shock-absorbing systems can better cope with bumps and uneven road surfaces, reducing the impact on the driver and providing a smoother and more natural driving experience.

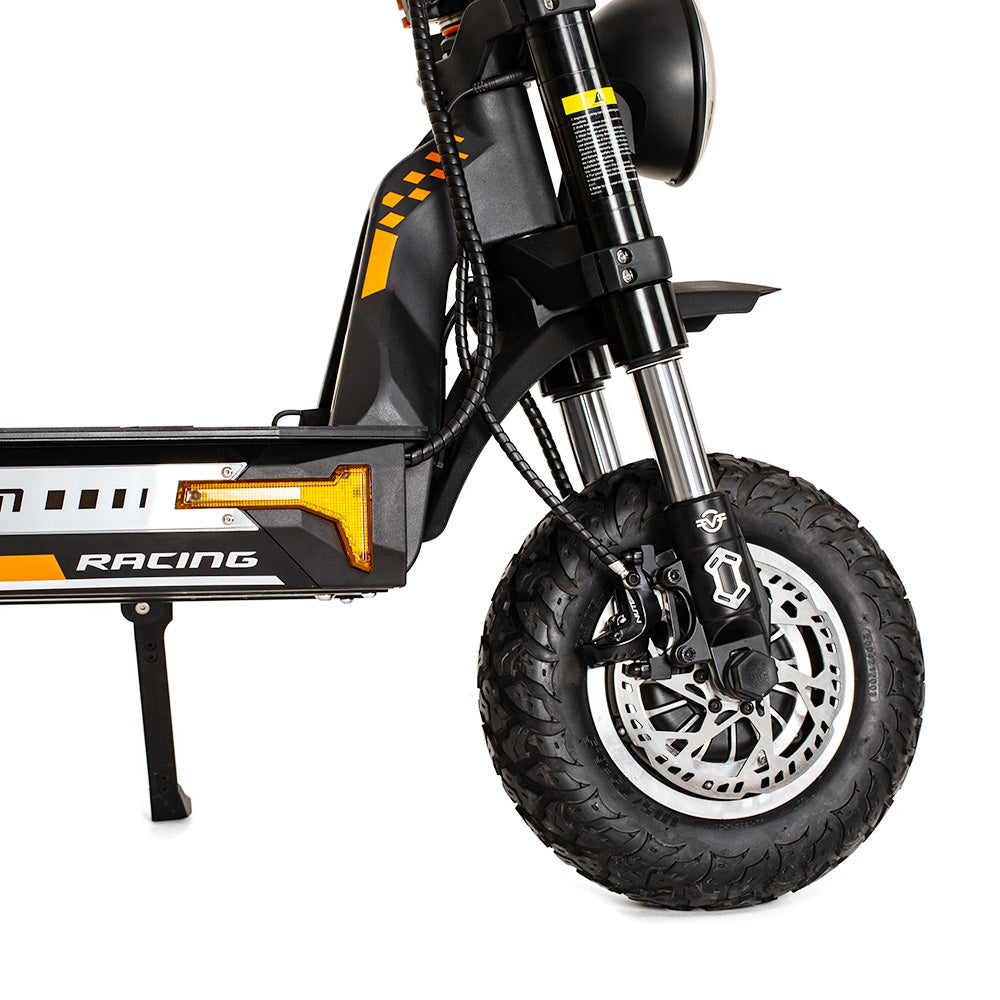

12-inch Off-road Pneumatic Tire

12-inch ultra-wide off-road pneumatic tires have wider treads and off-road tread patterns, which can provide better grip and traction, shock absorption and buffering effects, absorb vibrations caused by uneven road surfaces, and improve driving comfort.

1600W*2 Super Powerful Motor

Four-piston oil brake
12-inch ultra-wide off-road tires
Hydraulic damping shock absorption

35.2Ah Range ≤95km Removable Battery

Dual charging port design, 10A charger, only takes 4 hours to charge fully
5A charger: 8h completed,
10A charger: 4h completed
Spring waterproof cover design

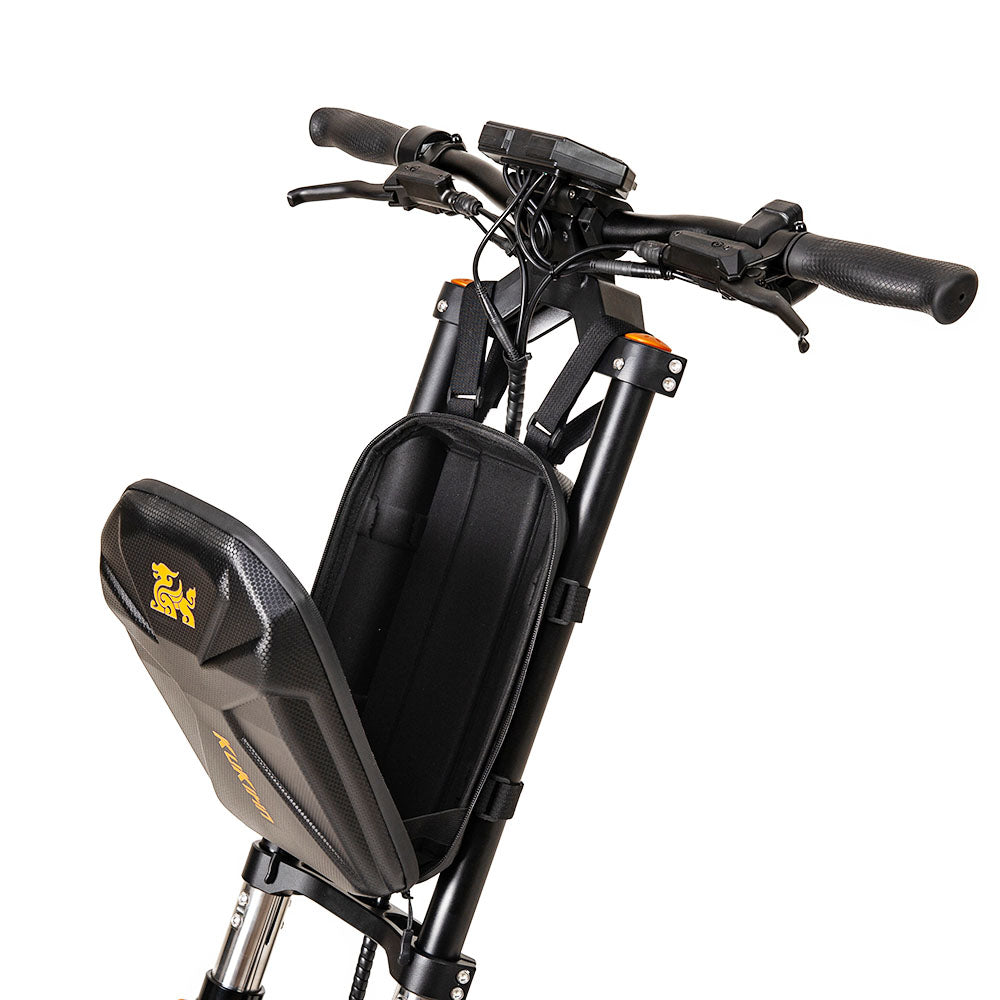

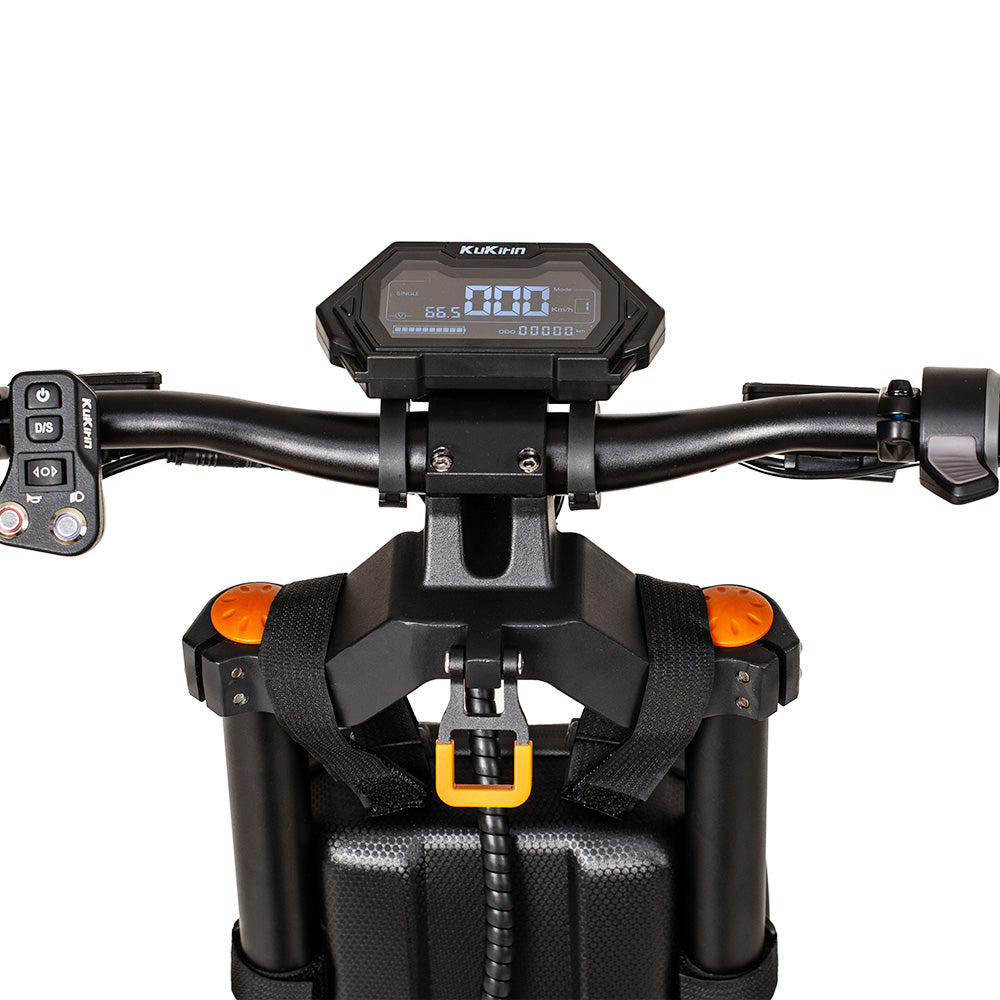

Button Control Area

Easy to use, multi-function control, display screen for easy real-time data viewing.

Cool Ambient Light

Fashionable and cool, safer to drive at night, adding unlimited fun to your travels.

8 Lights All Over the Body

Night driving safety
Cool marquee
Flashing when braking
Turn signal prompt
•Headlight x1 •4 Turn signals x4 •Ambient lights x2 •Tail light x1

Song of Ice and Sand

Strong power to ride on all kinds of road surfaces.

Rugged Roads Never Stop a Free Heart

The inverted dual hydraulic shock absorption design allows you to walk on flat ground.

Natural Protagonist

Full-body aluminum alloy structure
35.2Ah large battery capacity
1600w*2 super powerful motor

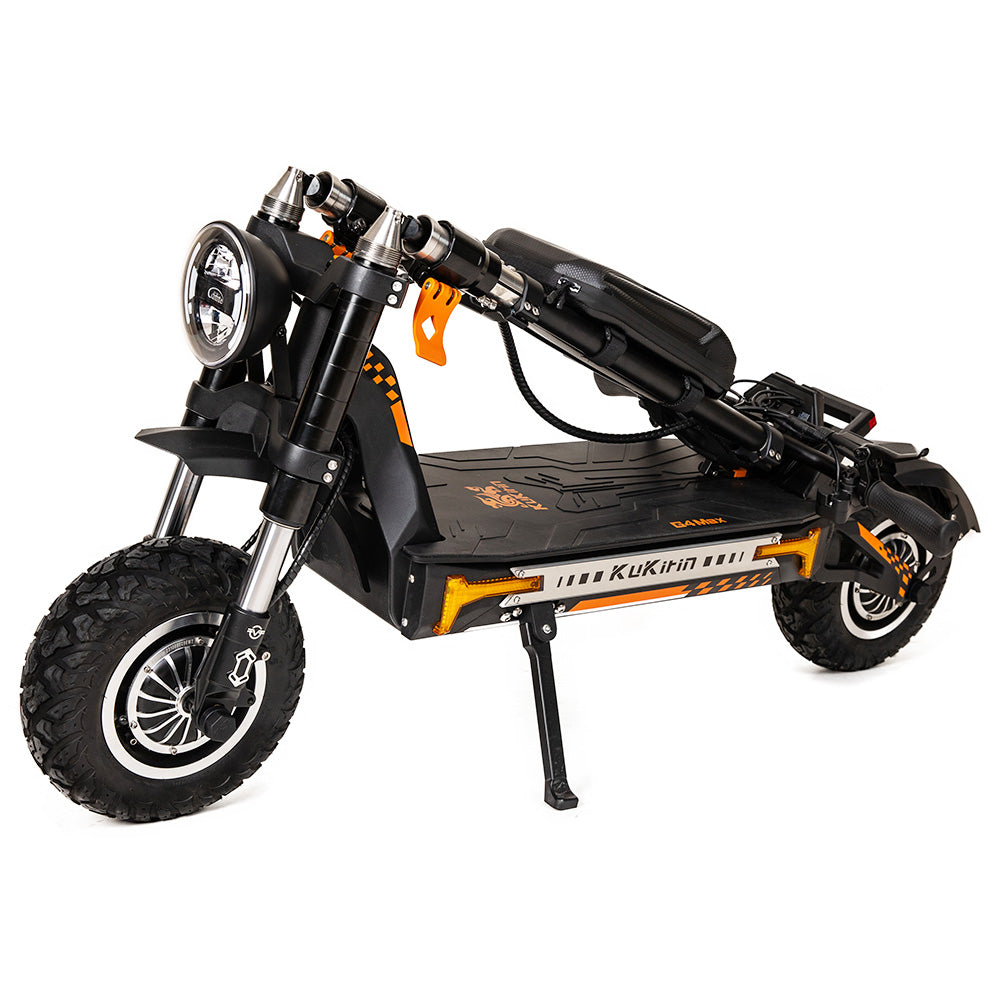

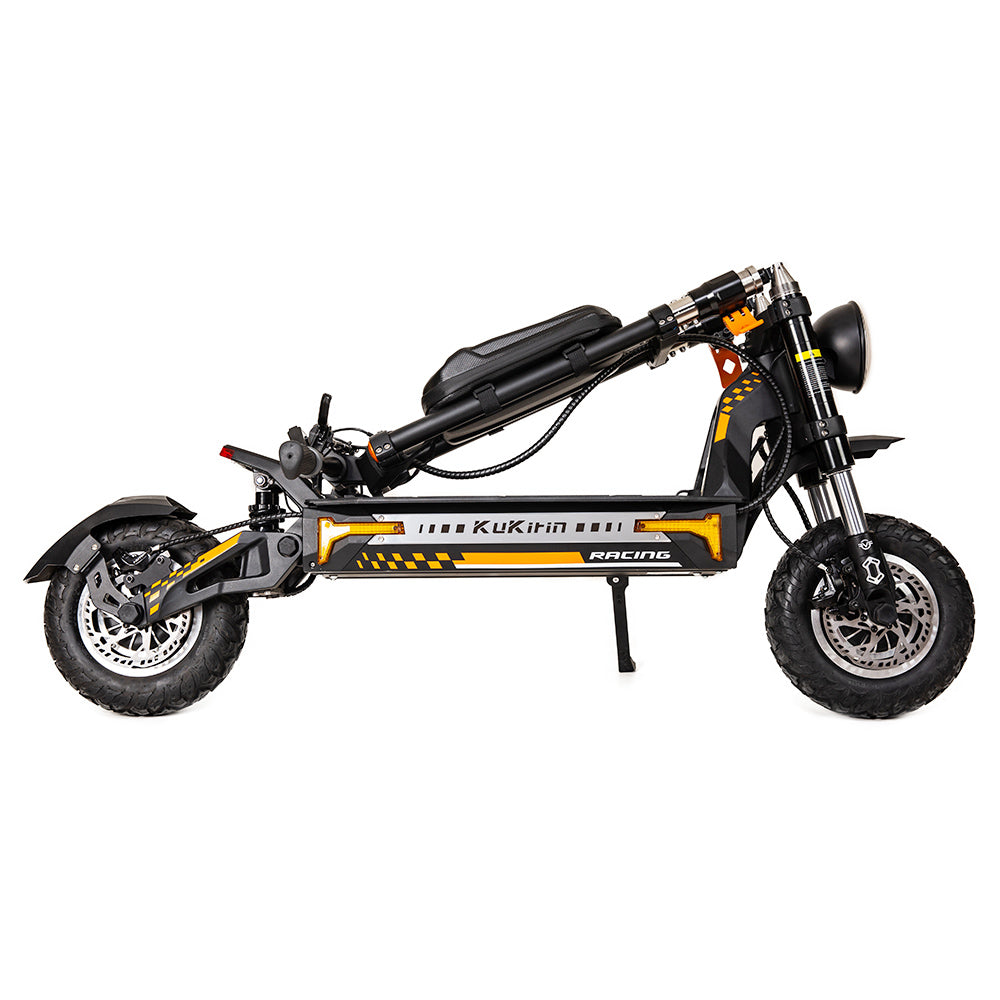

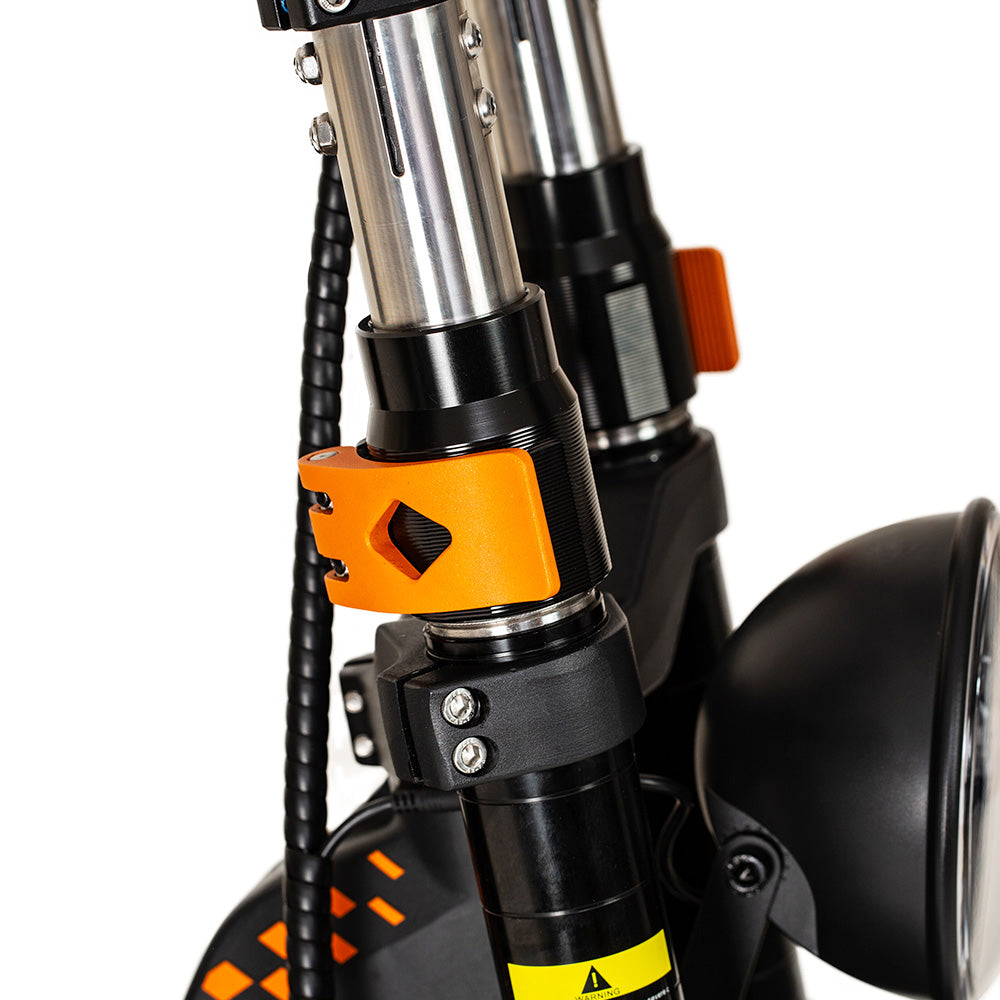

Quick Folding Design

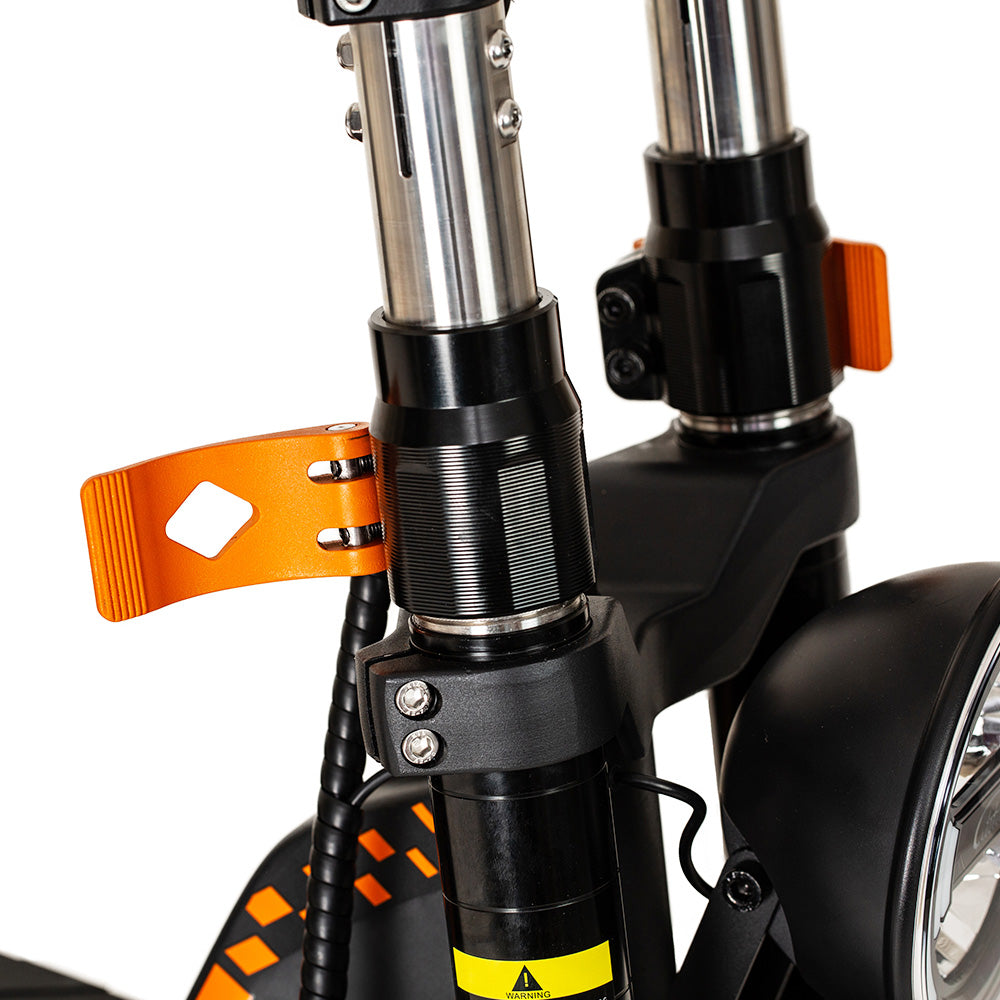

Double pole quick folding design.

*Kukirin is constantly upgraded, the pictures may not be the latest, but the delivery will be the newest version.

General
Brand	Kukirin
Type	Electric Scooter
Model	G4 Max
Specification
Frame material: Aluminium alloy
Speed: 36km/h 66km/h 68km/h (single drive), 38km/h 70km/h 86km/h (dual drive)
Mileage: 95km
Climbing ability: 38°
Brake system: Front and rear piston oil brake
Brake distance: 6-10m
Waterproof grade: IP54
Motor: 1600W (2000W Max)
Max output torque: 41N.M
Rated speed:1900 rpm
Battery: 60V 35.2AH
Battery Model: 21700 Lithoum
Single cell capacity: 4400mAh
Standard power consumption: 2.112kW·h
Battery protect system: Battery protective board(BMS)
Input voltage: AC200-240V~50/60Hz
Input current: 5A
Output voltage: 67.2V
Output current: 5A
LED headlight: 2*6W
Front shock absorber: Hydraulic upside-down shock absorber
Rear shock absorber: Hydraulic shock absorber
Tire: 12-inch off-road Vacuum tires
Optimum tire pressure: 282kPa (41psi)
Display Type: LCD
Display material: Instrument case ABS/instrument bracket PA6
Display Size: 133*76mm
Show content: Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication unit, battery power indication, fault code indication, start mode indication, single and dual drive indication, etc.
Function setting:
After short pressing the power button three times continuously to enter the menu setting interface, the meter will display P1, P2, P3, P4, P6, P7, P8, Pa,Pb, Pc;
Respectively:
P1 is the selection setting for kilometers/miles;
P2 is the voltage level;
P3 is the wheel diameter setting;
P4 is the magnetic pole pair number setting; P5 is the cruise and no cruise selection setting;
P6 is the non-zero start and zero start selection setting;
P7 is the speed limit setting;
P8 is the automatic sleep time setting;
PA is the starting strength setting;
PB is the braking strength setting;
PC is the total mileage clearing setting.
Speed limit mode: Hold the brake handle and double-click the power button to switch to speed limit mode. In speed limit mode, the instrument border icon flashes (no speed limit by default).
Max load: 150kg
Weight & Size
Product Weight	64.5±0.5kg
Package Weight	78.5±0.5kg
Product Size(L x W x H)	Expend size 1425*640*1340mm / Fold size 1425*640*668mm
Package Size(L x W x H)	1450*350*715(inner) /1470*355*740mm(outer)
Handlebar size	640mm
Pedal Size	640*305mm
Pedal to Handlebar size	1035mm
Chassis height	210mm

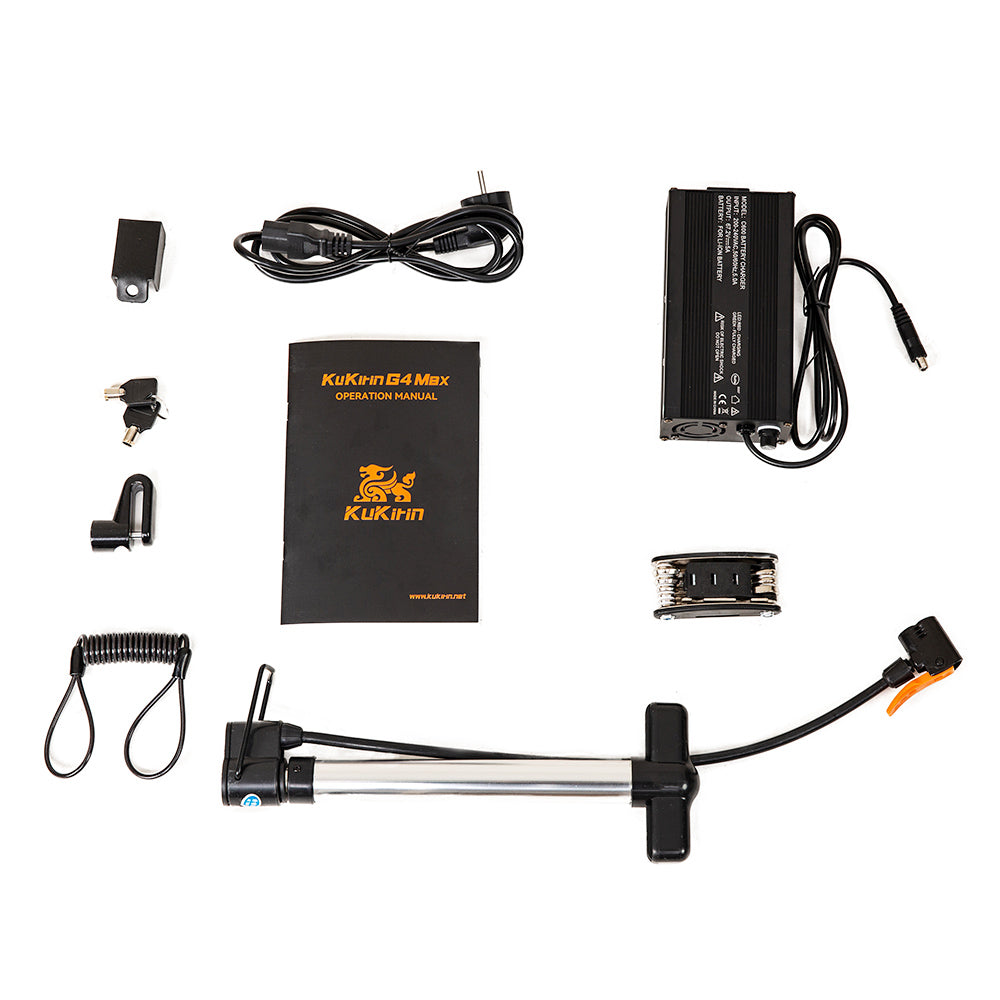

Package Contents
1 x Electric scooter
1 x Bag
1 x Toolbag
1 x Inflator bump
1 x Charger
1 x User Manual
