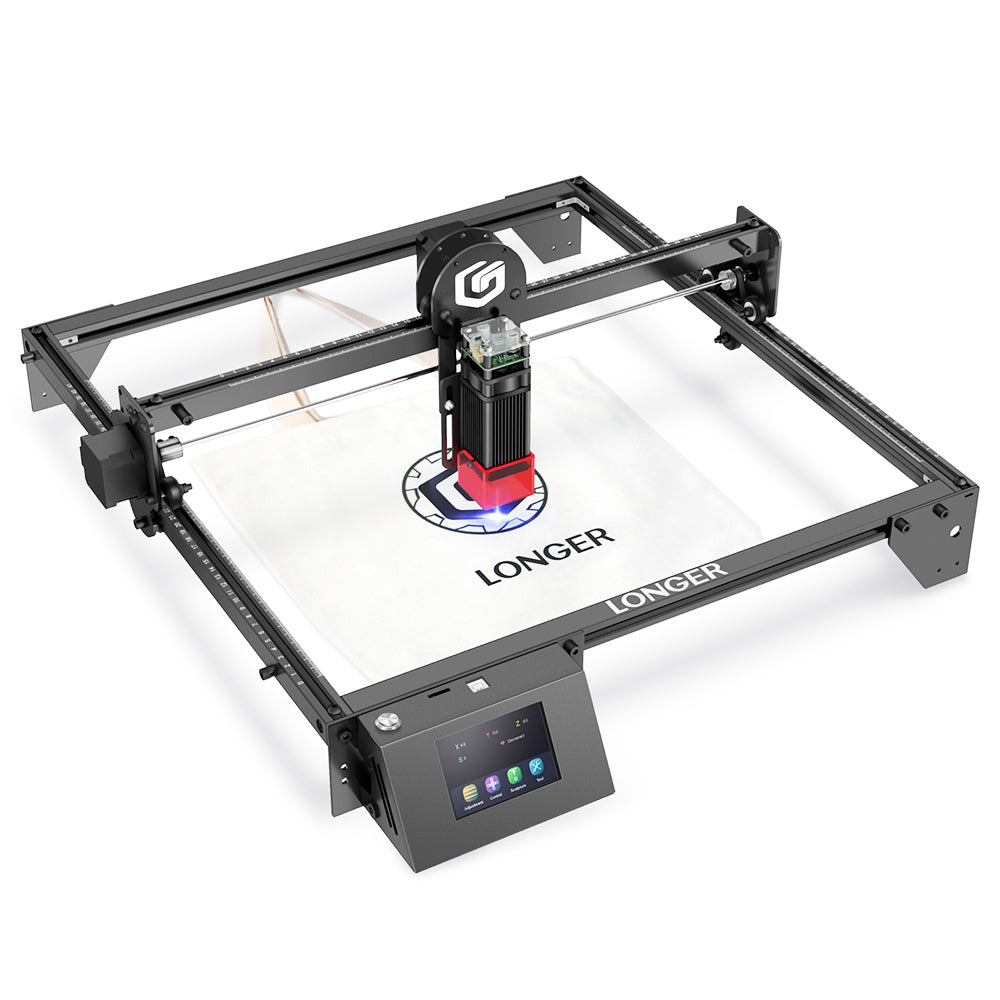

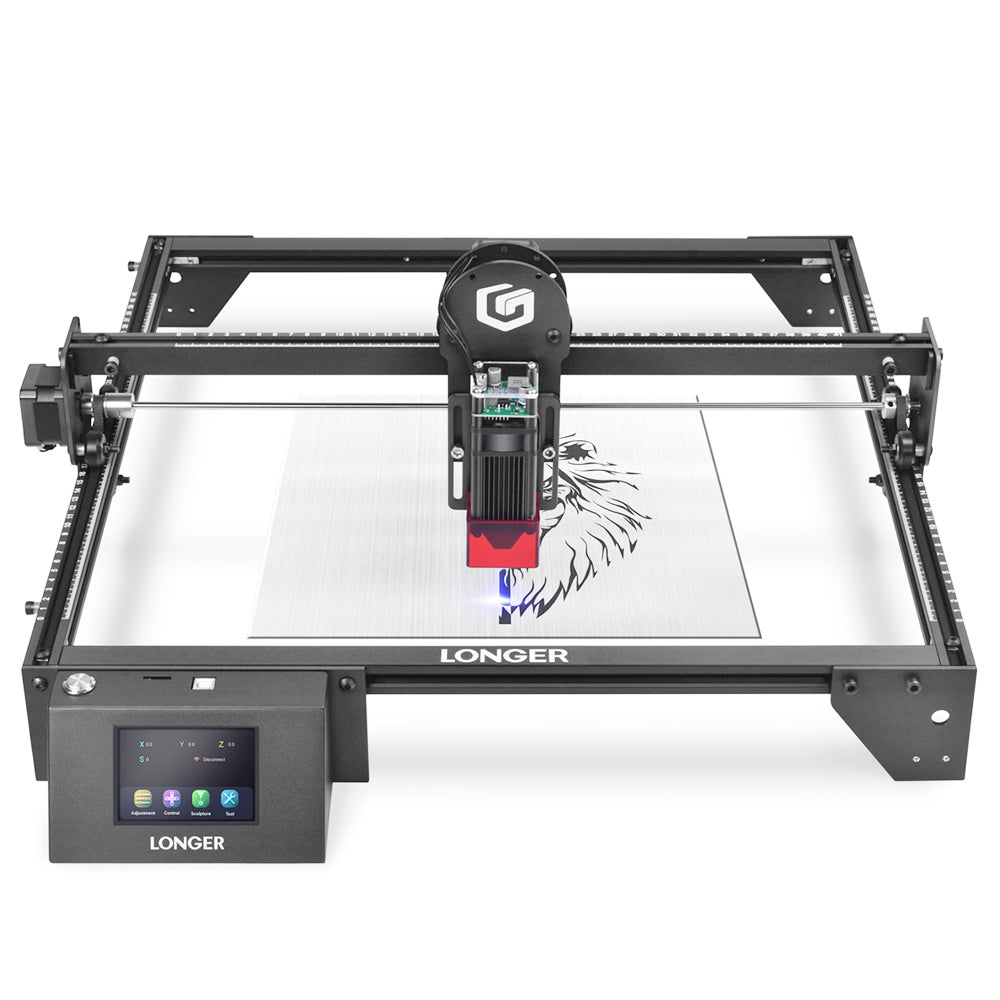

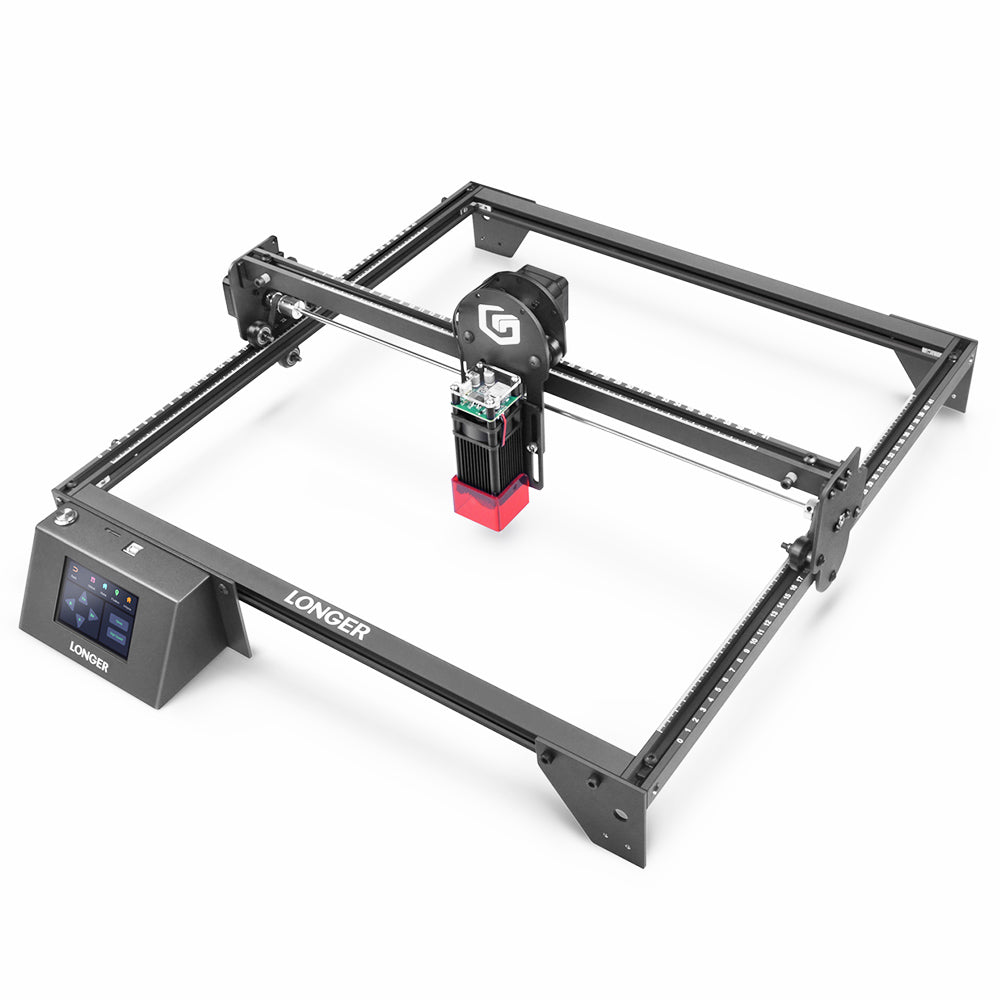

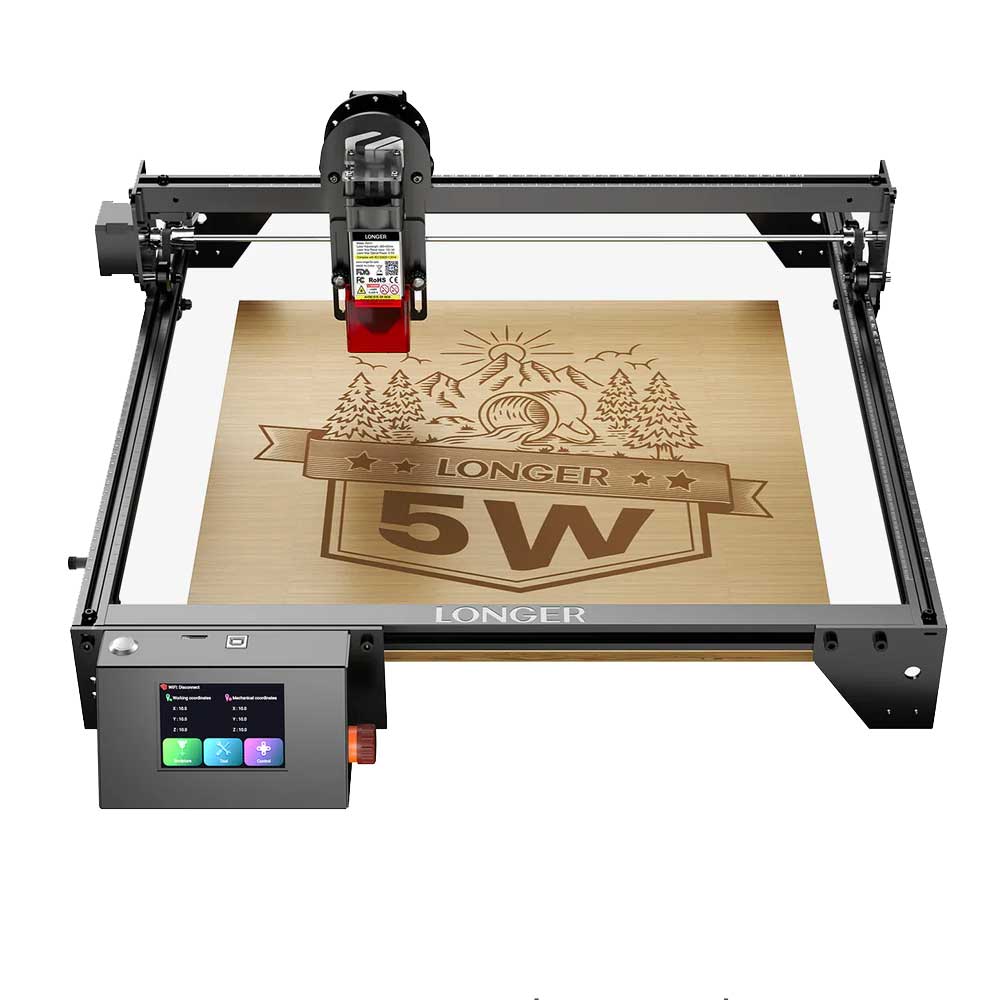

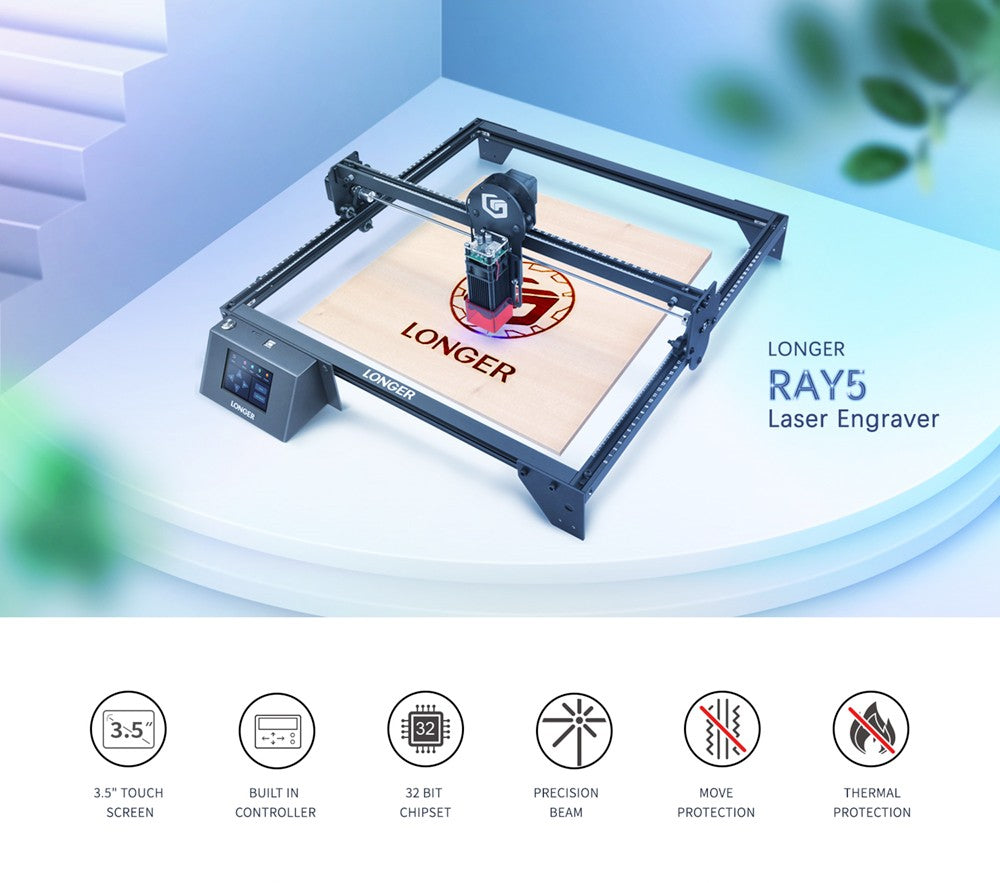

LONGER RAY5 Laser Engraver

LONGER RAY5 highlights

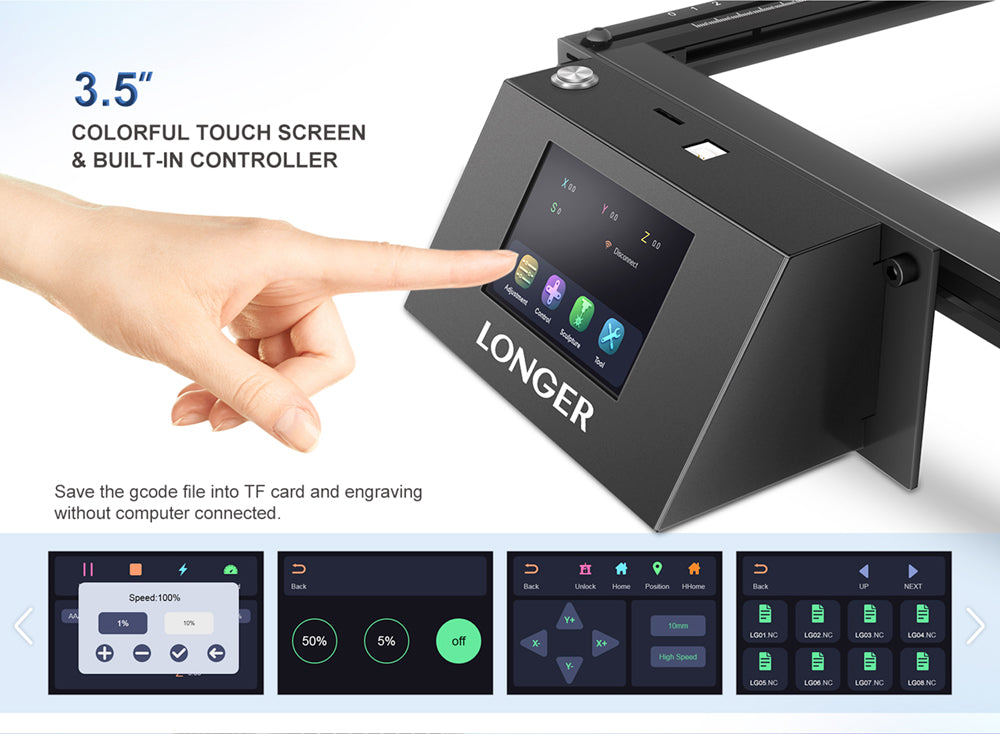

Touch Screen & Offline Carving

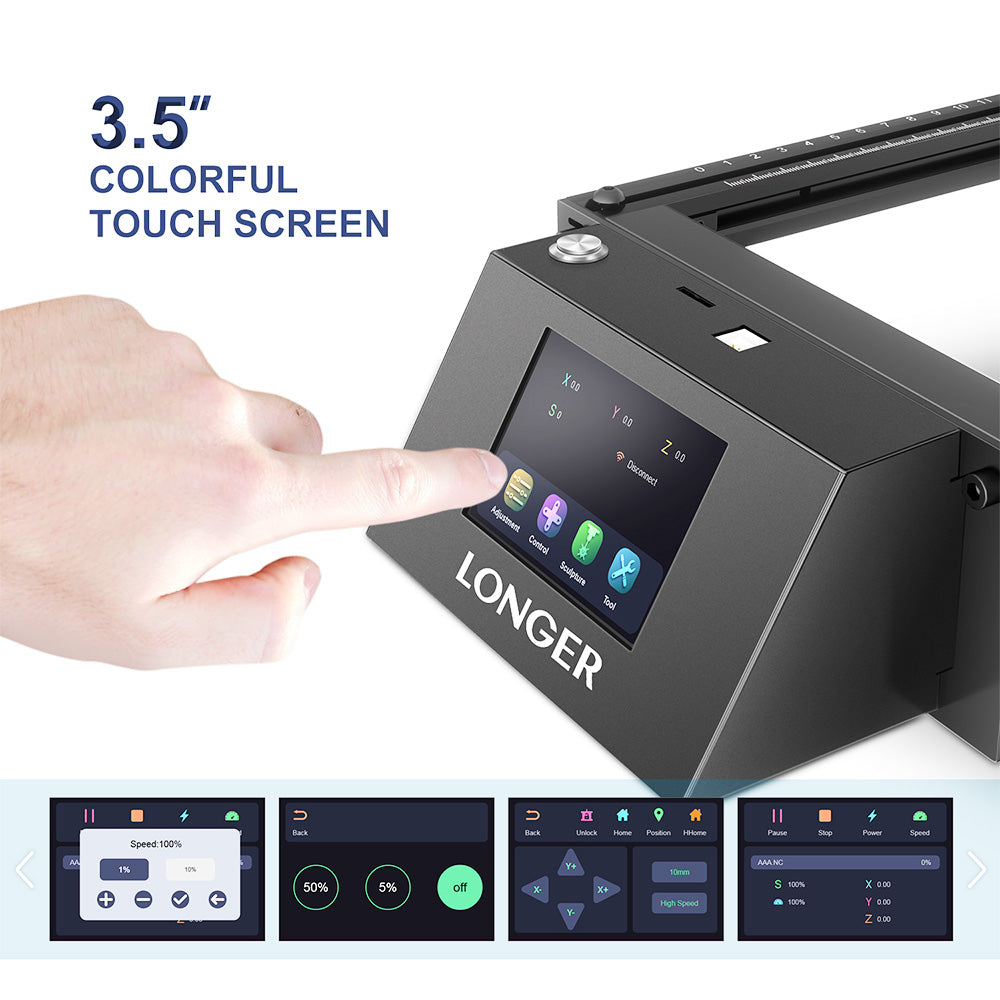

LONGER RAY5 laser engraver has a built-in 3.5” touch screen with a friendly user interface. This allows us to cut multiple pieces of plywood or images to be engraved without tying up your computer to run it. The Longer Ray5 has a built-in controller and no computer is required to connect the laser engraver all the time. Save your file to a TF card, and use it to run the Ray5 for engraving or cutting.

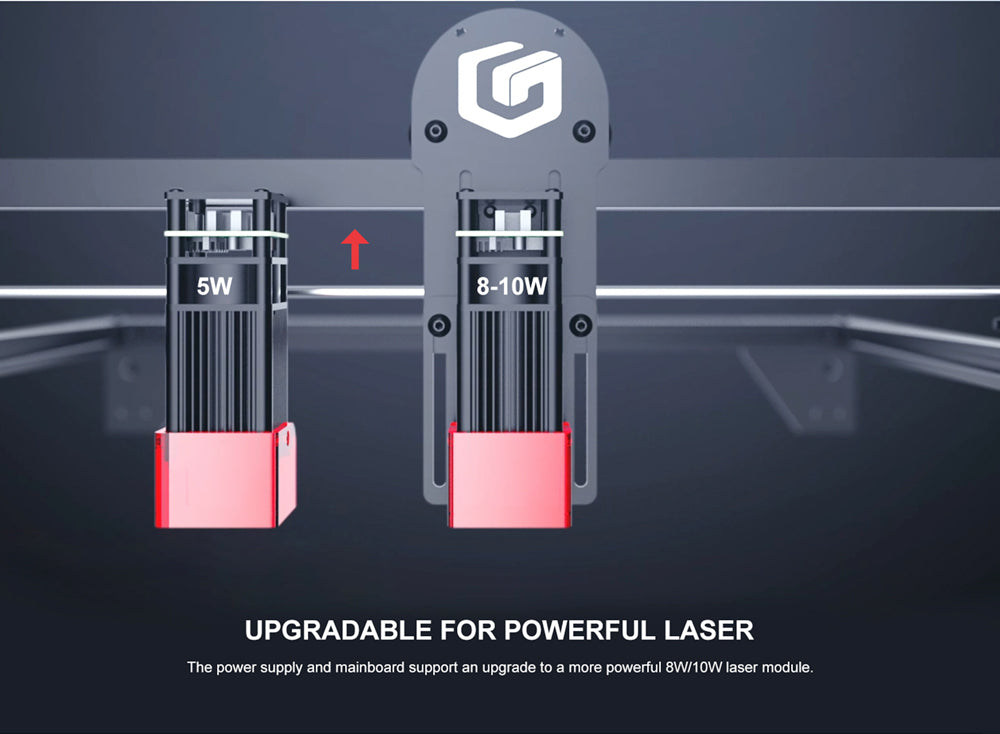

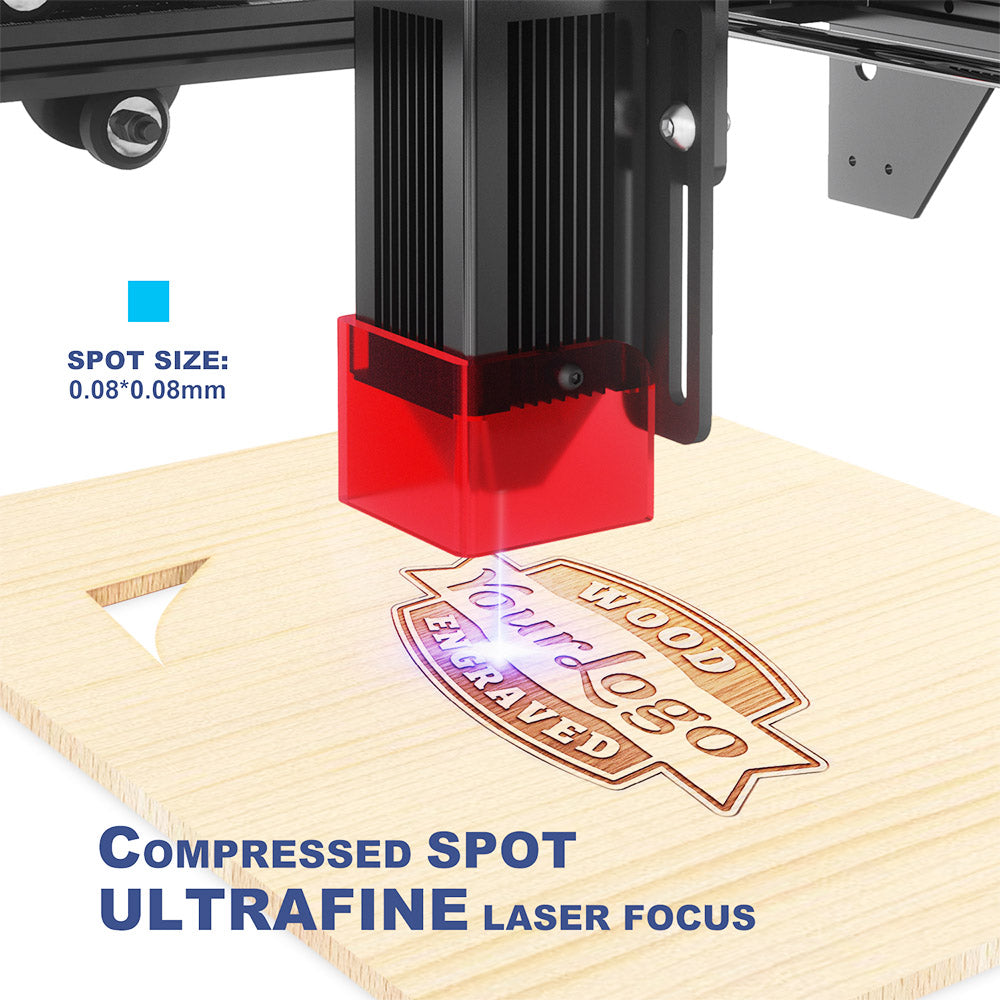

Ultrafine Laser Point & Powerful Laser Module

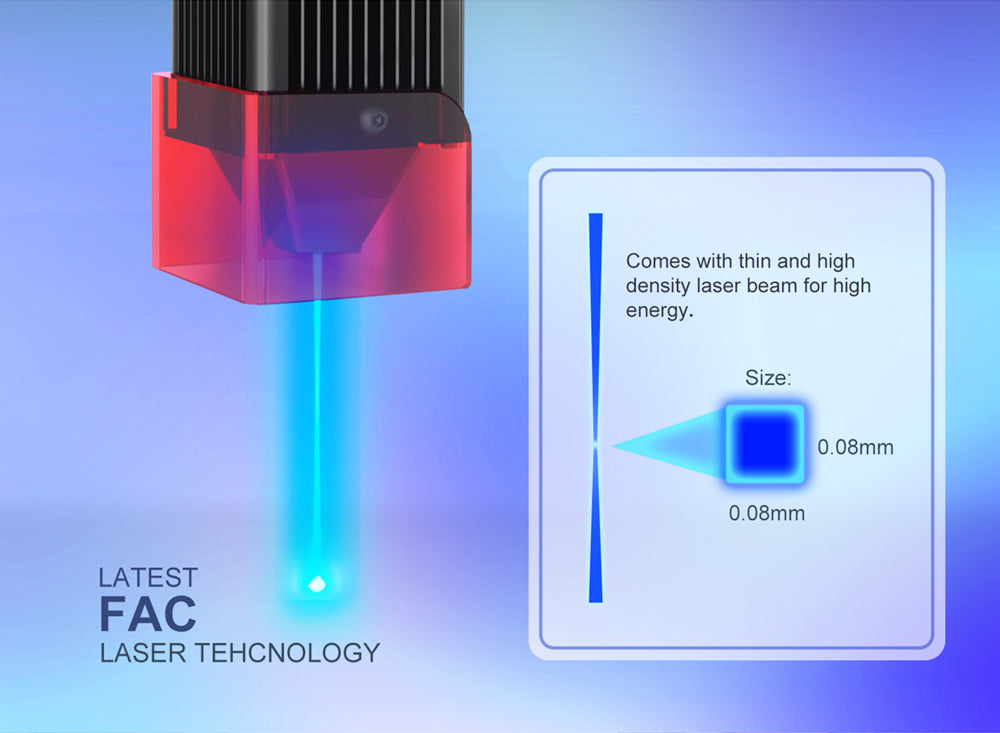

This laser engraver comes with the latest FAC laser technology for compressed laser points, the size of the point is 0.08*0.08mm; The smaller the size of the point, the more focused the energy. This allows the engraving or cutting to be much stronger. The output power of the laser module reaches 5-5.5W.

32-Bit Chipset & WIFI Connection

RAY5 is built with an ESP32 chipset and includes a WIFI connection for the engraver to the router. This 32-bit chipset is running at 240MHz. That means it is faster and more powerful than comparably equipped machines with 8-bit chipsets. As a bonus, the RAY5 supports WIFI connections through the web page or App to control engraving or cutting.

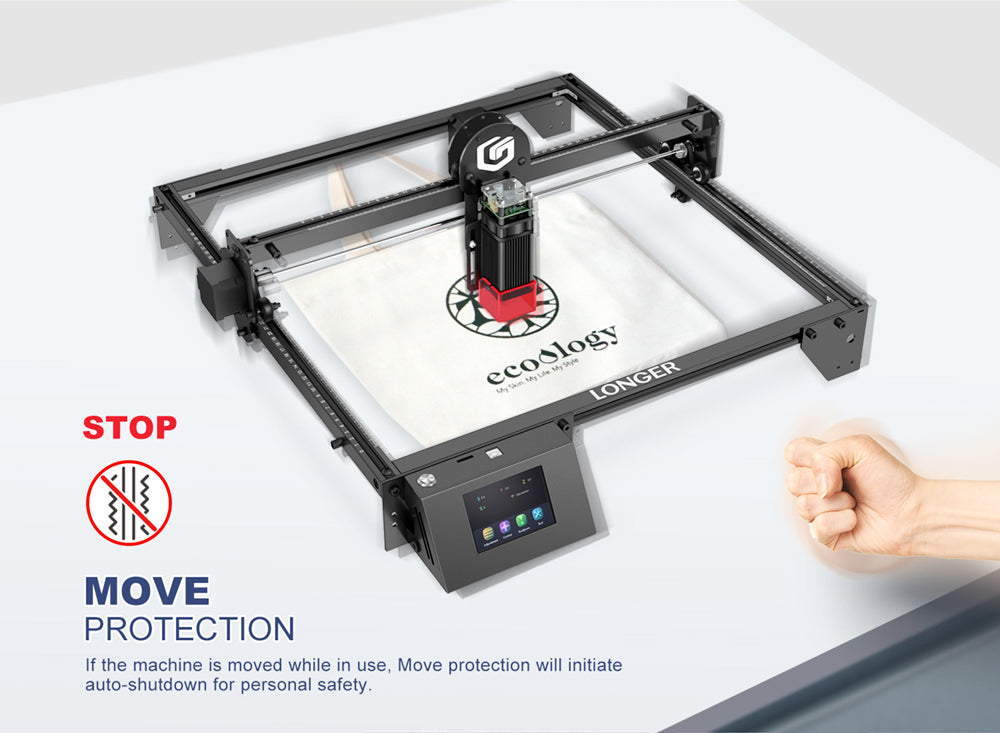

Safety Protection

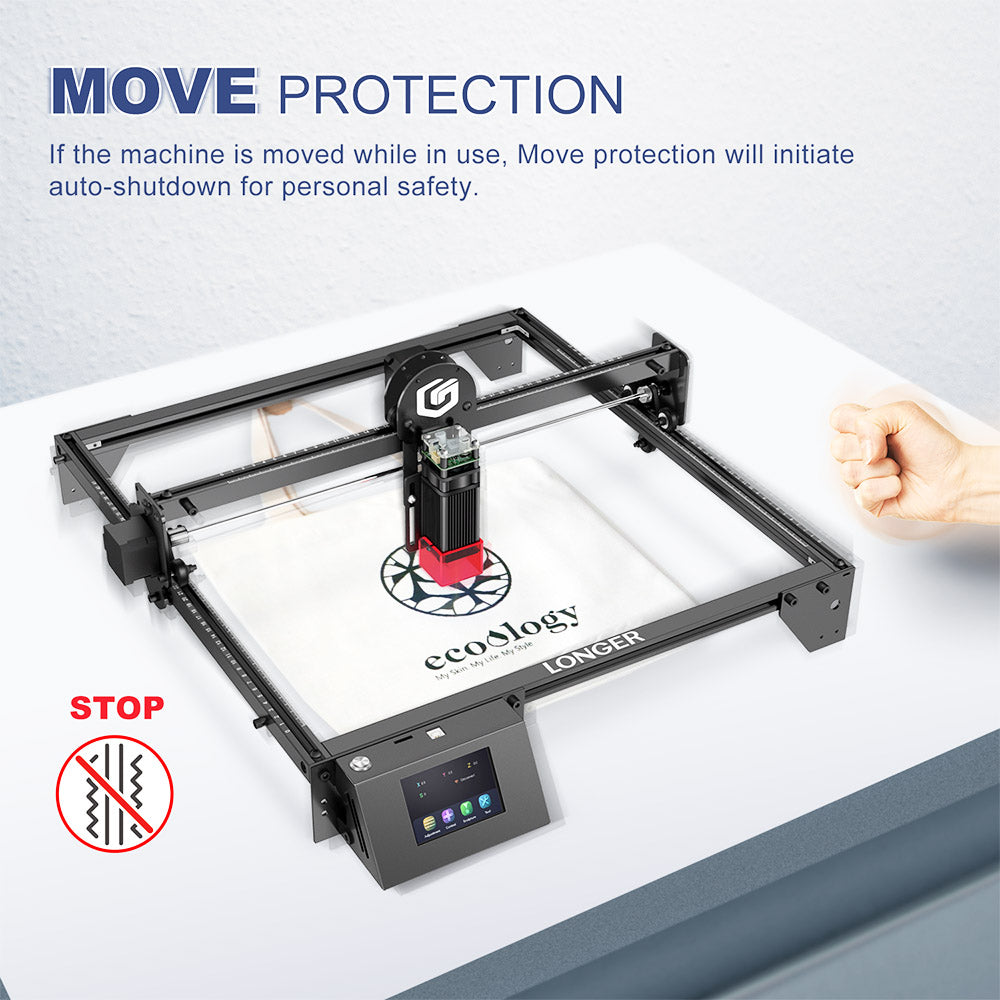

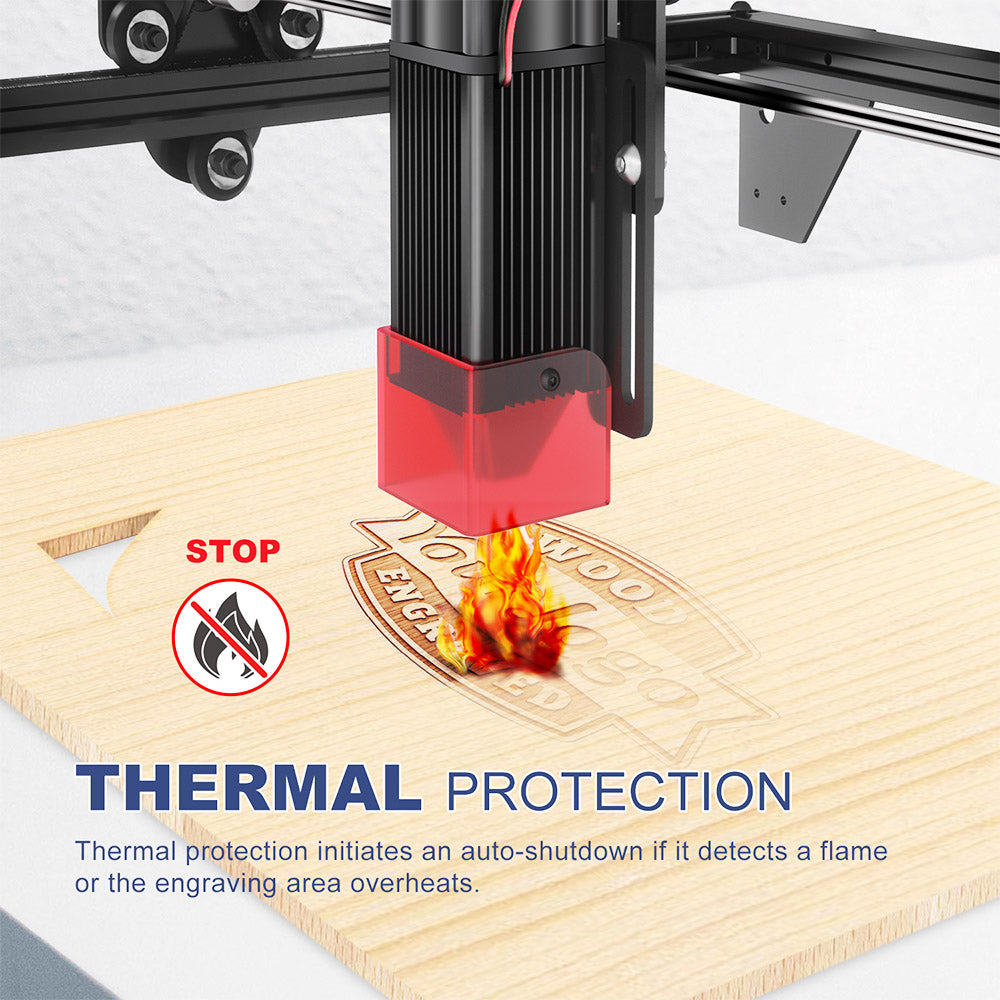

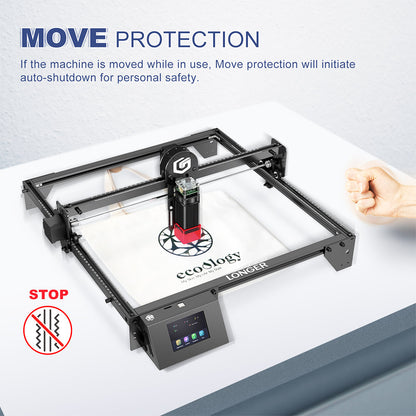

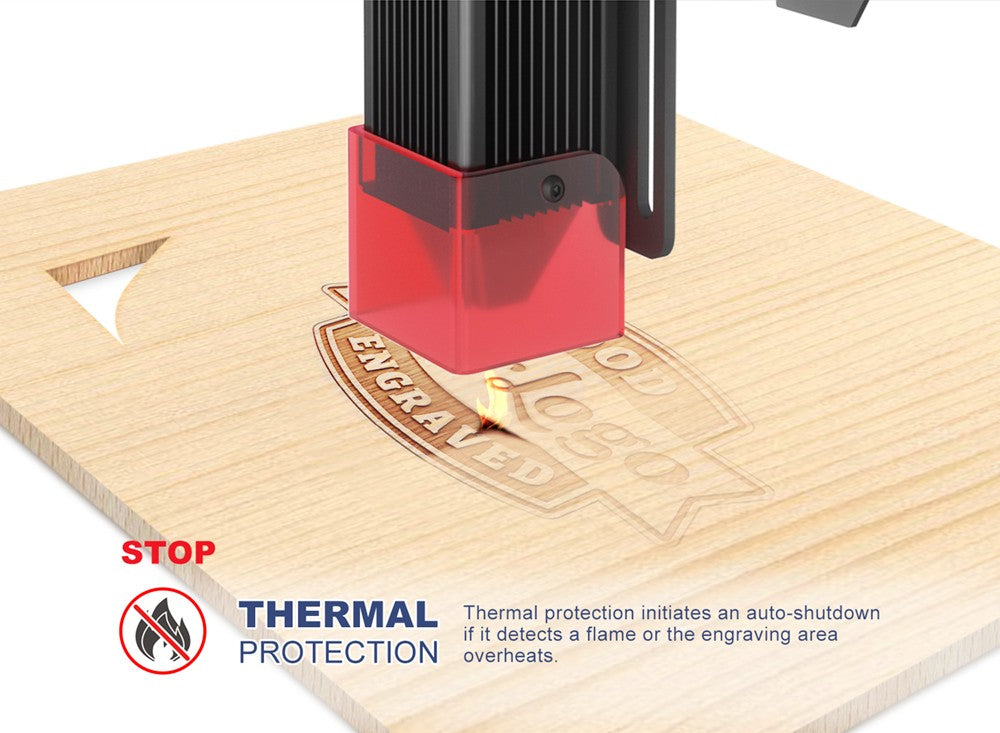

LONGER RAY5 is designed with move protection and thermal protection functions. If the machine is moved while in use, Move protection will initiate auto-shutdown for personal safety. Thermal protection initiates an auto-shutdown if it detects a flame or the engraving area overheats.

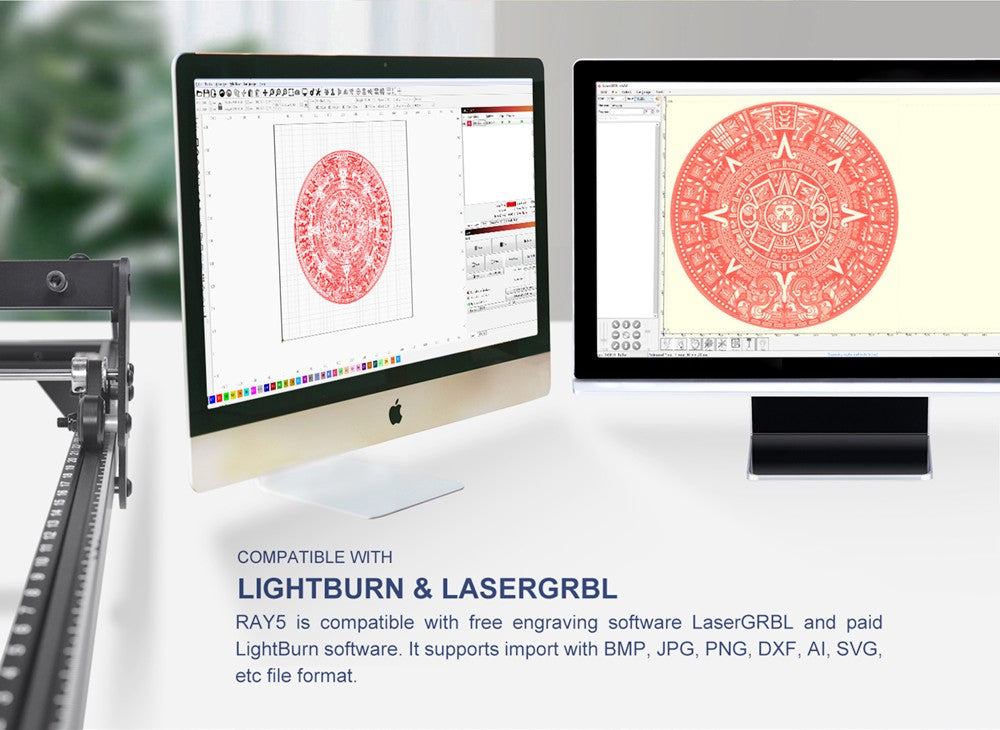

Compatible with Windows/MAC/Linux System

RAY5 is compatible with free engraving software LaserGRBL and paid LightBurn software. It supports import with BMP, JPG, PNG, DXF, AI, SVG, etc file format.

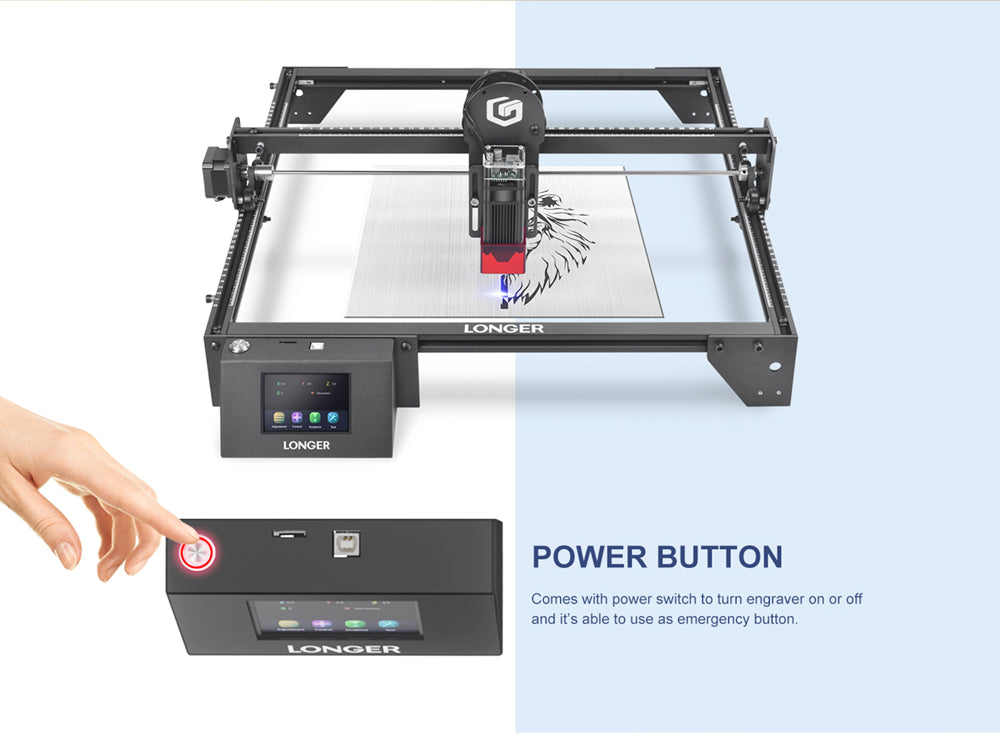

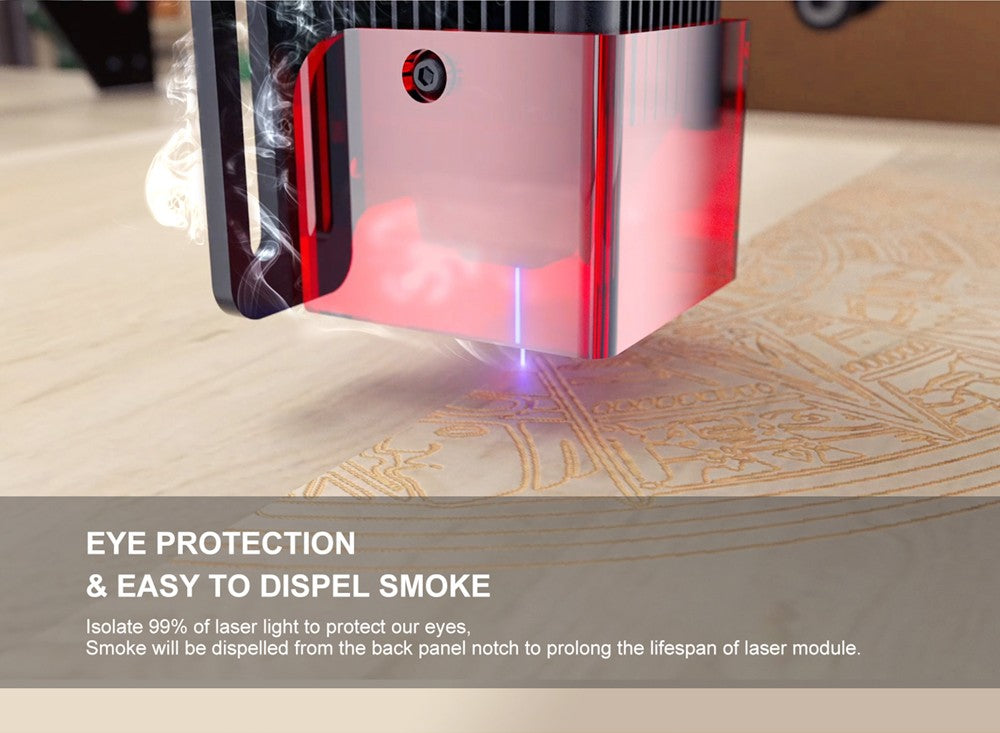

Power Button & Eye Protection

The engraver comes with a power switch to turn the power on or off. The laser module has an acrylic cover. This shields the laser light to help protect the eyes. You will want to wear eye protection for laser scatter as well.

General
Brand	LONGER
Type	Laser Engraver
Model	RAY5
Color	Black
Specification
Laser Technology	Diode Laser
Working Area	400 x 400mm (15.75 x 15.75inch)
Laser Wavelength	450-460nm
Focus Type	Fixed Focus - 30mm Focal Range
Spot Size at Optimal Focus	0.08 x 0.08mm
Optical Output Power	5W-5.5W
Z Axis-Height Range	Up to 65mm
Engraving / Cutting Speed	40 - 10000mm/min
Engraver Output	DC12V 5A
Engraver Input	AC110 - 240V
Software	LaserGRBL, compatible with LightBurn
Connection	USB / TF Card / WiFi
Carving Objects	All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal
Cutting Objects	Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board
Weight & Size
Package Weight	6.5 kg
Package Size(L x W x H)	59 x 30 x 12.7cm

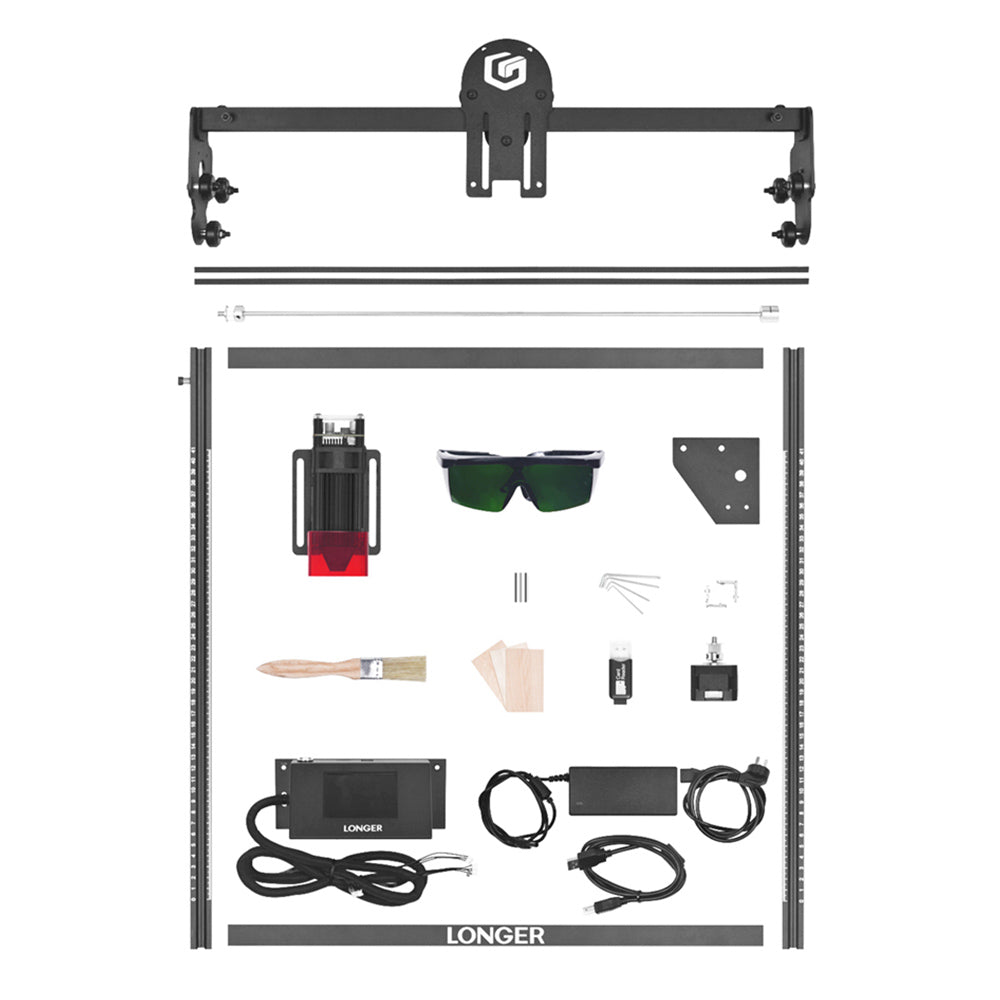

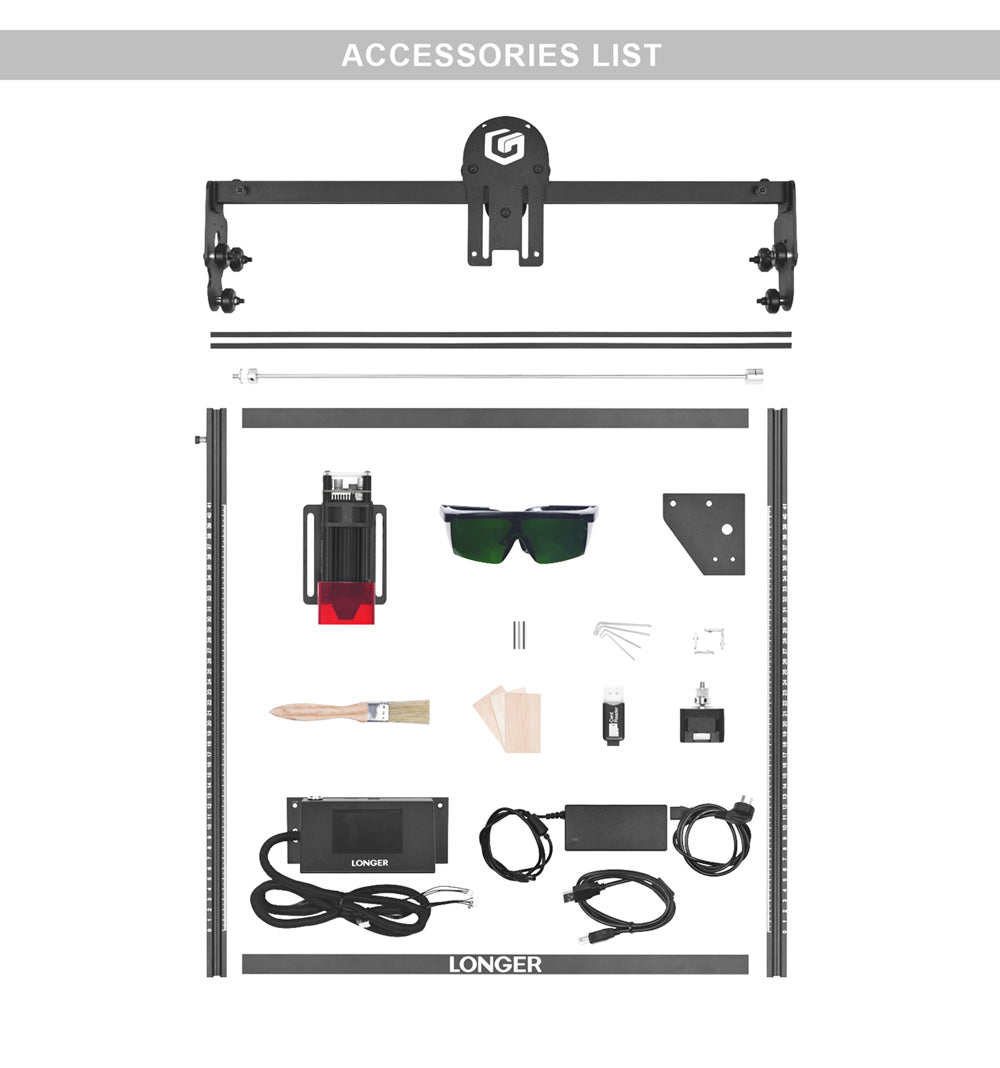

Package Contents
1 x Laser Engraver
1 x User Manual
