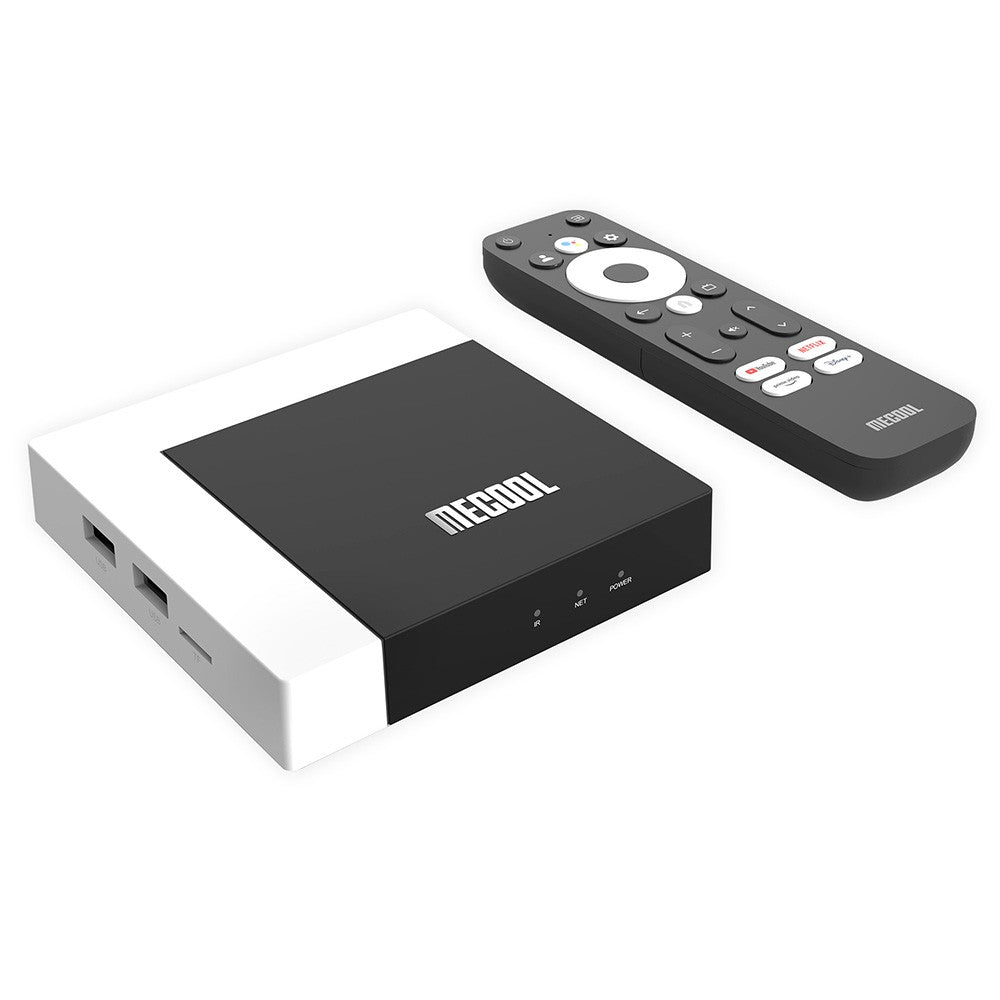

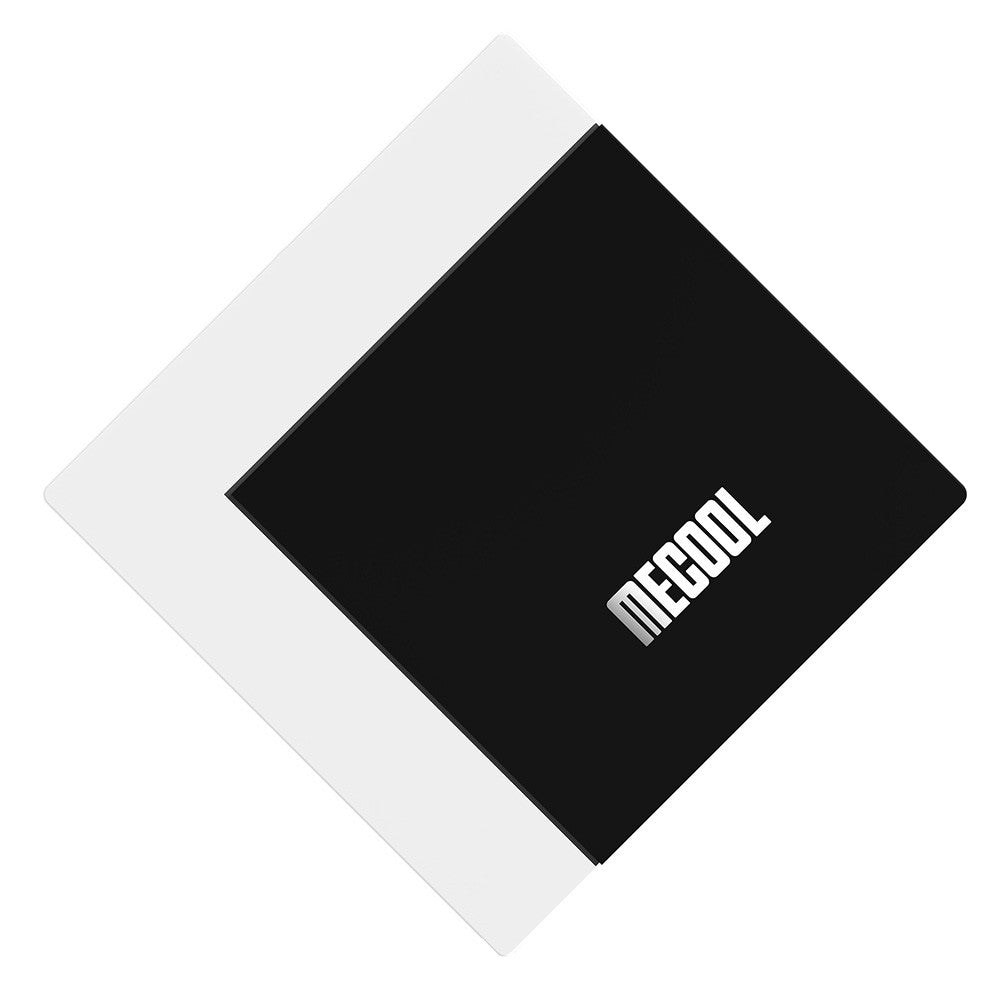

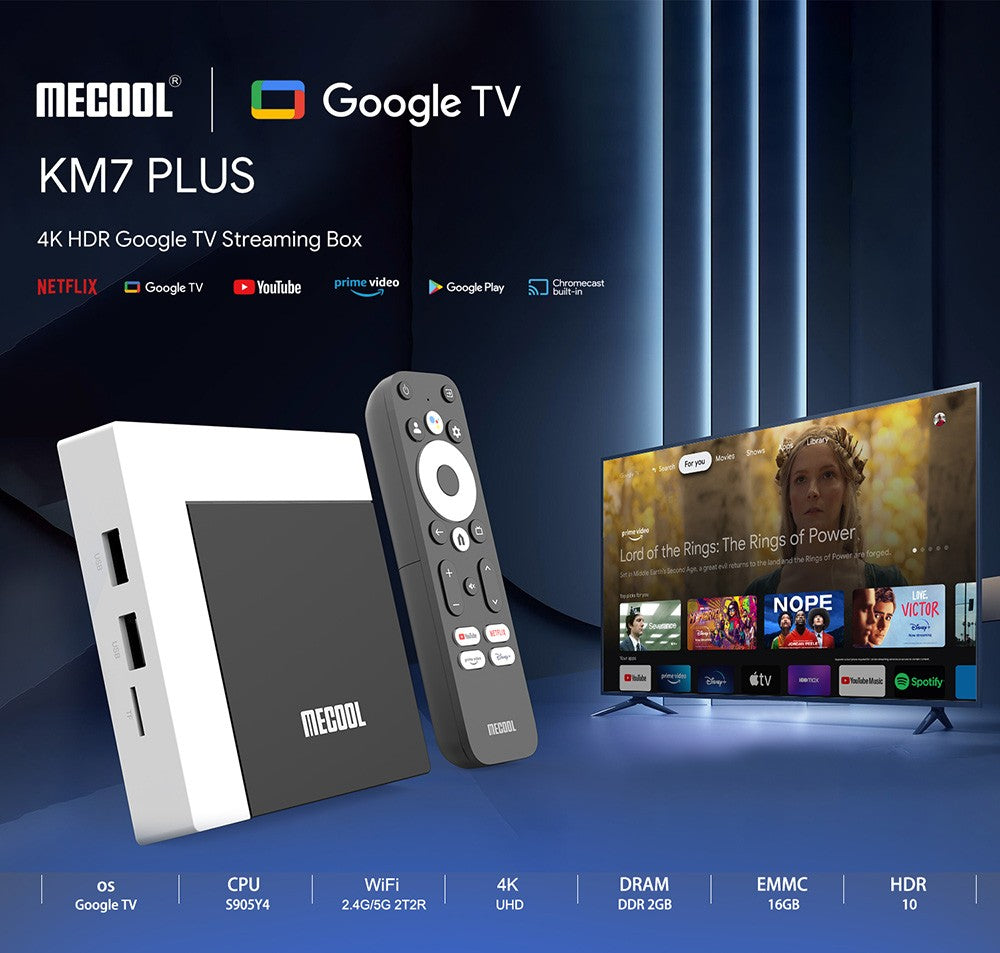

MECOOL KM7 PLUS TV BOX

MECOOL KM7 PLUS highlights

Android 11.0 OS & Amlogic S905Y4
KM7 PLUS TV Box with Android 11.0 OS, S905Y4 Quad-Core A53, which makes sure the box runs stable and smooth to load movies, pictures and games without buffer. Built-in lots of content and entertainment from the Android ecosystem, including 4K Netflix, YouTube, Prime Video, Disney Plus, etc, delivering a world of content the whole family can enjoy.
2GB RAM + 16GB ROM& One Key Direct
Android TV box supplies excellent memory (2GB RAM +16GB ROM) to let you download more movies, games or other files. The infrared Remote control ensures you enjoy your wonderful life which the wireless brings to you, you can one key directly to YouTube, Spotify, prime video interface. When pairing the remote control for the first time, the distance should be within 20 cm.
Chromecast Built-in & 4K HDR
Stream your favorite entertainment and apps from your phone, tablet or laptop right to the big screen. Features the lastest 4K technolgoy and high-speed 4K processing for up to 60fps playback. With HDR ensures natural colors in both bright nd dark scenes.
AV1 Decoding & WIFI5 2.4/5GHz
Amlogic S905Y4 supports the latest 4K120 10bit AV1 decoding, saving 20%-30% more bandwidth efficiency than H 265 or VP9, AVI can bring better volume and picture quality advantages in 4K ultra-high-definition video. Dual WIFI 2.4/5GHz offers a convenient connection and a more stable WIFI 5 signal to enjoy a higher quality video experience.

General
Brand	MECOOL
Model	KM7 PLUS
Type	TV BOX
Hardware
OS	Android 11.0
CPU	Amlogic S905Y4 Quad-Core A53
GPU	ARM G31 MP2
RAM	2GB DDR4
ROM	16GB EMMC
Communication
WiFi	Built-in 1T1R 802.11 a/b/g/n/ac 2.4+5G Wi-Fi
Bluetooth	BT 5.0 Module
LAN	RJ45 10M/100M
Media
Decoder Format:
- AV1 MP-10@L5.1 up to 4Kx2K@60fps
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
-Supports JPEG thumbnail, scaling, rotation and transition effects
Video Format:
- Video/Picture Encoding
- Amlogic Video Engine (AVE) with dedicated hardware decoders and SW H.264/VP8 encoders
- Support multi-video decoder up to 4x1080P@60fps
- Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
Audio Format:
32KHz to 192KHz sample rates,MPEG Audio Layers 1,2 &3,MPEG-4 Audio AAC LC,AAC LC + SBR Level 2,AAC, HE AAC Level 2 & Level,Dolby Digital MS12,Atoms Passthrough

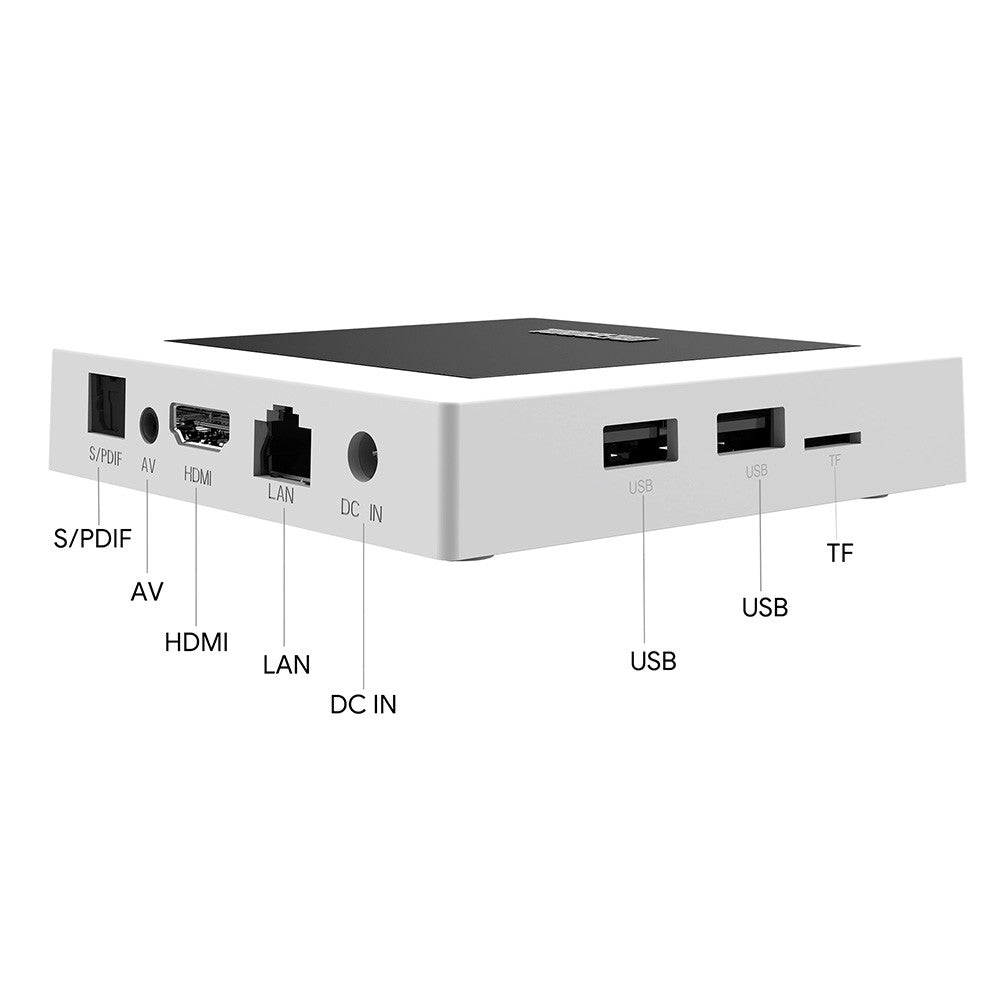

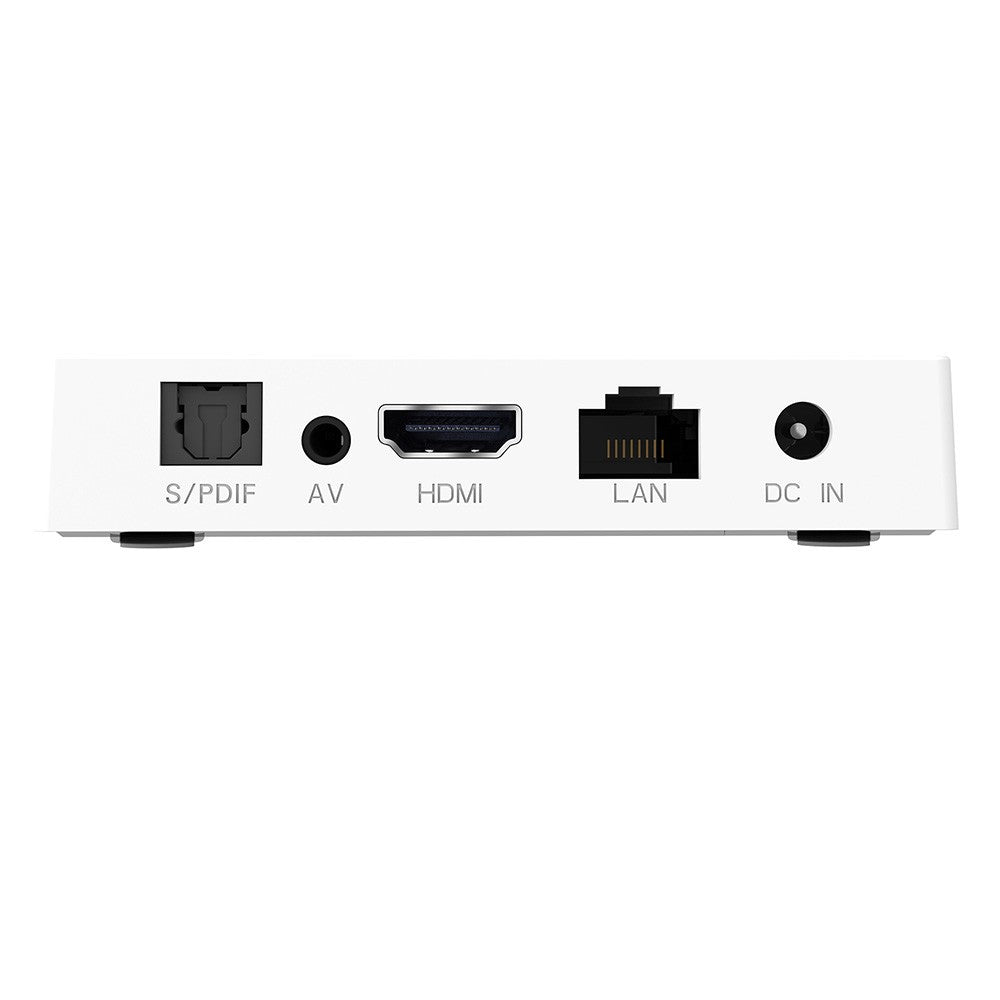

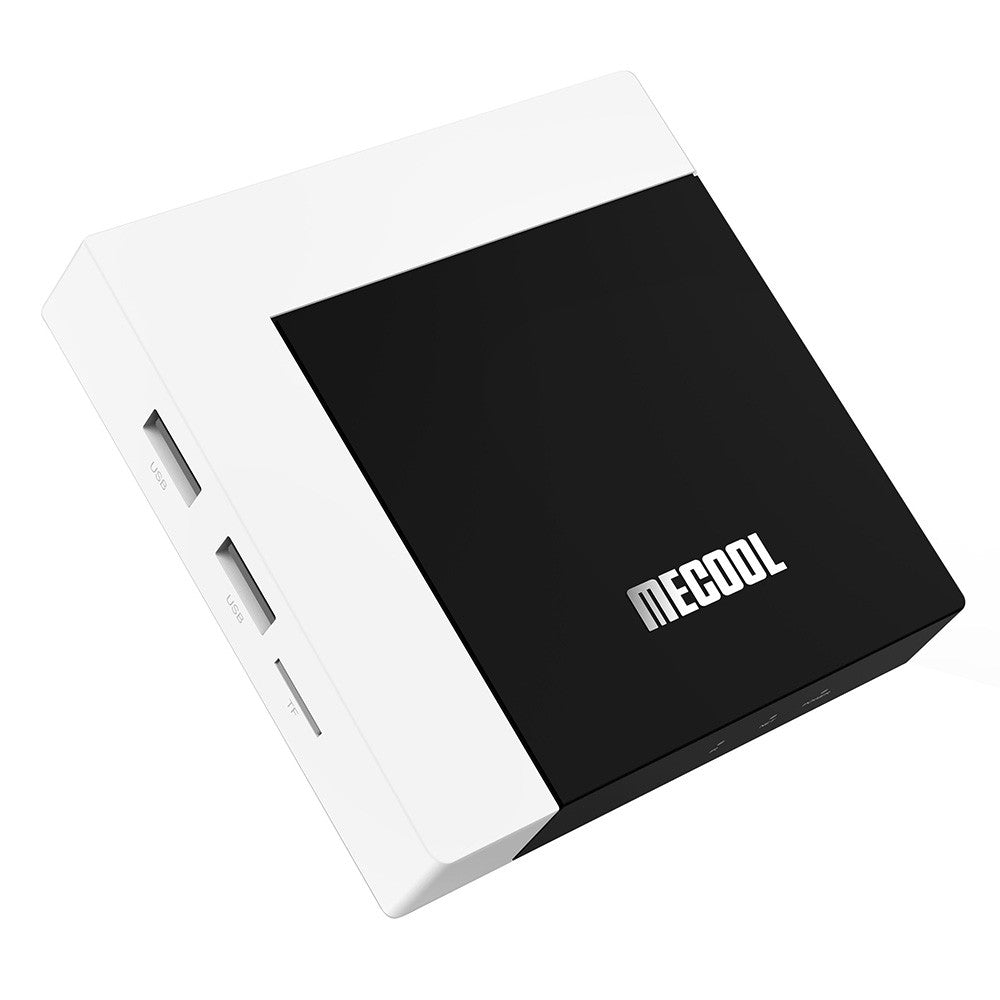

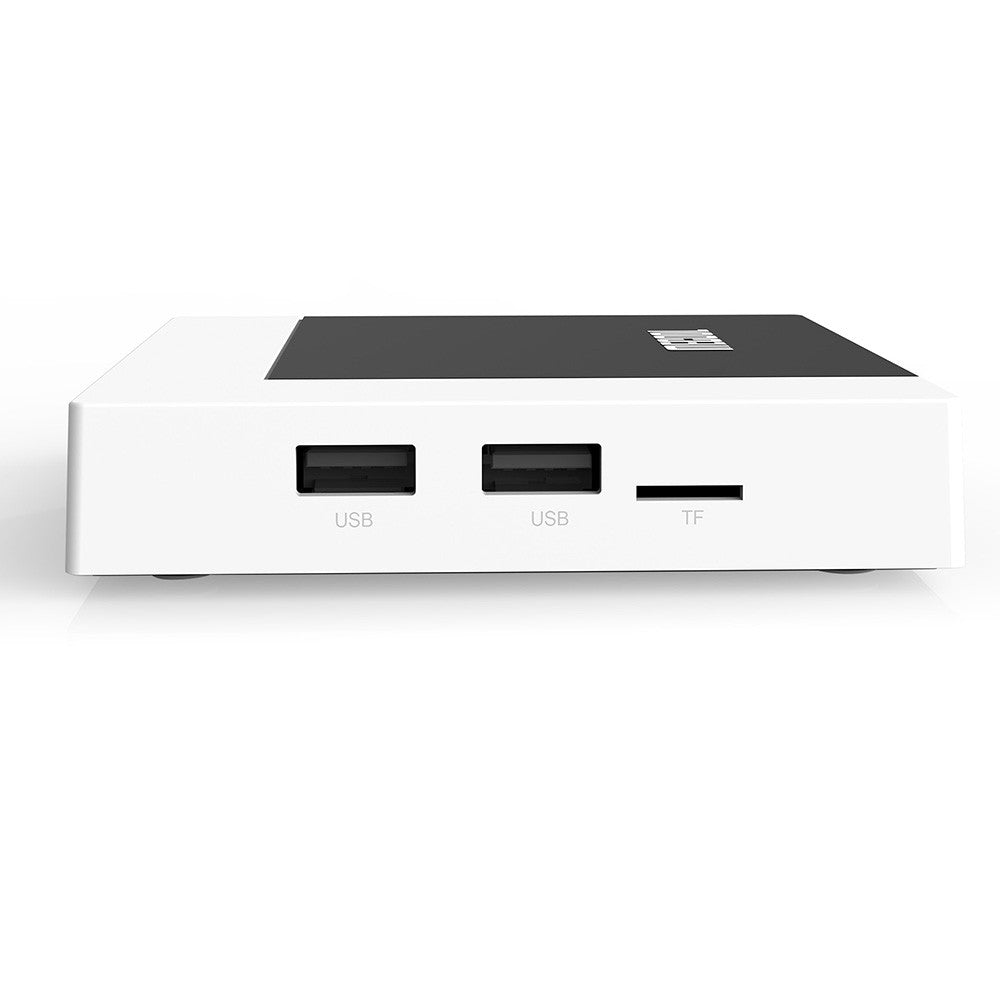

Interface
• 1* HDMI 2.1 Dynamic HDR 4Kx2K@60 max resolution output

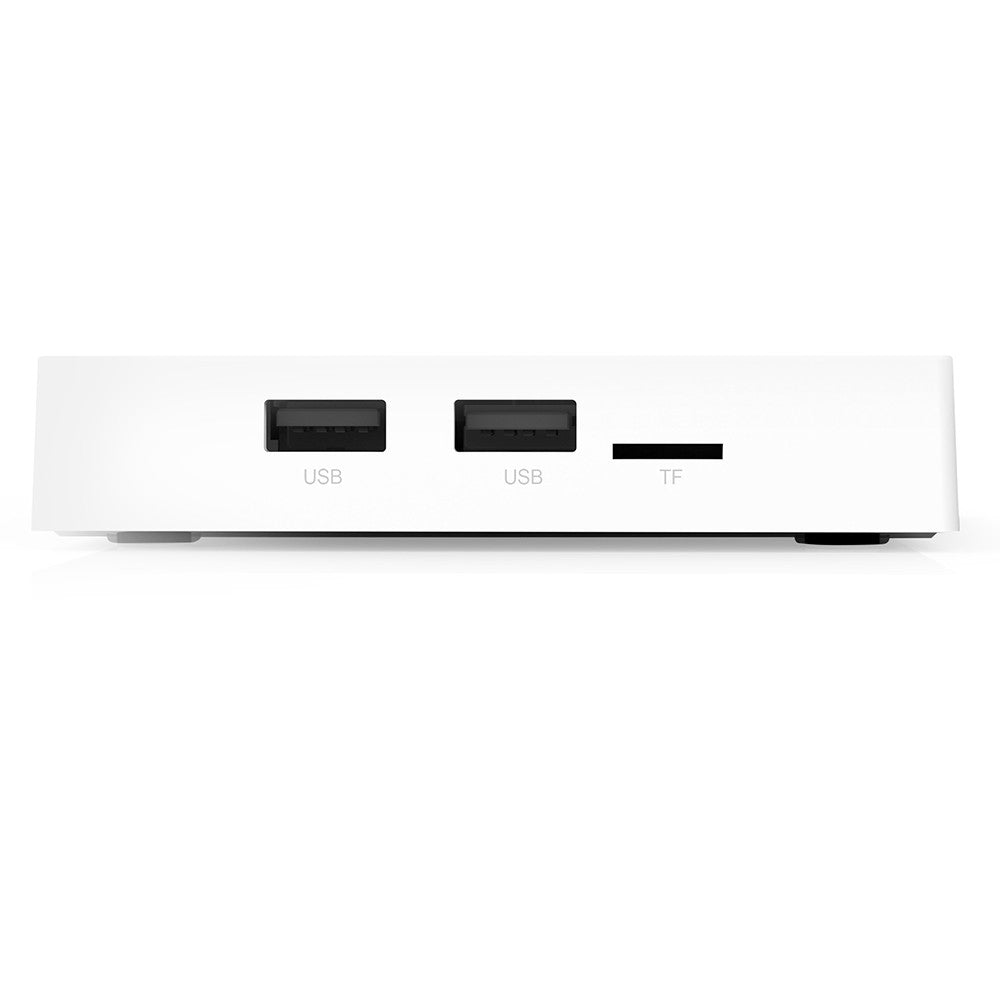

• 2* USB 2.0
• 1* TF CARD Support 1~128GB
• 1* 3.5 Phone out CVBS&L/R output
• 1* RJ45 LAN
• 1* DC 12V/1A
Other Features
System Bit: Android 11.0
Language: Chinese, English, Germany, Japanese, Korea etc. 24 languages
Other Functions:

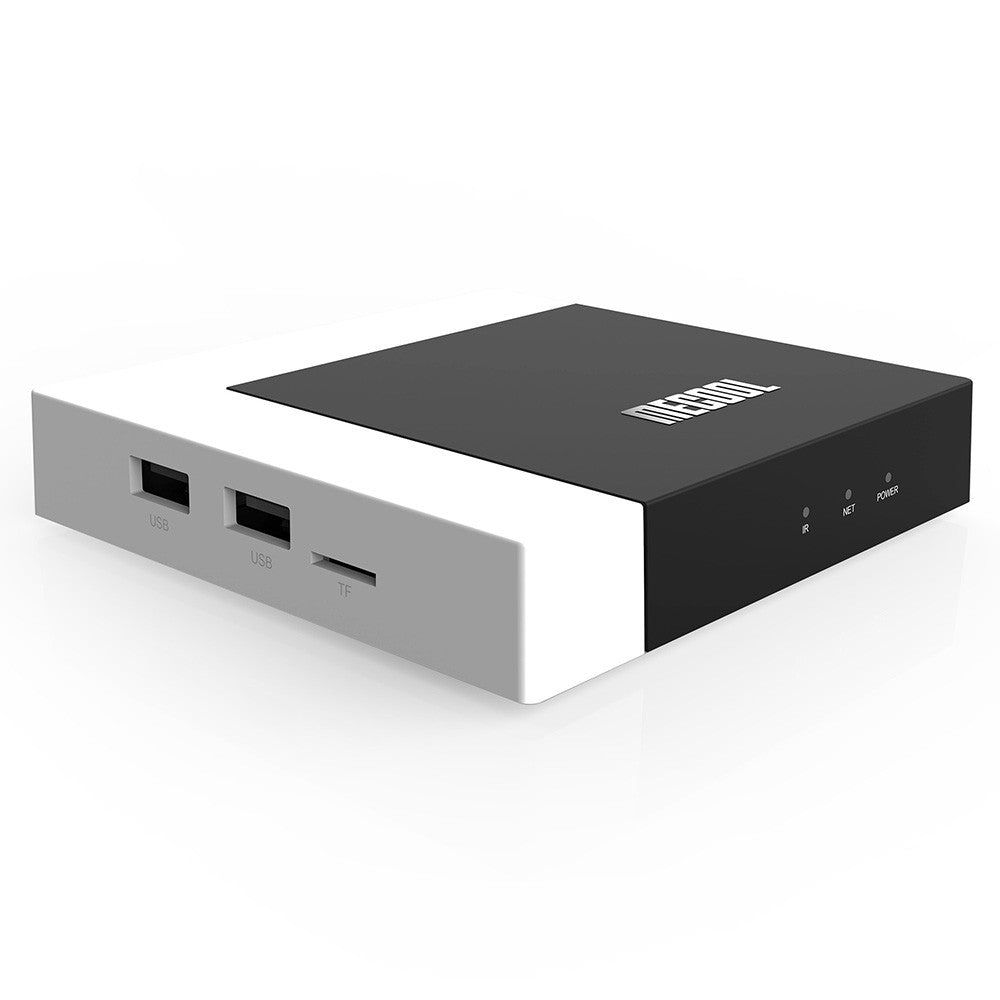

LED Indicator: 3 LEDs( Power, NET, IR)
HDMI Version: HDMI 2.1 Dynamic HDR 4Kx2K@60 max resolution output

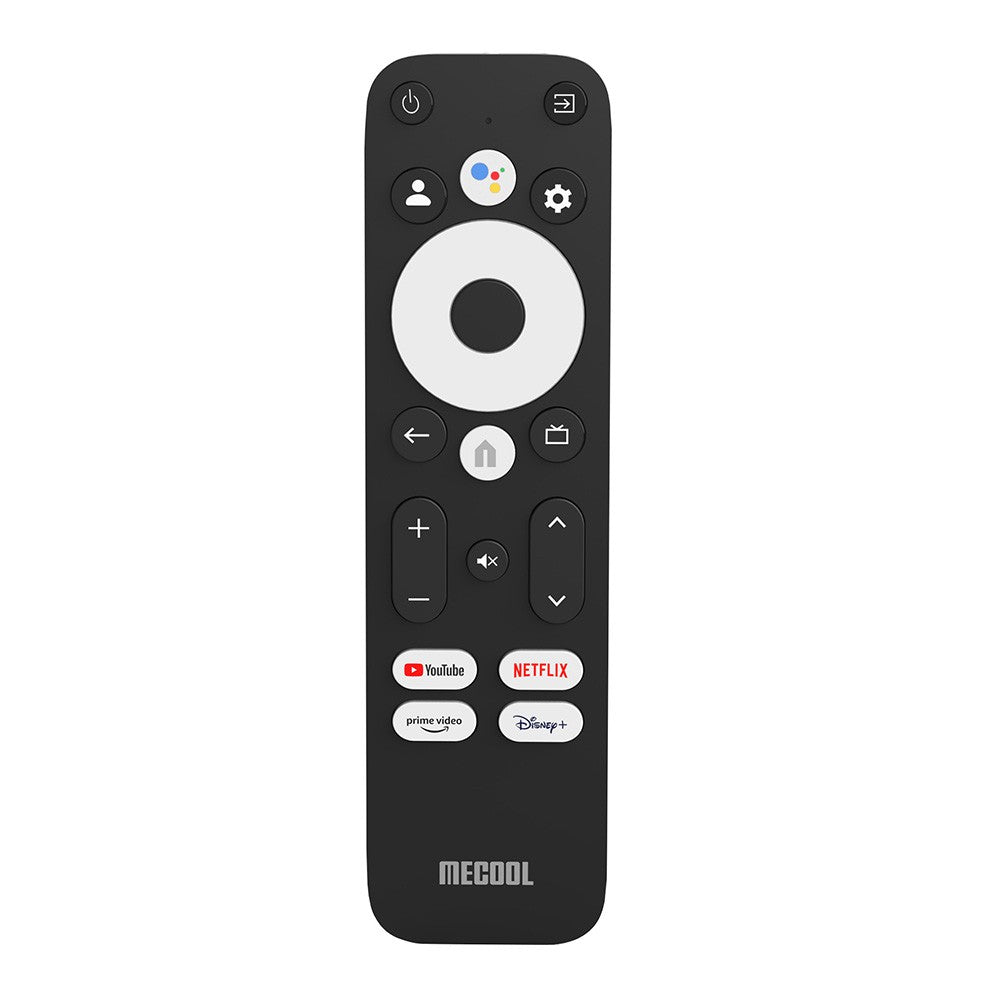

Remote Controller Features:
-BT 5.0 and IR
-D-Pad Navigation
-Shortcut keys of the home page, voice control, and
-volume etc.Google TV Compatible
Power

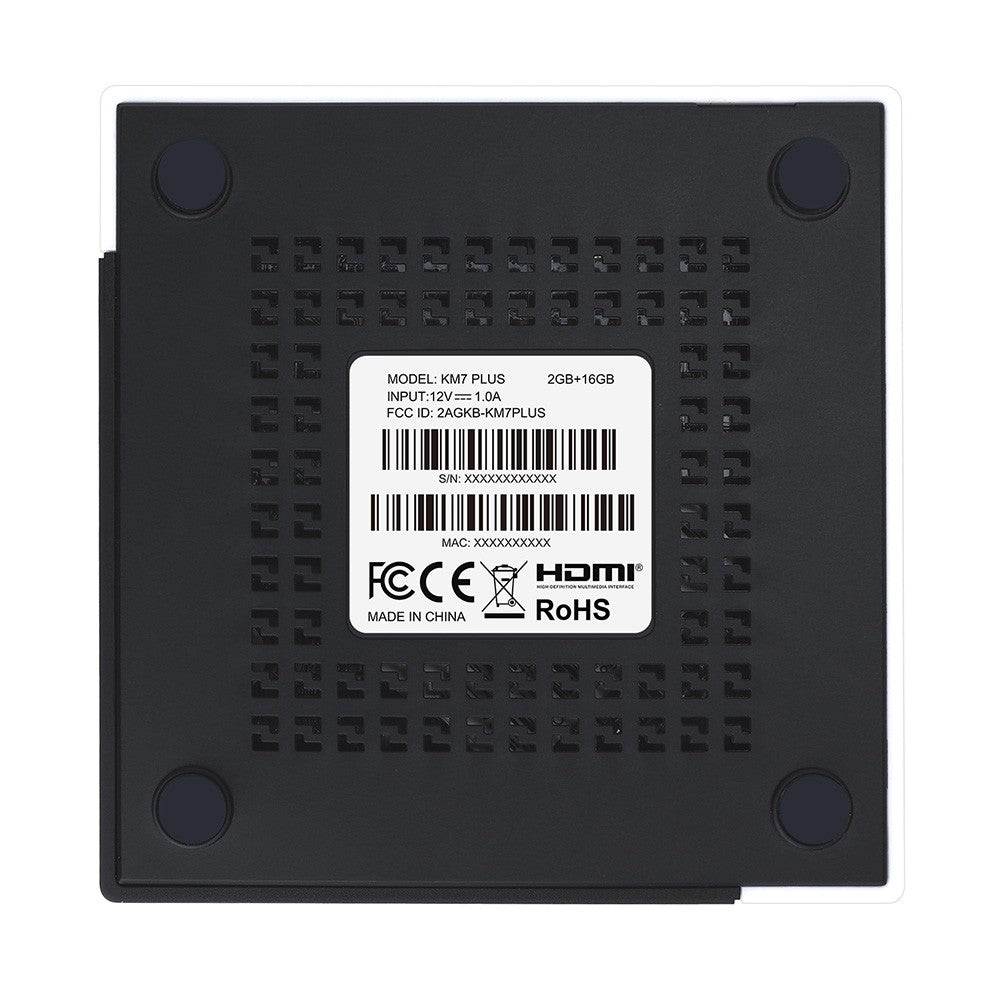

Power Type	DC 12V/1A
Dimensiions&Weight
Product weight	100g
Package weight	360g
Product size (L x W x H)	98 x 98x 20.7mm
Package size (L x W x H)	197 x 110 x 65mm
Package Contents
1 x Adapter

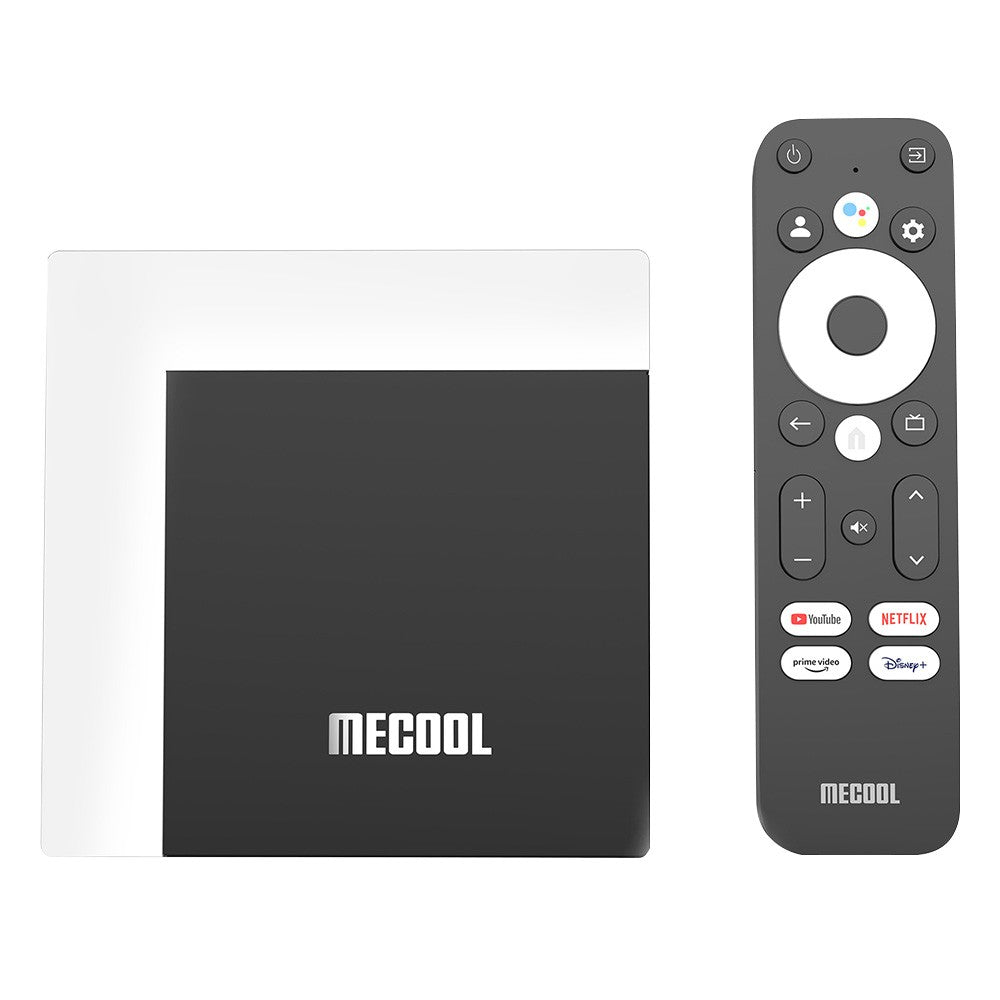

1 x TV Box
1 x IR+BT Voice Remote
1 x HDMI Cable
1 x User Manual
