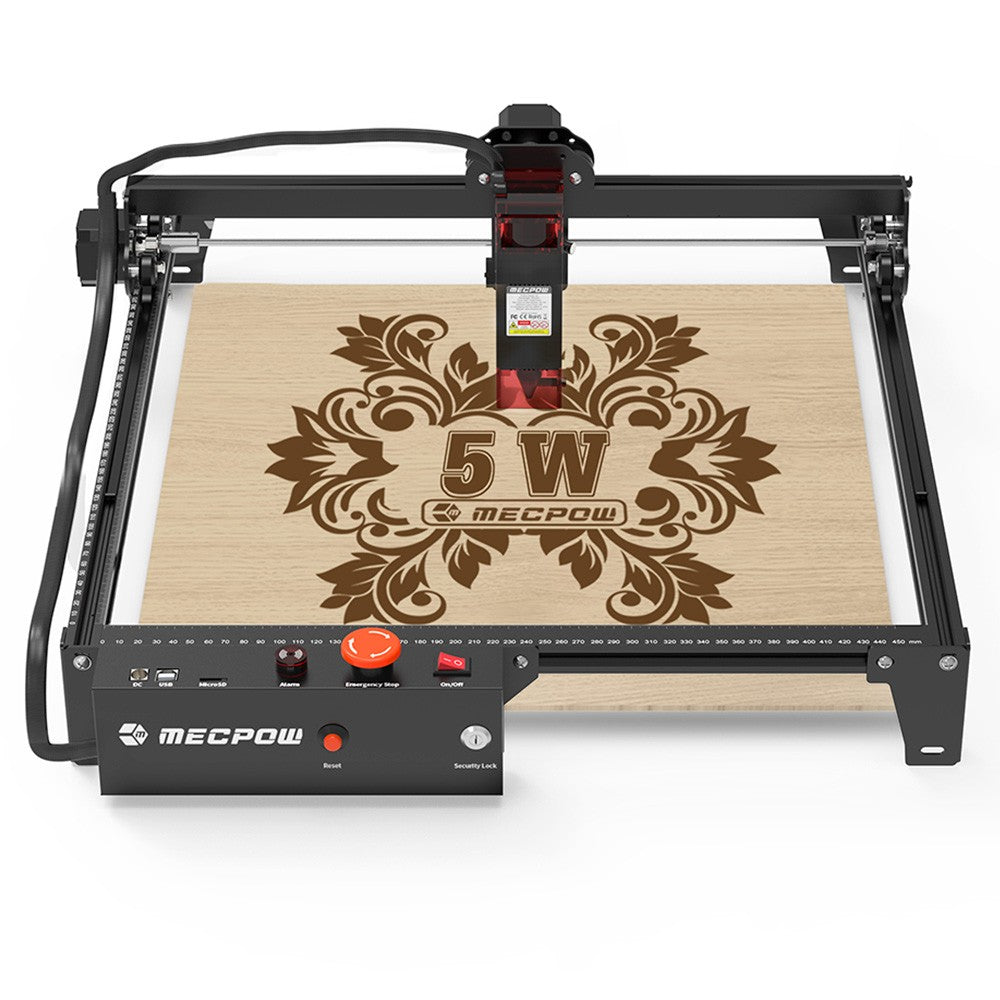

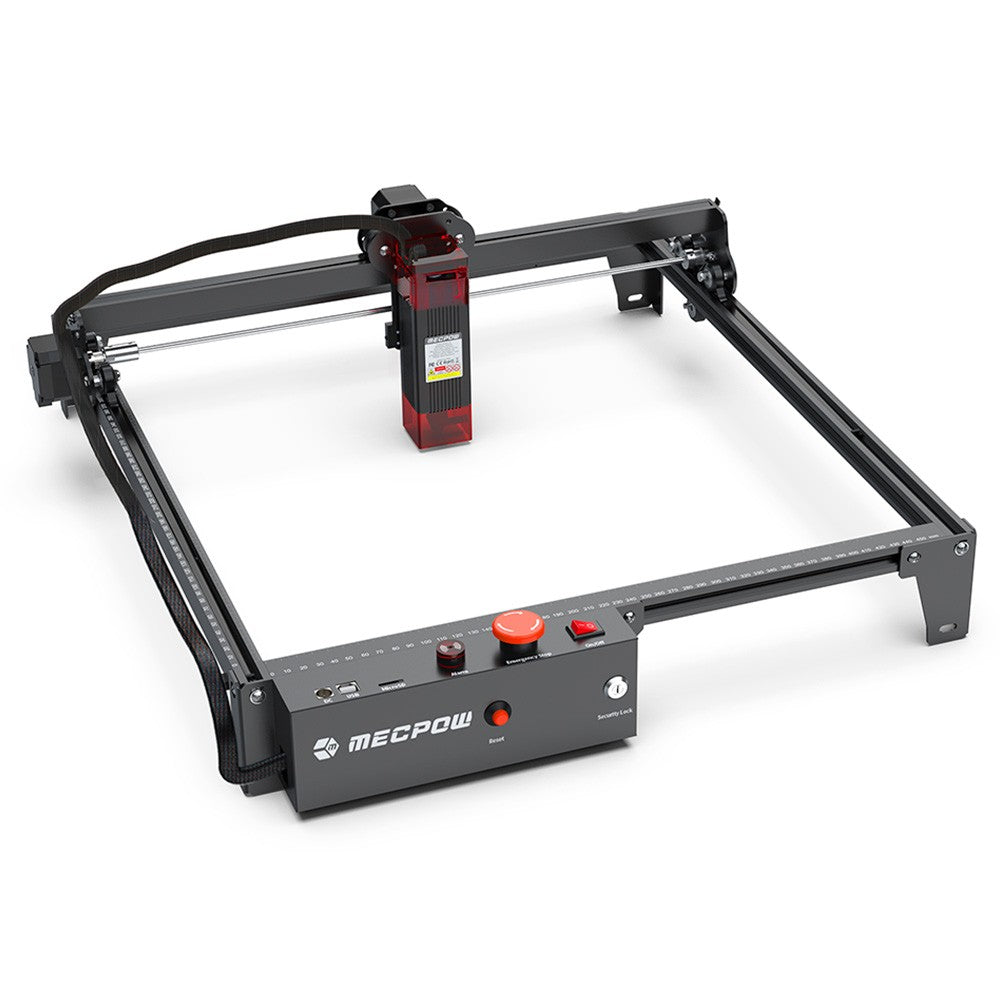

MECPOW X3 highlights
High - Precision Engraving
The Mecpow X3 adopts a 5W diode laser with a small focus of 0.05x0.07mm and an engraving accuracy of 0.01mm. The small spot size, along with short pulses, produces high peak power, which can achieve more accurate and deeper engraving and cutting. It can cut a wood board with an 8mm thickness and an acrylic board with an 8mm thickness.
Upgraded Security
The X3 machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of fire or tilting more than 50±5°. Besides, limit switches are included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver. Furthermore, you can stop the machine anytime by pressing the emergency stop button and lock the machine to keep it safe from unwanted use, which is especially handy if you have kids around.
Fast & Easy Focusing
The X3 laser engraver comes with a fixed-focus laser that saves your time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.
Eye Protection

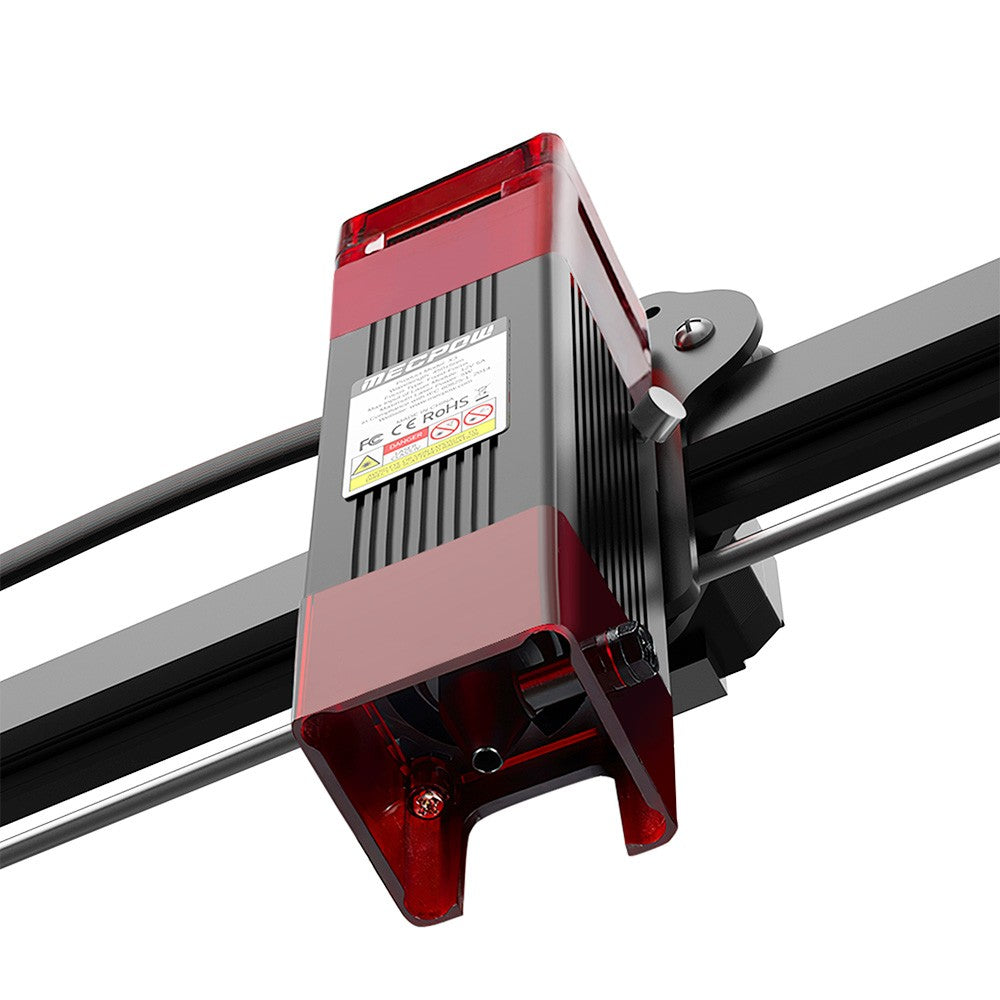

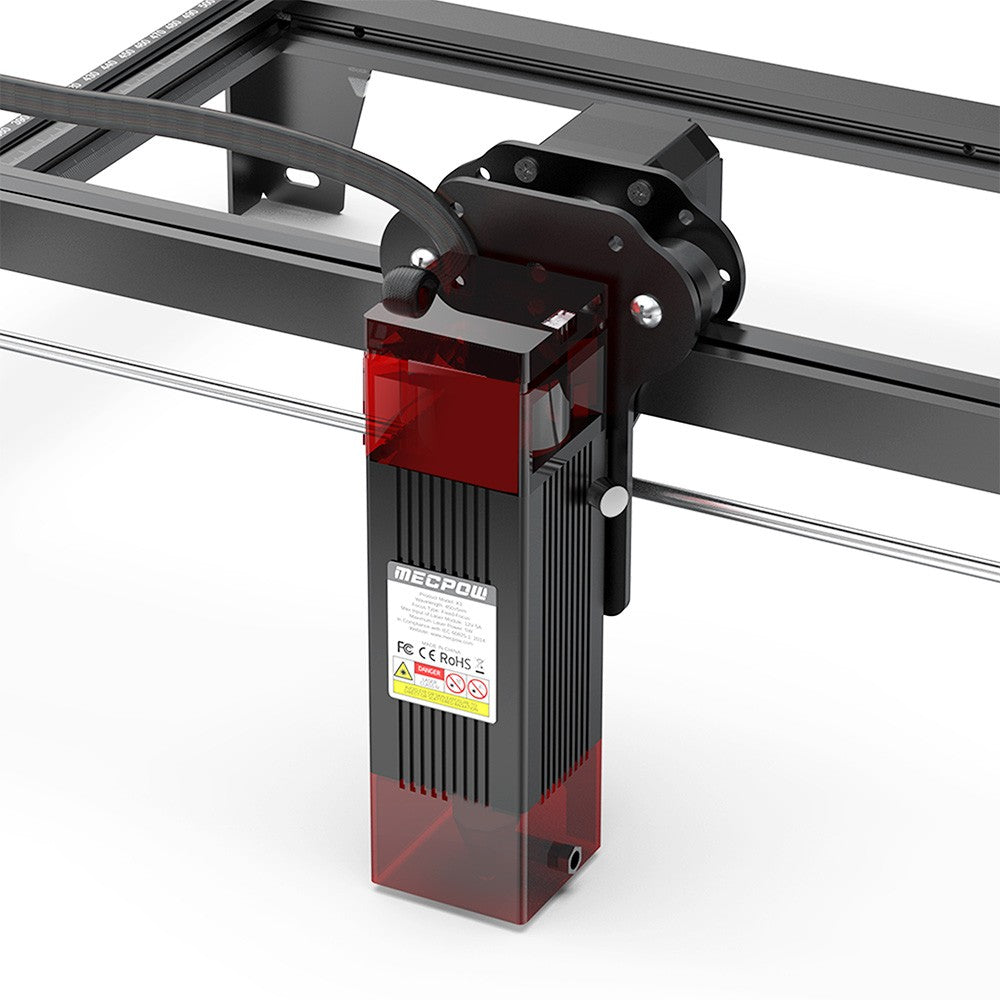

The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles is also included for better eye protection.
Wide Application and Compatibility

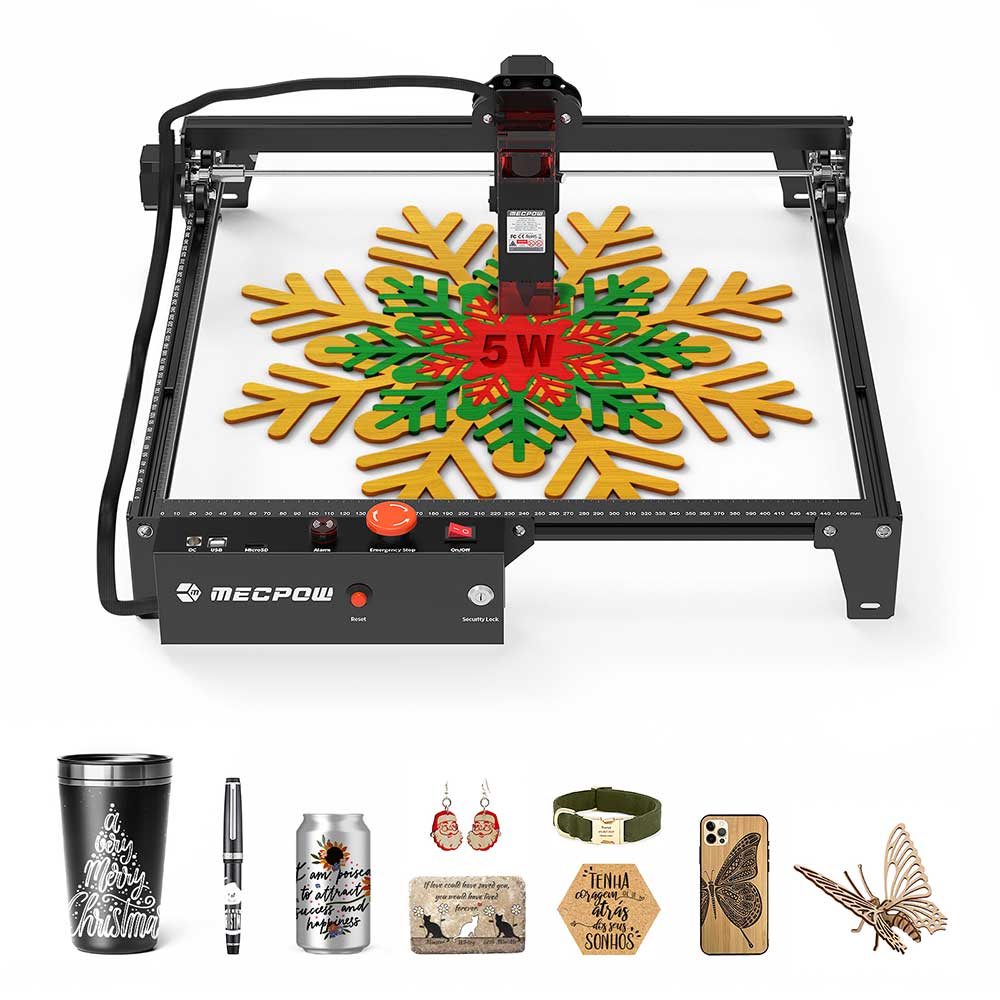

The X3 engraving machine can be used for engraving on a variety of materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.
Mecpow X3 Embrace the Mechanical Power
- 5W Laser Power
- Fixed Focus
- Compressed Spot
- All Aluminium Alloy Body
- 0.01mm Engraving Accuracy
- Emergency Stop
- Flame Sensor & Tilt Alarm
- Limit Switches
- 10000mm/min Fast Engraving
Powerful Laser
The 5W diode laser can cut through wooden planks and painted acrylic sheets as thick as 8mm.
Smaller Spot, Higher Precision

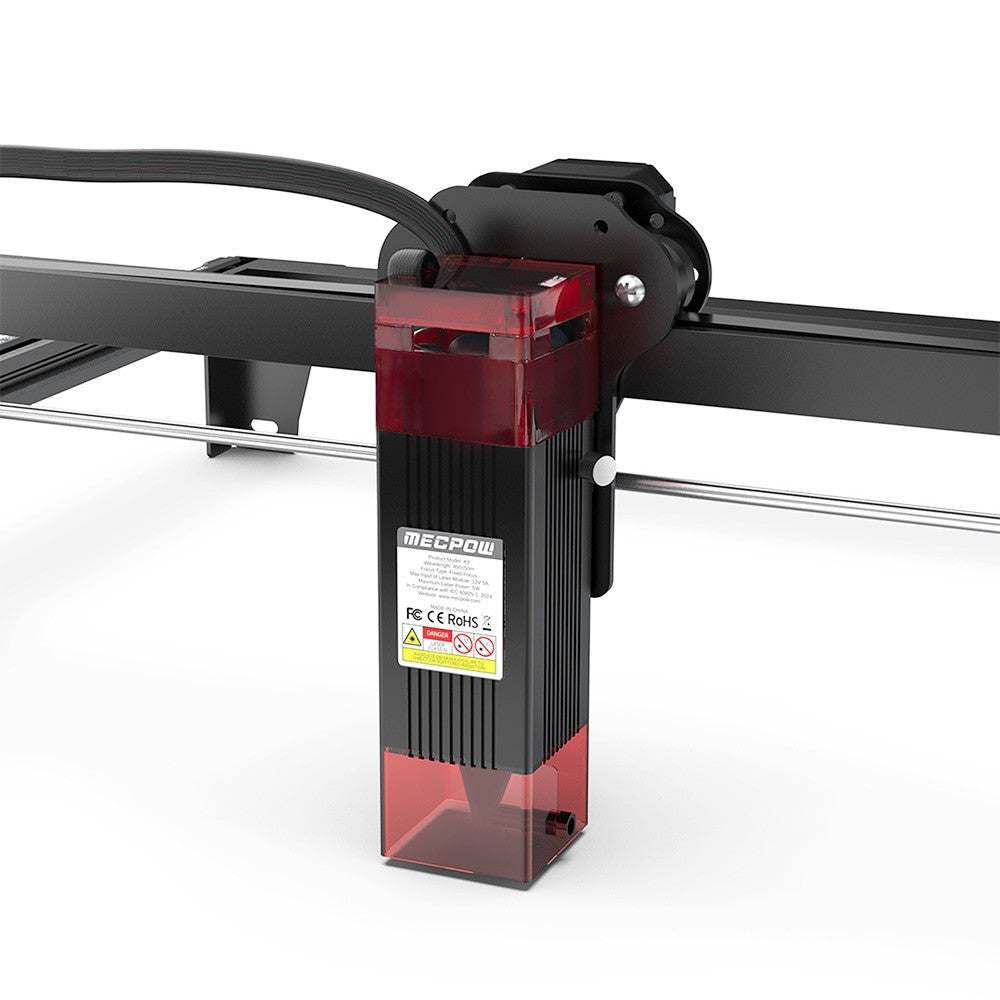

The upgraded laser head features a tiny focal point of 0.05x0.07mm, perfect for achieving high precision in engraving.
0.01MM High Accuracy
With an engraving accuracy of 0.01mm, Mecpow X3 makes your engraving finer and prettier.
Fast & Easy Focusing
- Place the focusing screen on the object.
- Move the laser head over the focusing screen and slide it down till it touches the focusing screen.
- Take the focusing screen out, and the focus is completed.

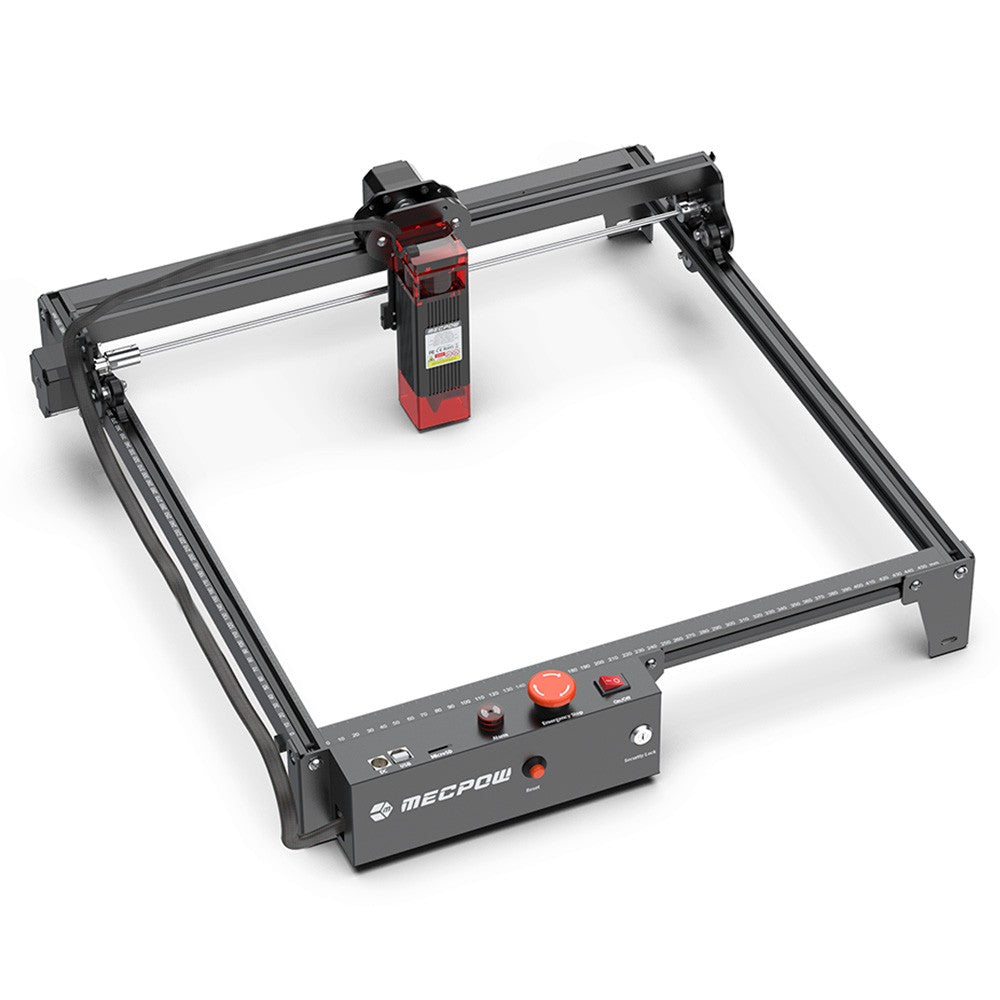

Large and Extendable Engraving Area
The large engraving area allows you to etch multiple designs at once. Moreover, you can extend the engraving area by using Mecpow's extended Y-axes.
Better Eye Protection
The laser shield filters out 98%of UV light to protect your eyes.
Security Is Priority
Flame Sensor
The flame sensor in the laser module will activate the alarm and stop the machine from working in the event of a fire.
Gyroscope Sensor
It will trigger the alarm and halt the machine's operation when the machine tilts beyond 50±5°.

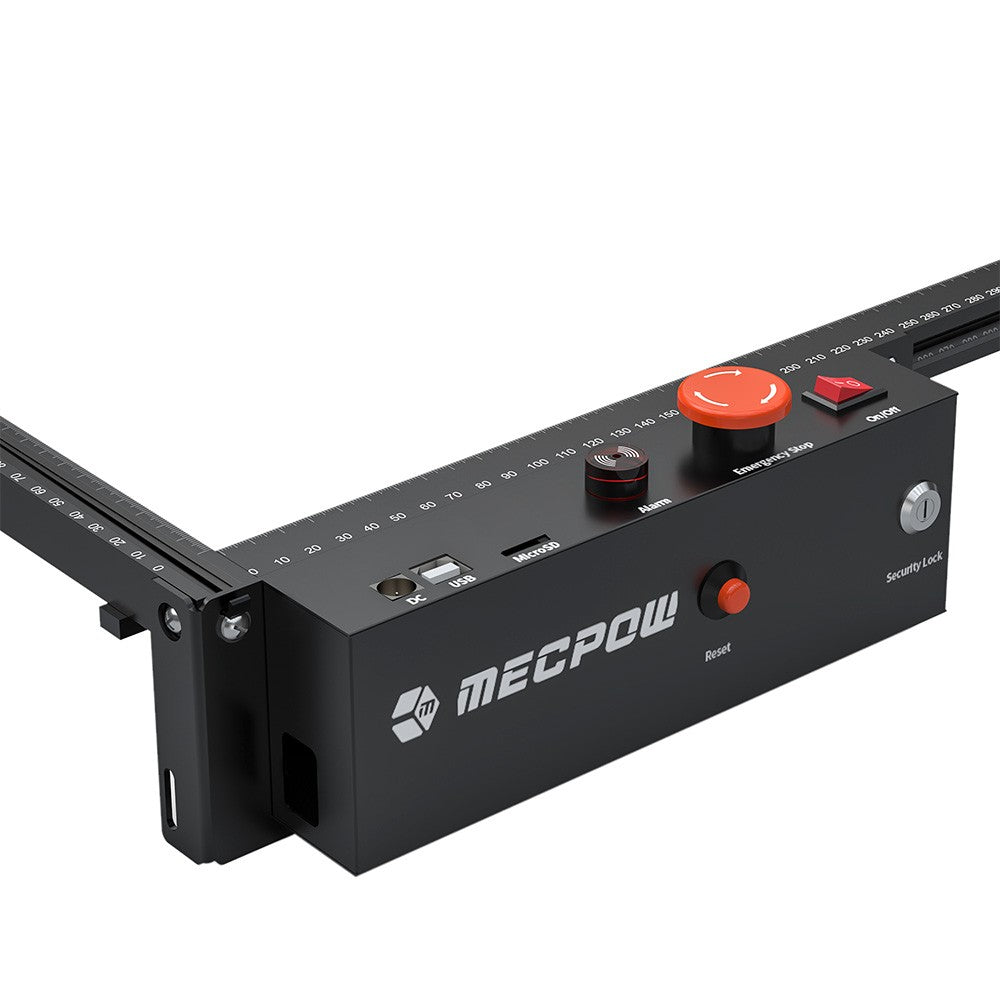

Emergency Stop
You can stop the machine's operation immediately by pressing the button and get it back to work by rotating it counterclockwise.
Security Lock
Lock your machine and keep it safe from unwanted use, which is especially handy if you have kids around who might be tempted to use it.
Limit Switches Offer Better Protection
Limit switches help prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver.
Compatible with Multiple Software
Mecpow X3 is compatible with LaserGRBL and LightBurn, supporting Windows(Win XP/7/8/10)and Mac systems.
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc.
Specifications
Specifications
| General | |
|---|---|
| Brand | Mecpow |
| Type | Laser Engraving Machine |
| Model | X3 |
| Color | Black |
| Specification | |
| Frame Material | High-Strength Aluminium Alloy |
| Power Adapter | AC 100V-240V, 50/60HZ (Input), DC 12V 5A (Output) |
| Electrical Power | 60W |
| Laser Power | 5±0.5W |
| Wavelength | 445±5 nm |
| Spot Size of Laser Beam | 0.05x0.07 mm |
| Engraving Area | 410x400 mm |
| Engraving Speed | 10000 mm/min |
| Engraving Accuracy | 0.01 mm |
| Focusing | Fixed-Focus Laser |
| Laser Shield | Yes |
| Service Life | ≥10000 Hours |
| Heat Dissipation | Fan Cooling |
| Tilt Alarm | 50±5° |
| Method of Data Transmission | USB Wired Connection (Type-B) |
| Materials for Laser Engraving | Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc. |
| System Support | Windows, Mac |
| Software Support | LaserGRBL (Free Software for Windows), LightBurn (Paid Software for Windows & Mac OS) |
| File Format Support | JPEG, BMP, GIF, PLT, PNG, DXF, etc. |
| Features | |
| Alarm | Yes |
| Emergency Stop | Yes |
| Reset Button | Yes |
| Security Lock | Yes |
| Flame Sensor | Yes |
| Gyroscope Sensor | Yes |
| Limit Switches | 2 |
| Weight & Size | |
| Product Weight | 3.62 kg |
| Package Weight | 4.31 kg |

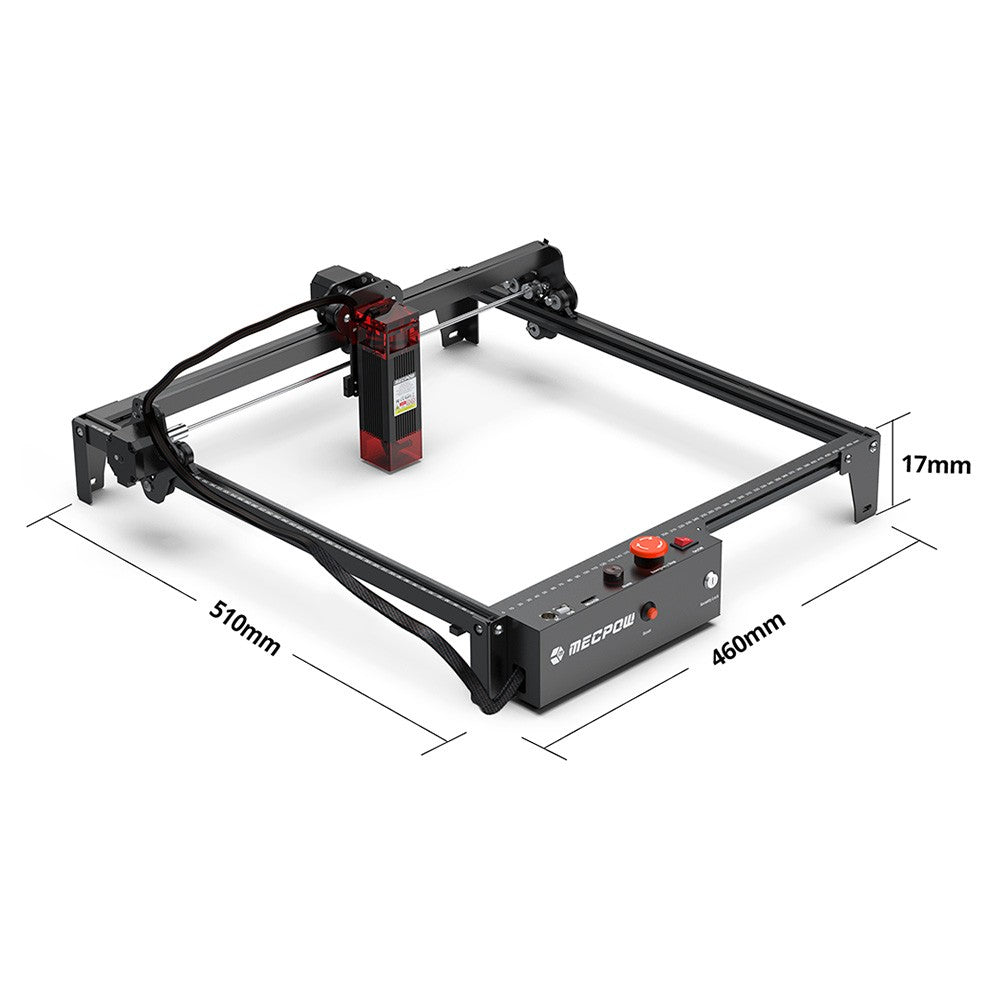

| Product Size(L x W x H) | 510x460x117 mm |
| Package Size(L x W x H) | 659x249x117 mm |
| Size of Laser Module(L x W x H) | 40x40x60 mm |
| Package Contents | |
| 1 x Laser Engraving Machine (Unassembled) | |
| 1 x User Manual | |
| 1 x Laser Goggles | |
| 1 x USB Cable | |
| 1 x Power Adapter | |
| 1 x Tool Kit | |
| 2 x Wood Board | |
| 1 x Aluminium Plate | |
| 1 x Focusing Screen | |
| 2 x Key | |
