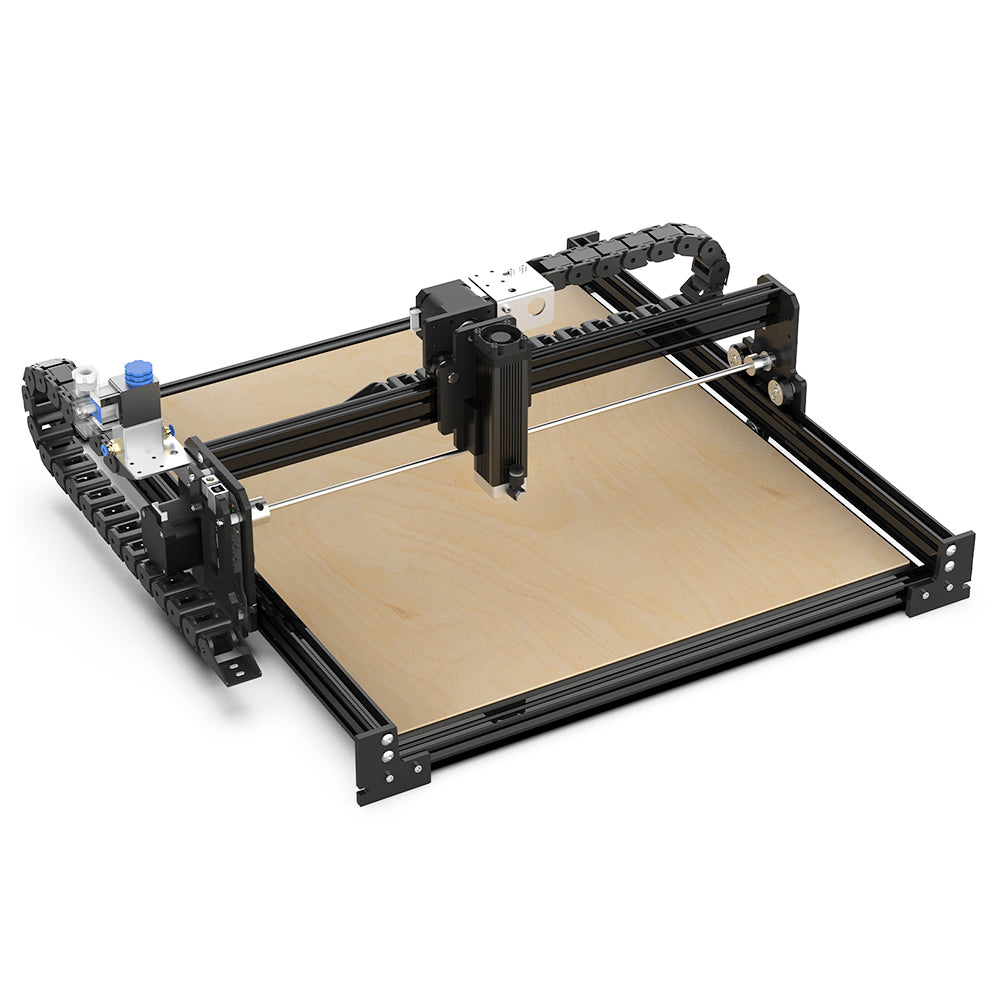

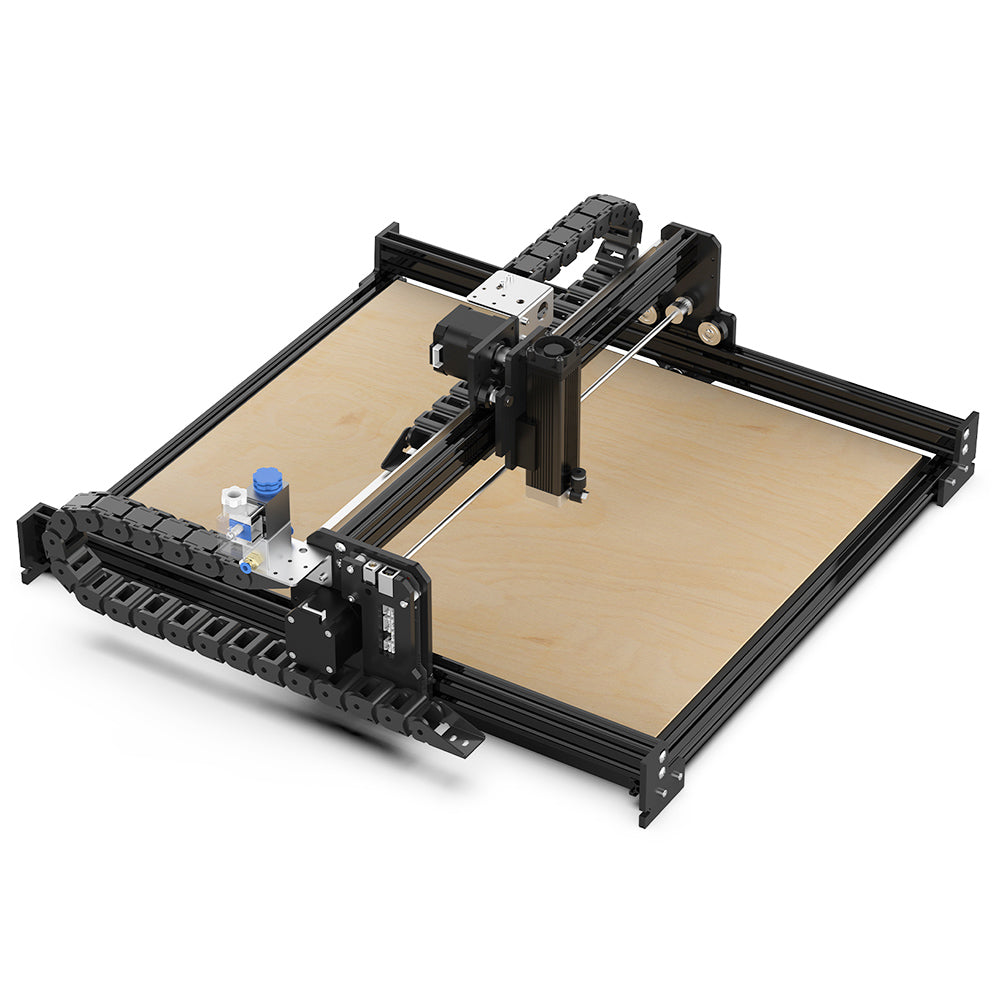

NEJE 3 Pro E30130 Laser Engraver
NEJE 3 Pro E30130 Laser Engraver
Where To Buy
Where To Buy
Description
Description
NEJE 3 Pro E30130 highlights
Professional and Advanced Engraving Equipment
NEJE 3 Pro is a professional laser engraving and cutting equipment. The E30130 module laser cutter and engraver machine has 0.06x0.06mm focus, 5.5W laser module and 7.5W pulse output power. It also has PWM power modulation and a double ball high life fan.
Large Engraving Area and Cylindrical Objects Engraving
The 400x410mm area can meet most of the engraving needs. Through the extension rod provided by NEJE, you can get a working area of 400x1040mm area. NEJE 3 Pro laser cutter and engraver machine can engrave huge diameter cylinders by adding rotating attachments and raising the height of the machine body.
Wide Software Compatibility
NEJE 3 series all support APP control, you can use the APP and other software to obtain top-level engraving works. NEJE 3 Pro with E30130 module has 32-bit 200Mhz MCU, and provides OTA upgrade service. NEJE 3 Pro laser engraver supports Win 7/Win 8/Win 10, and also supports Android, iOS, iPadOS, macOS, HarmonyOS, and the engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
More Expansion Function
NEJE 3 Pro is equipped with automatic air assist, automatic smoke control components, and door expansion function, and is compatible with most NEJE series modules. The expansion function is perfectly suitable for lightburn, laserGRBL, and NEJE software APP, it can complete a variety of complex processes at one time, enough to build a perfect laser engraving and cutting system.
Solid and Easy Installation Structure Design
High precision all-aluminum alloy and PC material hybrid frame design makes the laser cutter and engraver machine more reliable and improves engraving accuracy. The entire engraving machine adopts a modular design, install 8 screws to get started, which is convenient for users to assemble, repair, replace and update machine parts.
Specifications
Specifications
| General | |
|---|---|
| Brand | NEJE |
| Type | Laser Engraver |
| Model | 3 Pro E30130 |
| Color | Black |
| Specification | |
| Frame Size (L - W - H): 550 x 540 x 200mm | |
| Working Area( X - Y): 400 x 410mm, Extends to 400x1040mm | |
| Dot Pitch: 0.075mm, 338dpi | |
| Pixel: 5333 x 5466 px | |
| Drive accuracy: 0.01mm | |
| Max Move Speed: X:1000mm/s(with module 204g), Y:750mm/s | |
| Frame Material: High precision All-aluminum alloy and PC material hybrid frame | |
| Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly | |
| Structure Feature: Fit, high precision, stable, smooth, no oil, easy maintenance, long life | |
| Vertical Carving: Yes (45 degree) | |
| Motor Size: Y: 42 x 42 x 40mm, X: 42 x 42 x 34mm | |
| Motor Drive Current: 0.9A | |
| Module Height Adjuster: Yes | |
| Home: Front left | |
| Origin: Front left | |
| Compatible Modules: B30635, N30820, N40630, N30610, A40630, A30130, A40640, F30130, E30130, E40. | |
| Rotary Jig: Supports all stepper motor driven jigs | |
| MCU: 32-bit 200MHz MCU (Top 32-bit MCU) | |
| BLE APP Control: Yes | |
| MEMS Protection: Yes | |
| M7 Control: Yes (For building automatic smoke extraction systems) | |
| M8 Control: Yes (For building automatic air assist systems) | |
| Door Control: Yes (Emergency Suspension and Safety Door Control) | |
| Limit Switch: Yes | |
| ON/OFF Switch: Yes | |
| Input: DC 5.5 2.1, 12V 5A (Power Adapter) | |
| System: Win 7/Win 8/Win 10, Android, iOS, iPadOS, macOS, HarmonyOS. | |
| File Format Supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. | |
| OTA Upgrade: Yes | |
| NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use. | |
| Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction. | |
| Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone. | |
| Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work. | |
| NEJE Android APP: Yes | |
| NEJE iPhone/iPad APP: Yes | |
| NEJE Cloud Gallery Service: Yes | |
| Software Download: Https://neje.wiki | |

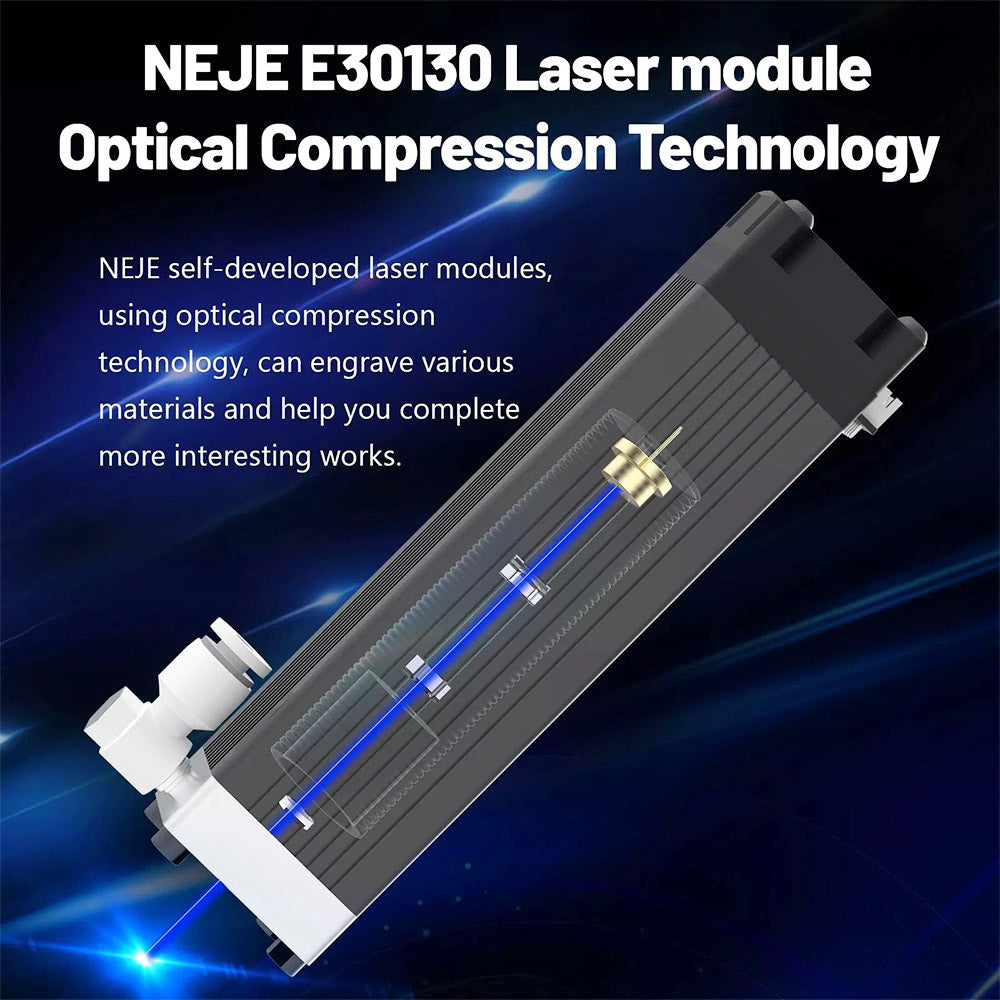

| Laser Module: NEJE E30130 | |
| Focus: 0.06x0.06mm | |
| Focus Method: Fixed (about 10mm from the bottom) | |
| Optical Power: CW 5.5W+, Pulse 7.5W | |
| Wavelength: 450nm | |
| Weight: 204g | |
| Module Size: 30x30x130 mm | |
| Input: DC 12V 3A | |
| Interface: 4pin PH2.0 | |
| Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc. | |
| Power Control: PWM Power Modulation | |
| Fan: Double ball high life fan | |

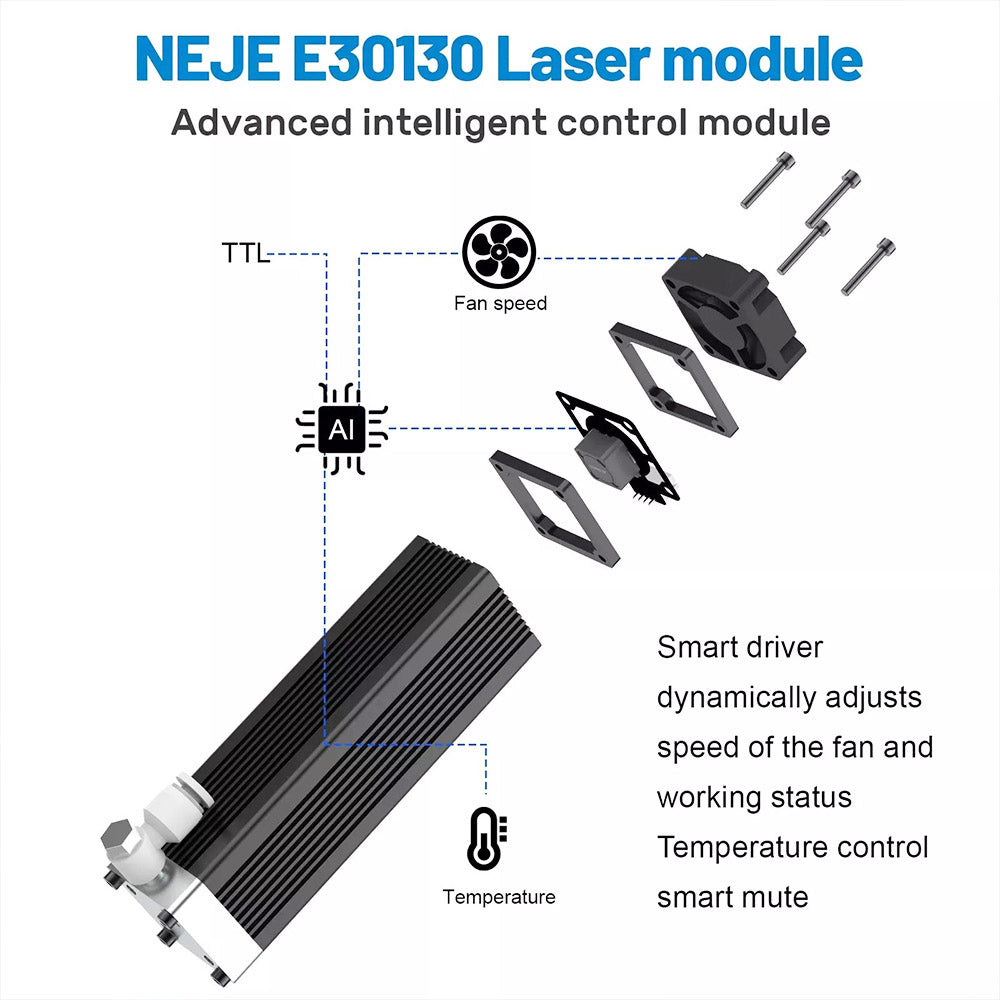

| Drive: NEJE smart quiet drive, built-in static elimination technology | |
| Surge Protection: Yes | |
| Smart Feedback: Yes | |
| Temperature Feedback: Yes | |
| Temperature Control: 45 Degrees Celsius | |
| Air Pump: 0.5-1.5mpa clean air | |
| Air Interface: 4mm PVC trachea | |
| Replaceable Lens Design: Yes | |
| Original Registered Brand: Yes | |
| Weight & Size | |
| Package Weight | 4kg |
| Package Size(L x W x H) | 59x24x22cm |
| Package Contents | |
| 1 x NEJE 3 Pro Laser Engraver | |
| 1 x E30130 Laser Module with Air Assist Kits (Built-in high-pressure air assist) | |
| 1 x 12V 5A Standard Certified Power Adapter | |
| 1 x USB Cable | |
| 1 x Quality Card | |
| 1 x User Manual | |
| 1 x Goggles | |
| 1 x Crawler | |
| 1 x 12V Valve Control Kit (less than 1.5mpa) | |
| 1 x 12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) | |
| 1 x Door Control Kit | |
| 1 x Screw Nut Wrench Screwdriver Belt Installation Package | |
| 1 x Test Material Package | |
