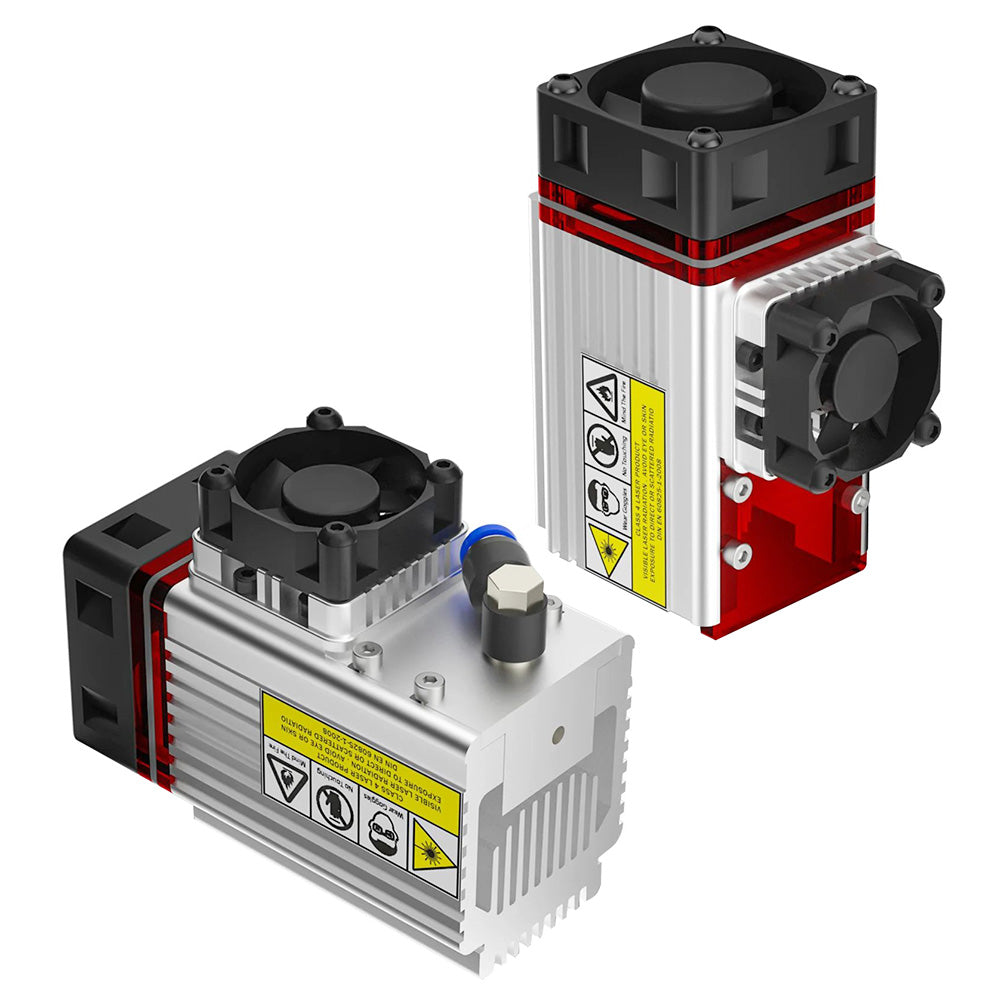

NEJE A40640 Laser Module Kit
NEJE A40640 Laser Module Kit
Where To Buy
Where To Buy
Description
Description
NEJE A40640 highlights
Professional Laser Module
Features 12W+ pulse and 11W continuous optical power, it can cut 4mm plywood by 1 pass (speed 200), and cut 3mm black acrylic board by 1 pass. Also, it's able to engrave stainless steel, but it needs good focus adjustment.
Designed for Laser Engraver, 3D printer, CNC mill, and Arduino project.
More Safety
Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
Quieter
The intelligent drive adjusts the cooling fan speed according to laser temperature.
Easy to Use

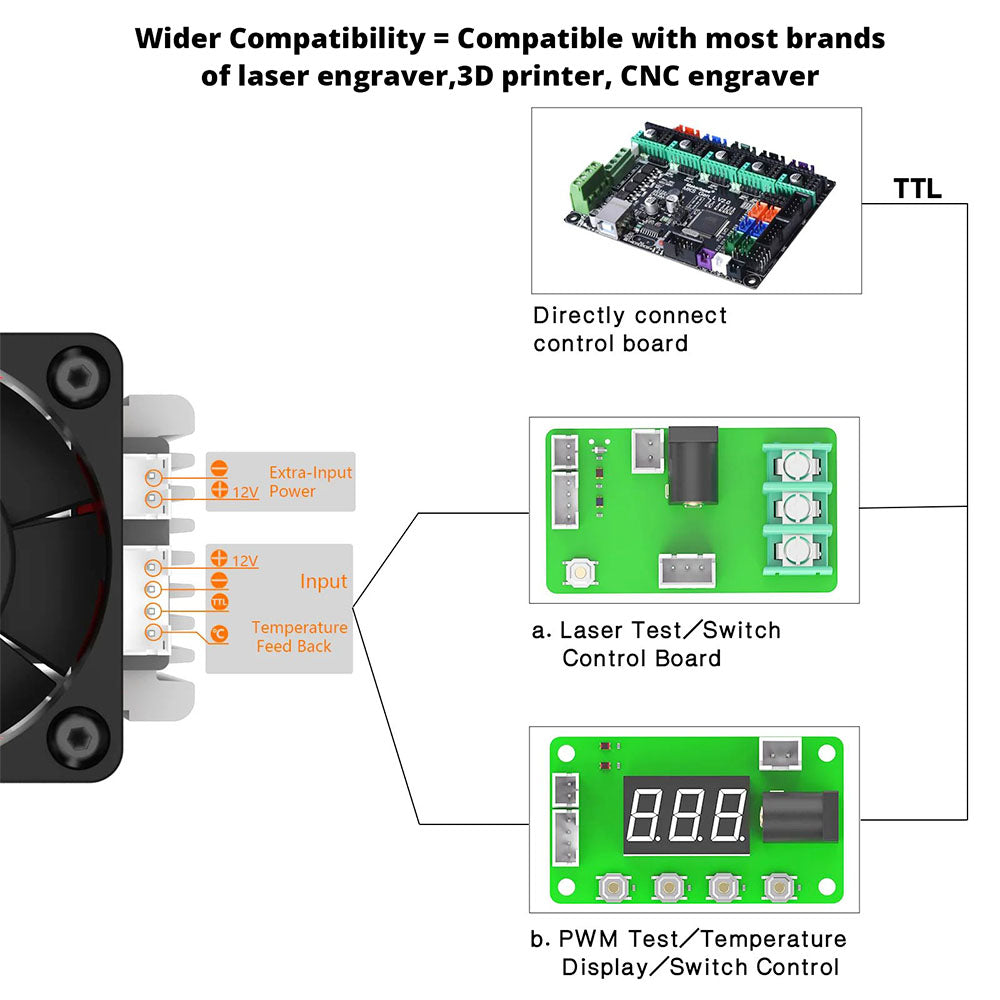

Digital PWM wave pulse signal generator adjustable frequency duty cycle board is for NEJE laser module.

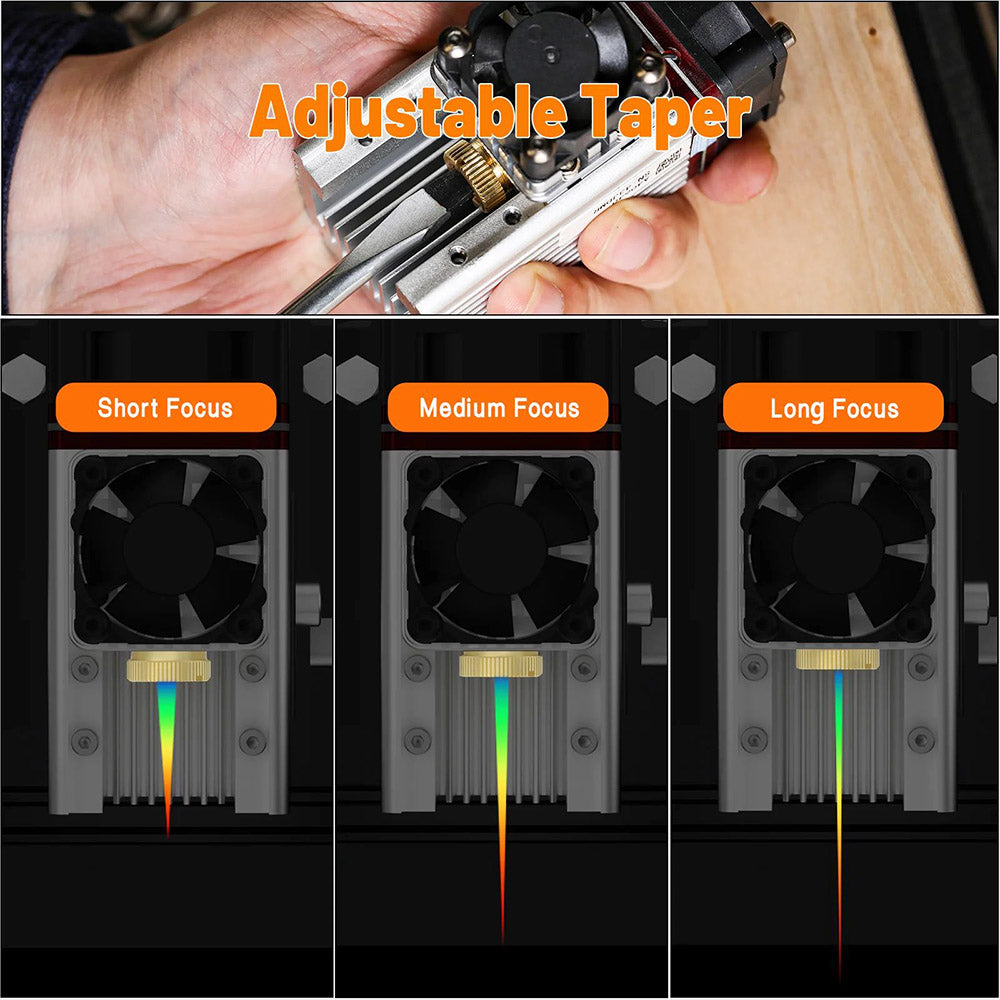

The slidable mounting fixture is provided for easy adjustment of focus.
Specifications
Specifications
| General | |
|---|---|
| Brand | NEJE |
| Type | Laser Module Kit |
| Model | A40640 |
| Luminous Color | Blue |
| Specification | |
| Module | NEJE A40640 |

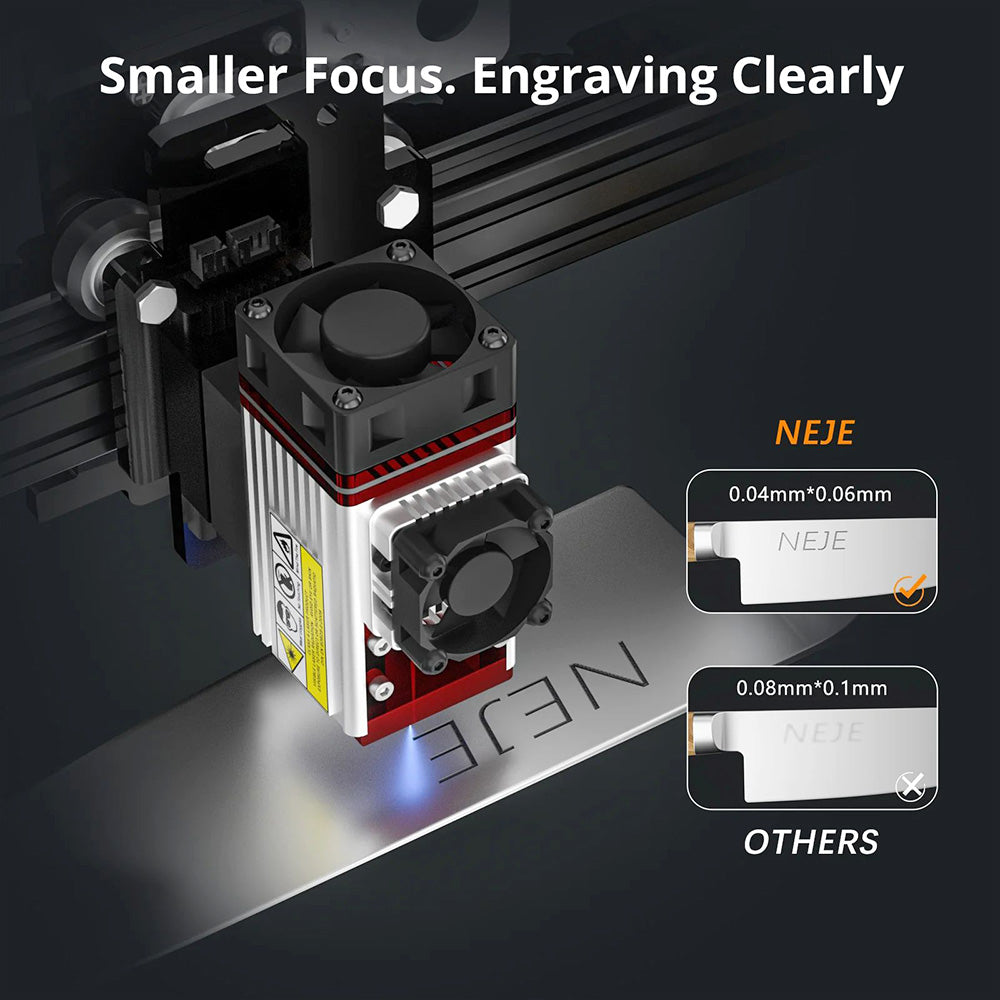

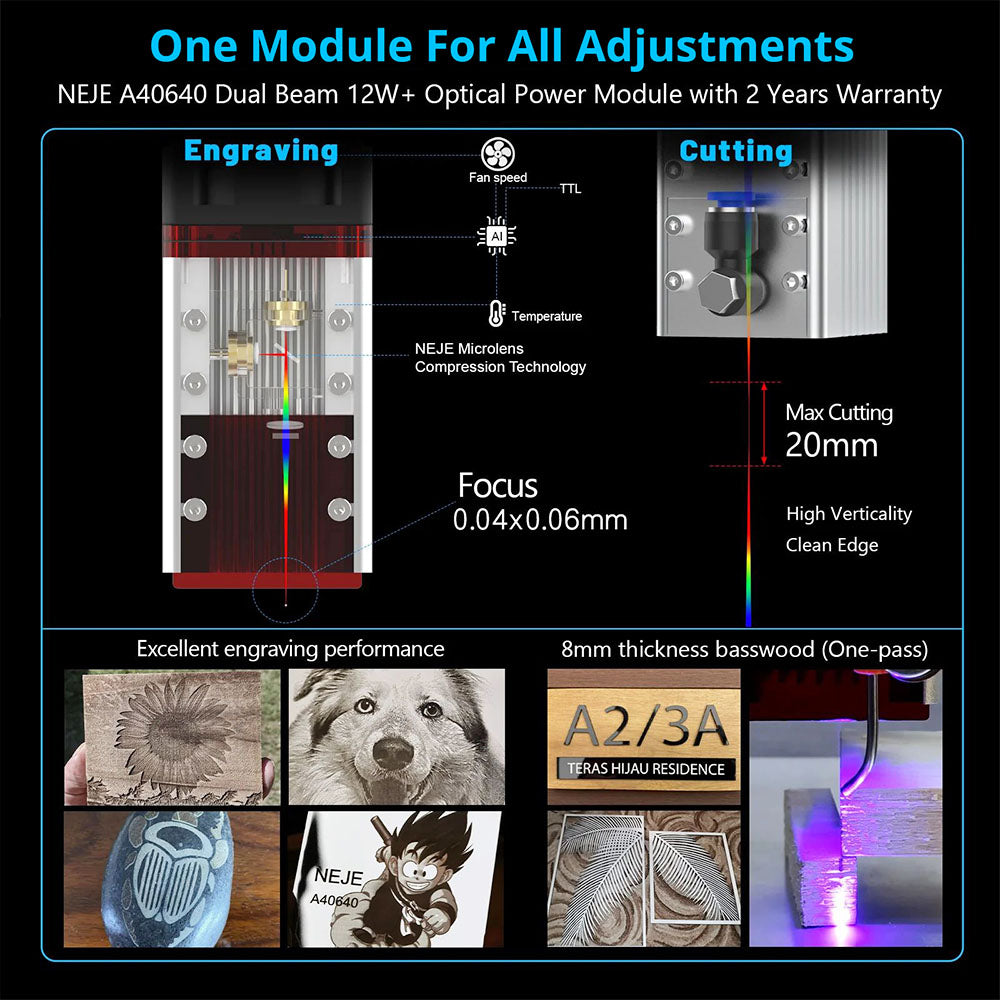

| Focus | 0.04x0.06mm |
| Focus Method | adjustable ( Recommend 30-55mm ) |
| Optical Power | Pulse 12W+, CW 11W+, Use 80% power (9W+) when cutting for a long time |
| Replaceable Lens Design | Yes, Added window protection lens to extend service life (high temperature resistance of 1000 degrees Celsius) |
| Stainless Steel Direct Grayscale Engraving | Yes |
| 3D Hardwood Engraving | Yes |

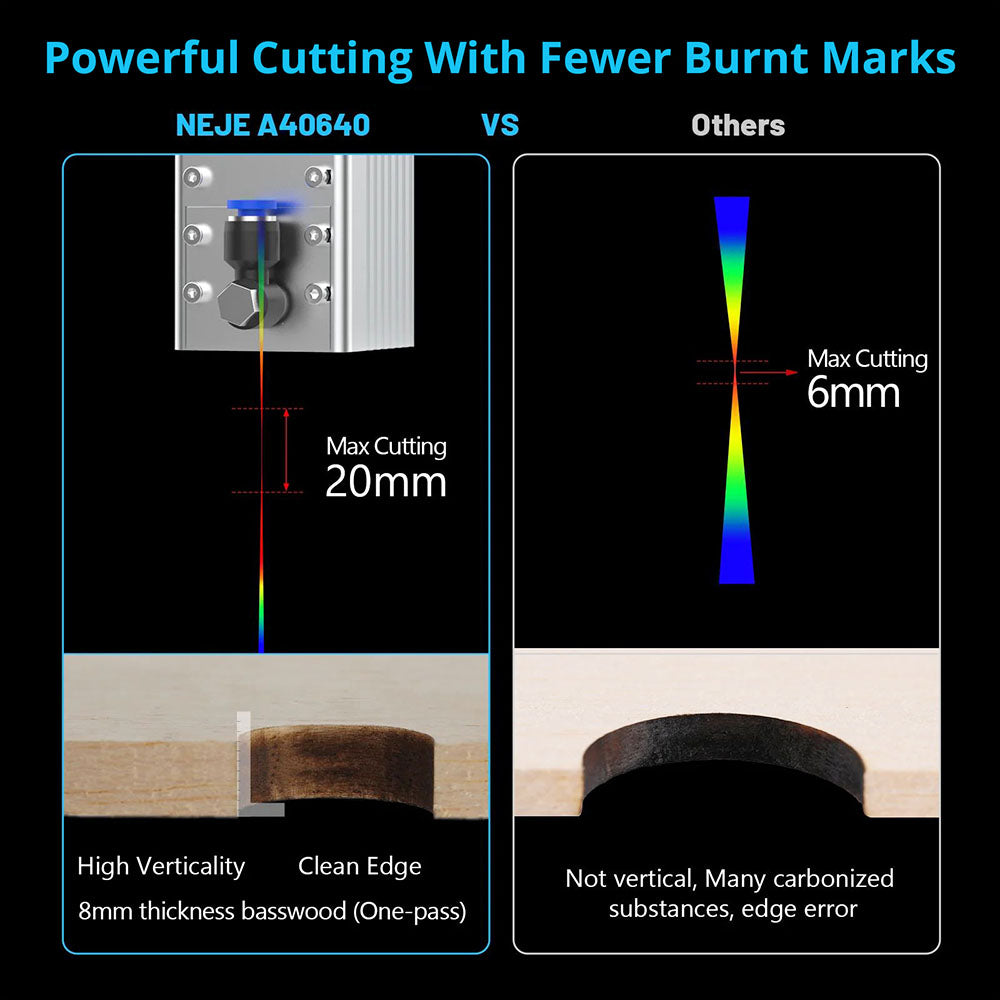

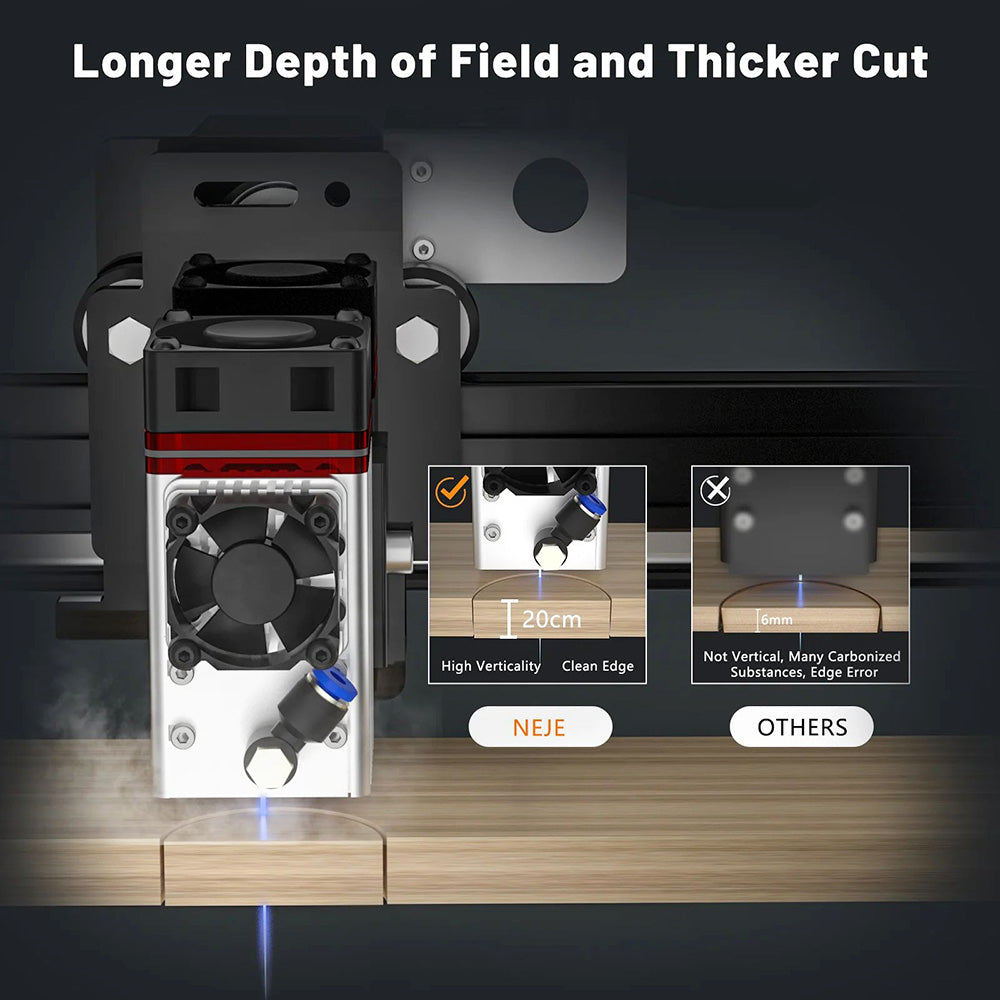

| Maximum Cutting Thickness | 20mm |
| Wavelength | 450nm |
| Input | DC 12V 4A |
| Interface | 4pin PH2.0 |
| Compatible with | NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc. |
| Power Control | PWM Power Modulation |
| Fan | double ball high life fan |
| Drive | NEJE smart quiet drive, built-in static elimination technology. |
| Surge Protection | Yes |
| Smart Feedback | Yes |
| Temperature Feedback | Yes |
| Temperature Control | 45 Celsius |
| Air Pump | 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump) |
| Air Interface | 4mm PVC trachea |
| Weight & Size | |
| Product weight | 204g |
| Packing weight | 490g |
| Product size (L x W x H) | 40x50x85mm |
| Package size (L x W x H) | 180x120x100mm |

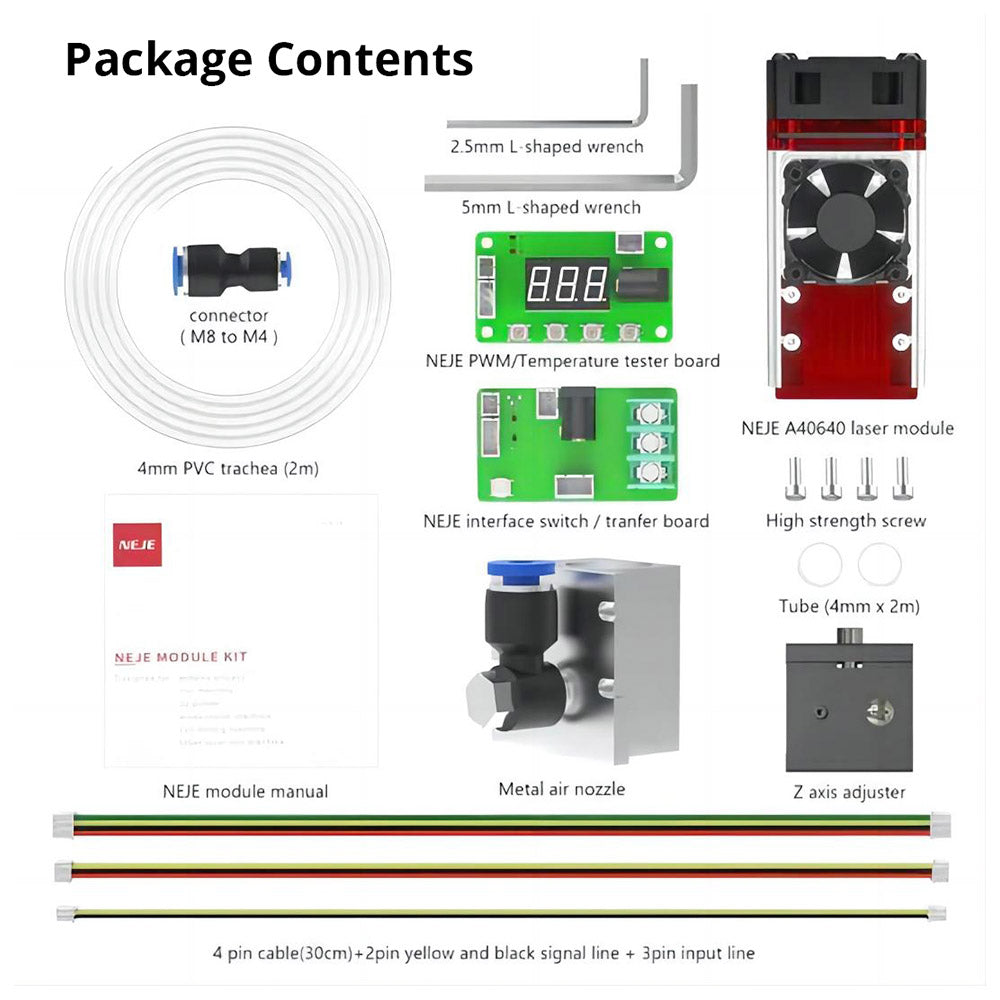

| Package Contents | |
| 1 x NEJE A40640 Laser Module (Built-in High-Pressure Air Nozzle and Module Radiator) | |
| 1 x Laser Module Height Adjuster | |
| 1 x 4-pin Cable (30cm) | |
| 1 x 2pin Yellow and Black Signal Line + 3pin Input Line | |
| 1 x NEJE Digital PWM Temperature Test/Switch/Interface Adapter Board | |

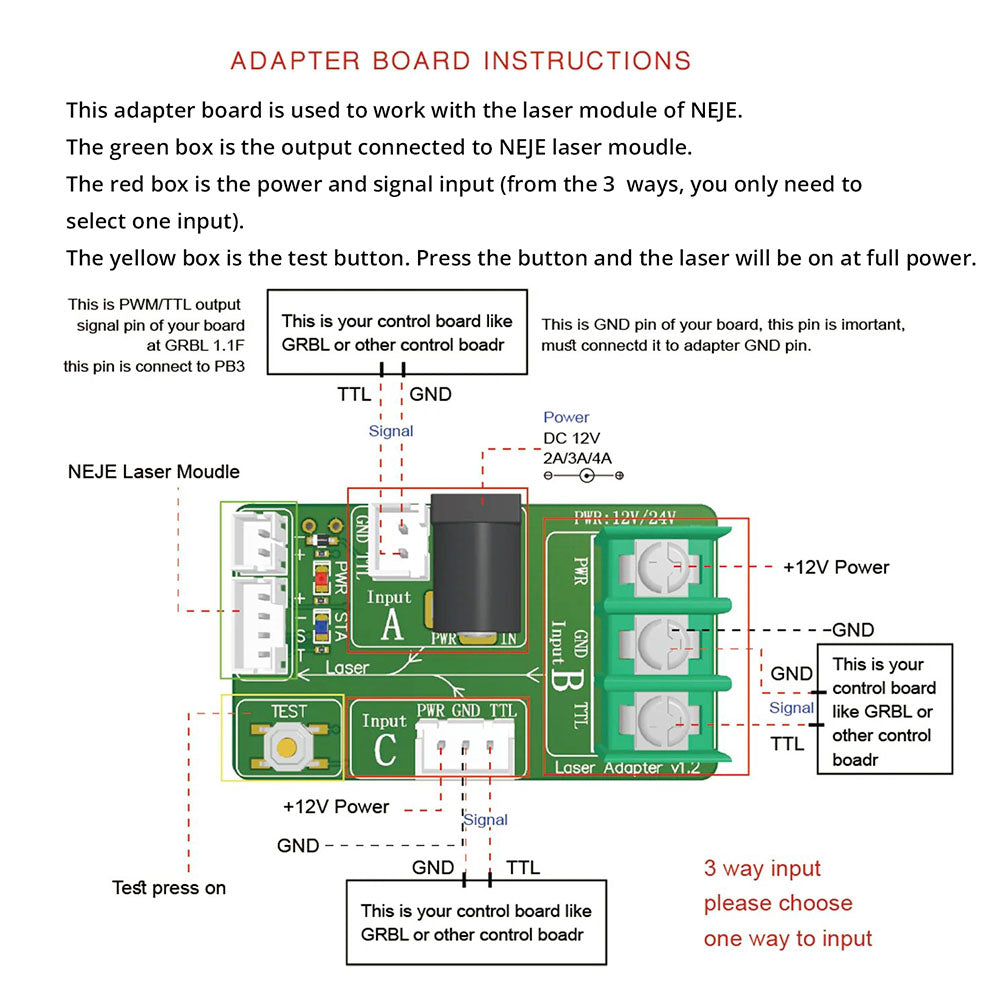

| 1 x NEJE Test/Switch/Interface Adapter Board | |
| 1 x 2.5mm L-Wrench | |
| 1 x 5mm L-Wrench | |
| 1 x Tube (4mm x 2m) | |
| 1 x Connector (M8 to M4) | |
| 1 x User Manual | |
