NEJE E40 highlights

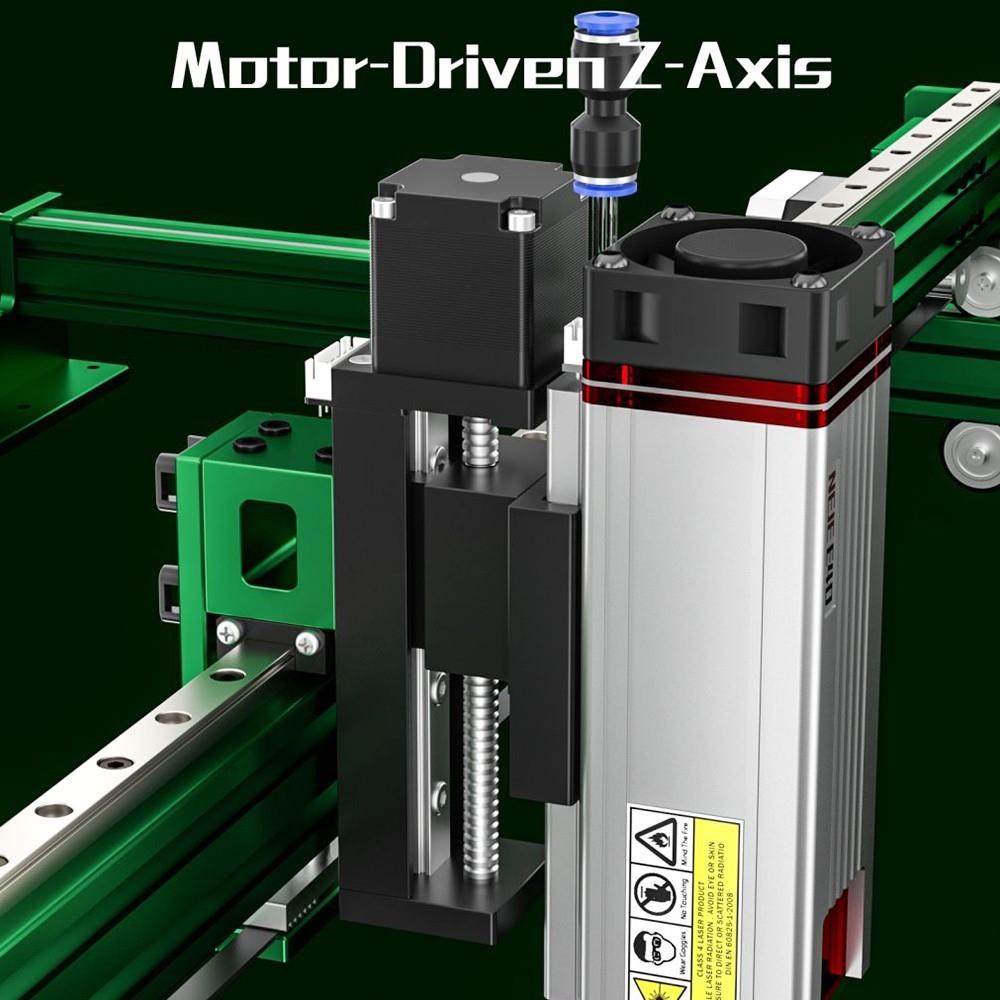

Motor-Driven Z-Axis
The NEJE Max 4 laser engraving machine has been fully upgraded. It adopts electric Z-axis with high precision, which can load up to 1kg and travel 45mm. This electric Z-axis realizes high-precision repositioning with an accuracy of 0.001 mm. In the LightBurn software, the focus distance of each layer can be set automatically, and the thicker material can be cut efficiently through the control of the Z-axis.

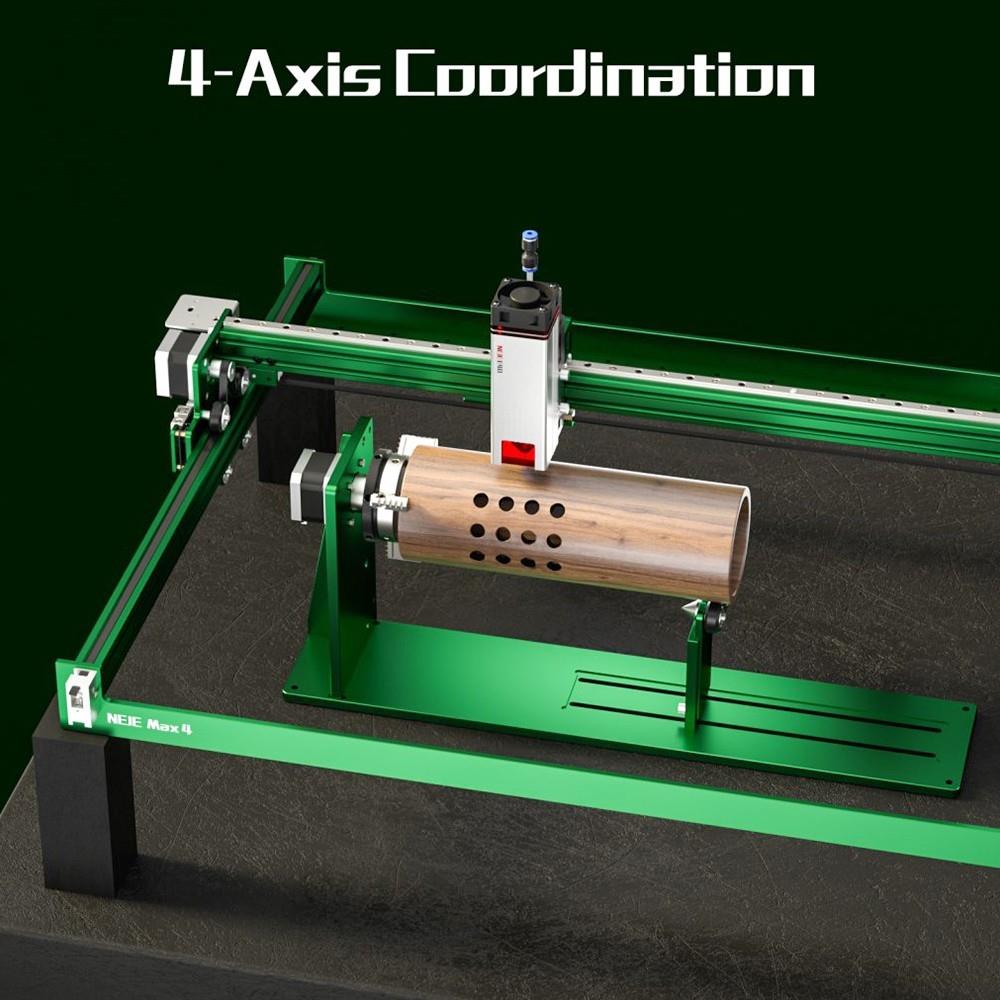

Four-Axis Control System
NEJE Max 4 is the first laser engraving machine on the market that can realize 4-axis collaboration. Through the collaboration of the X-axis, Y-axis, Z-axis, and A-axis, it can automatically complete more precise processes. Through expandable functions, the machine can automatically complete M7, and M8 auto smoke discharging, air assist, door safety functions, and visual positioning functions, and perfectly integrated with various extended functions of LightBurn.
High Precision Fixed Focus Laser Module - E40
E40 laser module is a high-power dual beam fixed focus high-precision module. It has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard, and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm. Also, it can carve stainless steel, stone, glass, ceramics, and other high-resolution materials with high-precision rendering capability. The NEJE E40 module adopts NEJE's unique external lens optical compression technology. The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process.
High Precision & High Stability
Equipped with an industrial-grade maintainable track, NEJE Max 4's service life is up to 20,000 hours. Through reasonable design and precise processing technology, the precision of the frame is improved, and the mechanical precision reaches 0.01 mm. The adaption of a higher hardness alloy frame effectively eliminates the vibration of the equipment and improves the stability of the machine.

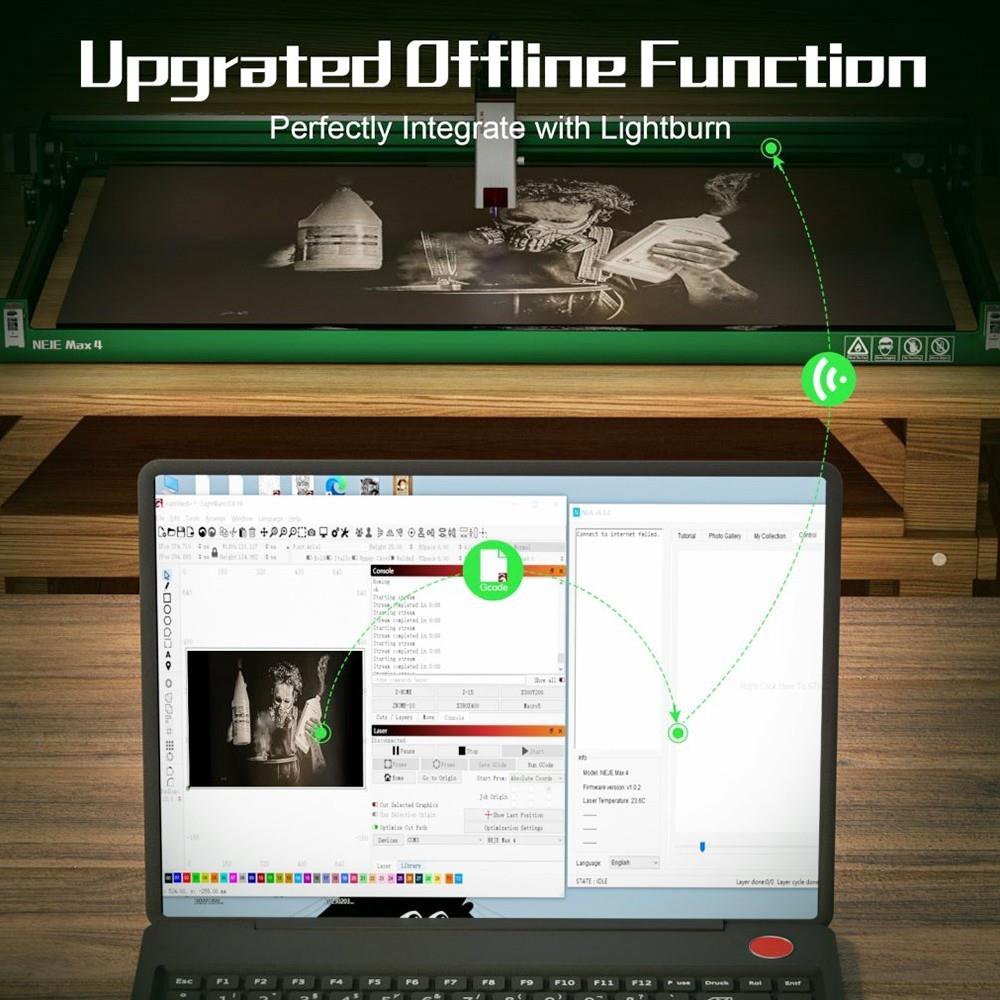

Support Wireless Offline Work
NEJE Max 4 supports wireless offline work. You can create everything you want in LightBurn and use NEJE software to operate the machine wirelessly. Offline work distance within 10 meters is available, so you can operate the machine anytime and anywhere without computer restrictions.
Specifications
Specifications
| General | |
|---|---|
| Brand | NEJE |
| Type | Laser Engraver |
| Model | E40 |
| Color | Green |
| Specification | |
| Laser Engraver: | |
| Frame Size (L*W*H): 970x582x60mm | |
| Working Area(X*Y): 750 x 460mm, Extends to 750x1030mm | |
| Drive Accuracy: XY-axis repeat positioning accuracy 0.01mm, Z-axis 0.001mm | |
| Number of Controllable Axes: X, Y, Z, A four axes | |
| Input Voltage: 12V / 24V, Match according to module voltage | |
| Limit Switch: Yes, both XYZ | |
| Max Move Speed: 750mm/s | |
| GRBL Offline Control: Yes | |
| M7, M8, Door Extension: Yes | |
| App Control: Yes | |
| MEMS: Yes | |
| NEJE Software OTA Upgrade: Yes | |
| Vertical Carving: Yes (90 degrees) | |
| Systems Support: Win 7/Win 8/Win 10, Android, iOS, iPadOS, macOS | |
| File Format Supports: .GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2/AI/SC/etc. | |
| E40 Laser Module: | |
| Focus: 0.06x0.06mm | |
| Focus Method: fixed focus( 3-5mm from the radiator ) | |
| Optical power: Pulse 11W+, CW 10W+ | |
| Max Scanning Speed: 1000mm/s (mdf material clear test results) | |
| Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment | |
| Wavelength: 450nm | |
| Weight: 280g | |
| Module Size: 40x48x130mm | |
| Input: DC 12V 4A | |
| Interface: 4pin PH2.0 + ( 2pin DC12v extra power ) | |
| Compatible with: NEJE Max 4, NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc... | |
| Power Control: PWM Power Modulation | |
| Fan: Double Ball High Life Fan | |
| Drive: NEJE Smart Quiet Drive, Built-in static elimination technology. | |
| Surge Protection: Yes | |
| Smart Feedback: Yes | |
| Temperature Feedback: Yes | |
| Temperature control: 45 Celsius | |
| Air Pump: 0.5-1.5mpa clean air | |
| Air Interface: 4mm PVC trachea | |
| Protective Window Lens: Yes (withstand 1000 Celsius) | |
| Weight & Size | |
| Product Weight | 7.05kg |
| Package Weight | 7.05kg |
| Product Size(L x W x H) | 104*25.5*19cm |
| Package Size(L x W x H) | 104*26*19cm |

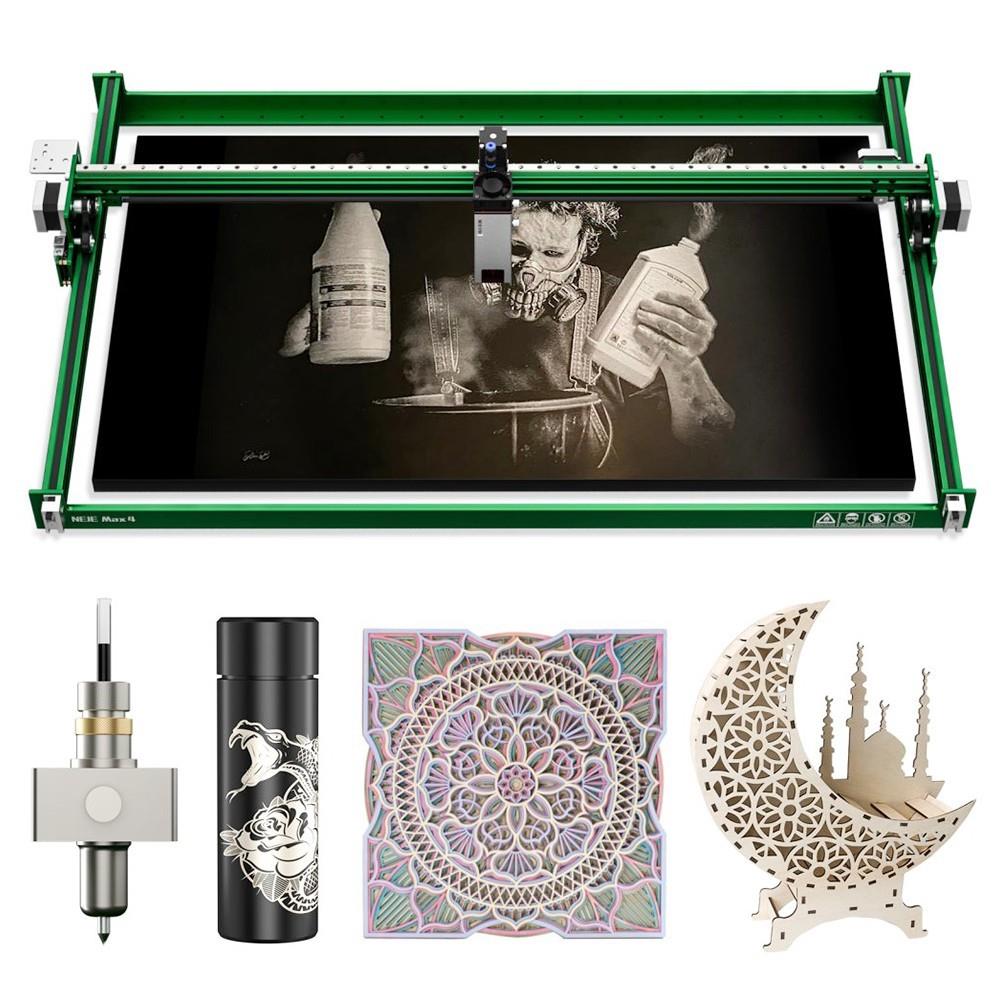

| Package Contents | |
| 1 x NEJE Max 4 Laser Engraver | |
| 1 x Metal Air Assist Kit | |
| 1 x E40 Laser Module | |

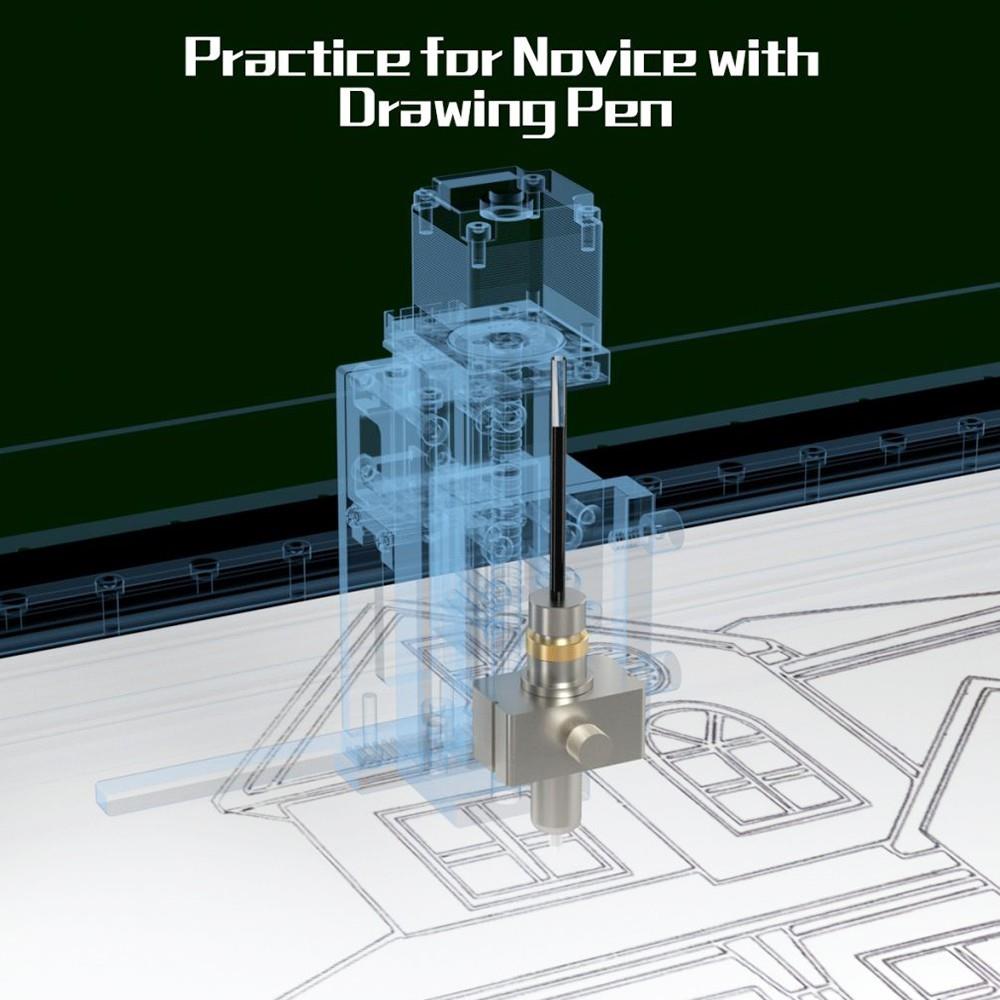

| 1 x Drawing Pen | |
| 1 x Power Adapter | |
| 1 x Goggles | |
| 1 x Belt | |
| 1 x USB Cable | |
| 1 x User Manual | |
