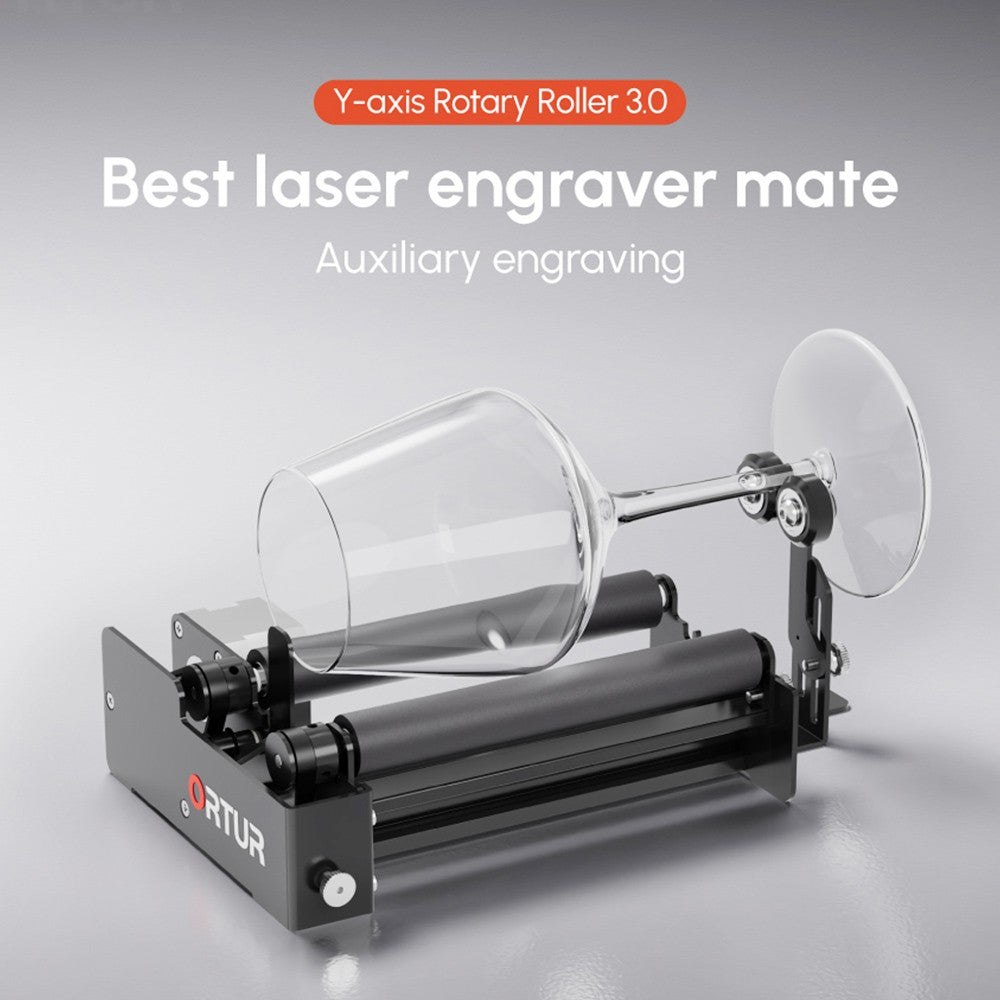

ORTUR YRR3.0 Y-axis Rotary Roller 3.0

ORTUR YRR3.0 highlights

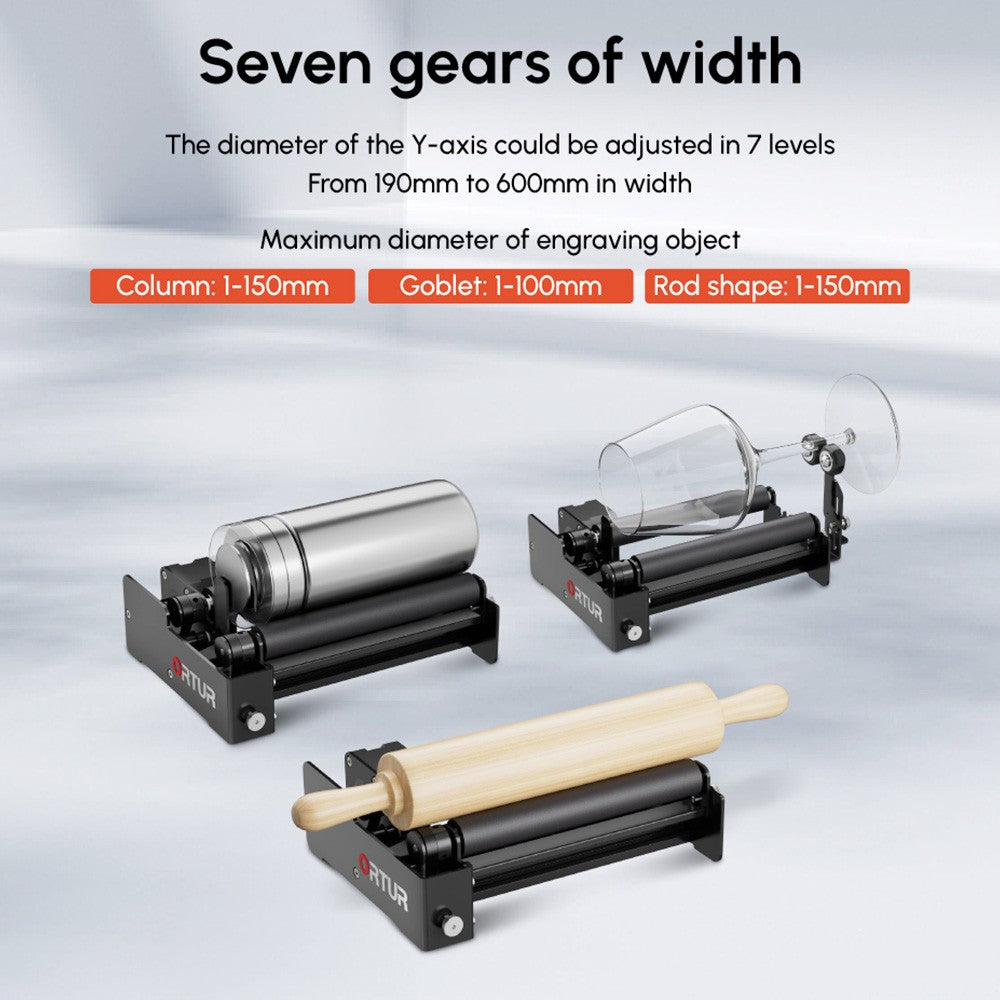

Multi-level Adjustment

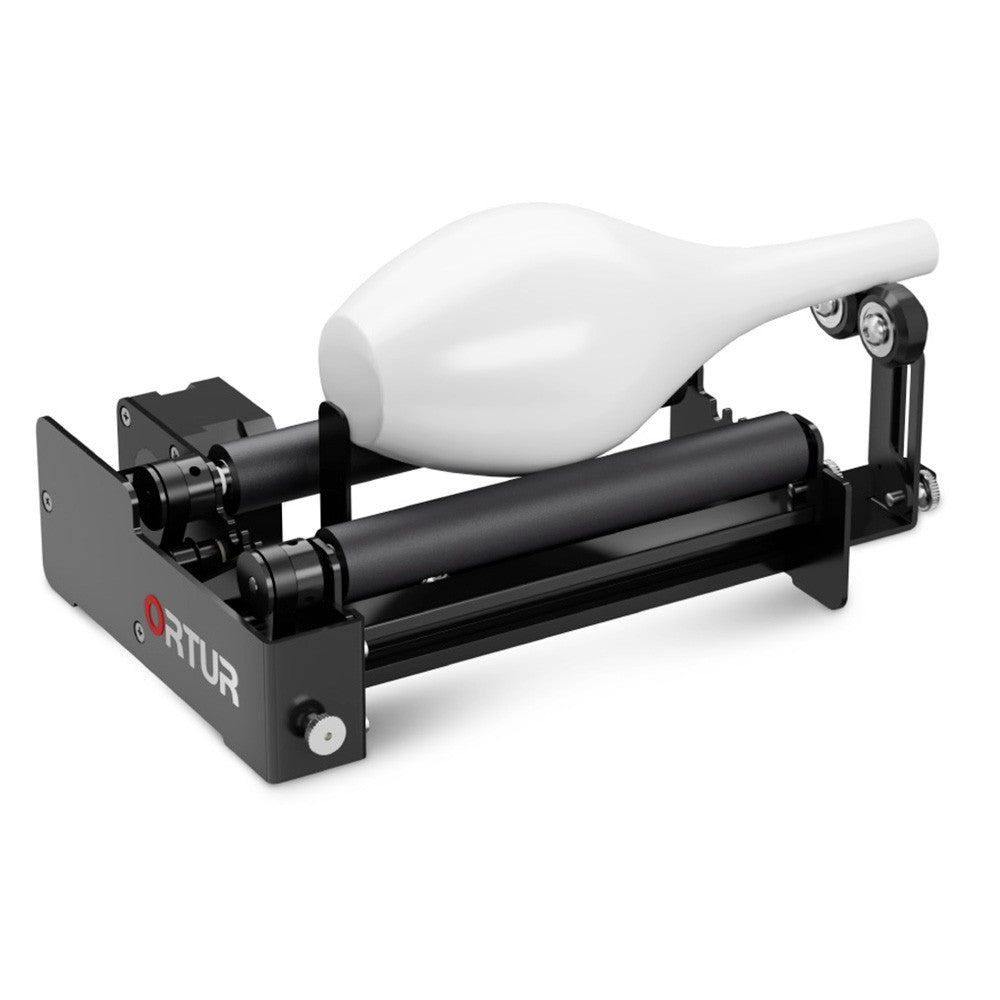

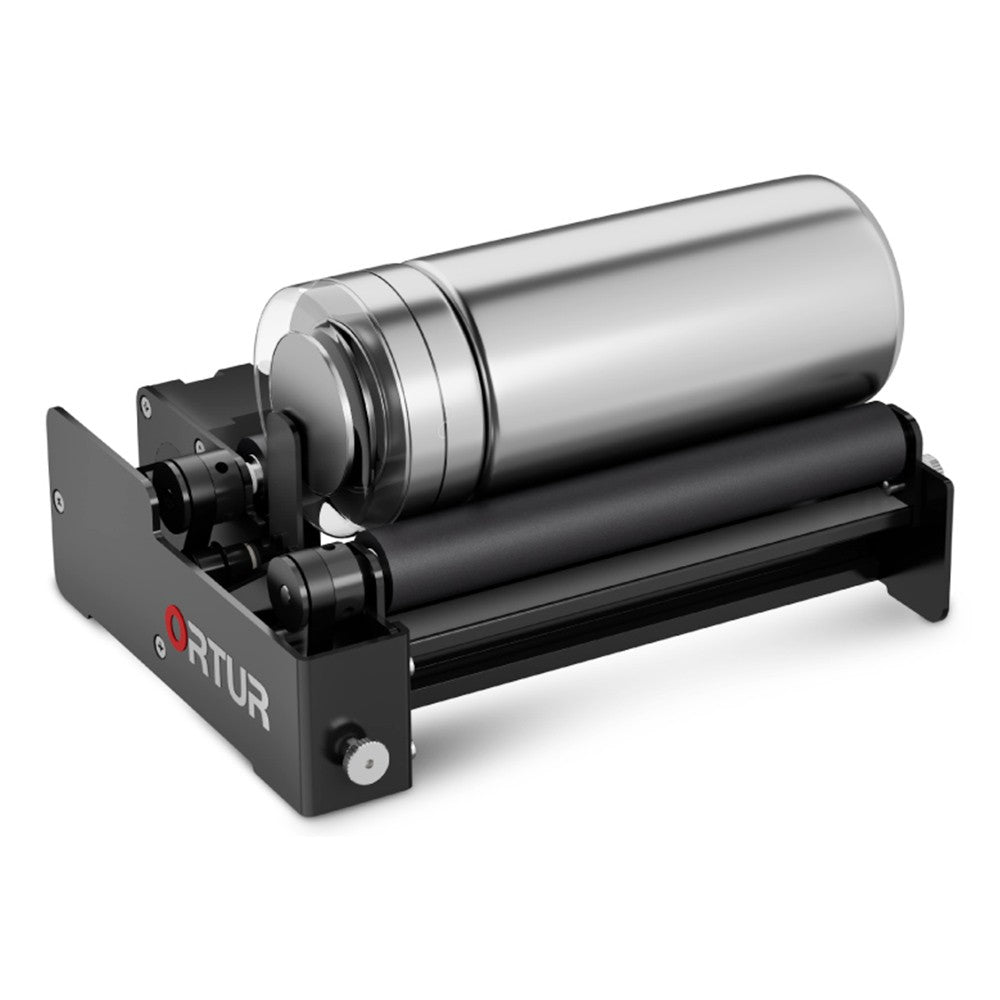

The Y-axis rotary roller 3.0 can realize multi-level adjustment, and supports engraving cylindrical objects of different sizes.

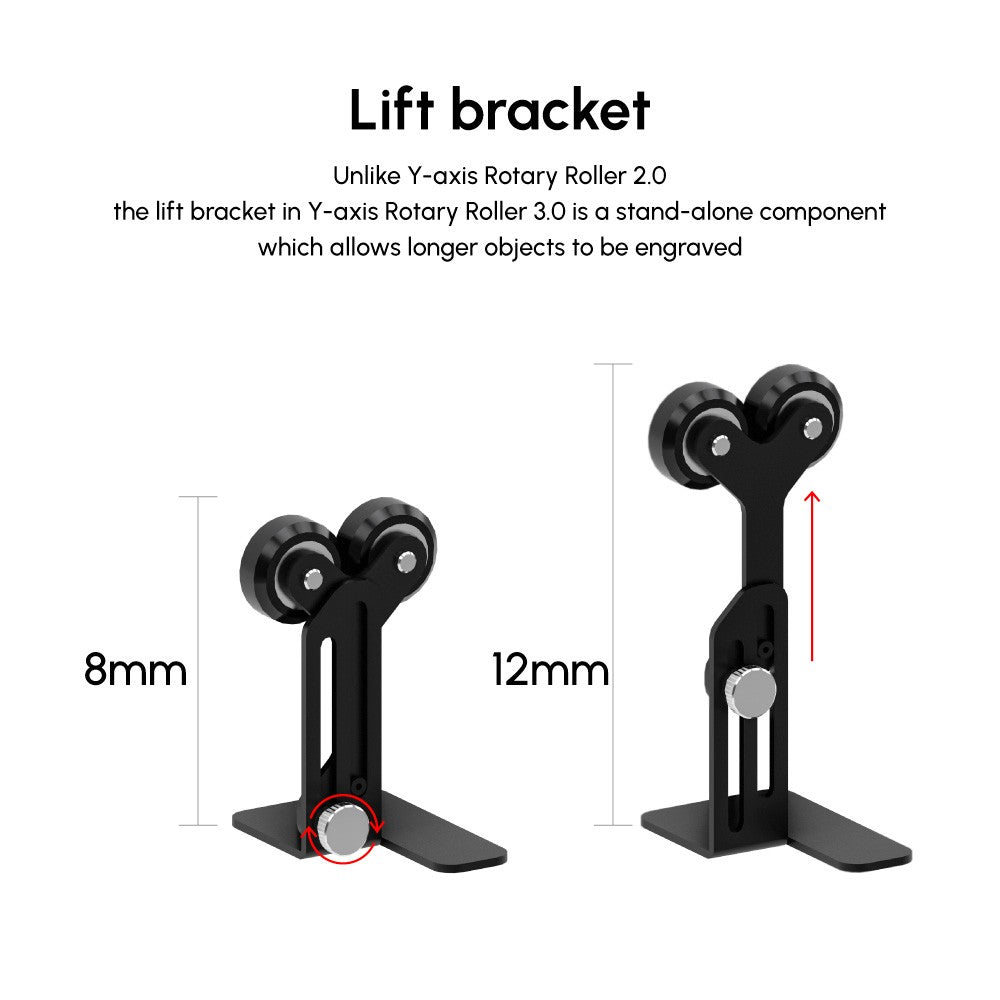

Adajustable Lift Bracket

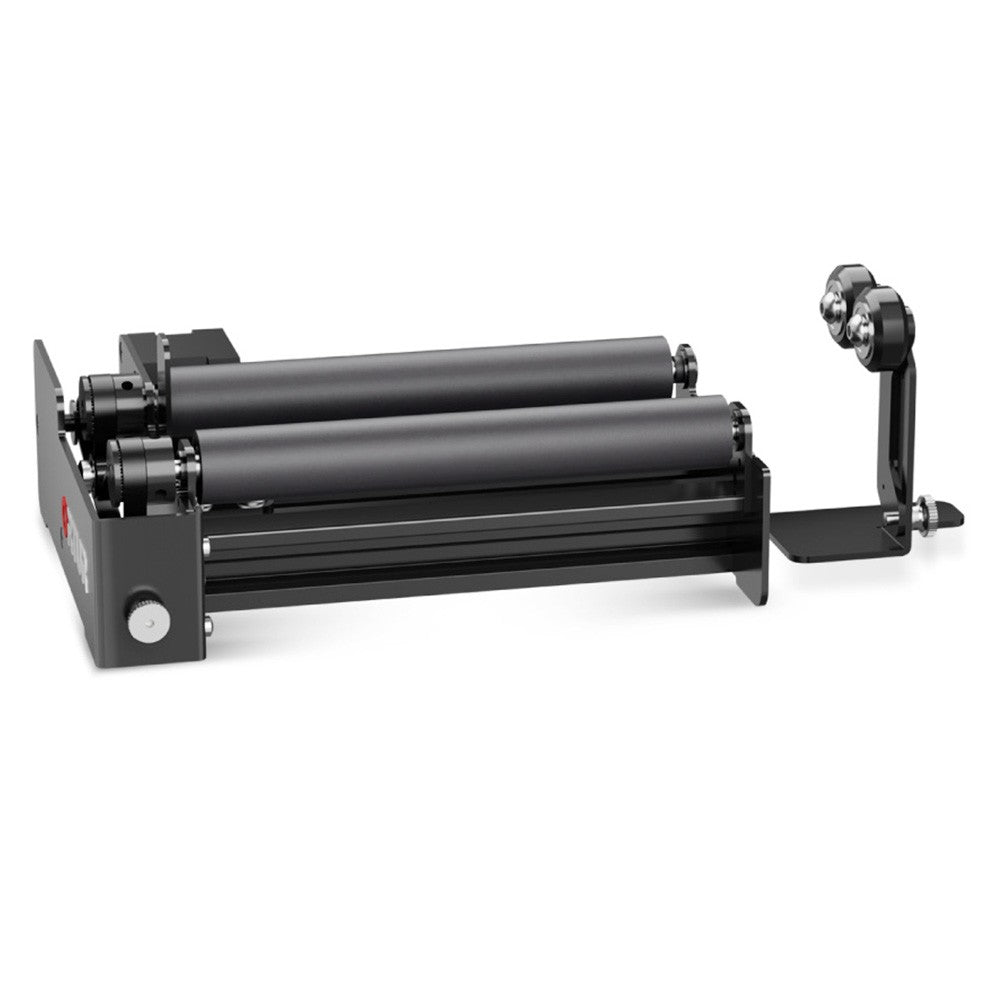

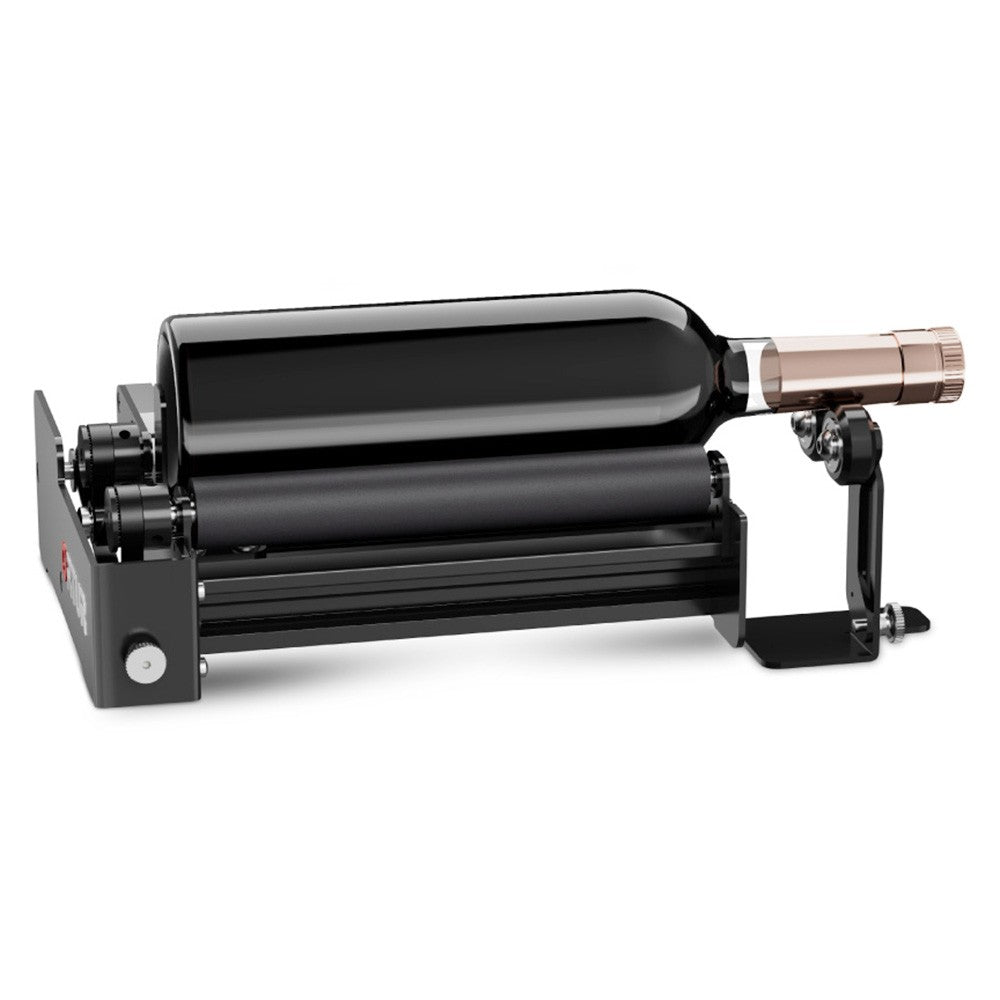

The lift bracket in Y-axis rotary roller 3.0 is a stand-alone component that allows longer objects to be engraved.

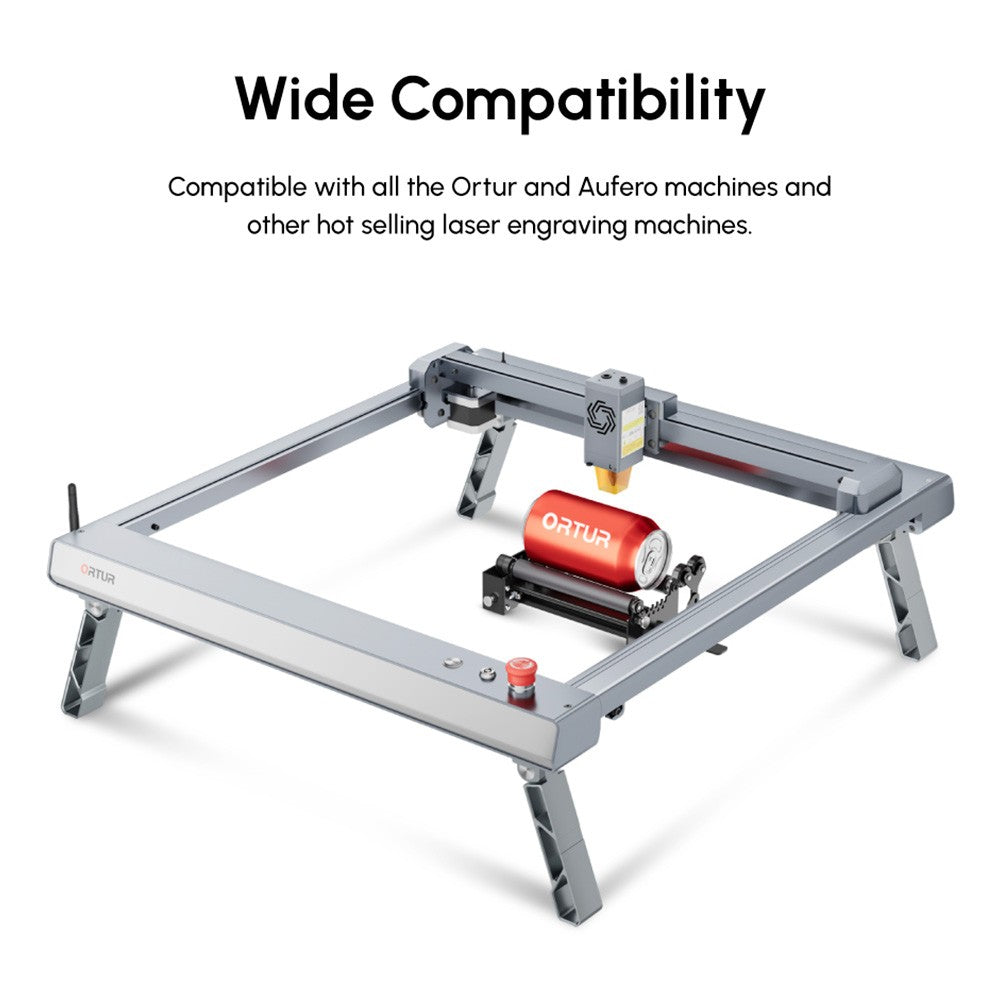

Wide Compatibility
It is compatible with all ORTUR engraving machines and some laser engraving machines from other manufacturers, and supports LaserExploer, LightBurn, and LaserGRBL software.

Easy to Use

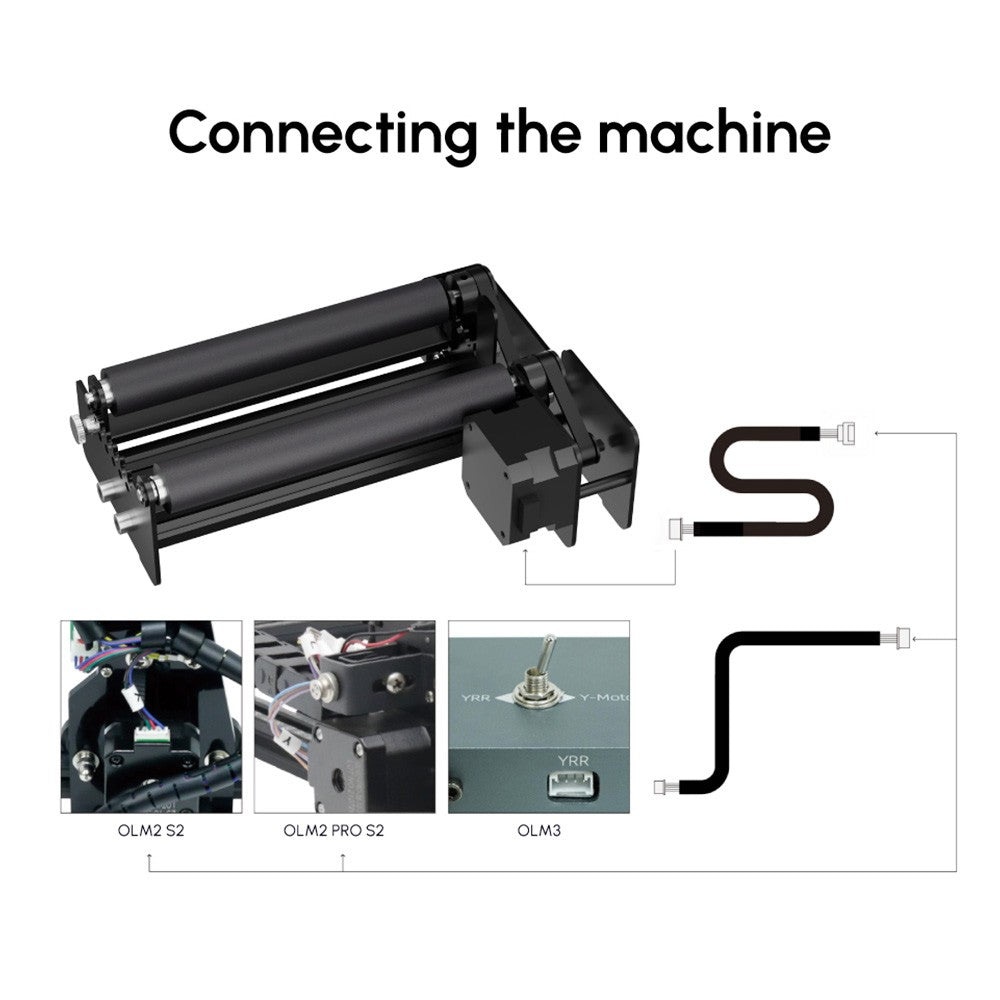

This rotary roller is pre-assembled, easy to use, and directly powered and controlled by the laser engraving machine.

General
Brand	ORTUR
Type	Y-axis Rotary Roller 3.0
Model	YRR3.0
Color	Black
Specification
Main Material: aluminum + A3 board + silicone rubber
Drive Mode: single motor drive
Roller Moving Stroke: 1-41mm
Maximum Diameter of Engraving Objects: cylinder: 1-150mm; goblet: 1-100mm; rod: 1-150mm
Best Engraving Speed: 3000mm/min
Engraving Length Range: depends on the distance of the Y-shaped guide wheel assembly
Software Support: LaserExploer, LightBurn, LaserGRBL
Motor Model: 42 stepper motor 29-10-24, step angle 1.8 degrees
Storage Temperature: -5 - 50 Celsius
Working Temperature: -5 - 50 Celsius
Weight & Size
Product Weight	1.2kg
Package Weight	1.5kg
Product Size(L x W x H)	190x150x56mm
Package Size(L x W x H)	255x200x105mm

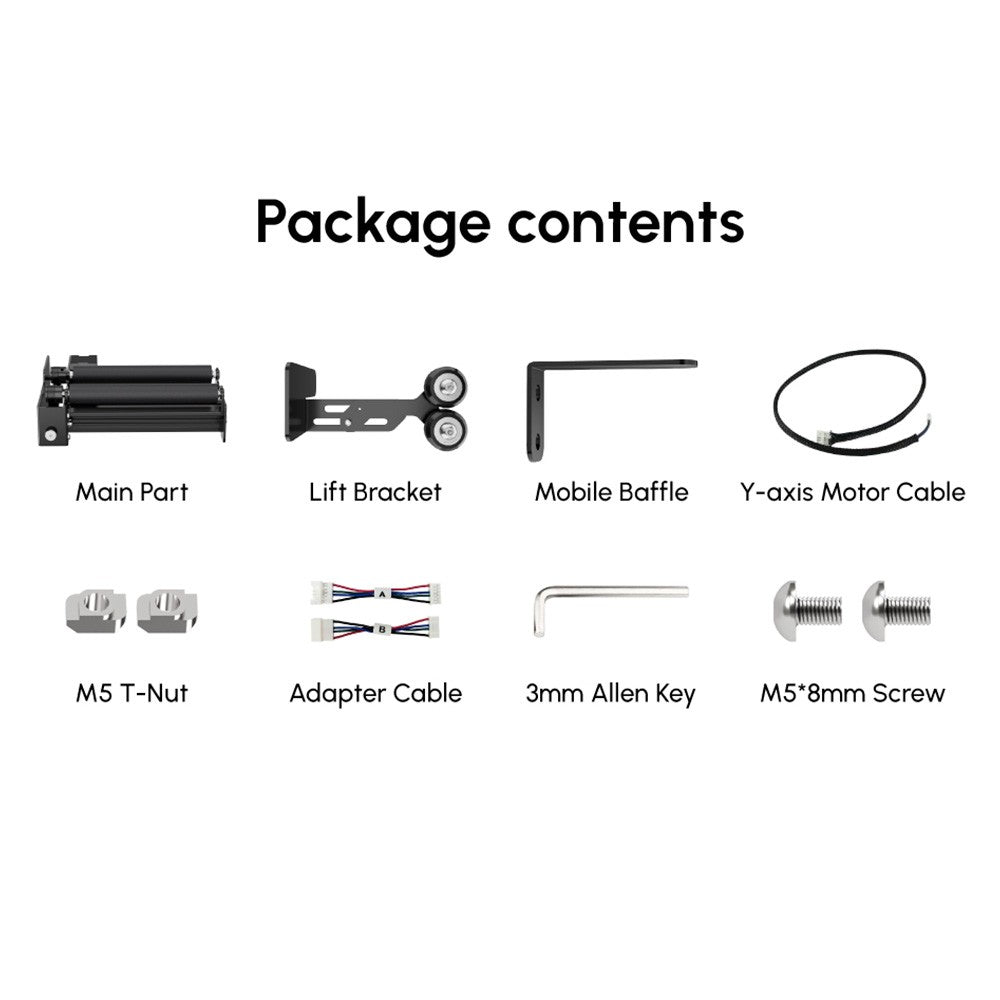

Package Contents
1 x Main Part
1 x Lift Bracket
1 x Mobile Baffle
1 x Y-axis Motor Cable
2 x M5 T-Nut
2 x M5*8mm Screw
2 x Adapter Cable
1 x 3mm Allen key
1 x User Manual
