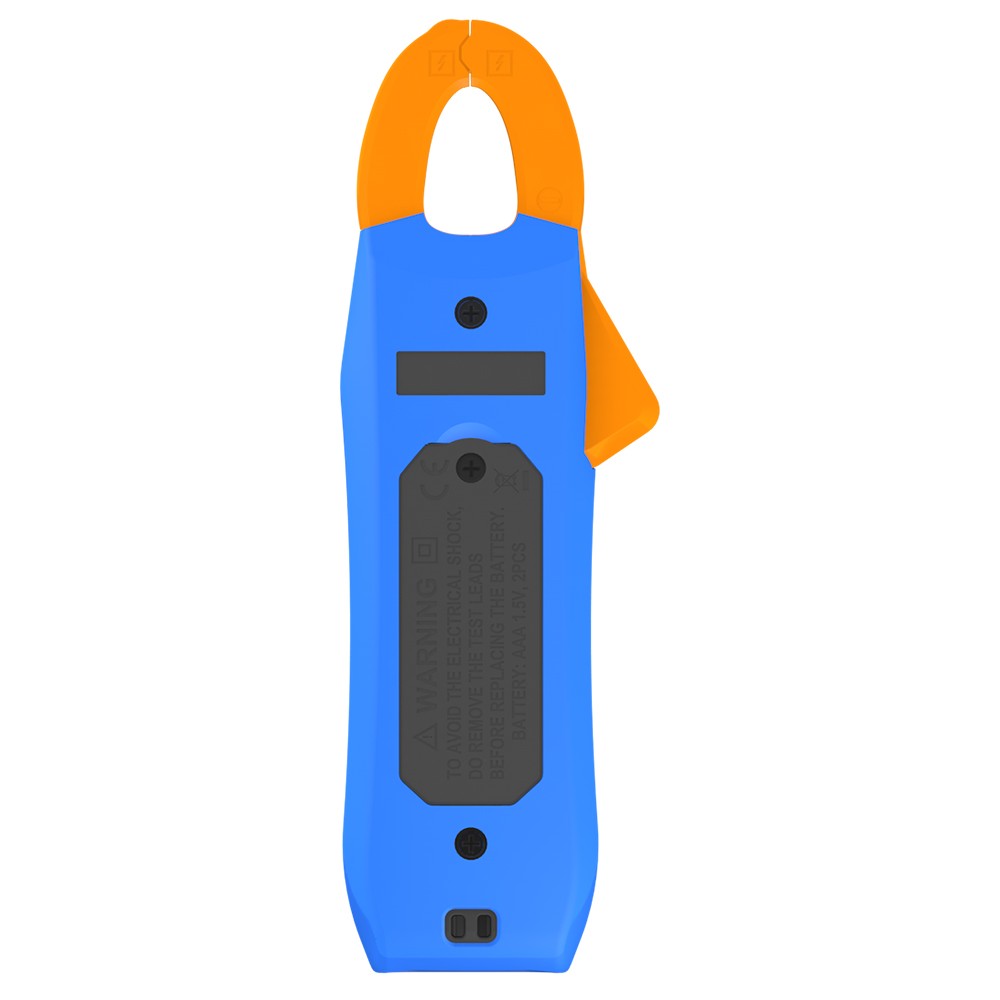

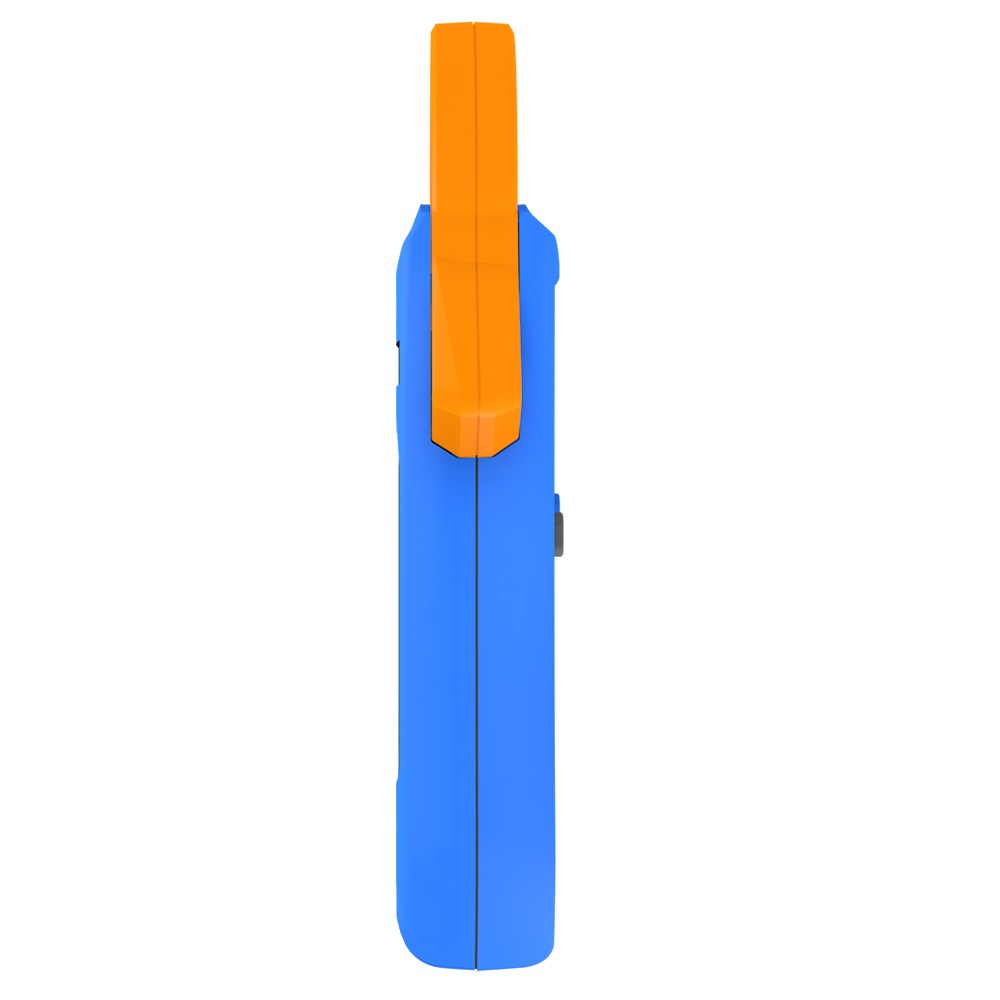

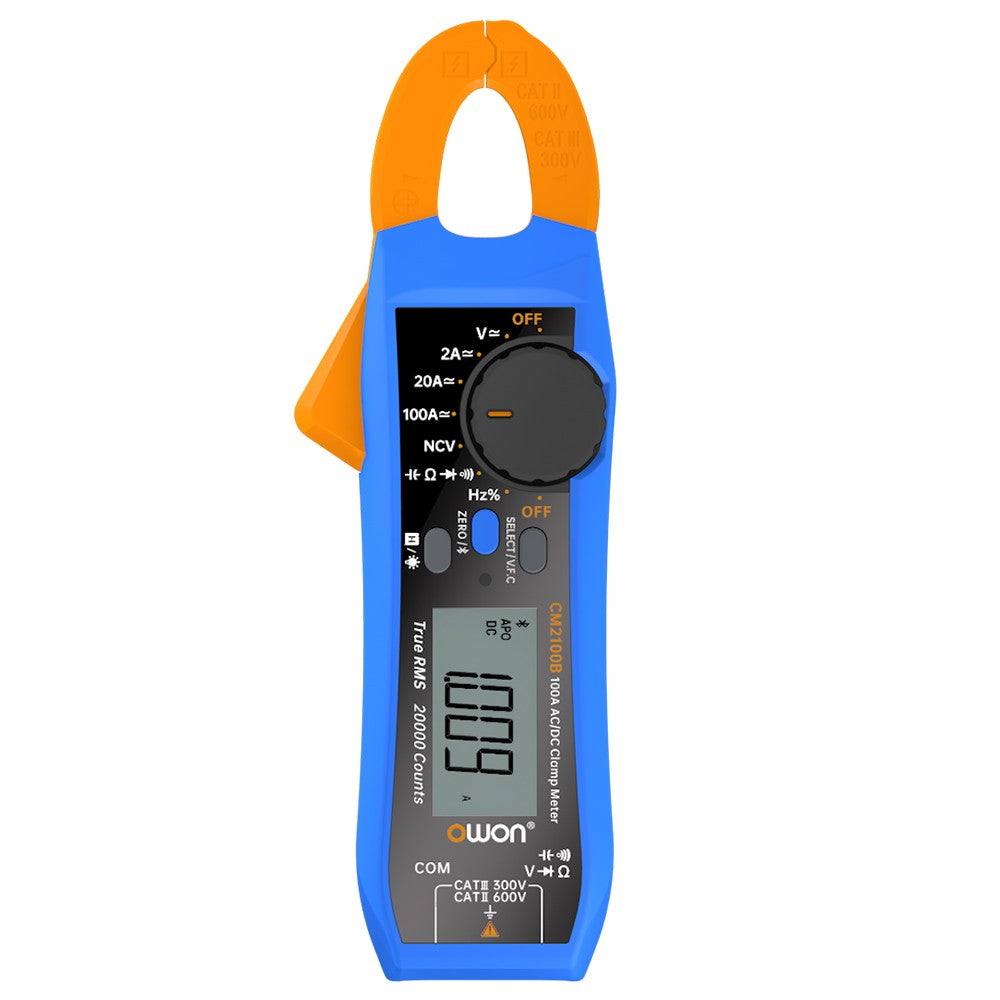

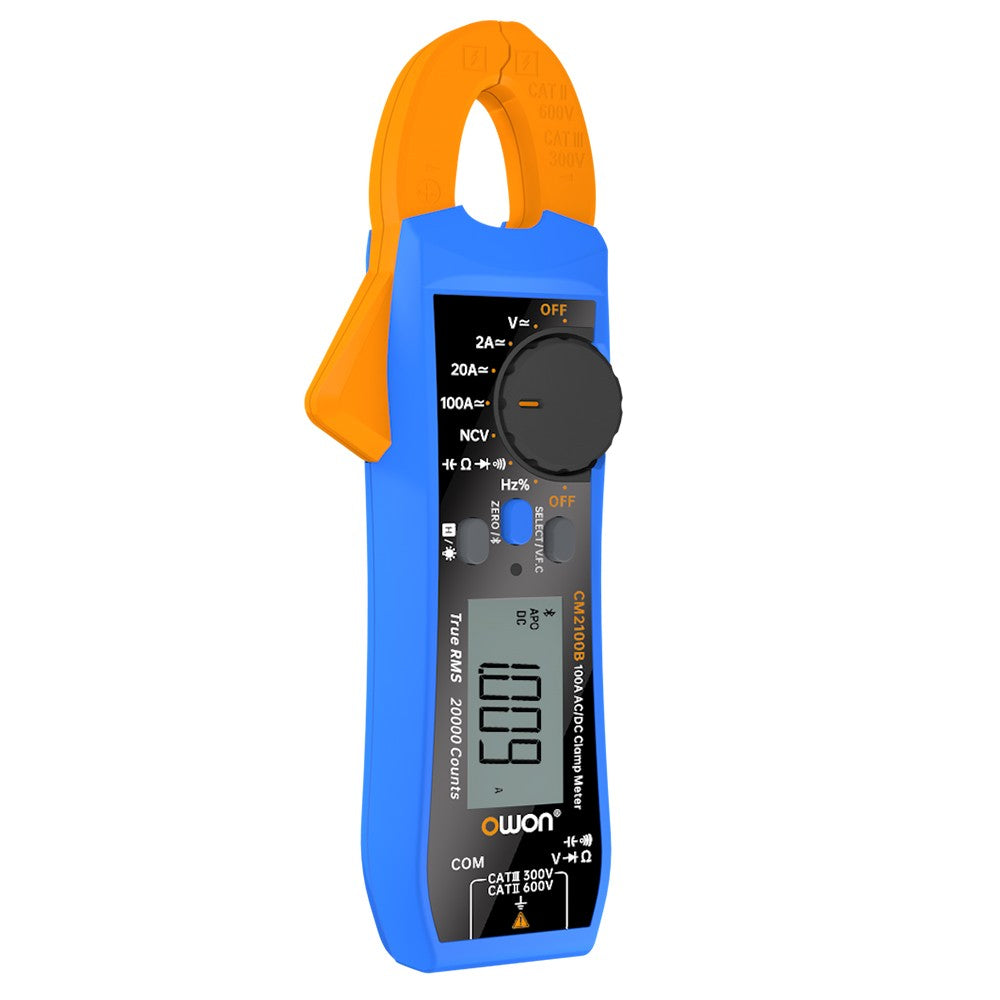

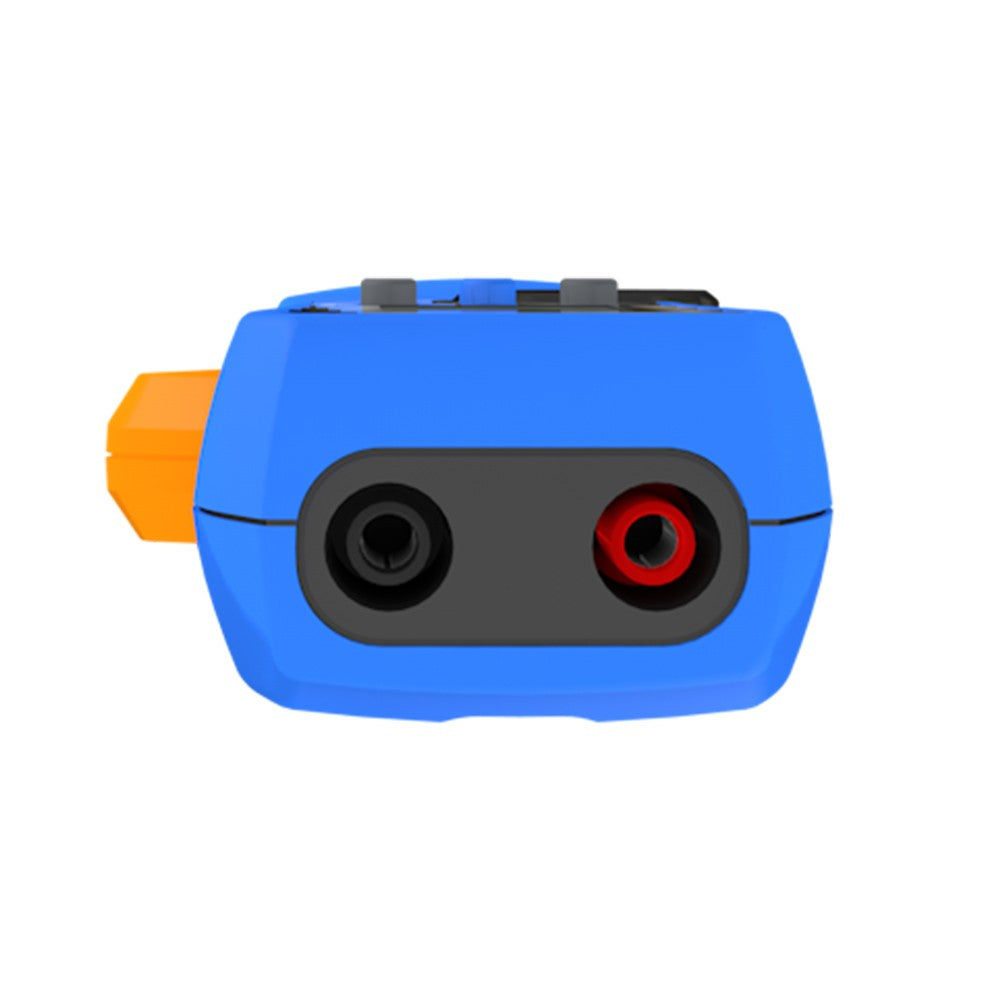

OWON CM2100B Clamp Meter

Name: OWON CM2100B Clamp Meter
Brand: OWON
Price: 63.52 USD
Availability: InStock

Where To Buy

Description

OWON CM2100B highlights

Recording Function

Automatically record the measured value of the monitoring object according to the user setting, and display it in icon mode to see the change trend at a glance. At the same time, the recorded data (CSV File) can be shared with the computer for further analysis.

Offline Storage Function

Set up the sampling interval (1s to 42s) and the number of recorded points (0 to 100 points), when the clamp meter is disconnected from the phone, the internal chipset will automatically save the data. After recording, to analyze the data, just need to use the mobile APP to read the data in the table.

Comparative Analysis of Different Instruments

Use the same APP to connect different meters, except the clamp meter, OW Series & B Series multimeter are also available to be connected. You can compare the analysis of these different instrument measurement parameters.

Alarm Function

When the measured value is below or above the set value, or within/outside the range, the phone interface will turn red and sound an alarm.

Voice Broadcasting Function

Instead of looking at the screen, focus on testing the correct connection of the wire to make the measurement safer.

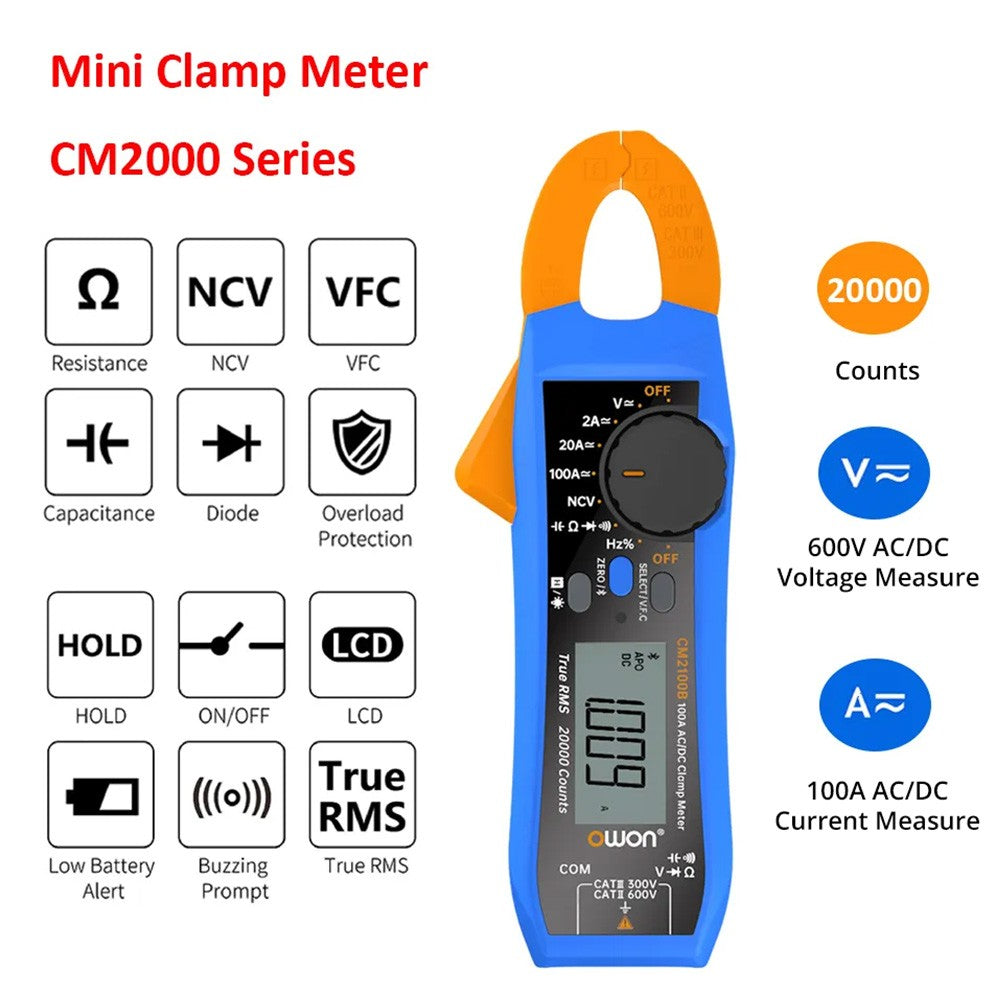

OWON CM2100B Clamp Meter with Bluetooth Module, True RMS 20000 Counts, Auto Ranging, NCV/VFC/Diode Measure, Alarm Function

Specifications

General
Brand	OWON
Type	Clamp Meter
Model	CM2100B
Color	Blue
Specification
AC Current (A): 2.000A / 20.00A / 100.0A
AC Voltage (V): 2.0000V / 20.000V / 200.00V / 600.0V
DC Current (A): 2.000A / 20.00A / 100.0A
DC Voltage (V): 200.00mV / 2.0000V / 20.000V / 200.00V / 600.0V
Resistance (R): 200.0Ω / 2.0000kΩ / 20.000kΩ / 200.00kΩ / 2.0000MΩ / 20.000MΩ / 200.00MΩ
Capacitance (F): 2.000nF / 20.00nF / 200.0nF / 2.000uF / 20.00uF / 200.0uF / 2.000mF / 20.00mF
Frequency (Hz): 200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz
Duty cycle (%): 0.1% - 99.9% (typical: Vrms=1 V, f=1kHz); 0.1% - 99.9% (≥1 kHz)
Display: 20000 counts
Frequency Response: 40Hz - 1000Hz
Auto Ranging: Yes
Date Hold: Yes
Diode: Yes
Continuity Buzzer: Yes
NCV: Yes
VFC: Yes
Bluetooth Module: Yes
Zero: Yes
Low-battery Indicator: Yes
Relative Measurement: Yes
Input Protection: Yes
Input Impedance: ≥10MΩ
Overrange Alarm: Yes
On-off Warning: Yes
Jaw Capacity: 17mm
Battery: 2 x 1.5V AAA
Weight & Size
Product Weight	0.2kg
Package Weight	0.31kg
Product Size(L x W x H)	18.2x5.7x3.2cm
Package Size(L x W x H)	20x7x5cm
Package Contents
1 x Clamp Meter
1 x Multimeter Lead
1 x Soft Bag
1 x Bolt Driver
2 x 1.5V AAA Batteries
1 x User Manual
