OWON HDS2102 highlights

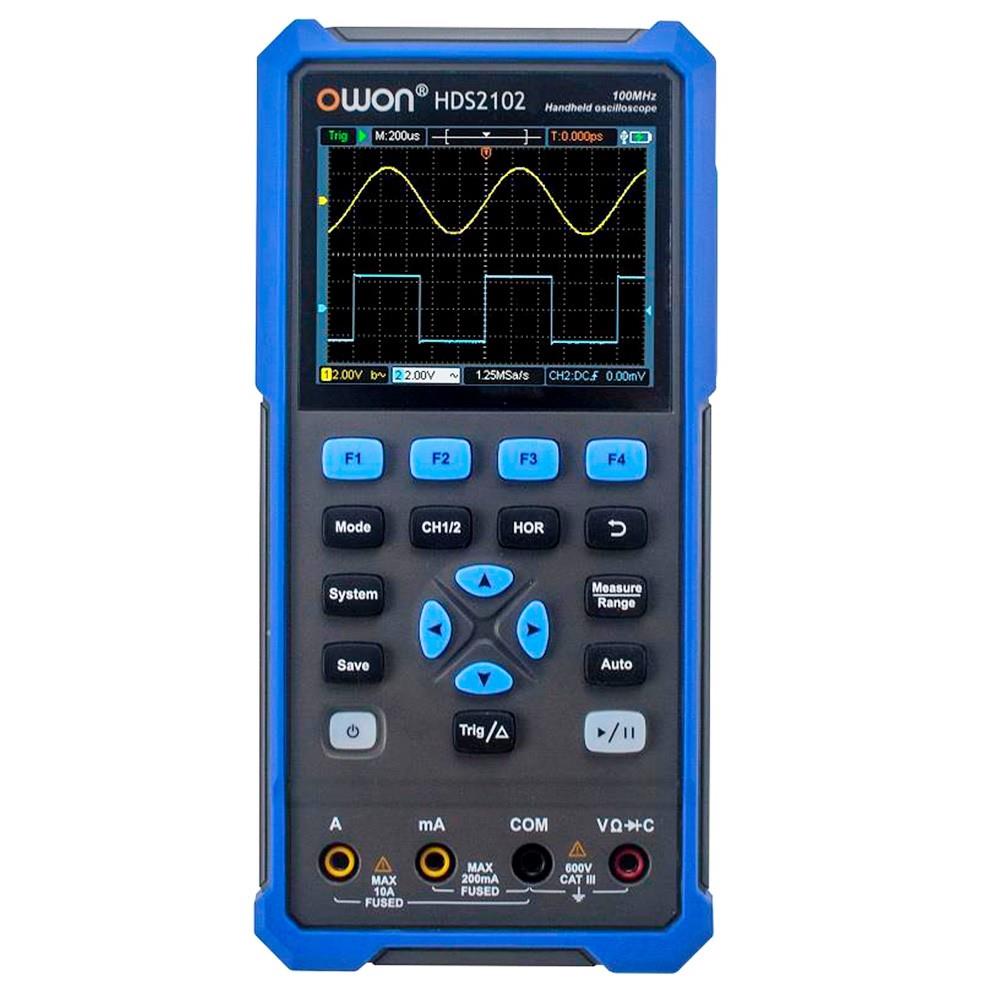

2-in-1 Handheld Oscilloscope
OWON HDS2102 features a digital oscilloscope function and a multimeter function at the same time. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.
Digital Oscilloscope Functions
Features dual-channel input, 100MHz bandwidth, 500MSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.
Multimeter Functions
20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.
Specifications
Specifications
| General | |
|---|---|
| Brand | OWON |
| Type | 2-in-1 Oscilloscope |
| Model | HDS2102 |
| Color | Blue + Black |
| Specification | |
| Oscilloscope Specifications: | |
| Bandwidth: 100MHz | |
| Bandwidth Limit (typical): 20MHz | |

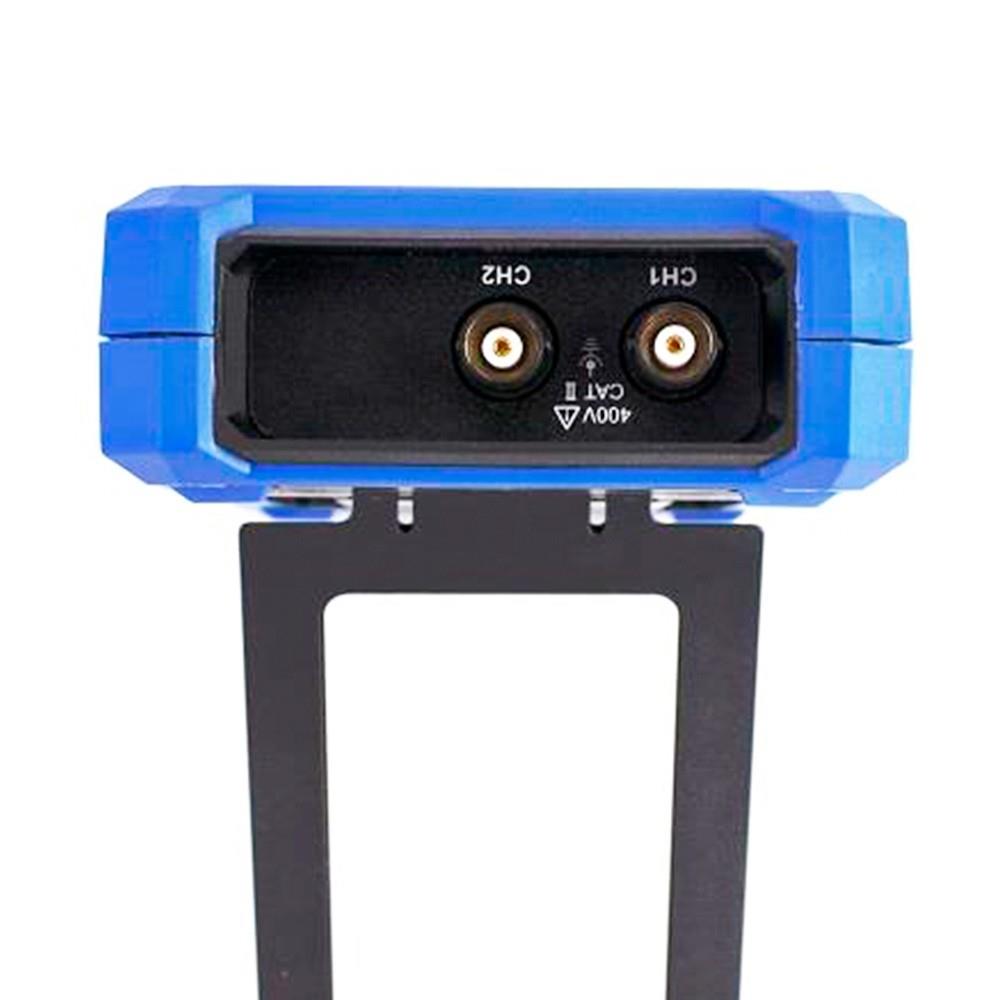

| Channels: 2-CH Oscilloscope | |
| Sample Rate: 500MSa/s | |
| Record Length: 8K | |
| Vertical Resolution: 8 bits | |
| Acquisition Model: Normal, Peak detect | |
| Display: 3.5-inch LCD | |
| Waveform Refresh Rate: 10,000 wfrms/s | |
| Input Coupling: DC, AC, and Ground | |
| Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF | |
| Probe Attenuation Factors: 1X,10X,100X,1000X,10000X | |
| Max. input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) | |
| Horizontal Scale: 2ns/div - 1000s/div, step by 1 - 2 - 5 | |
| Vertical Sensitivity: 10mV/div - 10V/div | |
| Trigger Type: Edge | |
| Trigger Modes: Auto, Normal, Single | |
| Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK | |

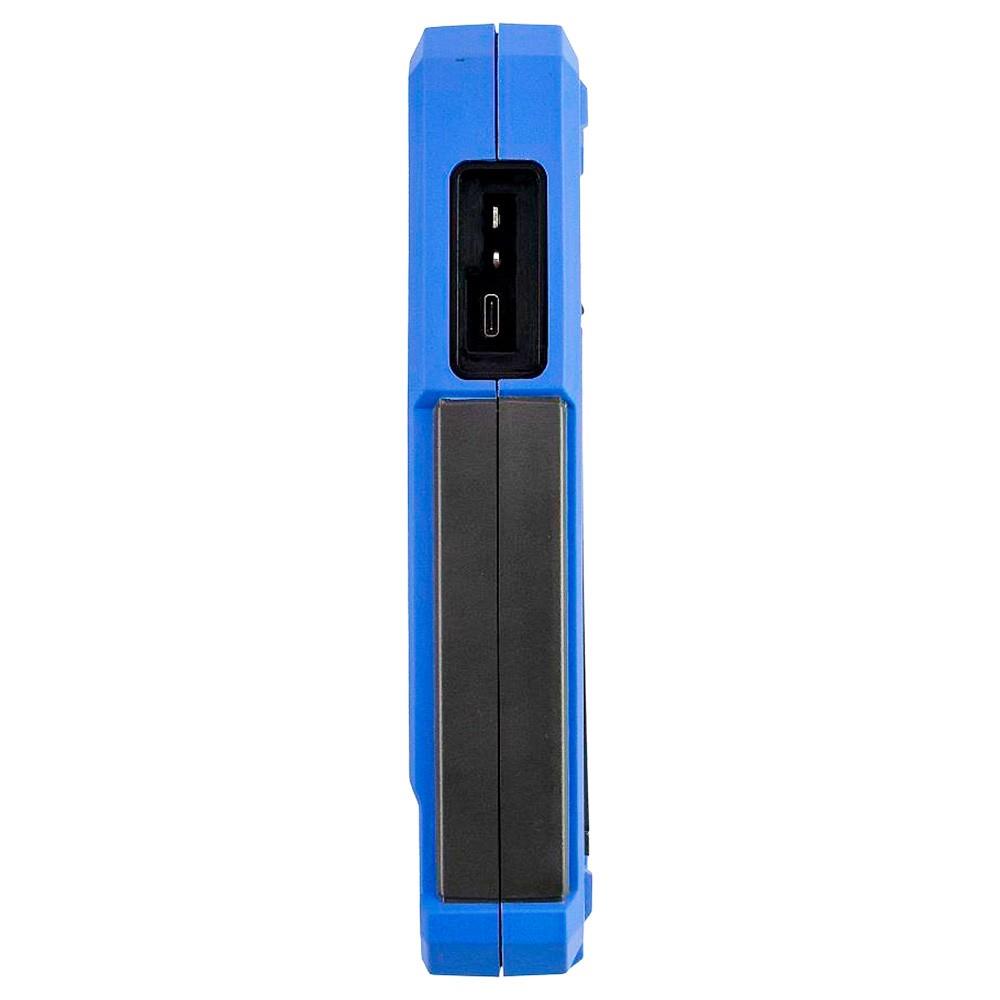

| Communication Interface: USB Type-C | |
| Multimeter (Standard): | |
| Max. Resolution: 20,000 counts | |
| Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test | |
| Input Impedance: 10MΩ | |
| Max Input Voltage: AC: 750V, DC: 1000V | |
| Max Input Current: DC: 10A, AC: 10A | |
| Diode: 0 - 2V | |
| Weight & Size | |
| Product Weight | 0.6kg |
| Package Weight | 1.1kg |
| Package Size(L x W x H) | 22x15x8.5cm |
| Package Contents | |
| 1 x 2-in-1 Digital Oscilloscope | |
| 1 x Probe Adjust | |
| 2 x Measuring Pen | |
| 1 x Bag | |
| 1 x Probe | |
| 1 x BNC to Alligator Clip | |
| 1 x USB Cable | |
| 1 x Adapter | |
| 1 x User Manual | |
