OWON HDS242 2 in 1 Digital Oscilloscope

OWON HDS242 highlights

2-in-1 Handheld Oscilloscope

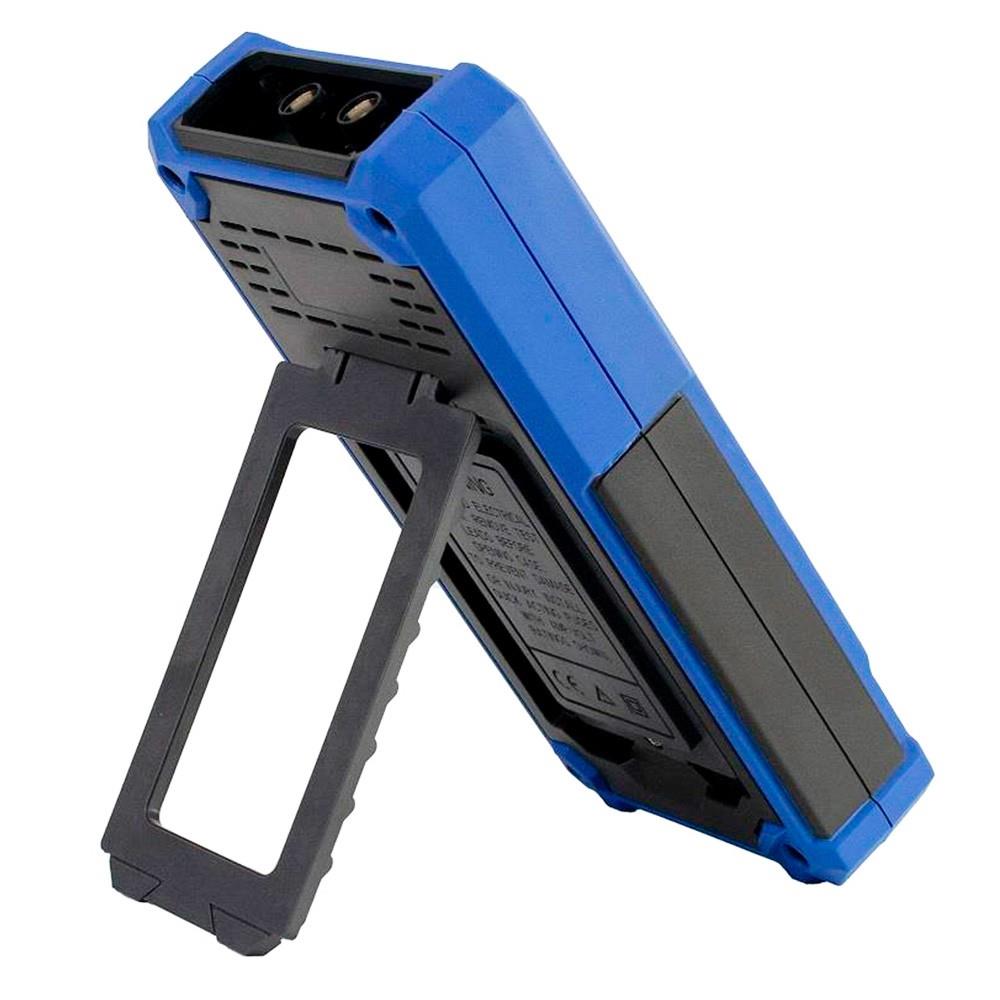

OWON HDS242 features a digital oscilloscope function and a multimeter function at the same time. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc. Besides, it is designed with a 3.5-inch LCD display and a foldable bracket in the back for easy standing.

Digital Oscilloscope Functions
Features dual-channel input, 40MHz bandwidth, 250MSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.

Multimeter Functions
20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.

General
Brand	OWON
Type	2 in 1 Digital Oscilloscope
Model	HDS242
Color	Blue + Black
Specification
Oscilloscope Specifications:
Bandwidth: 40MHz
Bandwidth Limit (typical): 20MHz

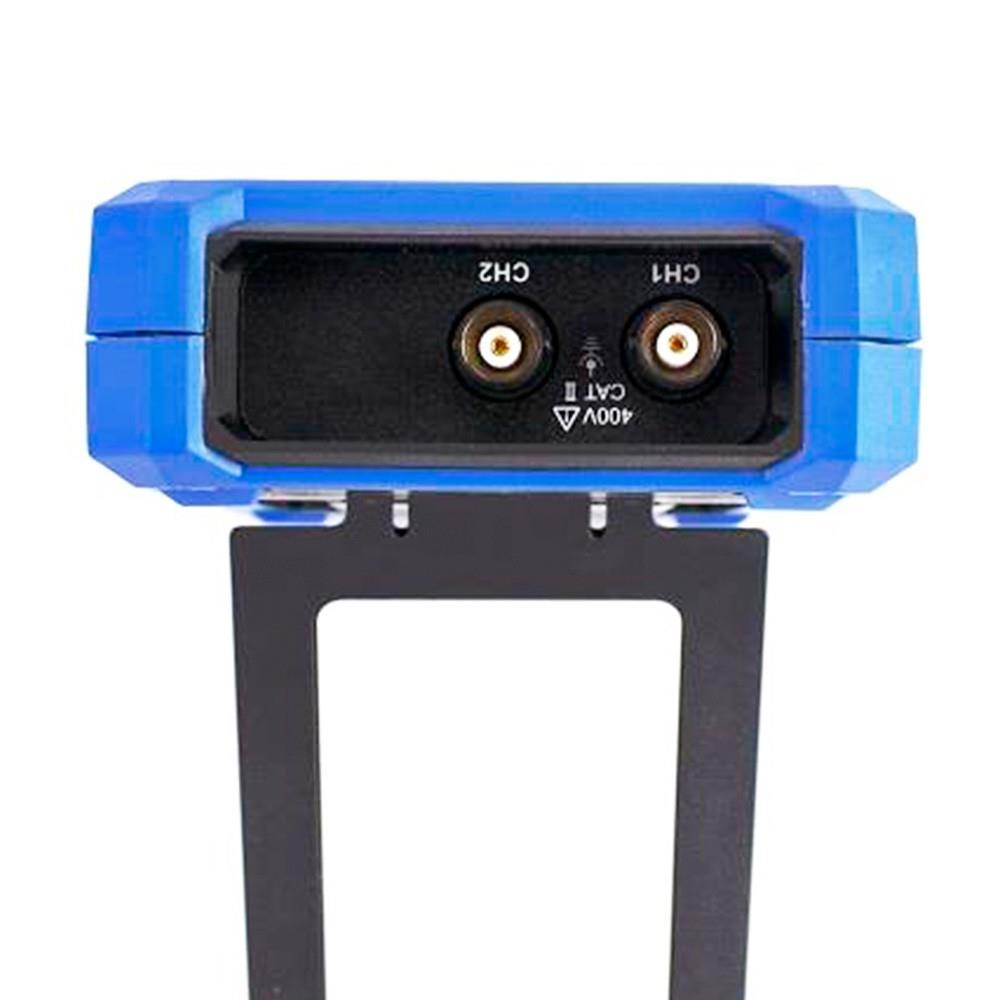

Channels: 2-CH Oscilloscope
Sample Rate: 250MSa/s
Record Length: 8K
Vertical Resolution: 8 bits
Acquisition Model: Normal, Peak detect

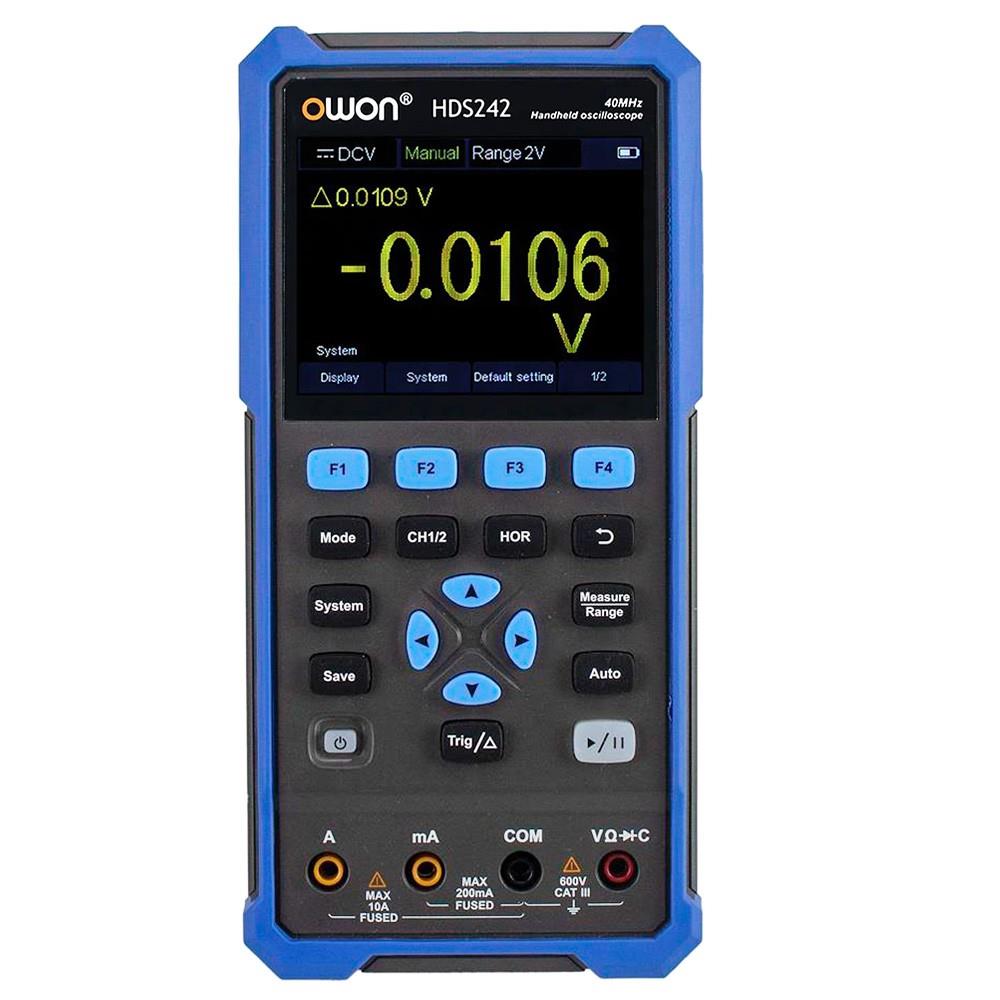

Display: 3.5-inch LCD
Waveform Refresh Rate: 10,000 wfrms/s
Input Coupling: DC, AC, and Ground
Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors: 1X,10X,100X,1000X,10000X
Max. input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Horizontal Scale: 5ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity: 10mV/div - 10V/div
Trigger Type: Edge
Trigger Modes: Auto, Normal, Single
Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

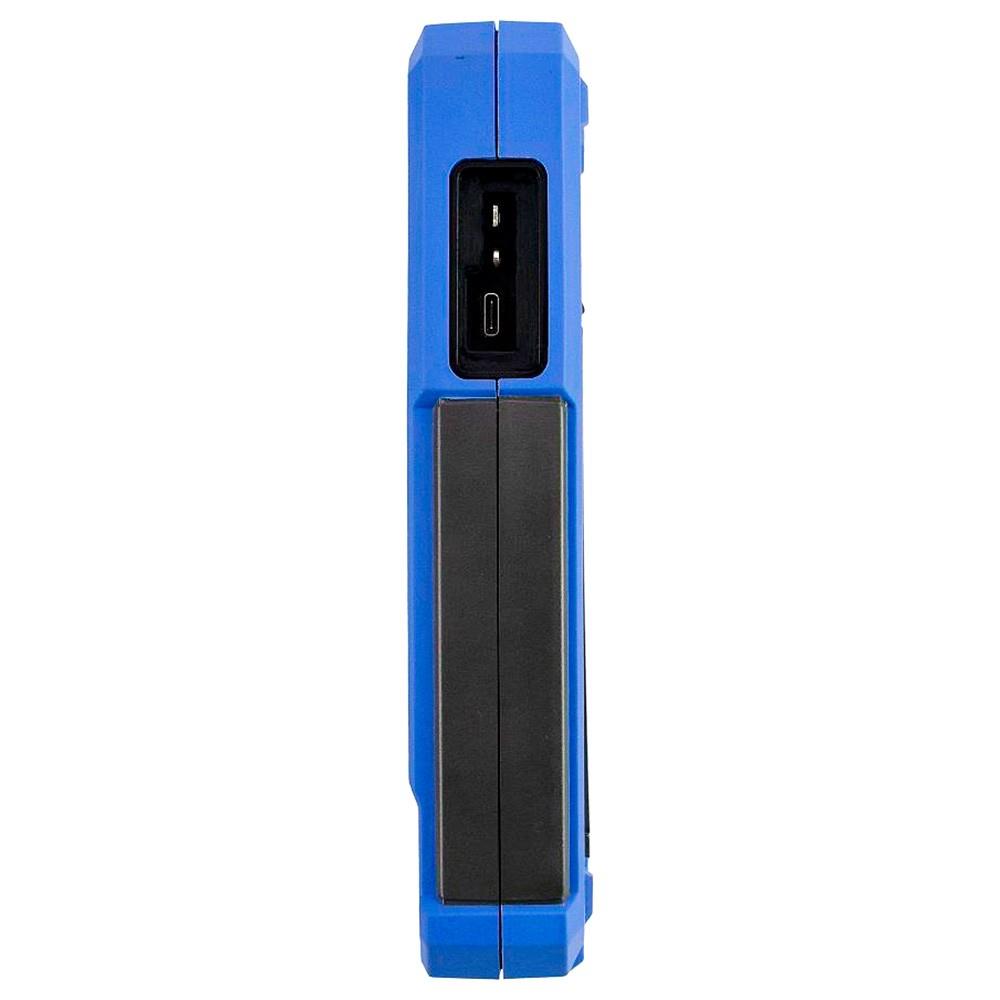

Communication Interface: USB Type-C
Battery: 4400mAh Lithium battery
Multimeter (Standard):
Max. Resolution: 20,000 counts
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test
Input Impedance: 10MΩ
Max Input Voltage: AC: 750V, DC: 1000V
Max Input Current: DC: 10A, AC: 10A
Diode: 0 - 2V
Weight & Size
Product Weight	0.6kg
Package Weight	1.1kg
Package Size(L x W x H)	22x15x8.5cm
Package Contents
1 x 2-in-1 Digital Oscilloscope
1 x Oscilloscope Passive Probe Kit
1 x Pair of Multimeter Probe Leads
1 x Pair of Oscilloscope Probe Leads (BNC to Alligator Clip)
1 x Type-C USB Cable
1 x Adapter
1 x Cloth Bag
1 x User Manual
