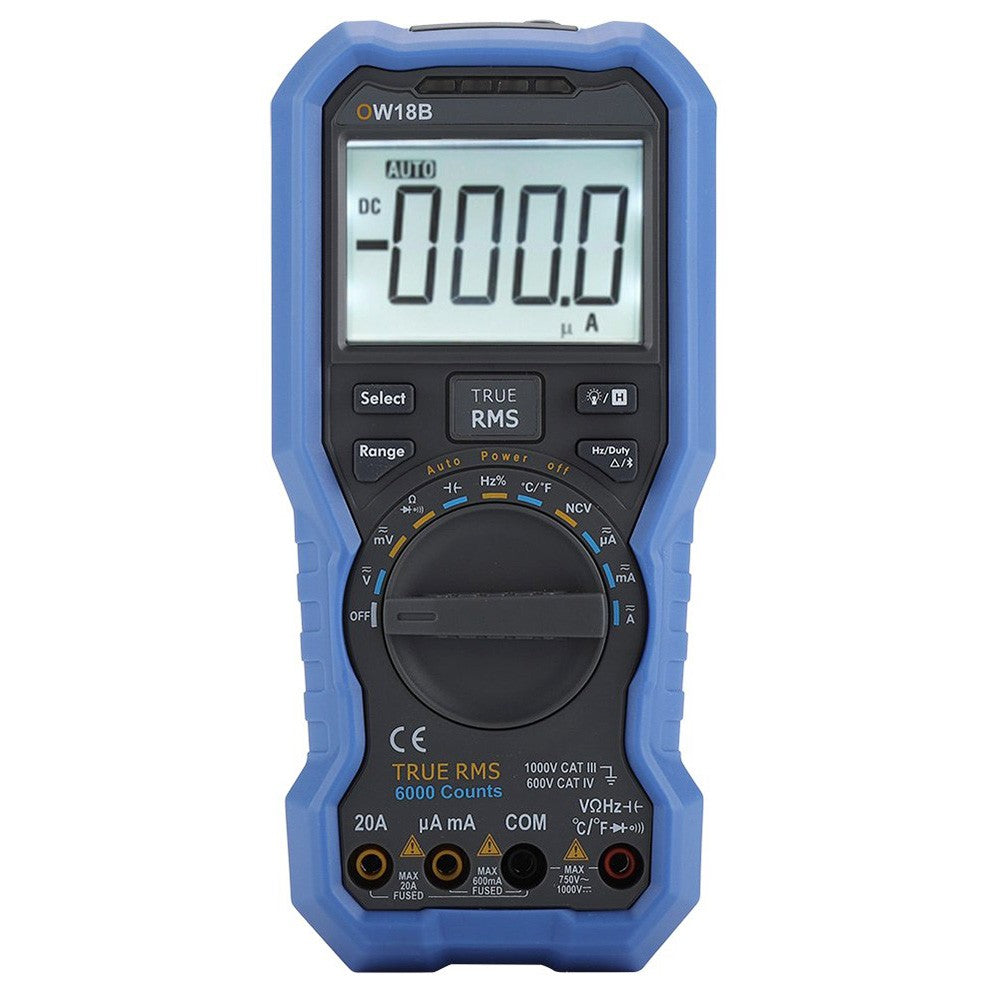

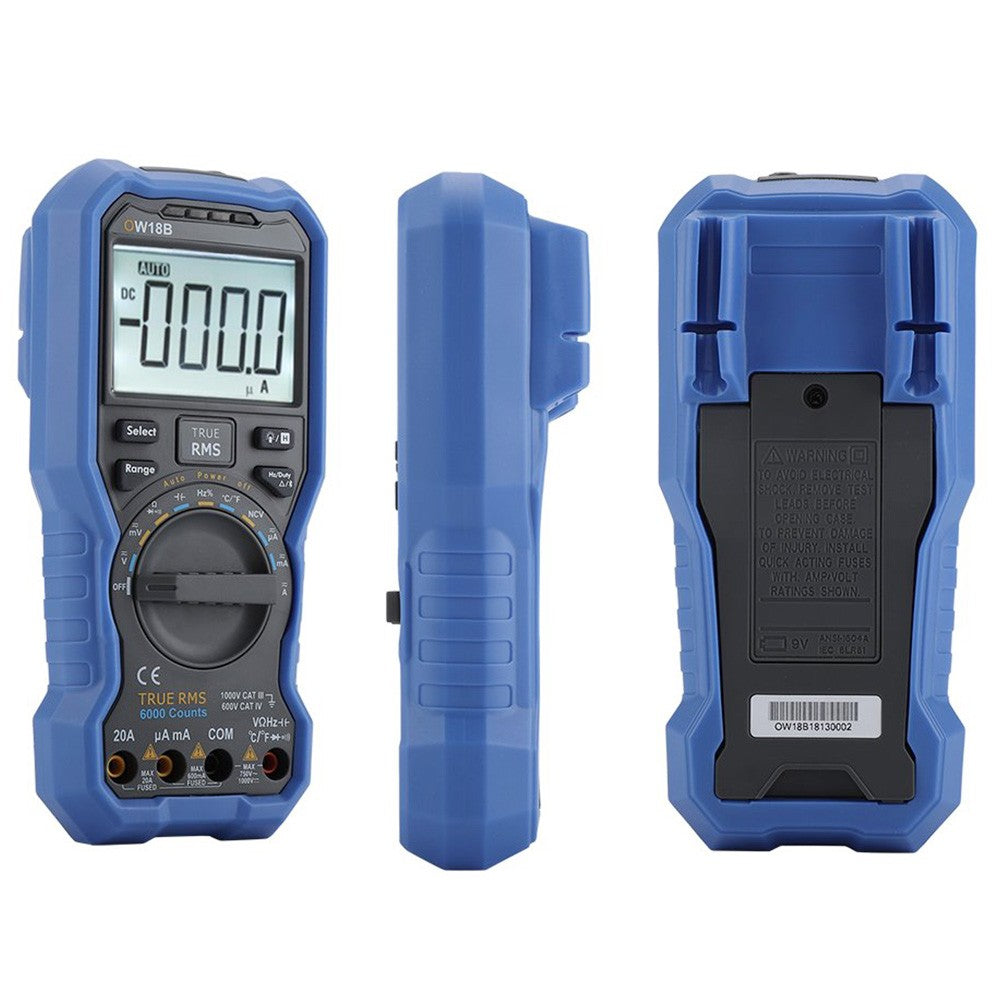

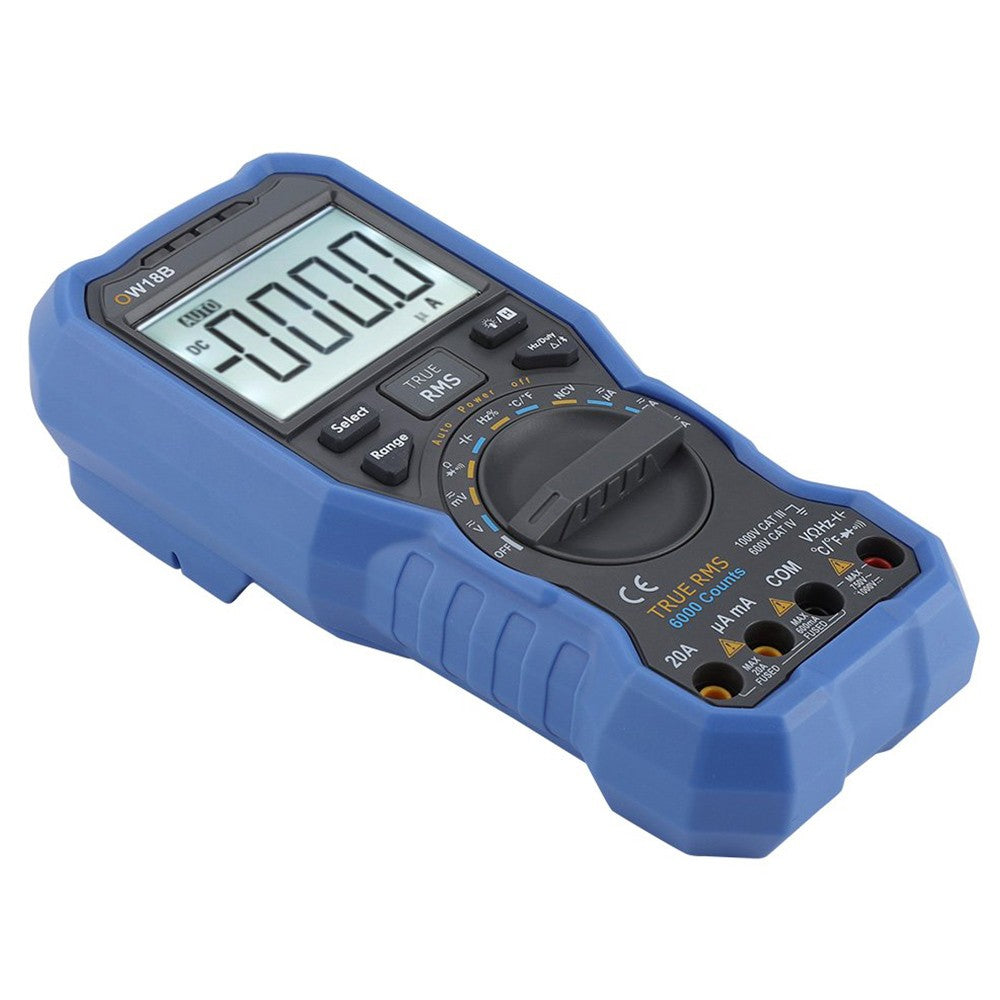

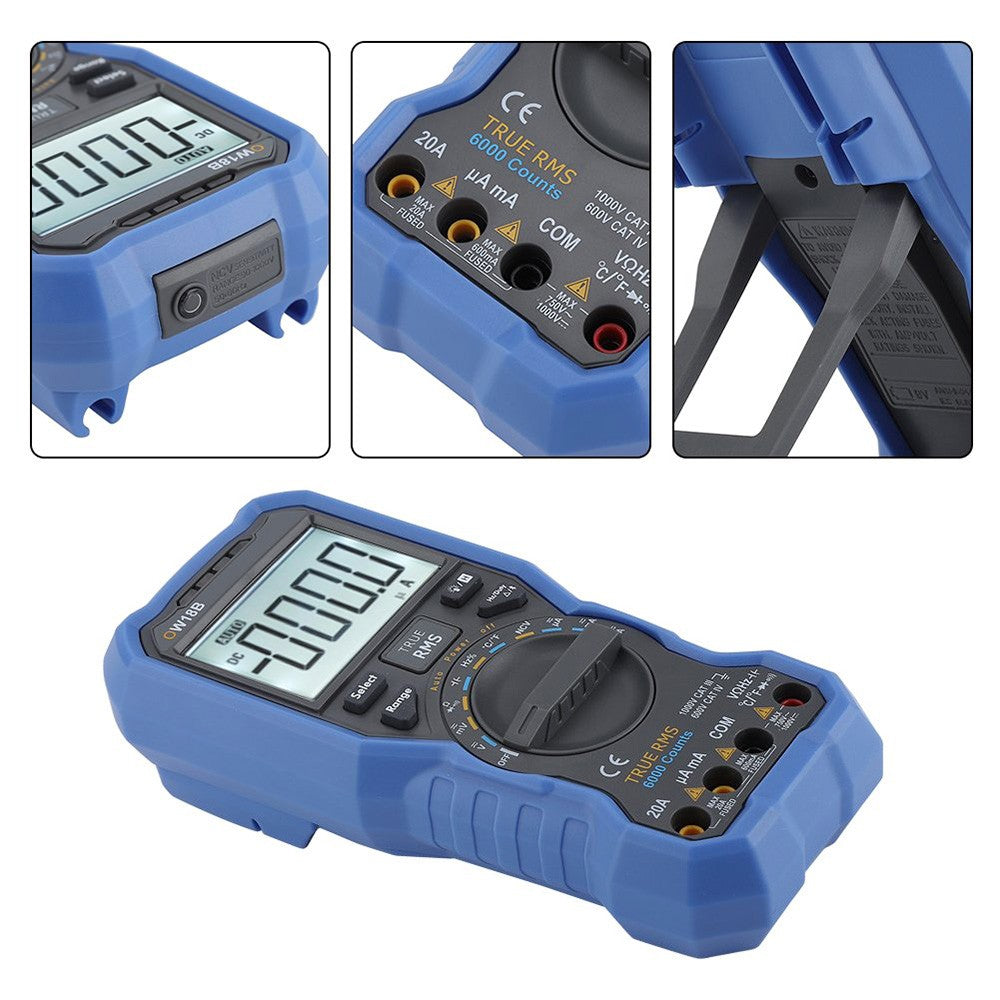

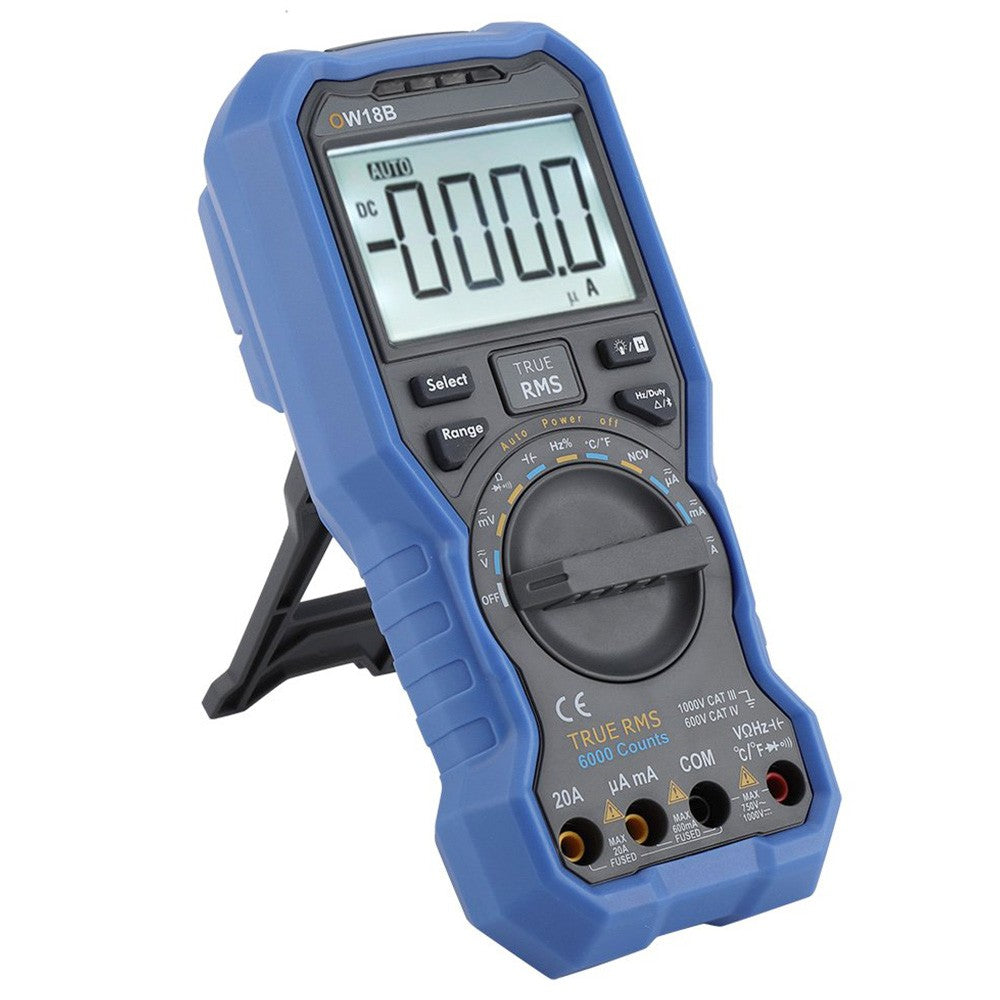

OWON OW18B Bluetooth Multimeter

OWON OW18B highlights

Multifunctional Bluetooth Multimeter

OWON OW18B is not only a multimeter but also can be used as a thermometer and data logger. The real-time data are upgraded and recorded to end-user devices, no need to be in the field. Users can define the record time and sampling gap, data can be shown as chart and diagram, and multi-device connection supports data comparison.

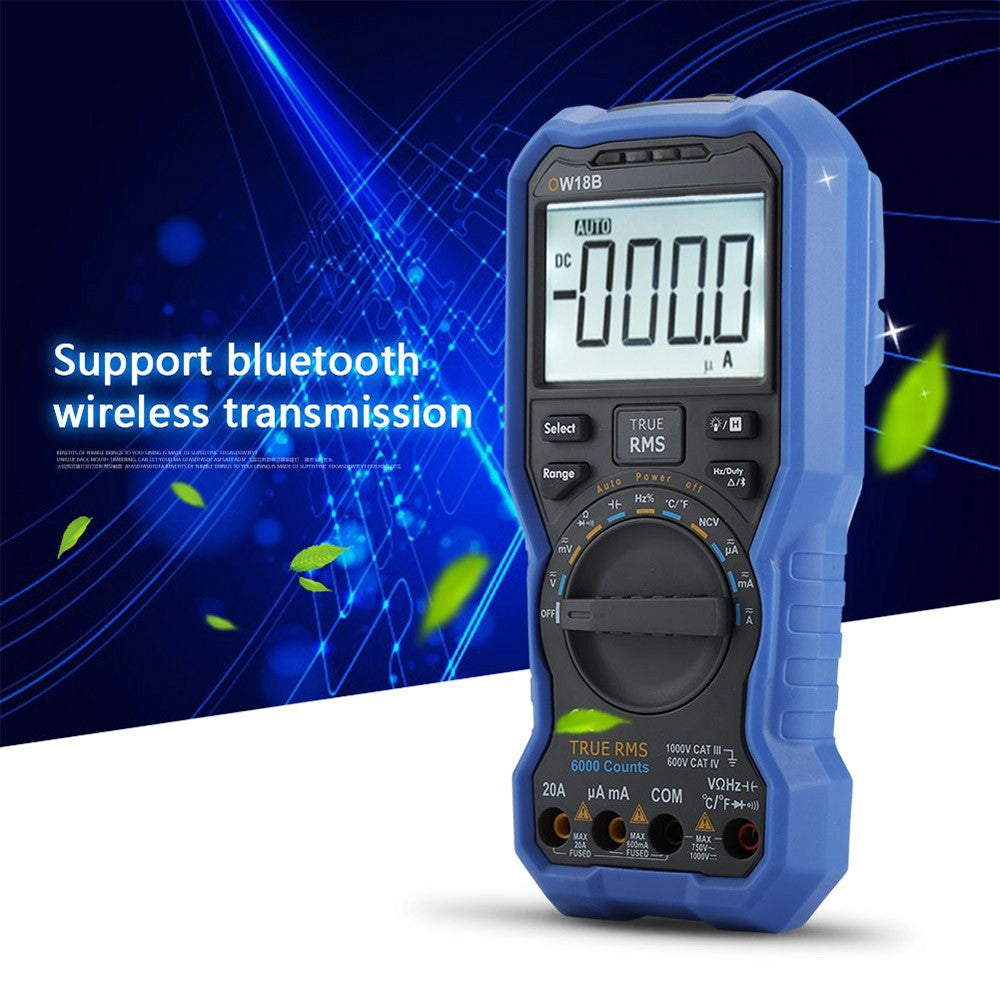

Bluetooth 4.0 Wireless Transmission

This multimeter supports multi-device connection and single-display monitoring, the test object is totally isolated by the user to secure their life.

NCV Non-Contact Voltage Sense

While getting the non-contact voltage sensor close to the conductor, the instrument will beeps and flash with the frequency according to AC voltage strength.

Offline Record Function

No need to put the end device in the field, the multimeter will save the data in its memory. Use the smartphone to load the data when connected.

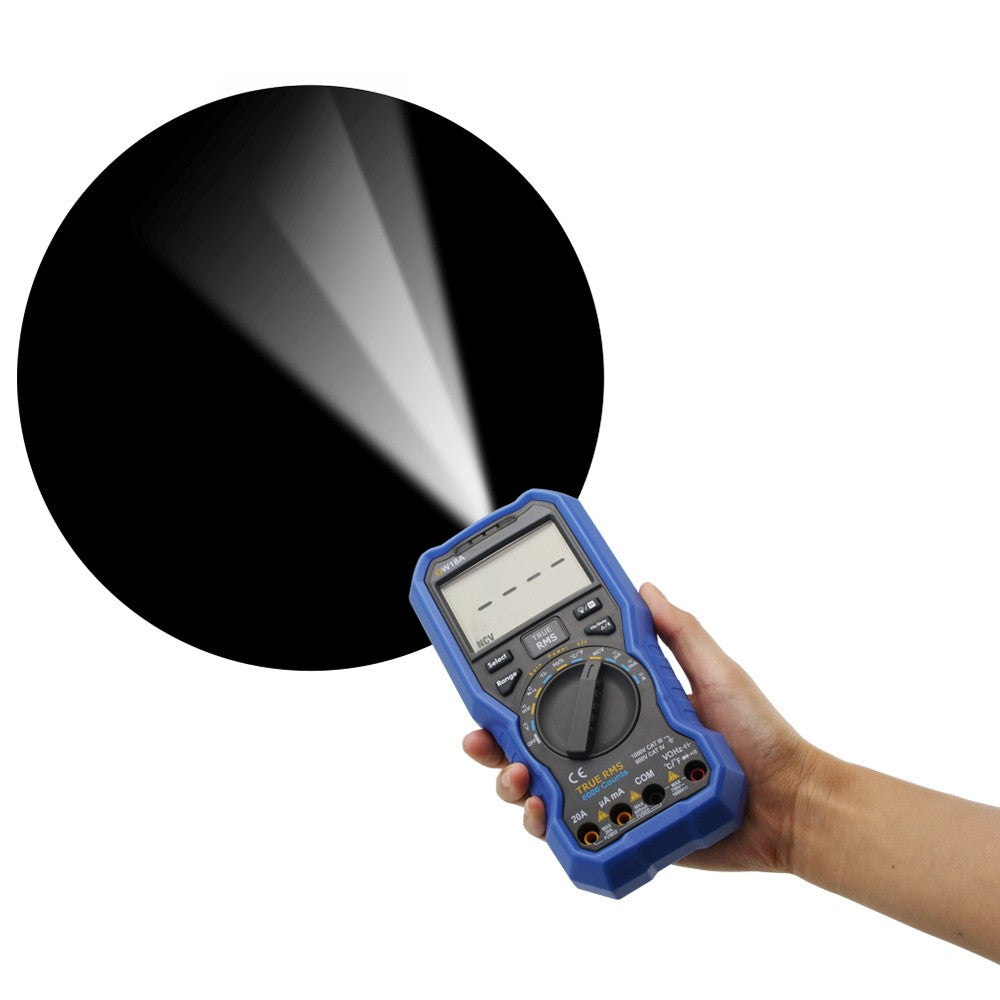

Large Display with Flashlight

It is equipped with a large display screen and a high-brightness flashlight, which can implement the test in darkness.



General
Brand	OWON
Type	Bluetooth Multimeter
Model	OW18B
Color	Blue
Specification
DC Voltage: 60.00mV - 1000V
AC Voltage: 600.0mV - 750V
DC Current: 600.0uA - 20.00A
AC Current: 600.0uA - 20.00A
Resistance: 600.0Ω - 60.00MΩ
Capacitance: 60.00nF - 60.00mF
Frequency: 9.999Hz - 9.999MHz
Duty Ratio: 0.1% - 99.9% (typical value: Vrms=1V, f=1kHz); 0.1% - 99.9% (≥1kHz)
Temperature: - 50 - 400 Celsius/-58 - 752 Fahrenheit
Display: 5999
Frequency Response: (40 - 1000)Hz
Shift Rate: 3 times/s
Bluetooth Module: Yes
True RMS: Yes
Diode Test: Yes
Auto Power-off: Yes
On-off Warning: Yes
Low-battery Indicator: Yes
Data Hold: Yes
Relative Measurement: Yes
Flashlight: Yes
Auto Ranging: Yes
LCD Backlight: Yes
Automatic-manual Range Selection: Yes
Input Protection: Yes
Input Impedance: ≥10MΩ
Safety Compliance: CATⅣ600V, CATⅢ1000V
NCV: Yes
Weight & Size
Product Weight	0.30kg
Package Weight	0.66kg
Product Size(L x W x H)	190x90x56mm
Package Size(L x W x H)	220x162x85mm

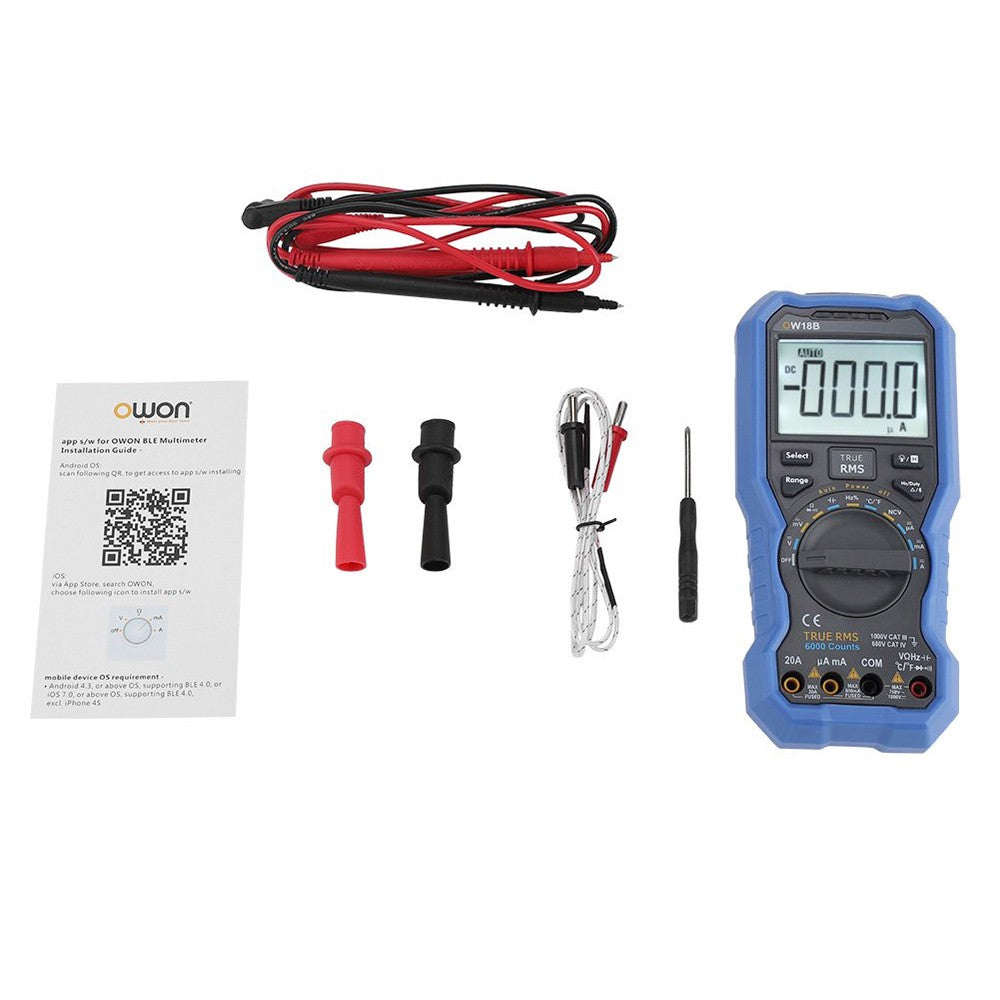

Package Contents

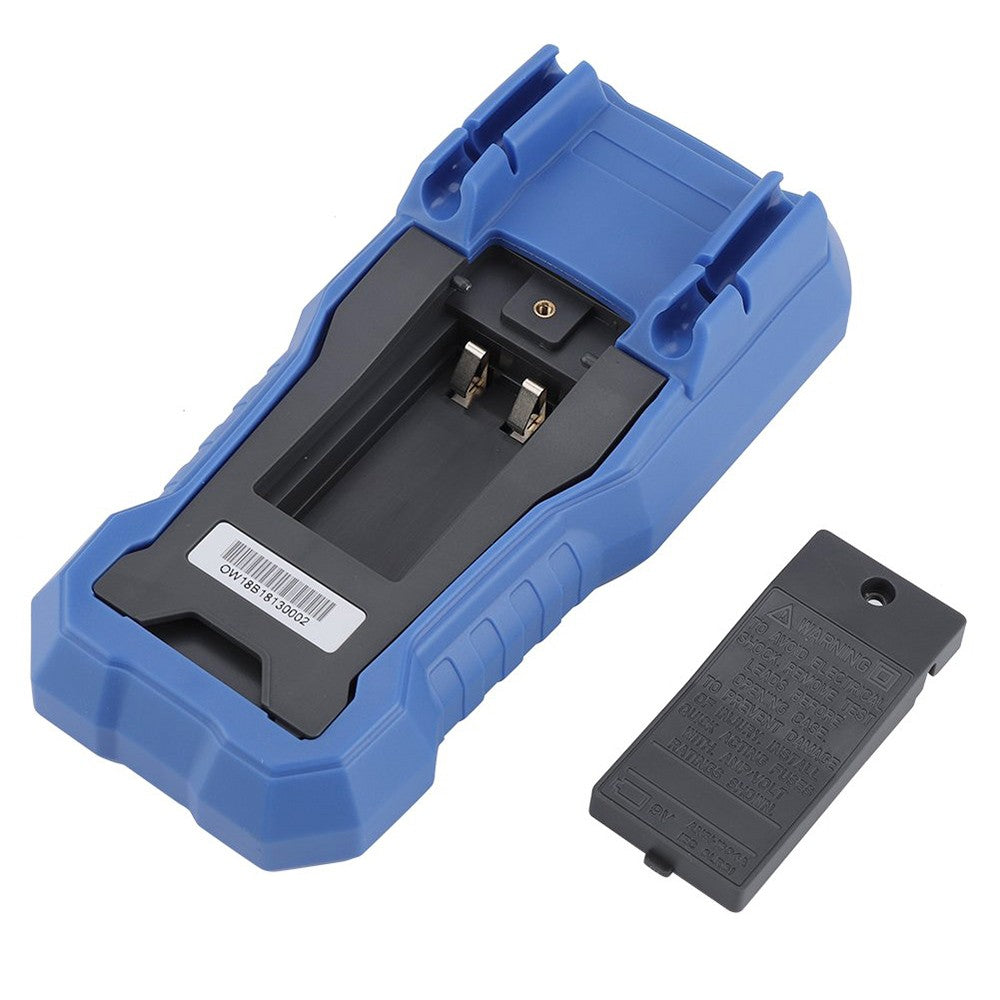

1 x Multimeter (9V Battery Not Included)
1 x K-Type Thermocouple
2 x Alligator Clip
1 x Multimeter Lead
1 x Bolt Driver
1 x User Manual
