OWON XDM1241 Digital Multimeter

OWON XDM1241 highlights

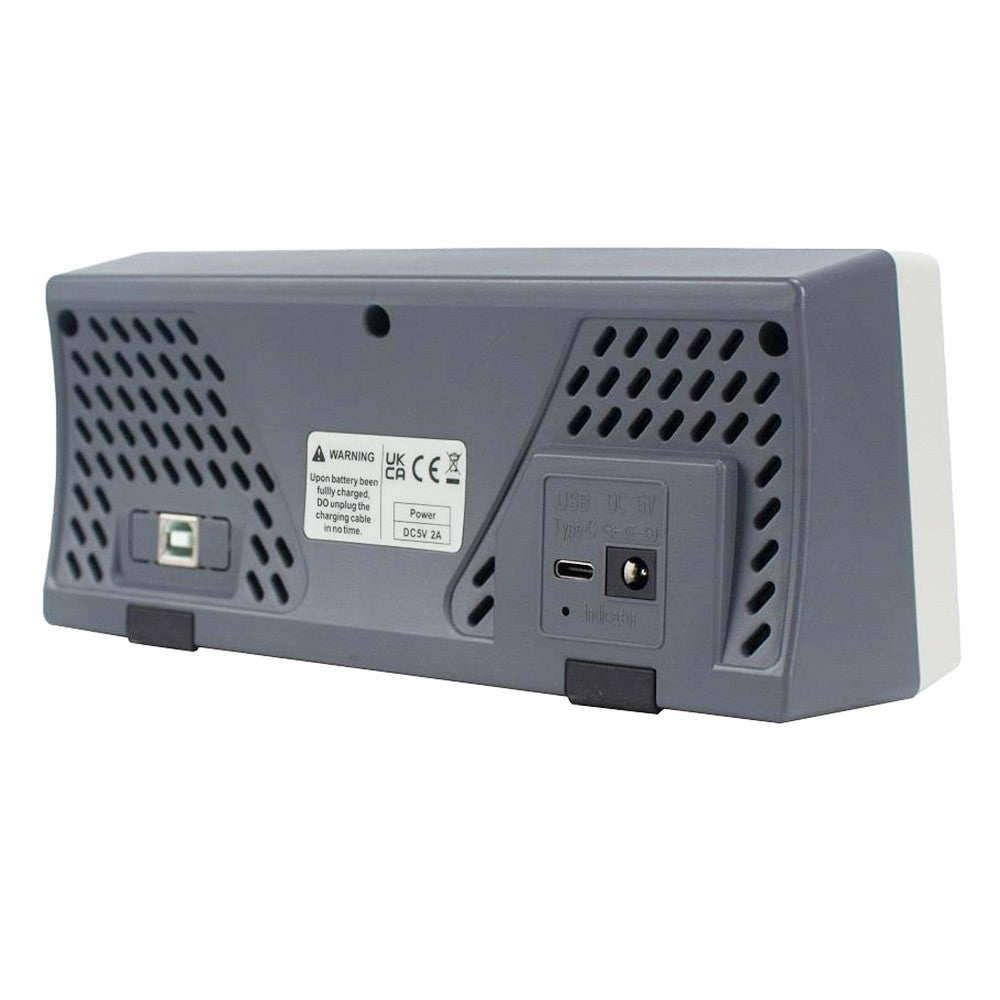

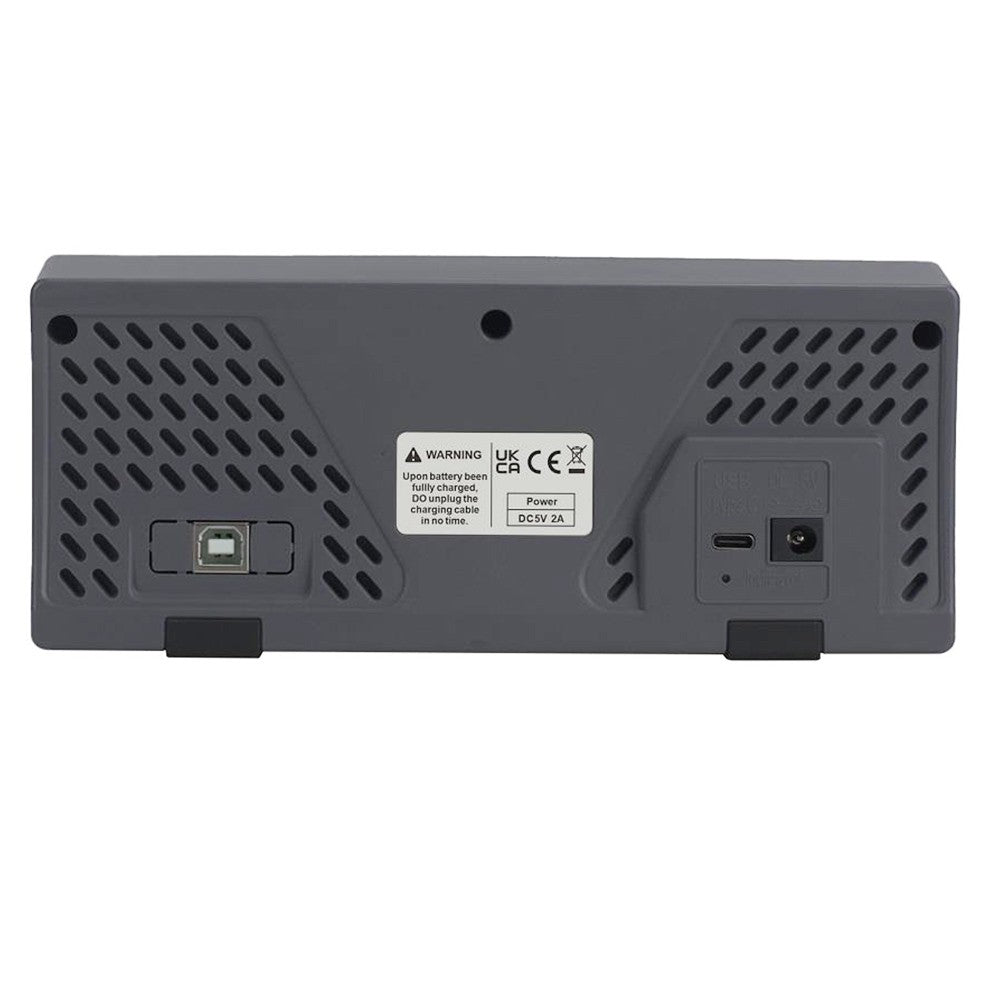

The Owon XDM1241 is a benchtop-style high-precision multimeter with a True RMS function to measure the AC voltage and current. With a reading speed of up to 65 values per second, the XDM1241 multimeter is able to store data internally and display it on the 3.5" high-resolution LCD display instantly. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI.

Data Record Function
Features manual record and auto record, and both records share a table of data stored in internal storage. The maximum number of recorded points is 1000. After collecting the data, it can be exported to your computer, and you can read and process the recorded data with the computer. The trend analysis is accessible in chart mode and supports SCPI.

3.5-inch TFT LCD Screen, 55000 Counts

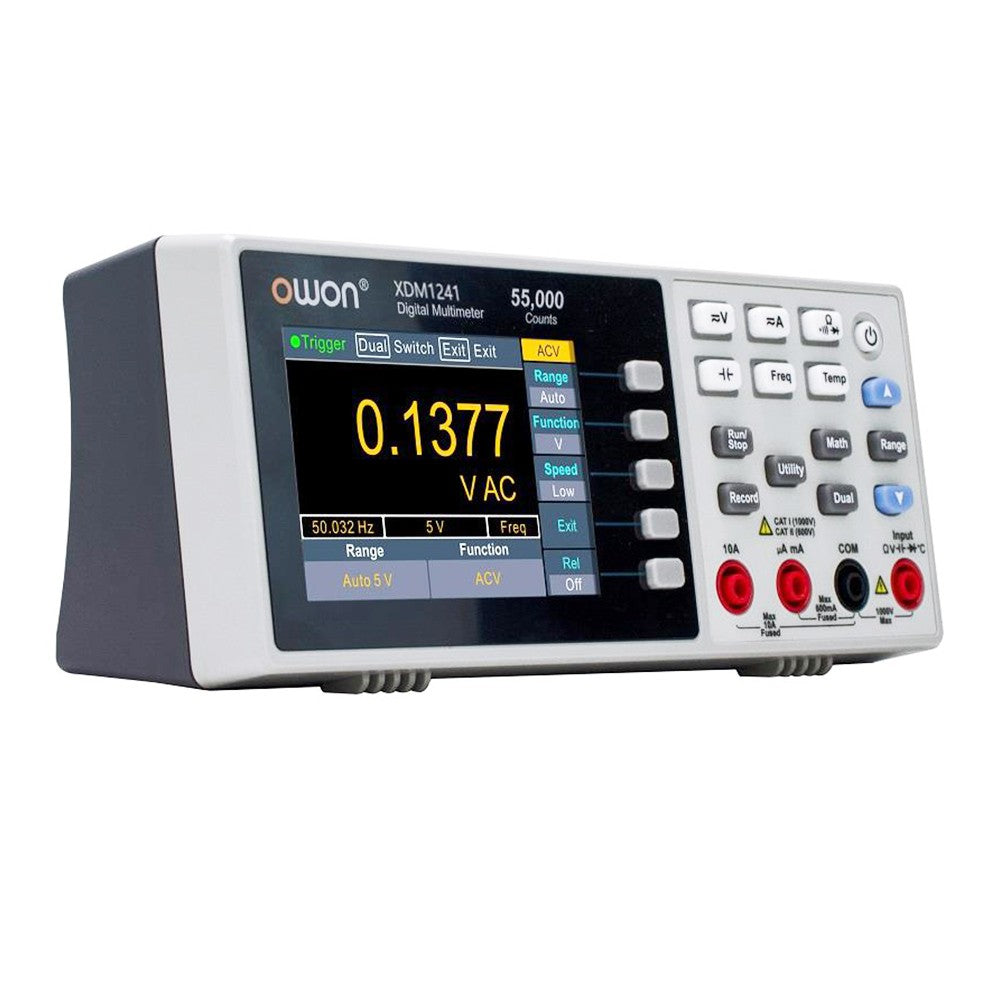

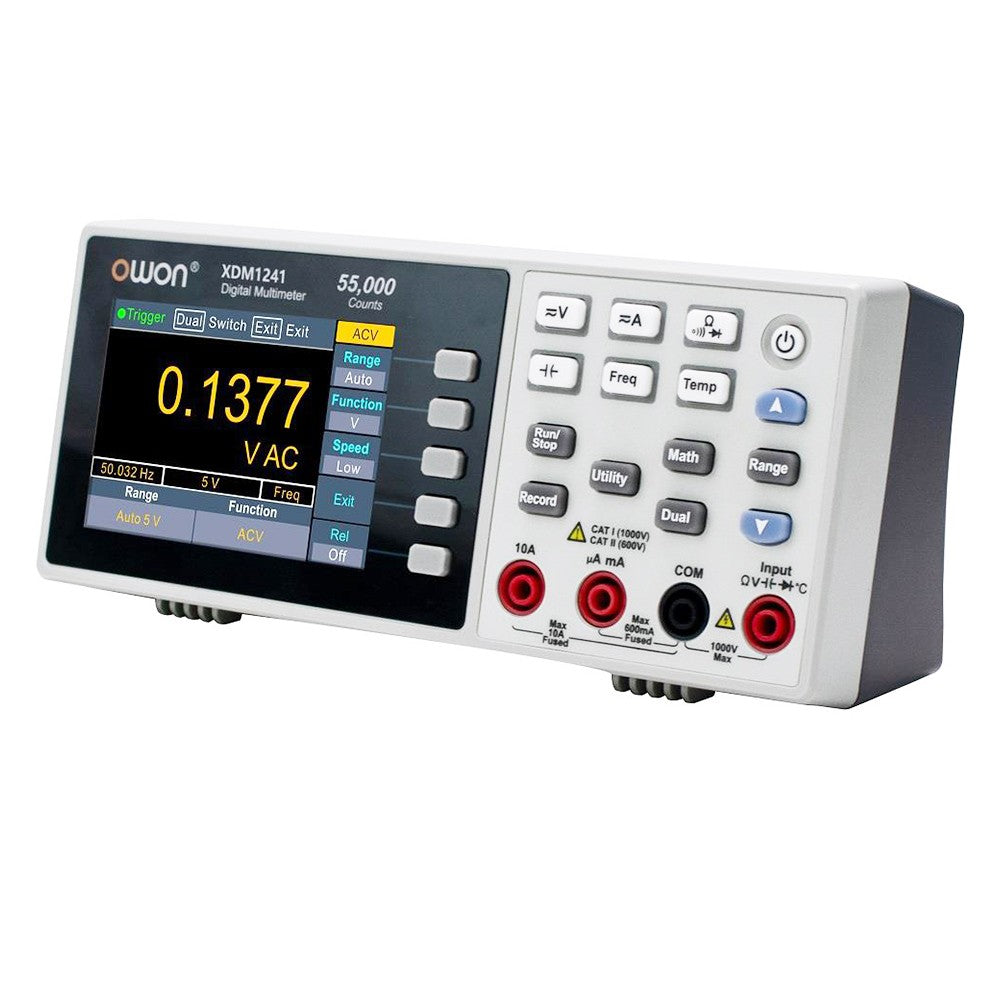

OWON XDM1241 digital multimeter is designed with a 3.5-inch 480x320 high-resolution TFT LCD screen with backlight, it has 55000 counts, DC voltage accuracy up to 0.05%, and dual-line display supported, providing a clear and precise display.

Multi-Function
With diode testing, continuity, temperature, and other functions, this digital multimeter can test AC / DC current, voltage, resistance, capacitance, etc.

Widely Use
The true RMS multimeter is made of high-quality ABS material, perfect for instruments and laboratories, factories, radio enthusiasts, and families.

General
Brand	OWON
Type	Digital Multimeter
Model	XDM1241
Color	White + Grey
Specification
Battery	Lithium battery (included)
Display	3.5-inch TFT LCD (480*320 resolution)
Max. Display	55000 counts
DC Voltage	50mV - 1000V
AC Voltage	500mV - 750V
DC Current	500μA - 10A
AC Current	500μA - 10A
Resistance	500Ω - 50MΩ
Frequency	10Hz - 60MHz
Capacitance	50nF - 50mF
Diode	3V
Continuity	1000Ω
Temperature	K type, PT100 (K-type temperature probe is NOT included.)
Data Logging Duration	15ms - 9999.999s
Data Logging Length	1000 points
Warm-up Time	30 minutes
Programmer Language	Standard SCPI, compatible with commands of mainstream multimeters
Weight & Size
Product Weight	0.45kg
Package Weight	0.85kg
Product Size(L x W x H)	20x8.65x6.4cm
Package Size(L x W x H)	25.5x10.2x17.7cm
Package Contents
1 x Digital Multimeter
1 x Multimeter Lead
1 x Alligator Clip
1 x USB Cable
1 x USB to DC Cord
1 x User Manual
