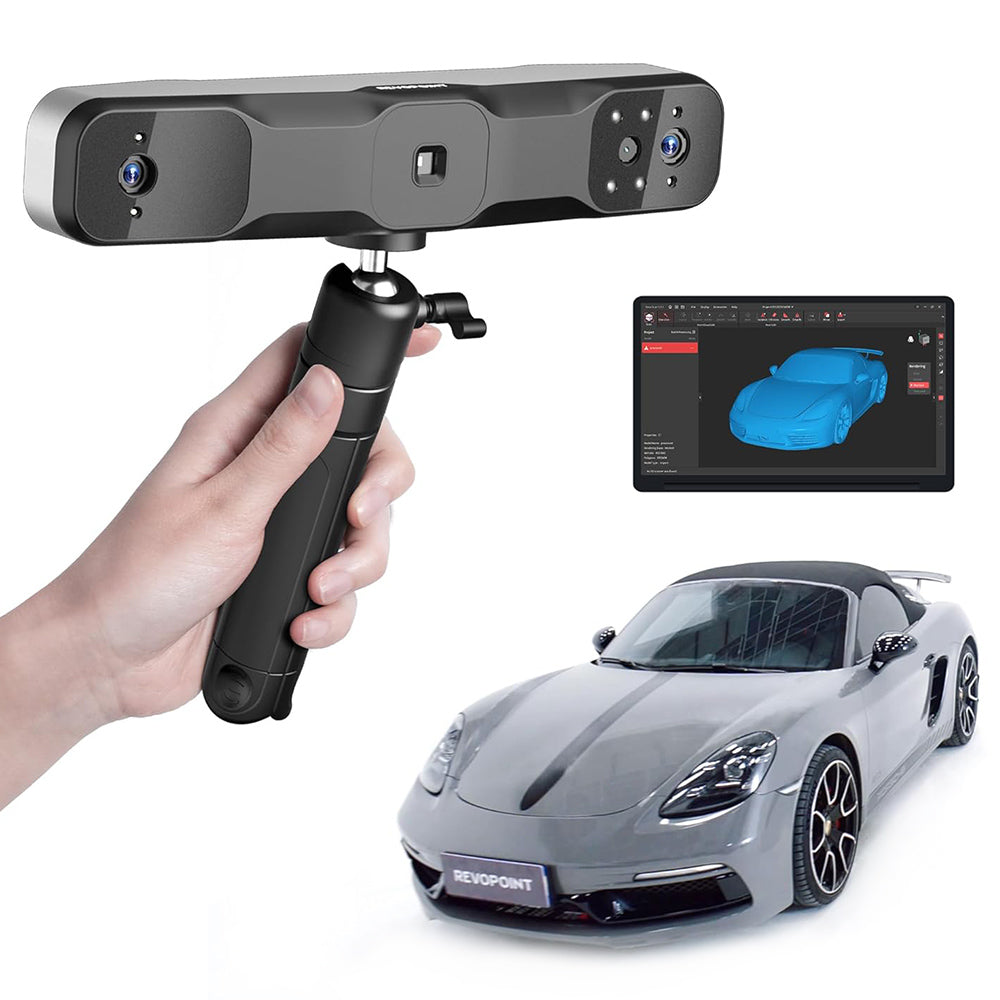

REVOPOINT RANGE 2 3D Scanner

REVOPOINT RANGE 2 highlights

Up to 0.1 mm Precision & IMU Stabilization

Create accurate 3D models of large objects every time with RANGE 2's reliable single-frame precision of up to 0.1 mm. IMU stabilization and smart algorithms help you avoid faulty frames from unsteady hands and provide smoother frame stitching.

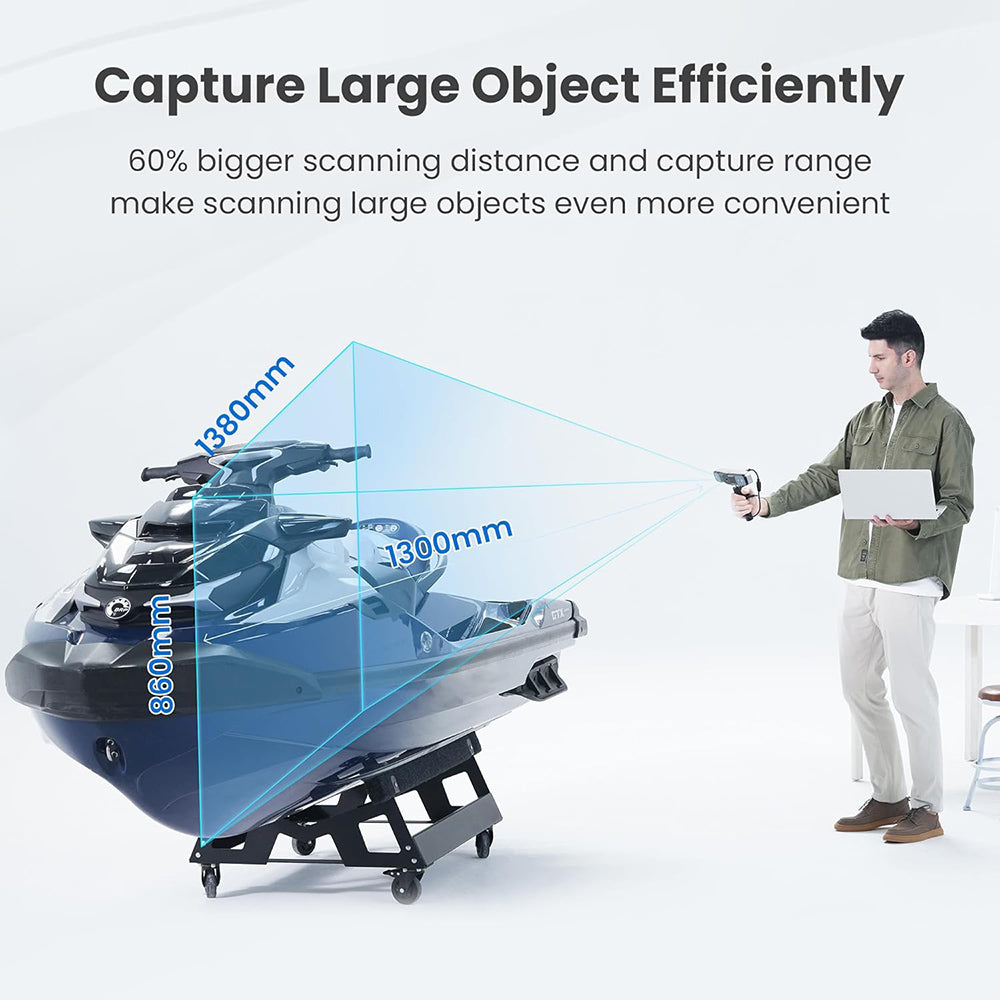

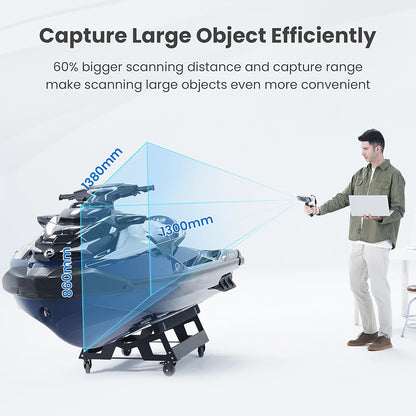

Single Capture Area 860 x 1380mm @ 1300mm

Swiftly 3D scan automobiles, large machinery or components, furniture, and people with RANGE 2's 60% bigger single capture area of 860 x 1380 mm at 1300 mm and scanning distance of 400 mm to 1300 mm.

Impressive RGB Camera & Flash LED

Make color-accurate 3D models with RANGE 2's upgraded RGB camera and new Flash LED lighting system, ensuring evenly lit objects for balanced color capture.

Up to 16fps High-Speed Scanning

Save time and enhance workflow productivity with up to 16 fps scanning speeds and a larger capture area, powering the rapid capture of big objects. Do full body and face scans in under 90 seconds. (Note: RANGE 2 uses eye-safe class 1 infrared light.)

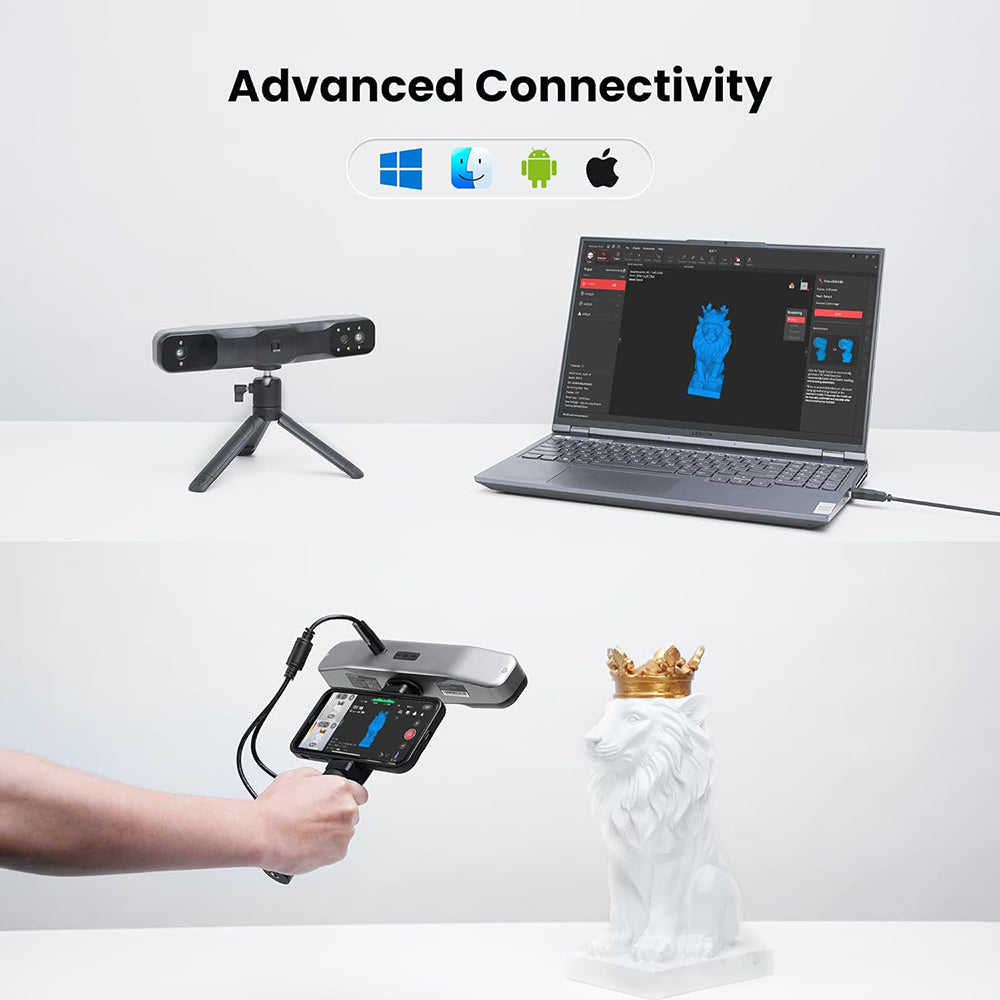

Advanced Connectivity

Ditch the PC and take your RANGE 2 mobile by connecting it over fast Wi-Fi 6 to your smartphone for increased maneuverability when scanning large objects. Alternatively, connect over USB Type-C to a laptop for a bigger screen scanning experience.

User-Friendly Operation

The all-new dual LED indicator system displays the RANGE 2's working status, while the tactile buttons allow for easy control of the scanner and the depth camera's exposure. Capture scans and edit models quickly with the free Revo Scan software (frequently updated to add new features). Its intuitive design and one-click model processing feature make it user-friendly for beginners while providing powerful editing functions for advanced users.

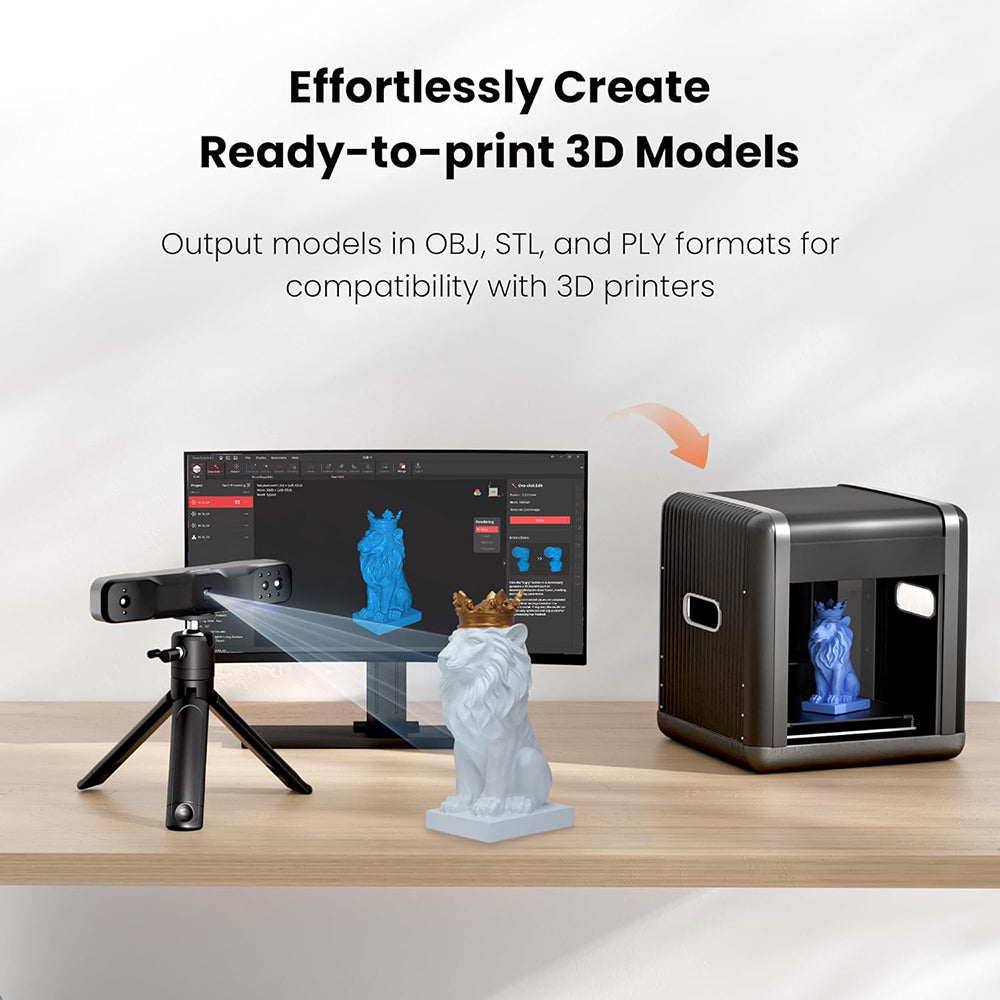

Wide Compatibility

Connect your RANGE 2 to Windows, macOS, Android, and iOS devices—output models in OBJ, STL, and PLY formats for compatibility with 3D modeling software and 3D printers.

General
Brand	Revopoint
Type	3D Scanner
Model	RANGE 2
Color	Black
Specification
Technology: Dual-camera Infrared Structured Light
Single-frame Precision: Up to 0.1 mm
Single-frame Accuracy: Up to 0.3 mm
Single Capture Area at Nearest Distance: 220 x 425 mm at 400 mm
Single Capture Area at Furthest Distance: 860 x 1380 mm at 1300 mm
Working Distance: 400 - 1300 mm
Point Distance: Up to 0.1 mm
Minimum Scan Volume: 50 × 50 × 50 mm
Scanning Speed: Up to 16 fps
Position Sensors: 9-axis IMU
3D Light Source: Class 1 Infrared Light
Tracking Methods: Feature/Marker
PC Requirements (macOS):
RAM: ≥8GB
CPU (or better): M1 Pro/M1 Max/M1 Ultra, M2/M2 Pro/M2 Max/M2 Ultra, M3/M3 Pro/M3 Max
Outdoor Scanning: Yes
Color Scanning: Yes
Ready to Print 3D Models: Yes
Compatible Operating Systems: Window 10/11 (64-bit), Android, iOS, macOS
External Controls: Three buttons for Start/Pause, Exposure +, -

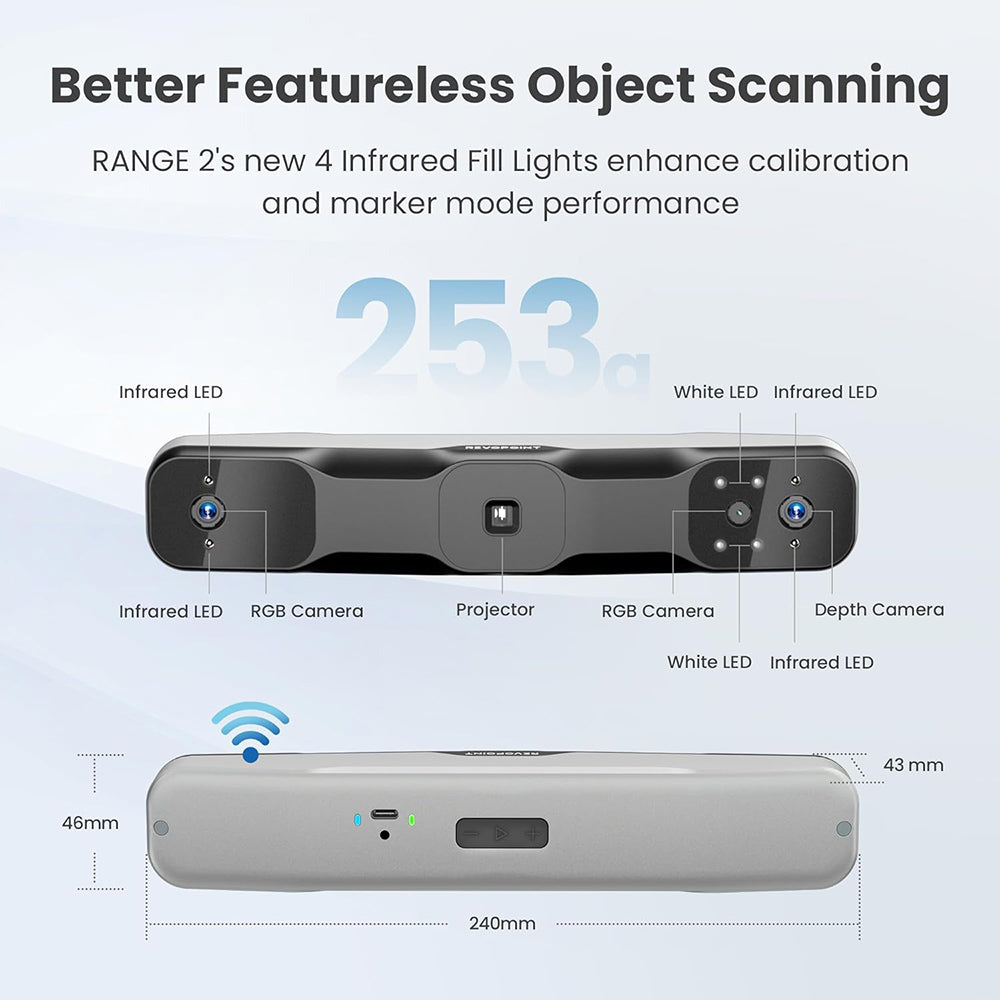

Infrared Fill Lights: Yes
White Flash LEDs: Yes
Output File Formats: PLY, OBJ, and STL
Wi-Fi: Wi-Fi 6
Connector Type: USB Type-C
Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.
PC Requirements (Windows):
RAM: ≥16GB
CPU (or better): i5 12th/13th/14th, i7 12th/13th/14th, i9 all series
Weight & Size
Product Weight	0.253kg
Package Weight	2kg
Package Size(L x W x H)	28.5x24x11cm

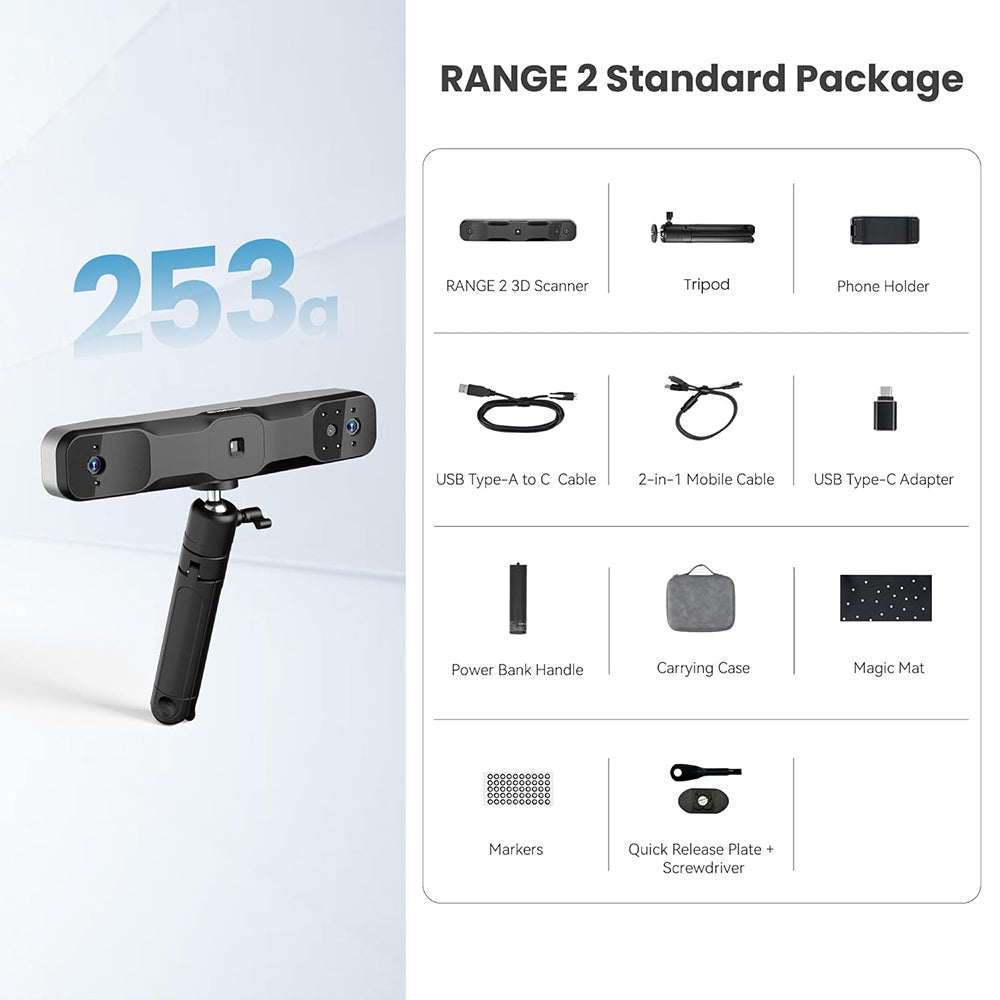

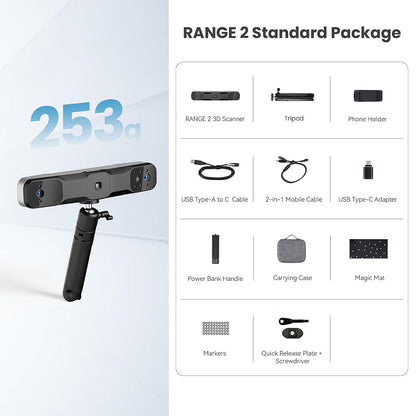

Package Contents
1 x 3D Scanner
1 x Tripod
1 x Phone Holder
1 x USB Type-A to C Cable
1 x 2-in-1 Mobile Cable
1 x USB Type-C Adapter
1 x Carrying Case
1 x Magic Mat
1 x Power Bank Handle
1 x Markers
1 x Quick Release Plate
1 x Screwdriver
